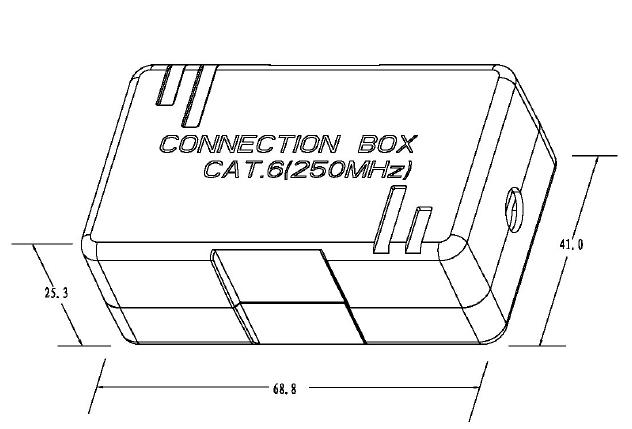

Connecting module Cat.6 250 MHz
Connecting module Cat.6 250MHz with IDC - terminal
Varenummer:
37596.2
EAN nr.:
4049759069421
Produktinformation für Connecting module Cat.6 250MHz with IDC - terminal

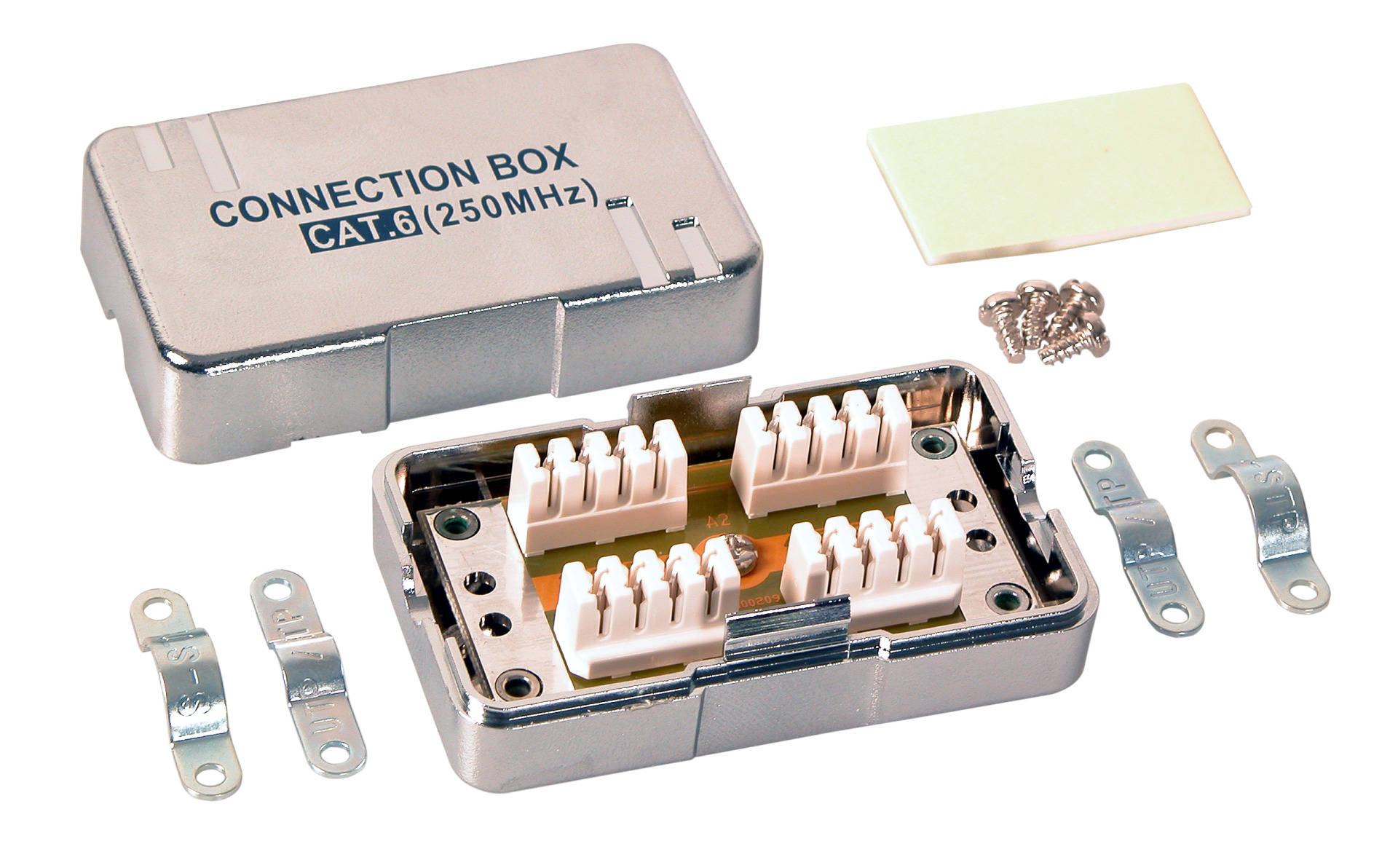

Cat.6 connection module up to 250 MHz with IDC-terminals. The connecting module can be used to extend installation cables or reconnect damaged cables without having to install a complete cable segment.
With adhesive tapes for fixing
Screw-type strain relief
Cable entry up to 7.5 mm
Accessory
Screw-type strain relief (M3x12)
Cable inlet (4 x )
With adhesive tapes for fixing
With adhesive tapes for fixing
Screw-type strain relief
Cable entry up to 7.5 mm
Accessory
Screw-type strain relief (M3x12)
Cable inlet (4 x )
With adhesive tapes for fixing
Tekniske egenskaber
| 360° shield contact: | True |
|---|---|
| AWG-range: | 26 – 22 |
| Category: | 6 |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact resistance: | 20 mΩ |
| Current capacity: | 1,5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | false |
| Housing material: | Plastic |
| Insulation resistance: | 500 MΩ |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Rastverriegelung |
| max. Cable diameter: | 10.0 mm |
