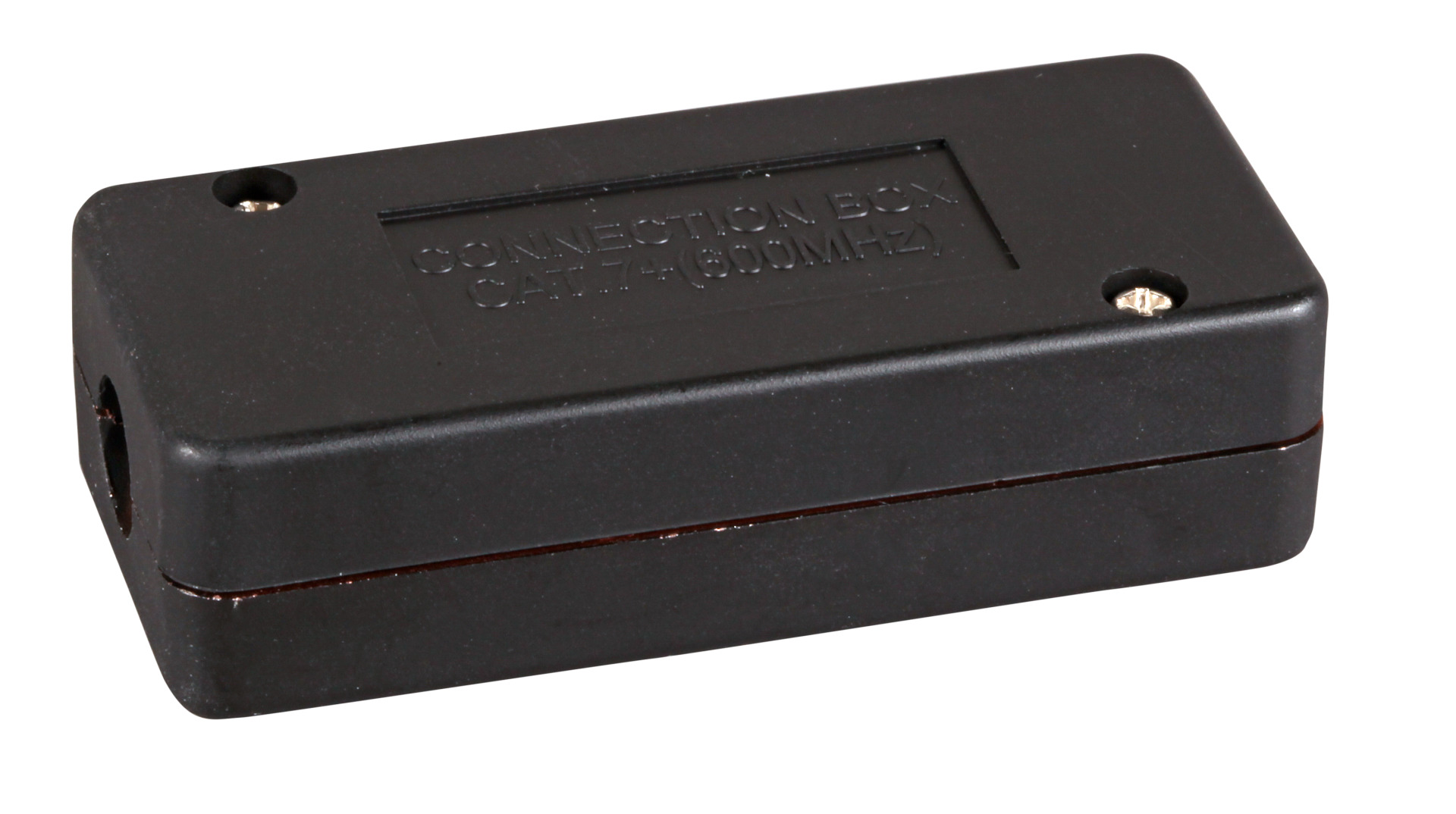

Connecting module Cat.7 600MHz

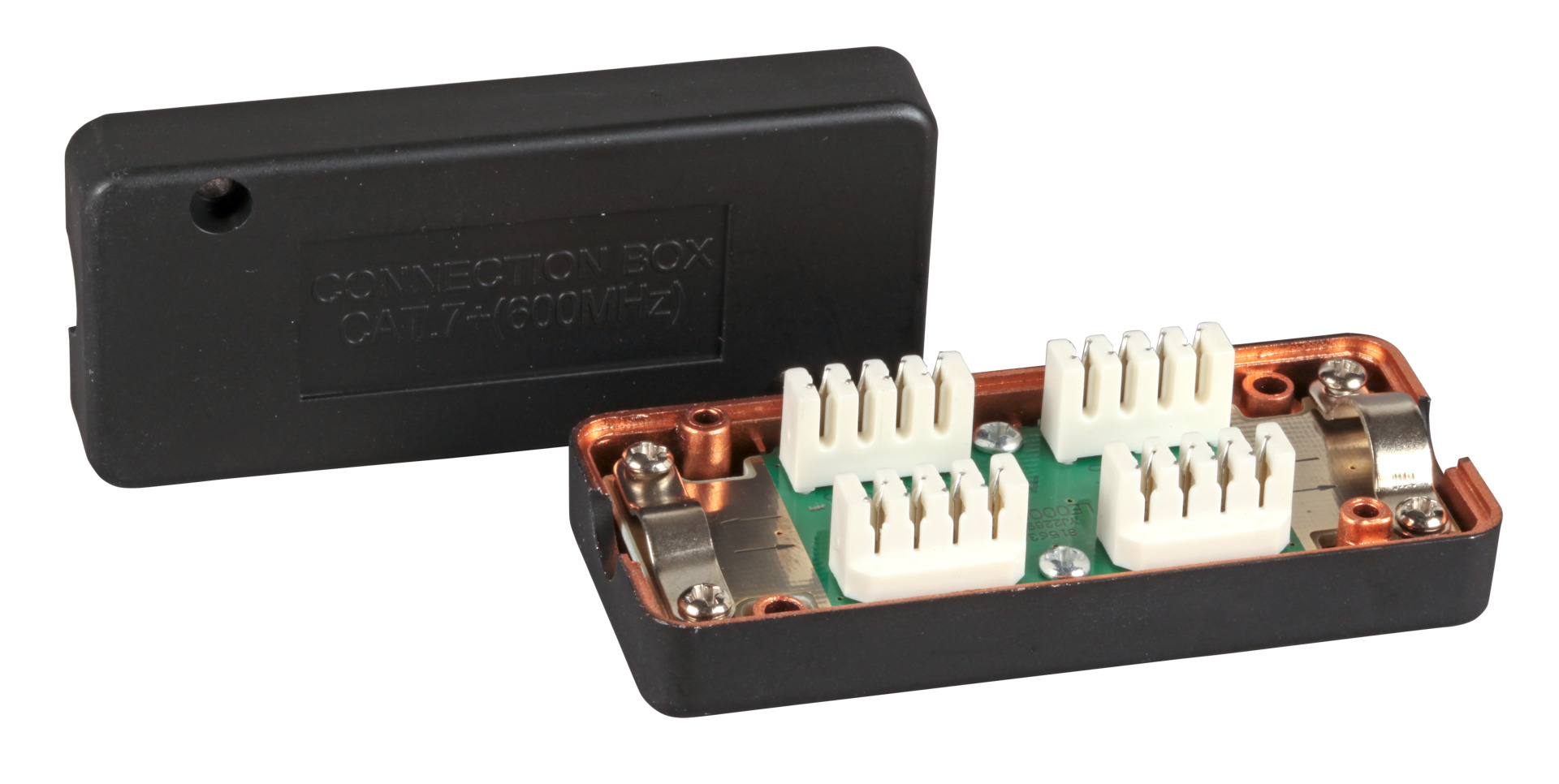

Connecting module Cat.7 600MHz with IDC - terminal
Varenummer:
37596.1
EAN Nr.:
4049759028794
Produktinformation til Connecting module Cat.7 600MHz with IDC - terminal
Cat.7 up to 600 MHz with IDC-terminals. The connection module can be used to extend installation cable or reconnect damaged cables without having to install a complete cable segment. The two cable ends are connected with LSA insulation displacement terminals. All standard 4- or 8-core installation cables from AWG 26-22 can be worked up to a sheath diameter of 10 mm
Housing metallized inside
Accessory
Screw-type strain relief (M3x12)
Cable inlet (4 x )
With adhesive tapes for fixing
Housing metallized inside
Accessory
Screw-type strain relief (M3x12)
Cable inlet (4 x )
With adhesive tapes for fixing
Tekniske egenskaber
| 360° shield contact: | True |
|---|---|
| AWG-range: | 26 – 22 |
| Category: | 7 |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 20 mΩ |
| Current Rating: | 1,5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | false |
| Halogen Free: | False |
| Housing material: | Plastic |
| Insulation Resistance: | 500 MΩ |
| Max. cable diameter: | 10.0 mm |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | False |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of locking: | Rastverriegelung |
