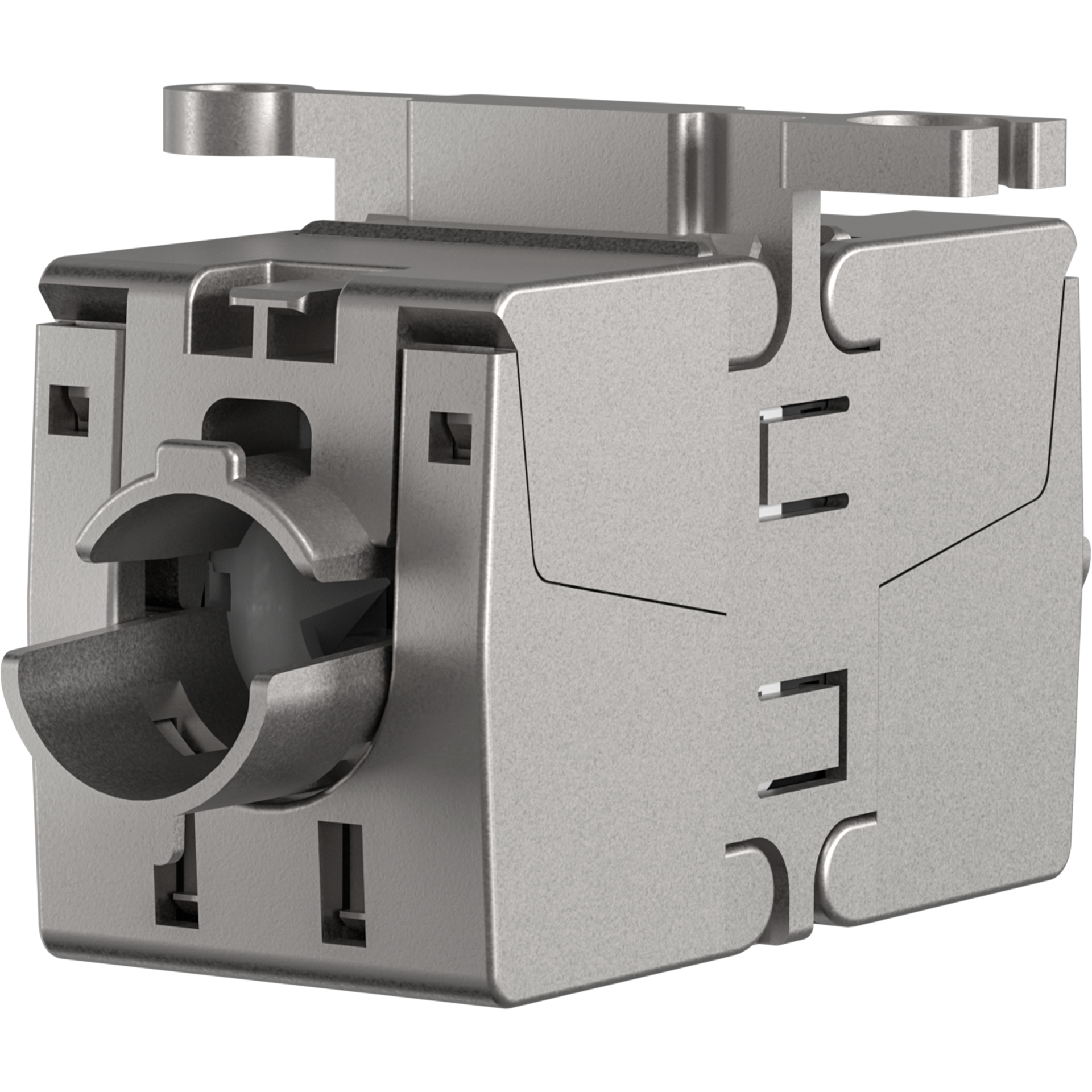

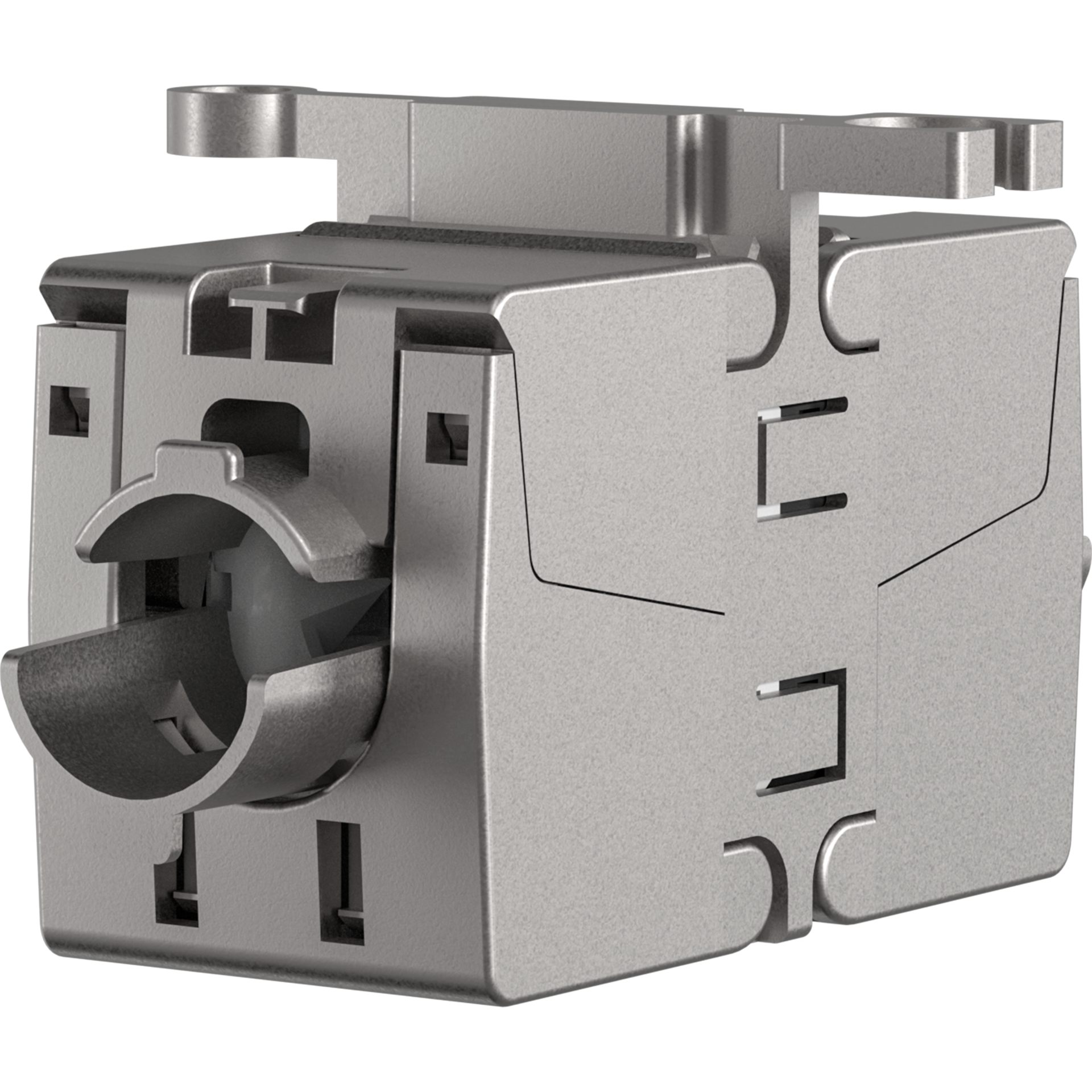

Connection module Cat.6A / Class EA 10Gbit/s
Connection module Cat.6A / Class EA 10Gbit/s
Varenummer:
37597.1
EAN Nr.:
4049759137014
Produktinformation til Connection module Cat.6A / Class EA 10Gbit/s
The Class EA connection module provides high perfomance for 10 Gbit/s at small required space, combined with easy assembling without the need of special tools. Universal possibilities of mounting through screwing, linking. Optional 19“ panel of up to 24 x modules provides multiple field of applications:
Connection of installation cable, e.g. in canals or ducts.

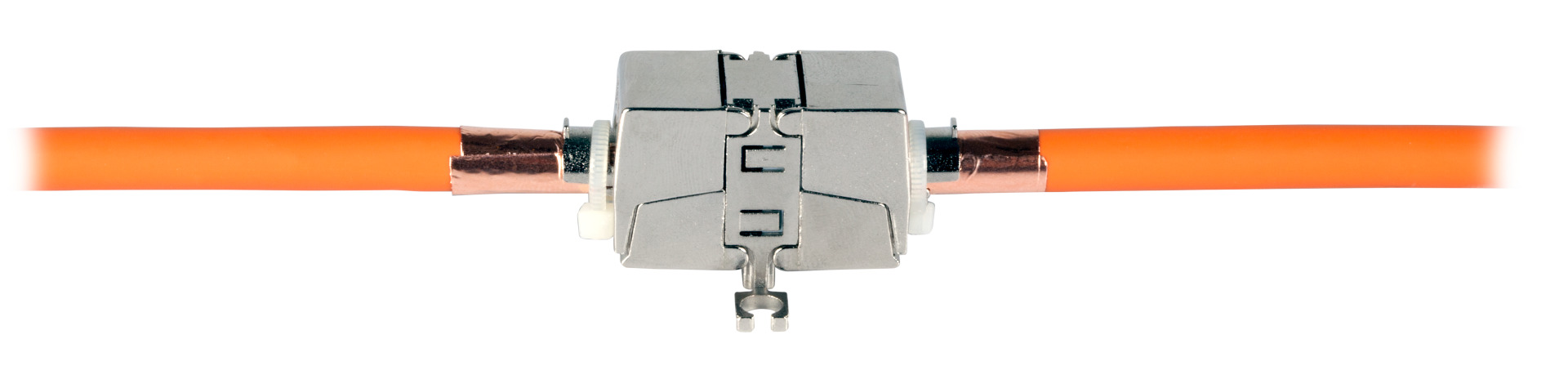

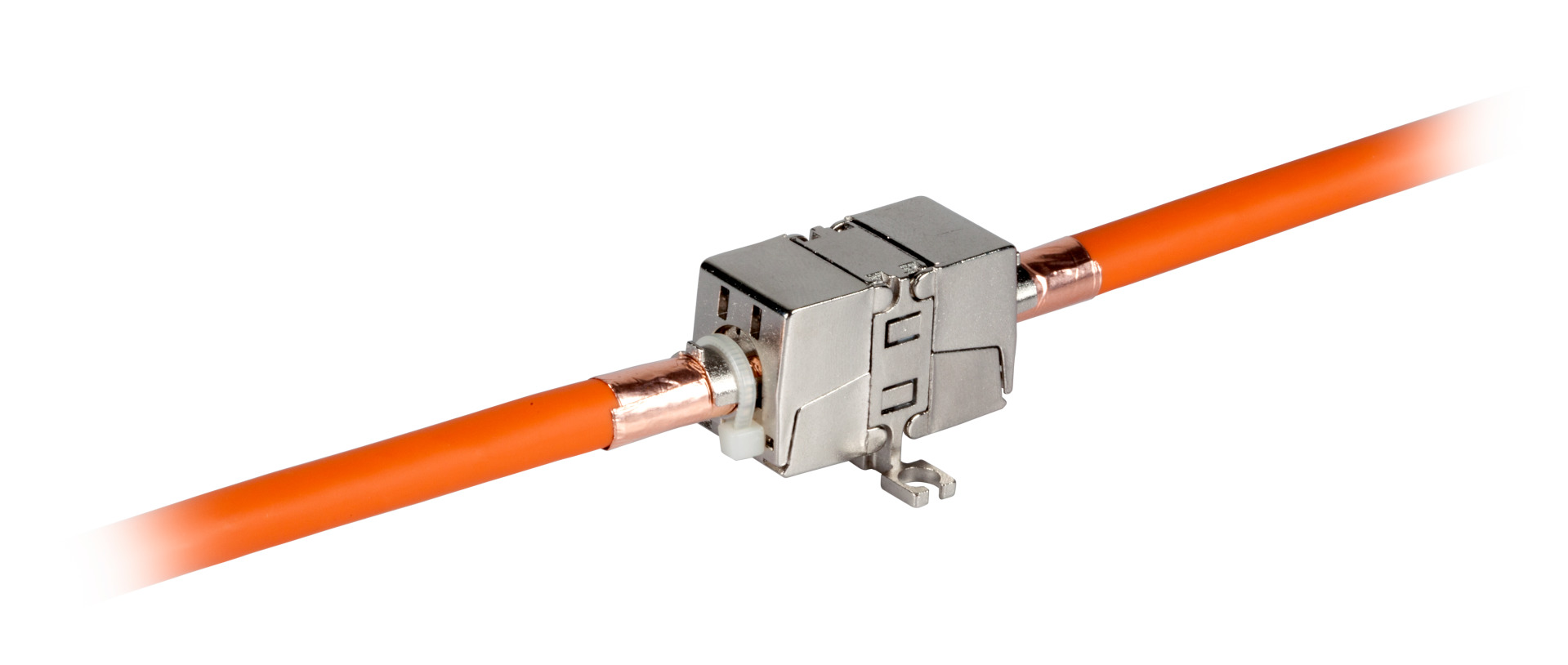

Connection of installation cable with patch cable for end-to-end links or consolidation point applications.
Features:

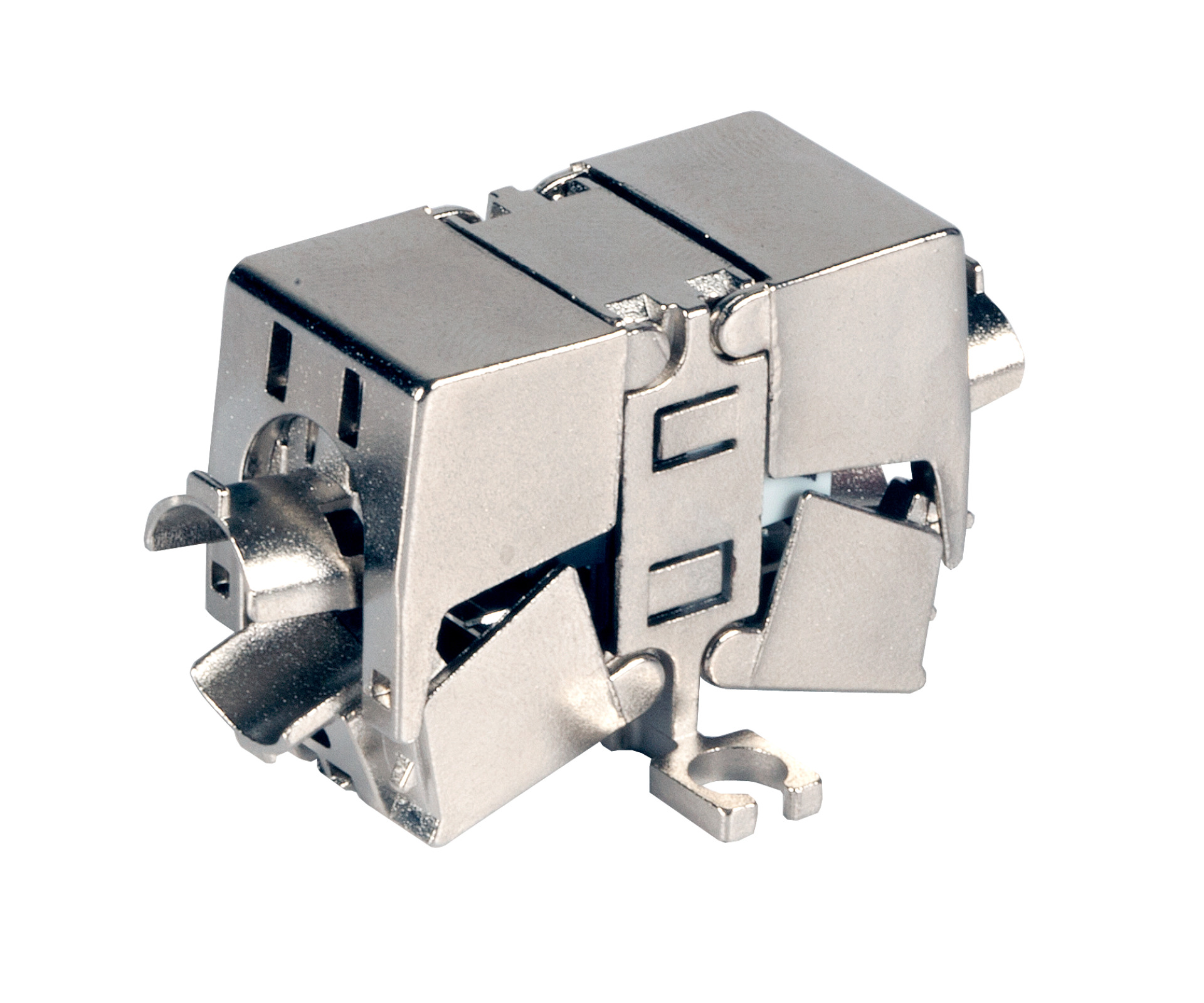

Fully shielded zinc diecast bodyhousing
Dimension (W x H x L) 18 x 26 x 39 mm
Link performance 10 Gbit/s Class EA acc. to ISO 11801

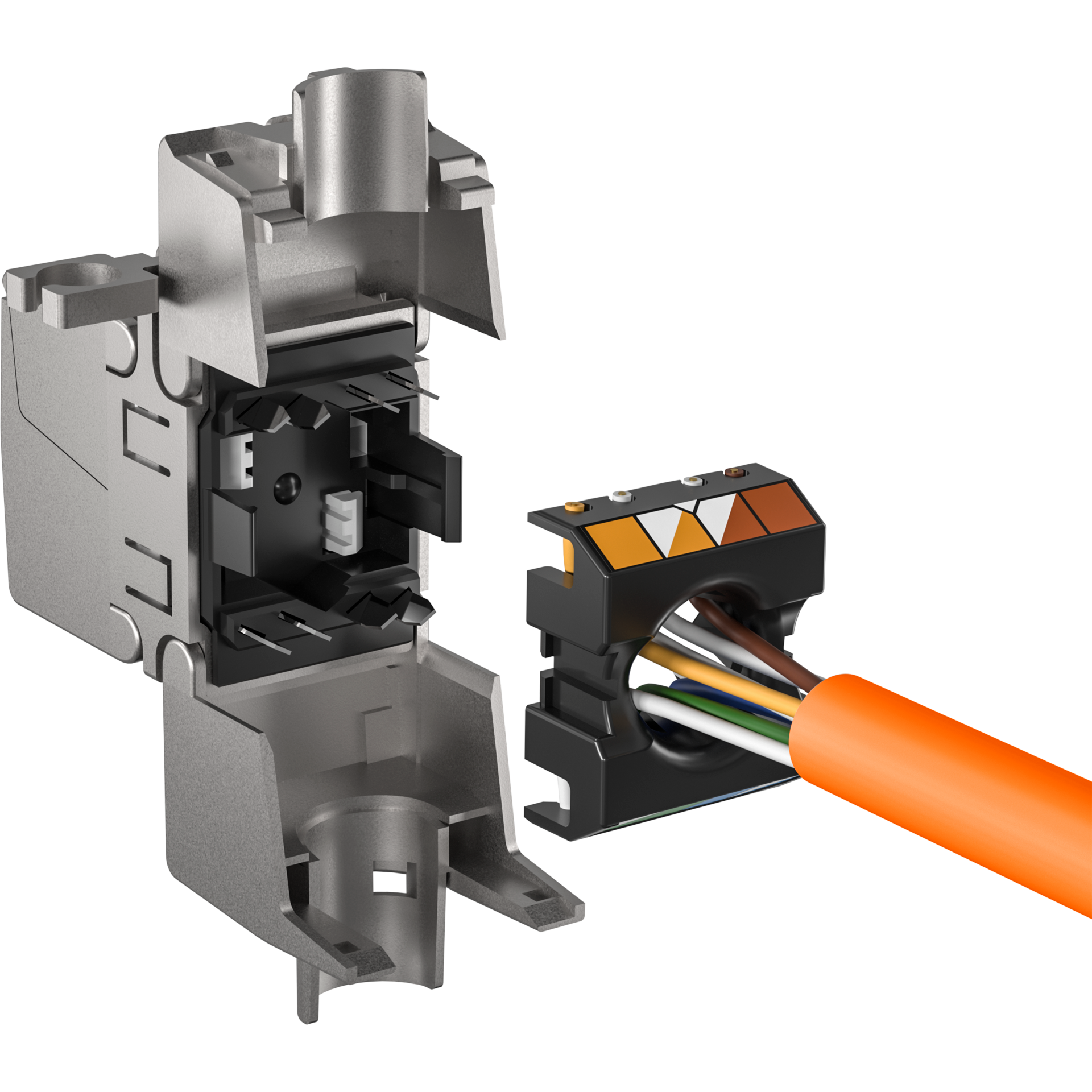

2 x compact cable manager for AWG26/1..AWG22/1 and AWG26/7..AWG24/7
Max. cable diameter: 8,5mm
Pair management with colour code, printed on cable manager
Reliable differentiation of cable managers by mechanical and colour assignment (plastic black / white) on the cable coupler and on cable managers
PoE and PoE Plus according to IEEE802.3af/at
360° shield contact and strain relief independent from each other
Gliding stored shield contact
Screw- and line-up through loops at the side of the module
19” panel for holding of 24 x modules available as accessory

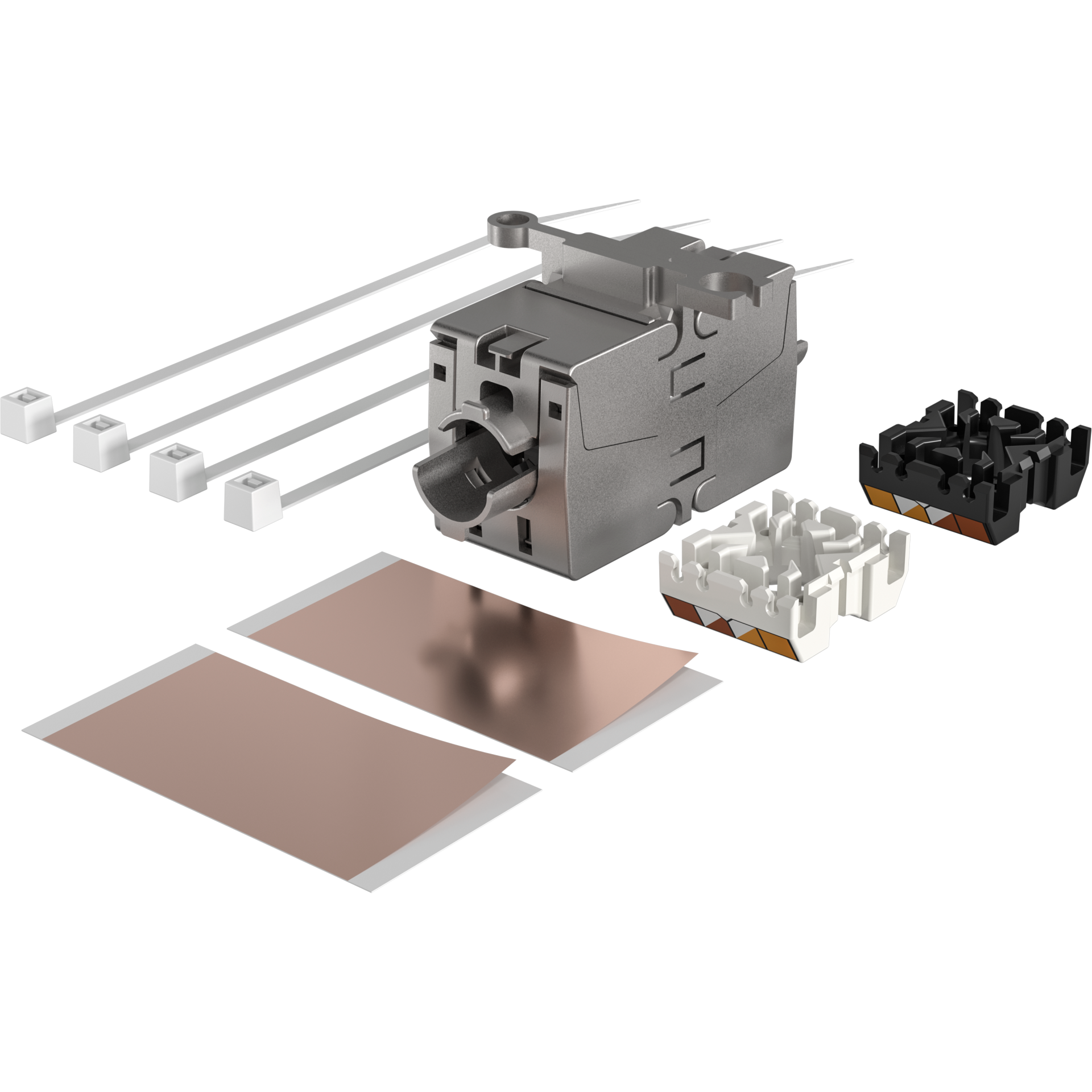

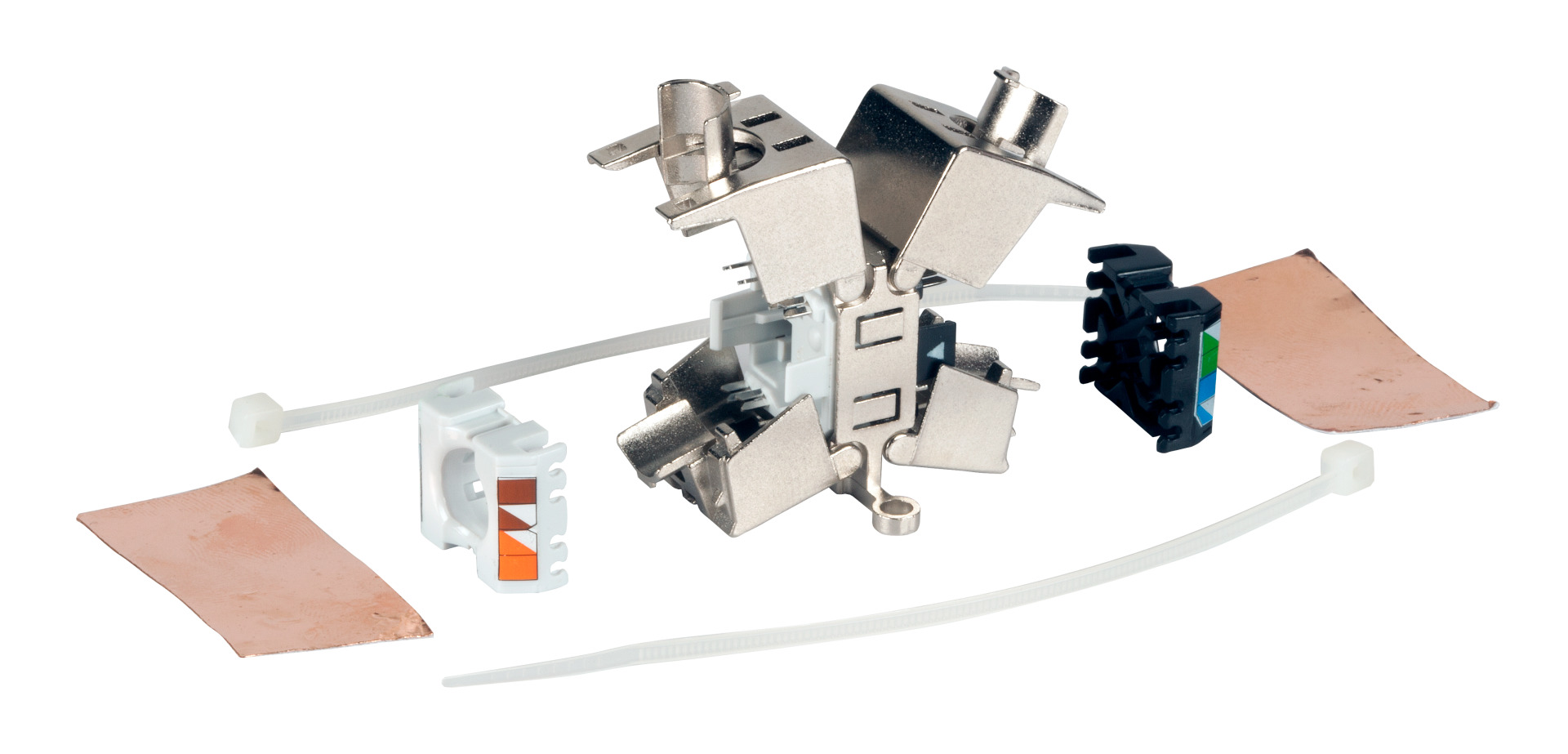

Included in delivery:
1 x connection module, 2 x cable pre-sorter (black + white), 2 x copper foil, 2 x cable ties
Connection of installation cable, e.g. in canals or ducts.
Connection of installation cable with patch cable for end-to-end links or consolidation point applications.
Features:
Fully shielded zinc diecast bodyhousing
Dimension (W x H x L) 18 x 26 x 39 mm
Link performance 10 Gbit/s Class EA acc. to ISO 11801
2 x compact cable manager for AWG26/1..AWG22/1 and AWG26/7..AWG24/7
Max. cable diameter: 8,5mm
Pair management with colour code, printed on cable manager
Reliable differentiation of cable managers by mechanical and colour assignment (plastic black / white) on the cable coupler and on cable managers
PoE and PoE Plus according to IEEE802.3af/at
360° shield contact and strain relief independent from each other
Gliding stored shield contact
Screw- and line-up through loops at the side of the module
19” panel for holding of 24 x modules available as accessory
Included in delivery:
1 x connection module, 2 x cable pre-sorter (black + white), 2 x copper foil, 2 x cable ties
Tekniske egenskaber
| 360° Schirmkontaktierung: | Ja |
|---|---|
| AWG-Bereich: | 26 – 22 |
| AWG-Bereich für Litzenleiter: | 26 – 24 |
| Anschlussart: | LSA |
| Geeignet für Flachkabel: | Nein |
| Geeignet für Litzenleiter: | Ja |
| Geeignet für Massivleiter: | Ja |
| Geeignet für Rundkabel: | Ja |
| Geeignet für Schutzart (IP): | IP20 |
| Gehäuse Material: | Zinkdruckguss |
| Geschirmt: | Ja |
| Kabeldurchmesser: | 8.5 mm |
| Kategorie: | 6A (TIA) |
| Konform zu UL94: | V-0 |
| Schirmung und Zugentlastung getrennt: | Nein |
| Spezialwerkzeug notwendig: | Nein |
| Verriegelungsart: | Rastverriegelung |
