Data outlet Cat.6A, incl Surface




Data outlet Cat.6A 500MHz, Surface, 2xRJ45, RAL9010
Varenummer:
ET-25133AV5-R
EAN Nr.:
4049759107420
Produktinformation til Data outlet Cat.6A 500MHz, Surface, 2xRJ45, RAL9010
40°-outlet, LSA IDC terminals, incl. 6.3 mm Grounding connection. Full shielded aluminium
die-cast housing, labeling field with transparent cover. For installation in ducts and underfloor
systems, central plate conform to DIN49075, metal frame. Design-capable, compatible

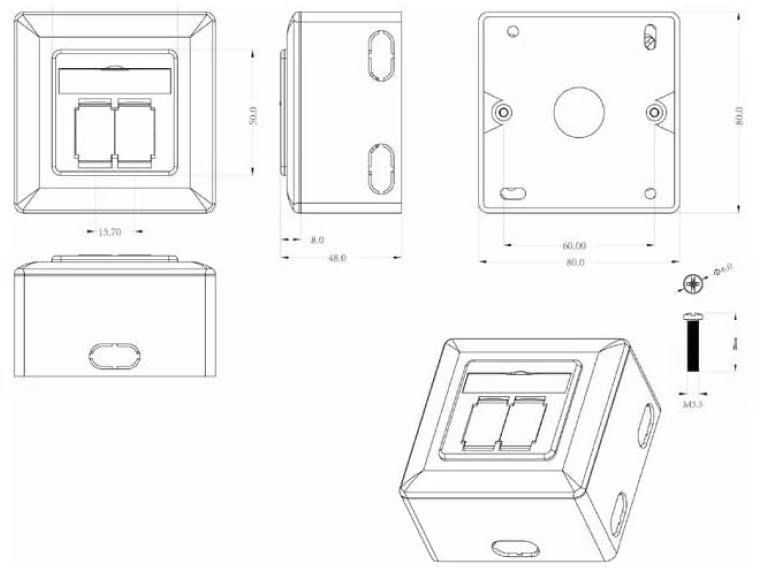

with all common switch programmes. Incl. surface frame 80 x 80 x 40 mm
die-cast housing, labeling field with transparent cover. For installation in ducts and underfloor
systems, central plate conform to DIN49075, metal frame. Design-capable, compatible
with all common switch programmes. Incl. surface frame 80 x 80 x 40 mm
Tekniske egenskaber
Abdeckrahmen: | Ja |
---|---|
Abschlusswiderstand: | Nein |
Anschlussart: | LSA |
Aufputzmontage: | Ja |
Auslassrichtung: | schräg |
Bandbreite: | 500 MHz |
Befestigungsart: | schrauben |
Bodentank/Unterflurmontage: | Nein |
Buchsen geschirmt: | Ja |
Designfähig: | Nein |
Farbcodierung: | Ja |
Geeignet für Anzahl Buchsen/Kupplungen: | 2 |
Gehäuse geschirmt: | Ja |
Kanaleinbau: | Ja |
Kategorie: | 6A (TIA) |
Mechanische Codierung: | Nein |
Mit Buchsen/Kupplungen: | Ja |
Mit Staubschutz: | Ja |
Mit Textfeld: | Ja |
Montageart Schirmanschluss: | Klemme |
POE Standard: | POE |
POE Standard: | POE+ |
RAL-Nummer: | 9010 |
Schutzart: | IP20 |
Separate Kabelzugentlastung: | Ja |
Separater Erdungsanschluss: | Ja |
Steckverbindertyp: | RJ45 2x8(8) |
Temperaturbereich (Betrieb): | -10 – 60 °C |
Temperaturbereich (Lagerung): | -40 – 70 °C |
Unterputz: | Ja |
Zentralplatte: | Ja |
Übertragung: | 1 Gbit |
Übertragung: | 10 Gbit |
Übertragung: | 2,5 Gbit |
Übertragung: | 5 Gbit |
