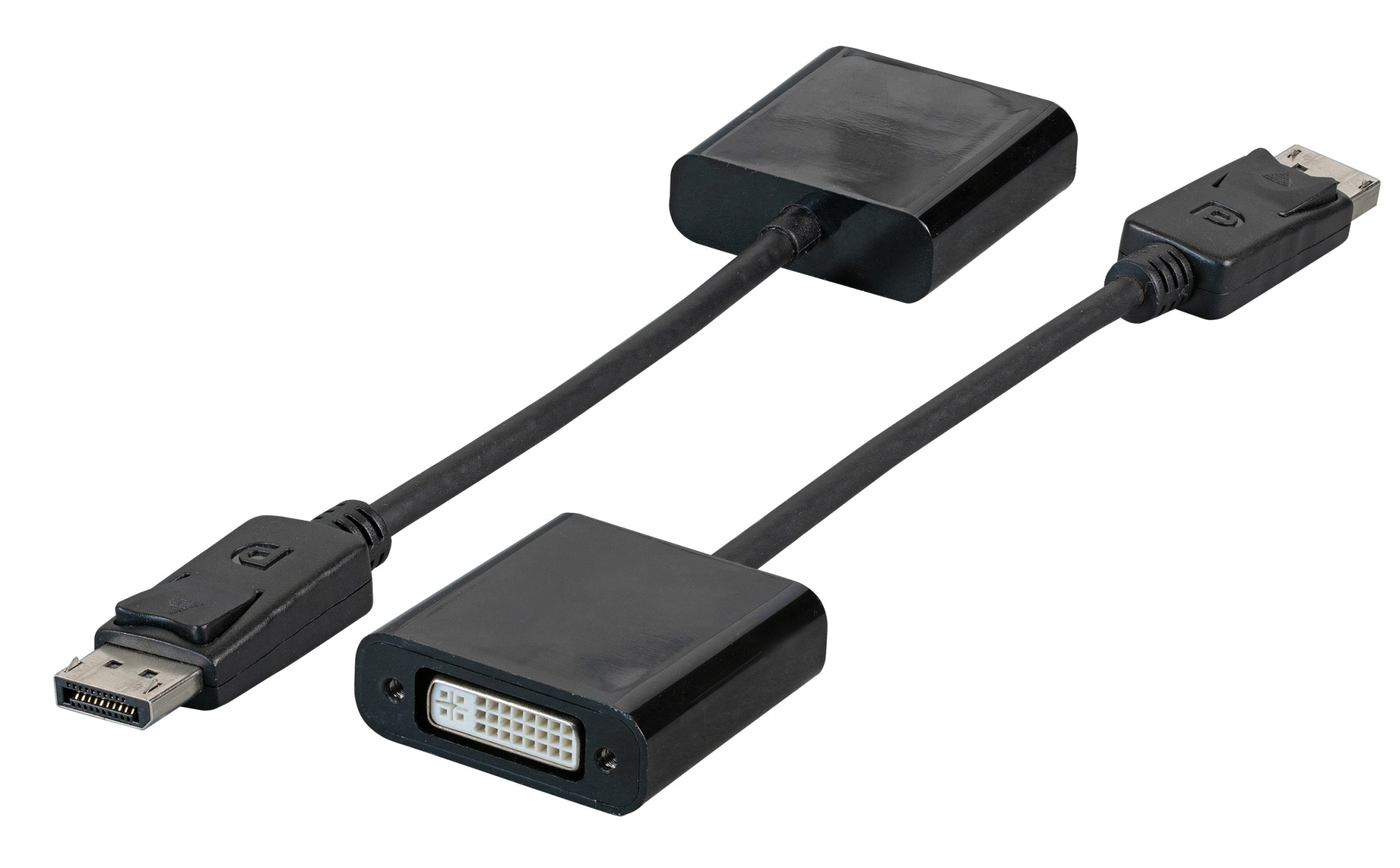

DisplayPort Adapter DP Male to DVI 24+5 Female
DisplayPort Adapter,DP Male to DVI 24+5 Female, Full HD
Varenummer:
EB485V2
EAN Nr.:
4049759227296
Produktinformation til DisplayPort Adapter,DP Male to DVI 24+5 Female, Full HD
Adapter to connect DisplayPort graphic controller to HDMI / DVI displays
One sided signal way DisplayPort => DVI output device
DisplayPort v1.2 compliant
Supports HDCP 1.3 and DPCP
Colur: black
One sided signal way DisplayPort => DVI output device
DisplayPort v1.2 compliant
Supports HDCP 1.3 and DPCP
Colur: black
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | true |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 10,2 Gbit/s |
| Max. mating cycles: | 5000 |
| Model: | Round Cable |
| Number of poles connection 1: | 20 |
| Number of poles connection 2: | 20 |
| Number of shieldings: | triple |
| Operating temperature: | -5-45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 20*12*51mm |
| Scope of delivery: | 1xDP-DVI Cable |
| Shielded: | True |
| Storage Temperature: | -20-70 °C |
| Supported video standards: | HD - High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | DP |
| Type of connector connection 2: | DVI-I 24+5 |
| Type of locking: | Snap-In Locking |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
