Duplex Jumper LC-FC 9/125µ, OS2
Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 1m
Varenummer:
O0340.1
EAN Nr.:
4049759056162
Produktinformationen für Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 1m
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Technische Eigenschaften
(Halogenfree): | acc. IEC60754-1 |
---|---|
APC-version: | False |
Anti-kink sleeve: | put-on |
Bend optimized fiber: | no |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) H |
Cable Ø: | 2.0 mm |
Category: | OS2 acc. to ITU-T G.652.D |
Colour outer sheath: | yellow |
Connector colour 1: | blue |
Fibre type: | Single mode 9/125 |
Flame-retardant: | According to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
Jacket material: | LSZH |
Low smoke: | acc. IEC61034-1 |
Max. Tension: | 160 N |
Min. Bending radius (Dynamic): | 20xOD |
Min. Bending radius (Static): | 10xOD |
Number of fibres: | 2 |
Operating Temperature: | -20 – 75 °C |
Quality class singlemode: | B/2 acc. IEC 61753-1 |
Storage Temperature: | -20 – 85 °C |
Type of connector connection 1: | LC-Duplex |
Type of connector connection 2: | FC |
Varianten

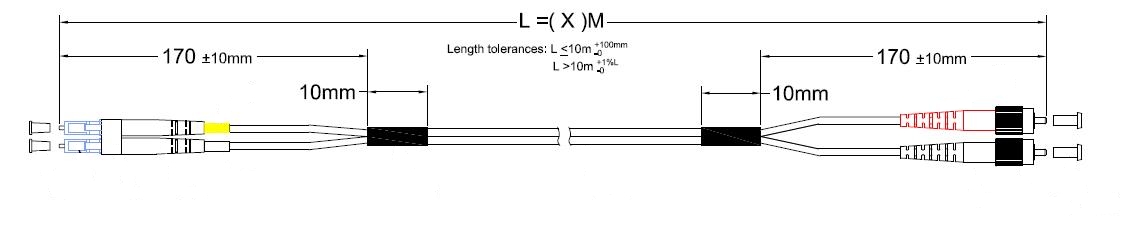

Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
O0340.1 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 1m | 1.0 m | ±5 % | |
O0340.2 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 2m | 2.0 m | ±5 % | |
O0340.3 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 3m | 3.0 m | ±5 % | |
O0340.5 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 5m | 5.0 m | ±5 % | |
O0340.7,5 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 7.5m | 7.5 m | ±5 % | |
O0340.10 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 10m | 10.0 m | ±5 % | |
O0340.20 | Duplex Jumper LC-FC 9/125µ, OS2, LSZH, yellow, 2.0mm, 20m | 20.0 m | ±5 % |
