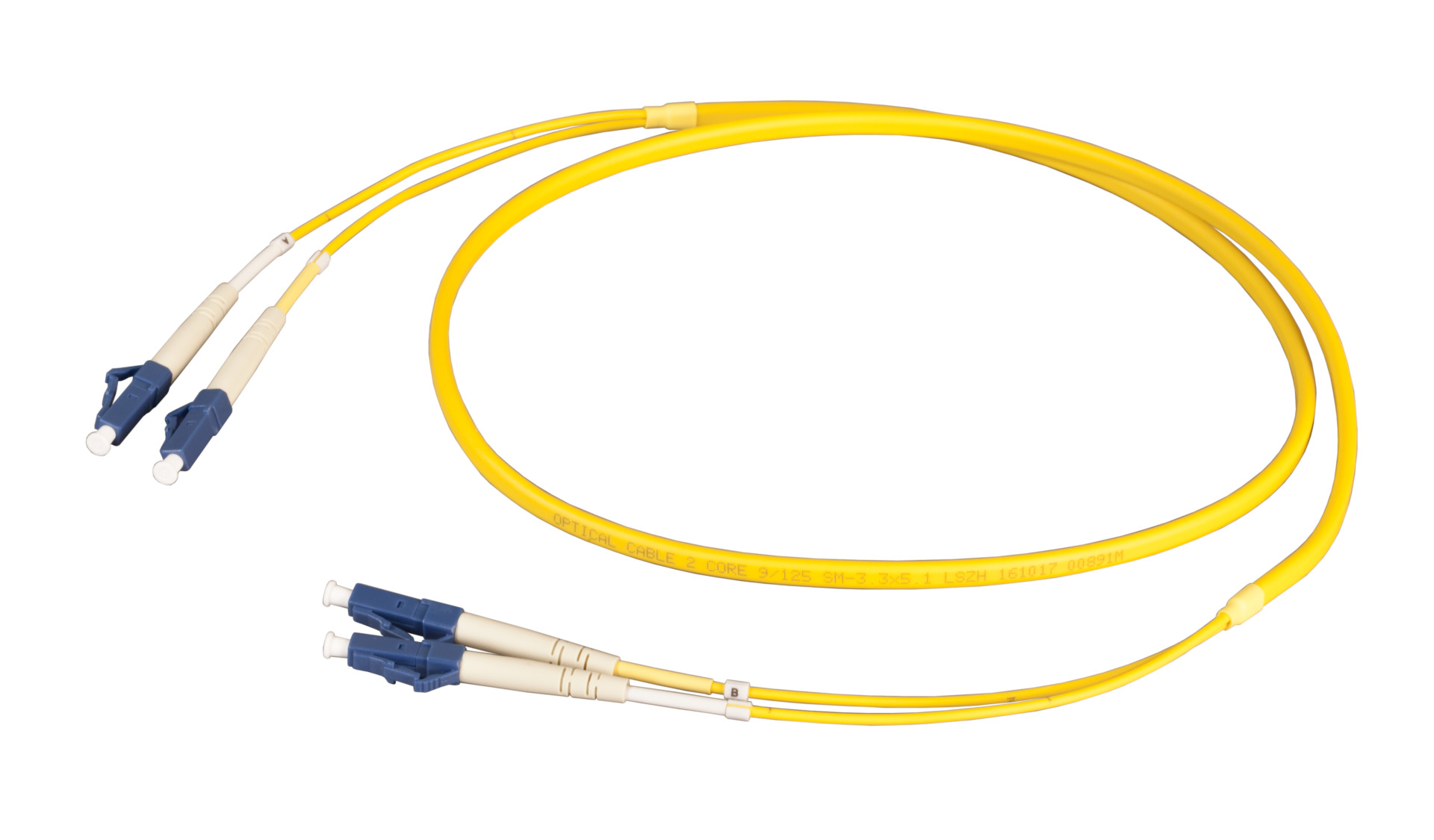

Duplex Patchcable LC-LC 9/125µ, OS2, Flat Twin
Duplex Patchcable Flat-Twin LC-LC OS2 G652D 0,5m LSZH 3x5mm yellow
Varenummer:
O0350FT.0,5
EAN Nr.:
4049759157654
Produktinformation til Duplex Patchcable Flat-Twin LC-LC OS2 G652D 0,5m LSZH 3x5mm yellow
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Tekniske egenskaber
| APC Ausführung: | Nein |
|---|---|
| Anzahl der Fasern: | 2 |
| Arbeitstemperatur: | -40 – 70 °C |
| Biegeoptimierte Faser: | nein |
| Einfügedämpfung 1310nm: | < 0.2 dB |
| Faserart: | Singlemode 9/125 |
| Flammwidrig: | nach EN 50265-2-1 |
| Halogenfrei nach EN 50267-2-3: | Ja |
| Kabel Konform zu Standard: | IEC 60793-2 |
| Kabelaufbau: | Duplex |
| Kabeltyp: | I-V(ZN) HH |
| Kabel Ø: | 3x5 mm |
| Kategorie: | OS2 G652D |
| Knickschutztülle: | aufgesteckt |
| Lagertemperatur: | -40 – 85 °C |
| Mantel-Farbe: | gelb |
| Mantel-Material: | LSZH |
| Qualitätsklasse Singlemode: | B/2 nach IEC 61753-1 |
| Stecker Konform zu Standard: | IEC 61754-20 |
| Steckverbinderanschluss 1 Farbe: | blau |
| Steckverbinderanschluss 2 Farbe: | blau |
| Steckverbindertyp Anschluss 1: | LC-Duplex |
| Steckverbindertyp Anschluss 2: | LC-Duplex |
| Verkabelungsstandard: | EN-50173-1 |
| Verkabelungsstandard: | ISO/IEC 11801 |
Varianten
| Art. Nr. | Bezeichnung | Länge | Length tolerance | |
|---|---|---|---|---|
| O0350FT.0,5 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 0,5m LSZH 3x5mm yellow | 0.5 m | ±5 % | |
| O0350FT.1 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 1m LSZH 3x5mm yellow | 1,0 m | ±5 % | |
| O0350FT.2 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 2m LSZH 3x5mm yellow | 2,0 m | ±5 % | |
| O0350FT.3 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 3m LSZH 3x5mm yellow | 3,0 m | ±5 % | |
| O0350FT.5 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 5m LSZH 3x5mm yellow | 5.0 m | ±5 % | |
| O0350FT.7,5 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 7,5m LSZH 3x5mm yellow | 7.5 m | ±5 % | |
| O0350FT.10 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 10m LSZH 3x5mm yellow | 10,0 m | ±5 % | |
| O0350FT.15 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 15m LSZH 3x5mm yellow | 15,0 m | ±5 % | |
| O0350FT.20 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 20m LSZH 3x5mm yellow | 20.0 m | ±5 % | |
| O0350FT.25 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 25m LSZH 3x5mm yellow | 25.0 m | ±5 % | |
| O0350FT.30 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 30m LSZH 3x5mm yellow | 30,0 m | ±5 % | |
| O0350FT.35 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 35m LSZH 3x5mm yellow | 35,0 m | ±5 % | |
| O0350FT.40 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 40m LSZH 3x5mm yellow | 40.0 m | ±5 % | |
| O0350FT.50 | Duplex Patchcable Flat-Twin LC-LC OS2 G652D 50m LSZH 3x5mm yellow | 50.0 m | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
