Duplex Jumper ST-ST, 50/125µ, OM2

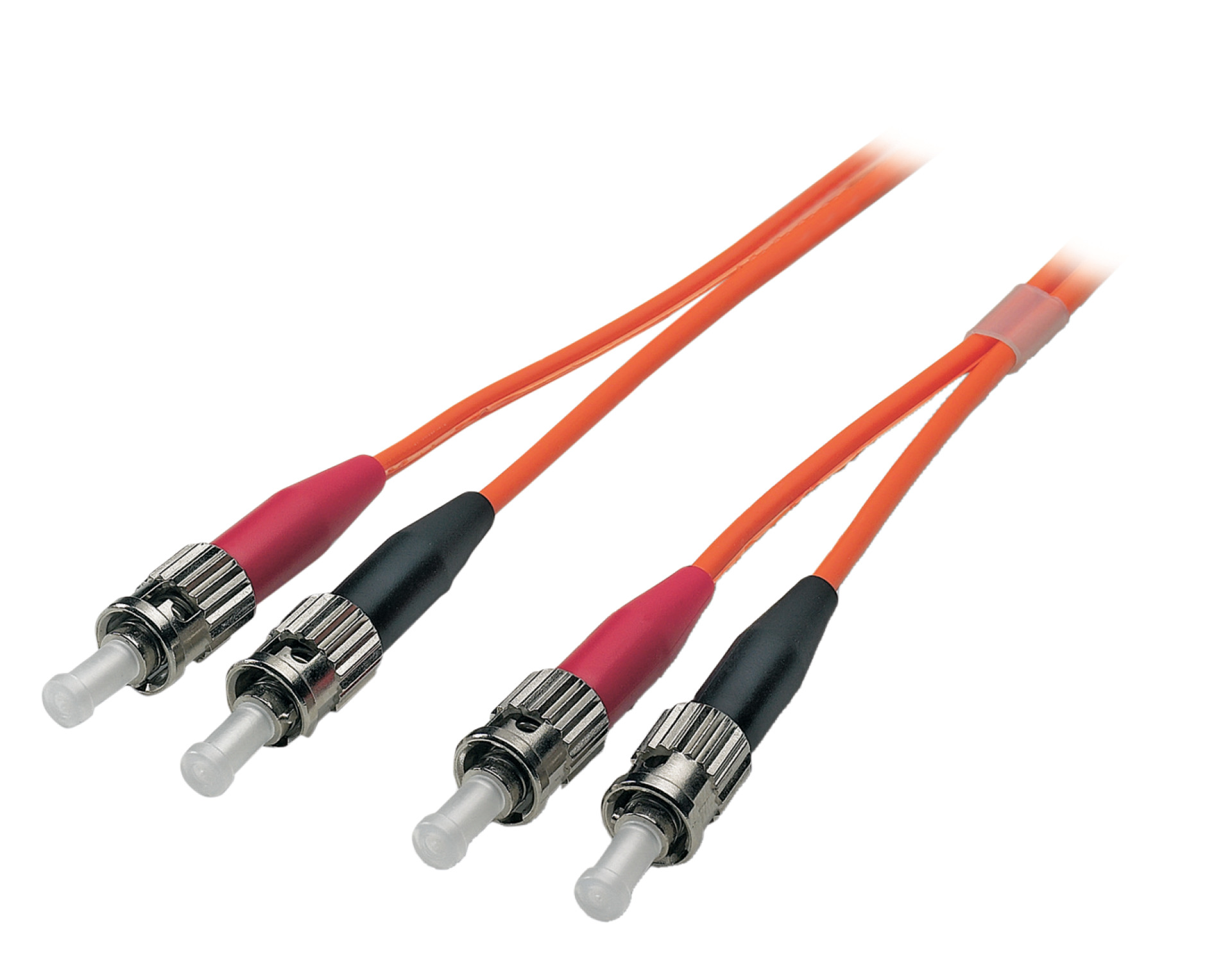

Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 0.5m
Varenummer: O6013.0,50
EAN Nr.: 4049759026806

Produktinformationen für Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 0.5m

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

Technische Eigenschaften

(Halogenfree): acc. IEC60754-1
APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: OM2 acc. to IEC60793-2-10 type A1a.1
Cable Conform to Standard: IEC 60793-2
Cable Construction: Duplex
Cable type: I-V(ZN) H
Cable Ø: 3.0 mm
Category: OM2
Colour outer sheath: orange
Connector Conform to Standard: IEC 61754-2
Fibre type: Multi mode 50/125
Flame-retardant: According to EN 50265-2-1
Halogen free (according to EN 50267-2-3): True
Insertion loss 850nm: < 0.3 dB
Jacket material: LSZH
Low smoke: acc. IEC61034-1
Max. Tension: 160 N
Min. Bending radius (Dynamic): 20xOD
Min. Bending radius (Static): 10xOD
Number of fibres: 2
Operating Temperature: -20 – 75 °C
Quality class multimode: A/1 according to IEC-61753-222-2
Storage Temperature: -20 – 85 °C
Type of connector connection 1: ST
Type of connector connection 2: ST

Varianten

Art. Nr. Bezeichnung Length Length tolerance
O6013.0,50 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 0.5m 0.5 m ±5 %
O6013.1 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 1m 1.0 m ±5 %
O6013.2 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 2m 2.0 m ±5 %
O6013.3 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 3m 3.0 m ±5 %
O6013.5 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 5m 5.0 m ±5 %
O6013.7,5 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 7.5m 7.5 m ±5 %
O6013.10 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 10m 10.0 m ±5 %
O6013.15 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 15m 15.0 m ±5 %
O6013.20 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 20m 20.0 m ±5 %
O6013.30 Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 30m 30.0 m ±5 %
