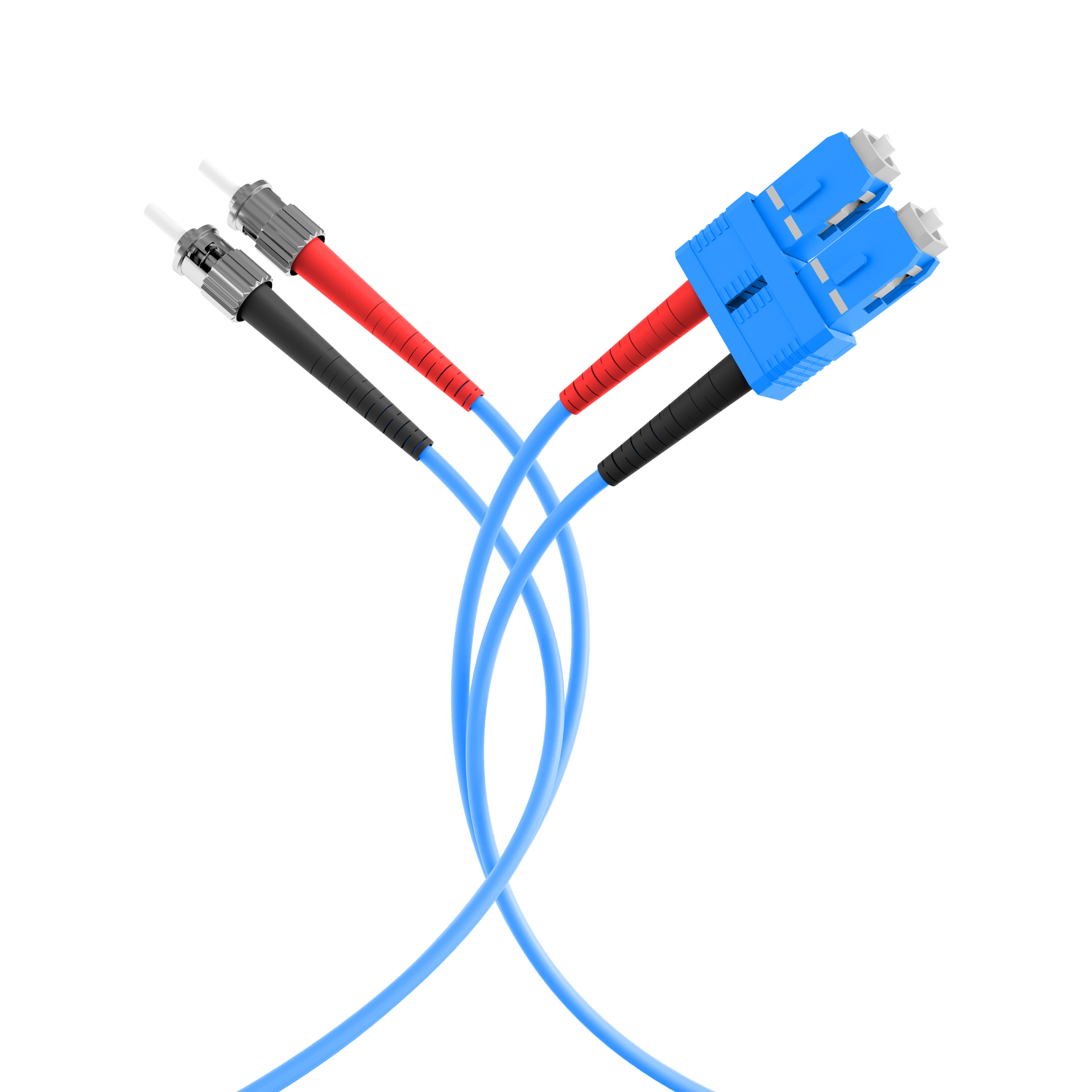

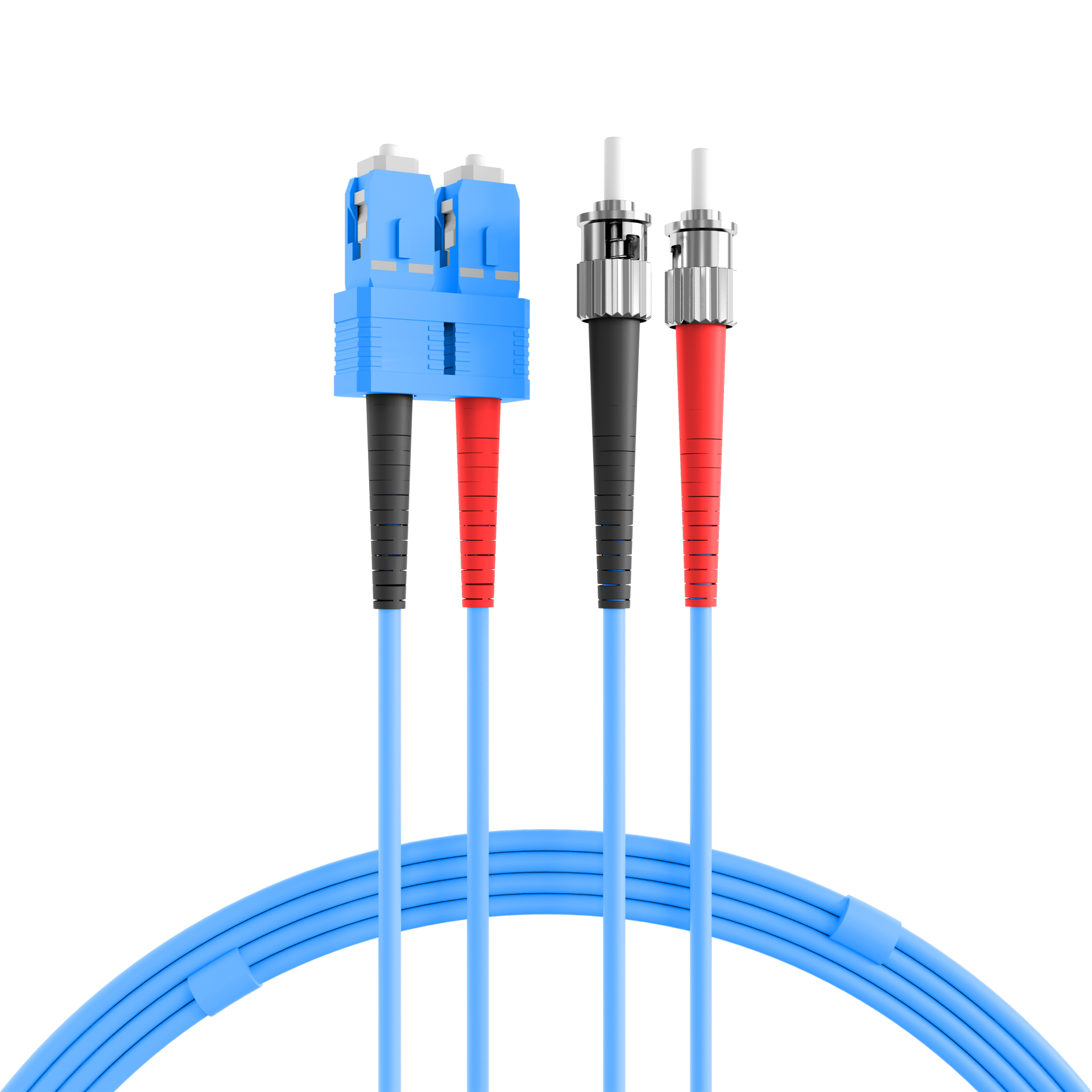

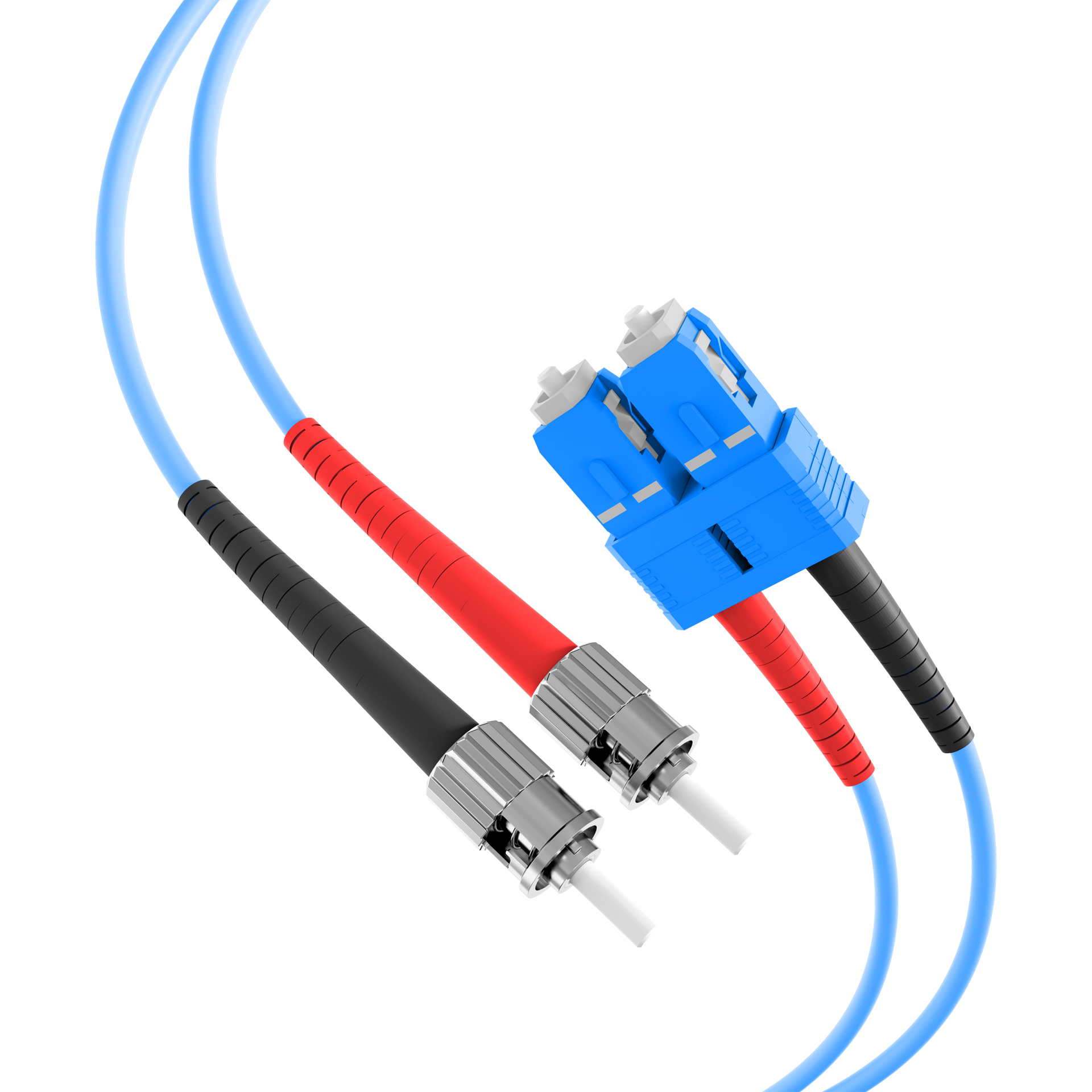

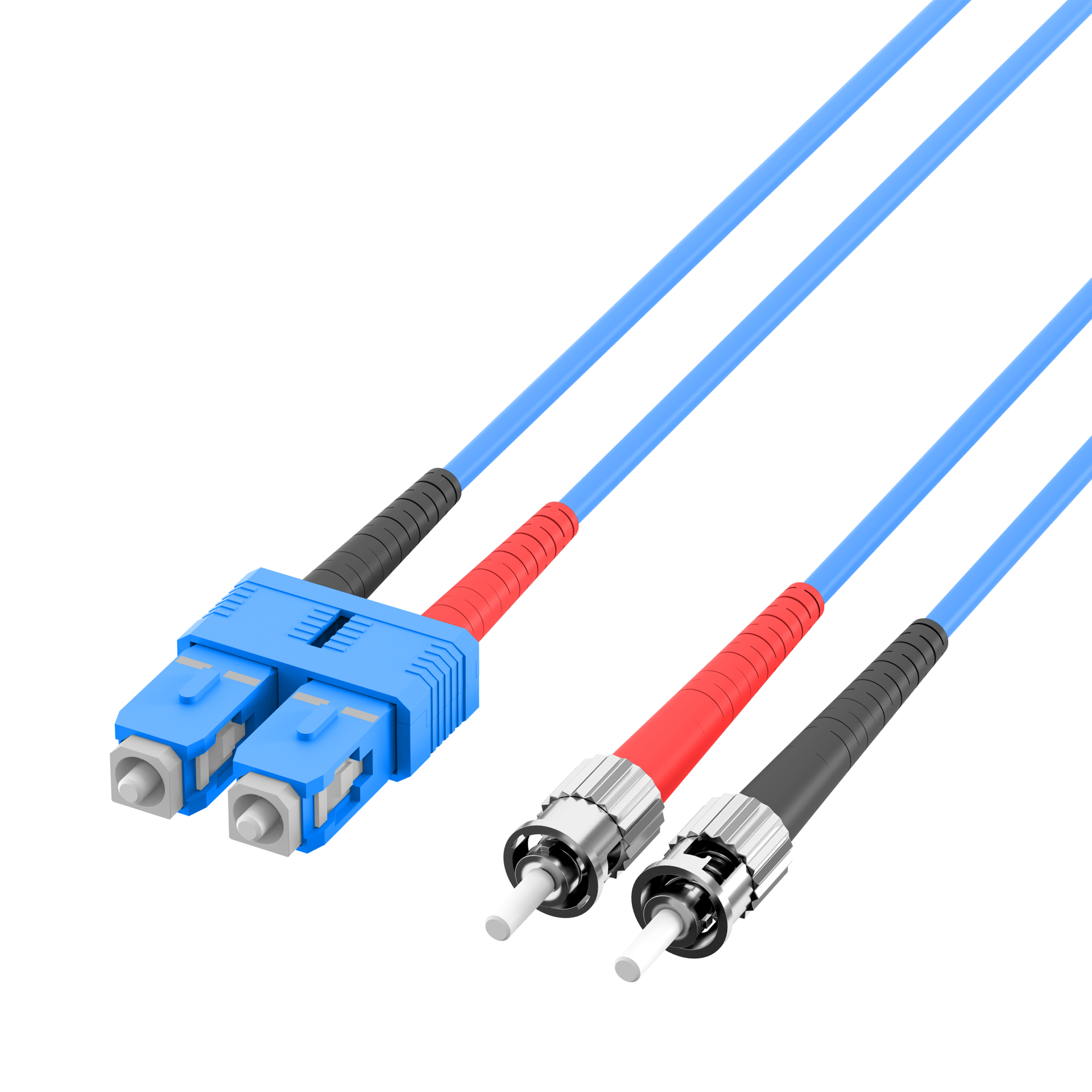

Duplex Patchkabel SC-ST, 9/125µ, OS2, stahlarmiert
Duplex Patchkabel armiert SC-ST OS2 G652D 2m LSZH 3mm blau
Varenummer:
O6503.2
EAN Nr.:
4049759027445
Produktinformation til Duplex Patchkabel armiert SC-ST OS2 G652D 2m LSZH 3mm blau
Dieses Patchkabel ist ROBUST!
Querdruckfestigkeit = 30.000 N pro Quadratzentimeter entspricht 3 Tonnen / cm²
Edelstahl Spiralwendel und Edelstahlgeflecht für hohen mechanischen Schutz
Trittfest, stoßfest, biegefest und besitzt trotzdem eine sehr hohe Flexibilität
Hohe Querdruck- und Zugfestigkeit
Querdruckfestigkeit = 30.000 N pro Quadratzentimeter entspricht 3 Tonnen / cm²
Edelstahl Spiralwendel und Edelstahlgeflecht für hohen mechanischen Schutz
Trittfest, stoßfest, biegefest und besitzt trotzdem eine sehr hohe Flexibilität
Hohe Querdruck- und Zugfestigkeit
Tekniske egenskaber
APC-version: | False |
---|---|
Anti-kink sleeve: | put-on |
Bend optimized fiber: | no |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) H |
Cable Ø: | 3.0 mm |
Cabling Standard: |
EN-50173-1 ISO/IEC 11801 |
Category: | OS2 acc. to ITU-T G.652.D |
Colour outer sheath: | blue |
Connector colour 1: | blue |
Fibre type: | Single mode 9/125 |
Flame-retardant: | According to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
Jacket Material: | LSZH |
Number of fibres: | 2 |
Operating Temperature: | -20 – 75 °C |
Quality class singlemode: | B/2 acc. IEC 61753-1 |
Storage Temperature: | -20 – 85 °C |
Type of connector connection 1: | SC duplex |
Type of connector connection 2: | ST |
