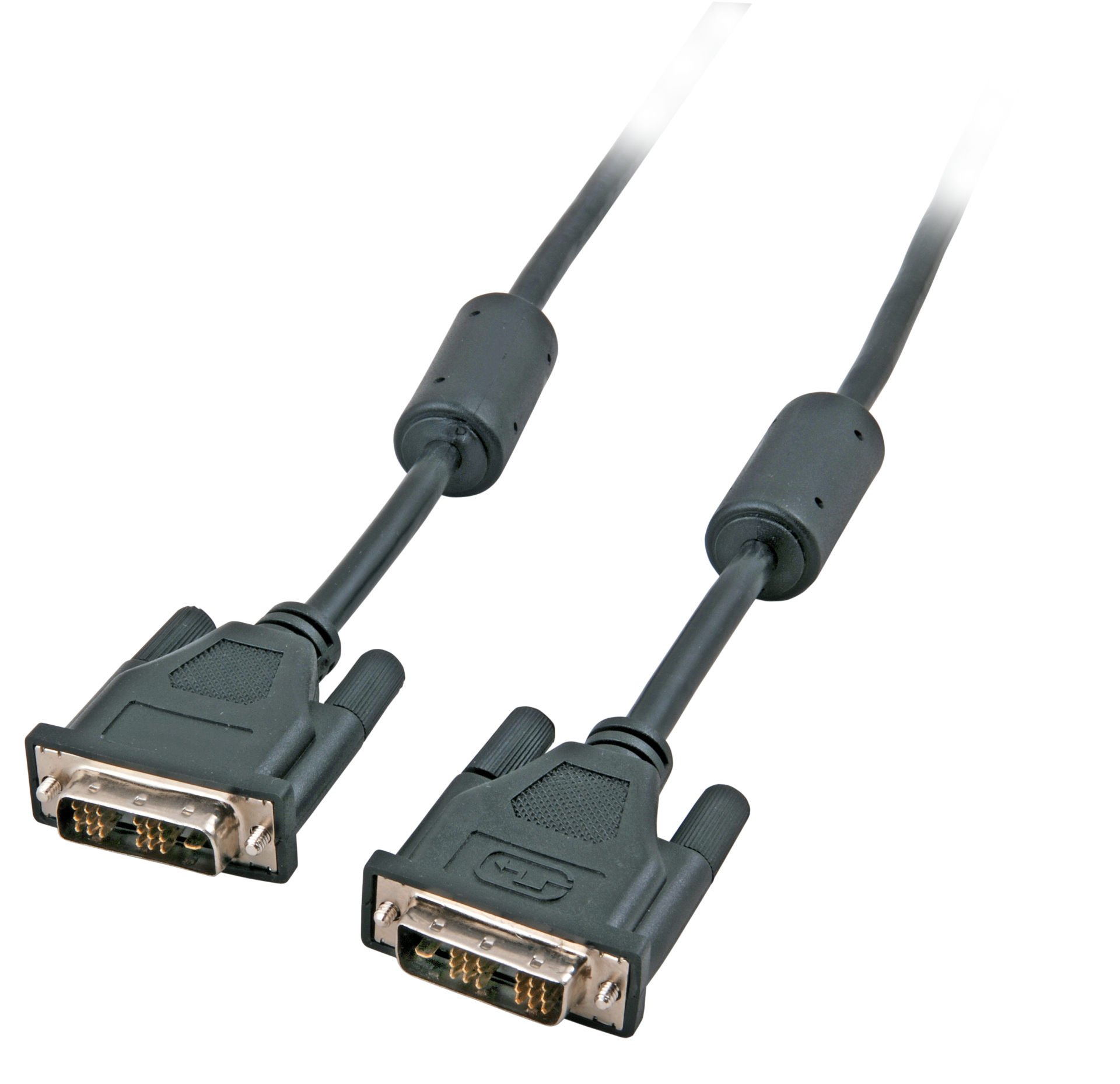

DVI 18+1 Single Link Industrial Connection Cable
DVI Monitor cable Single Link, DVI-Digital 18+1, AWG28, 2m
Varenummer:
K5433IND.2
EAN Nr.:
4049759118693
Produktinformation til DVI Monitor cable Single Link, DVI-Digital 18+1, AWG28, 2m
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Single link cable
Support for resolution up to 1920 x 1200
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Single link cable
Support for resolution up to 1920 x 1200
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 5 Gbit/s |
| Beding radius (dynamic/static): | 73 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | HDTV,Projector,Computer monitor,Video editing |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |

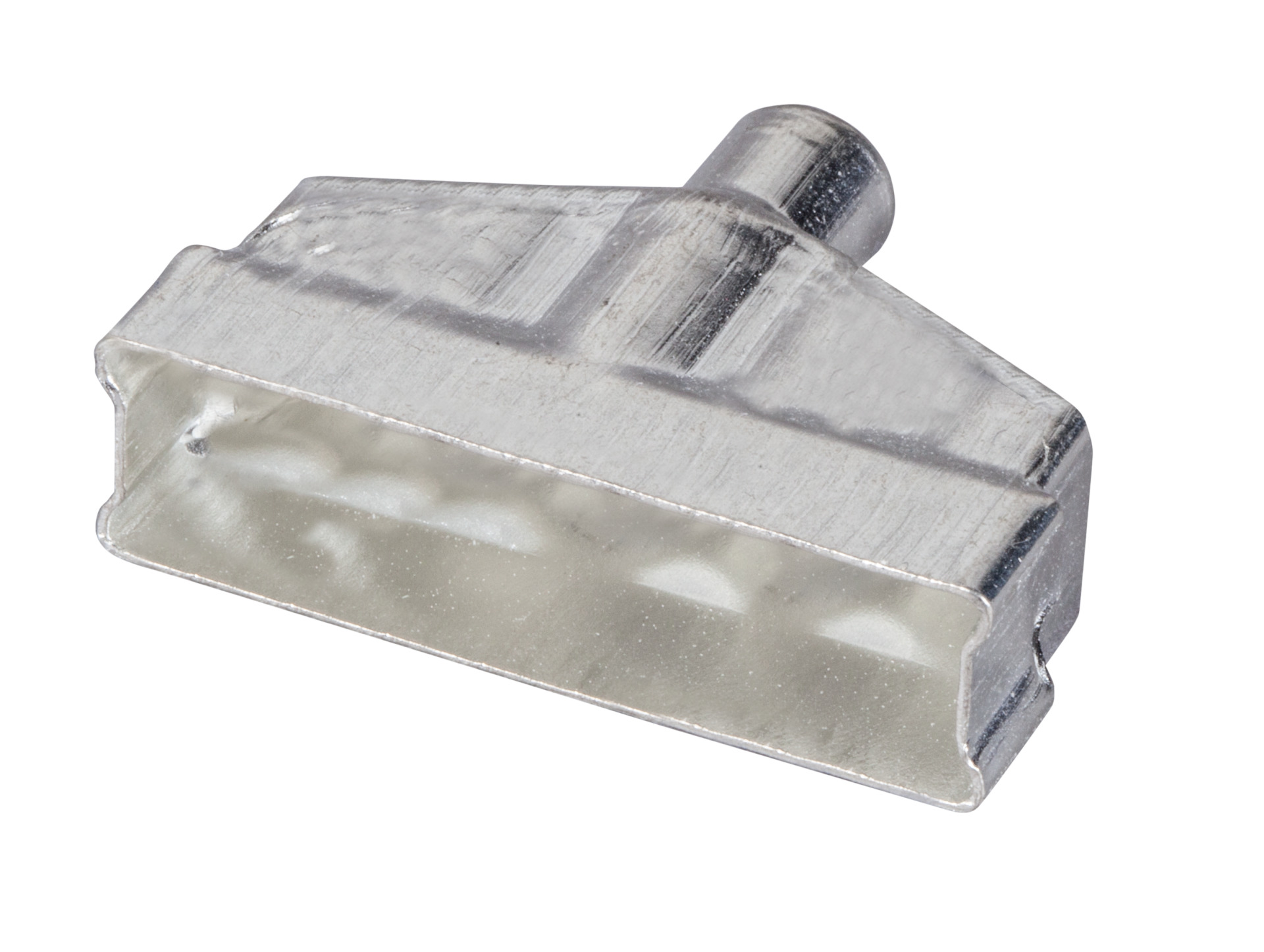

| Dust cover: | true |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 5 Gbit/s |
| Max. mating cycles: | 1000 |
| Model: | Round Cable |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 19 |
| Number of shieldings: | double |
| Operating temperature: | -10 – 80 |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 36.75mm x 24.17mm x 7.9mm |
| Plug dimensions Side 2: | 36.75mm x 24.17mm x 7.9mm |
| Printing: | E119932 cUL AWM 20276 80℃ 30V VW-1 DVI DIGITAL SINGLE LINK COPARTNER |
| Scope of delivery: | 1x DVI Cable |
| Shielded: | True |
| Storage Temperature: | -10 – 80 |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | DVI-D 18+1 |
| Type of connector connection 2: | DVI-D 18+1 |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5433IND.2 | DVI Monitor cable Single Link, DVI-Digital 18+1, AWG28, 2m | black | 2.0 m | 7.3 mm | 28AWG | |
| K5433IND.5 | DVI Monitor cable Single Link, DVI-Digital 18+1, AWG28, 5m | black | 5.0 m | - | - |
