ECOLAN® Patchpanel UTP 24xRJ45 Cat.5e,

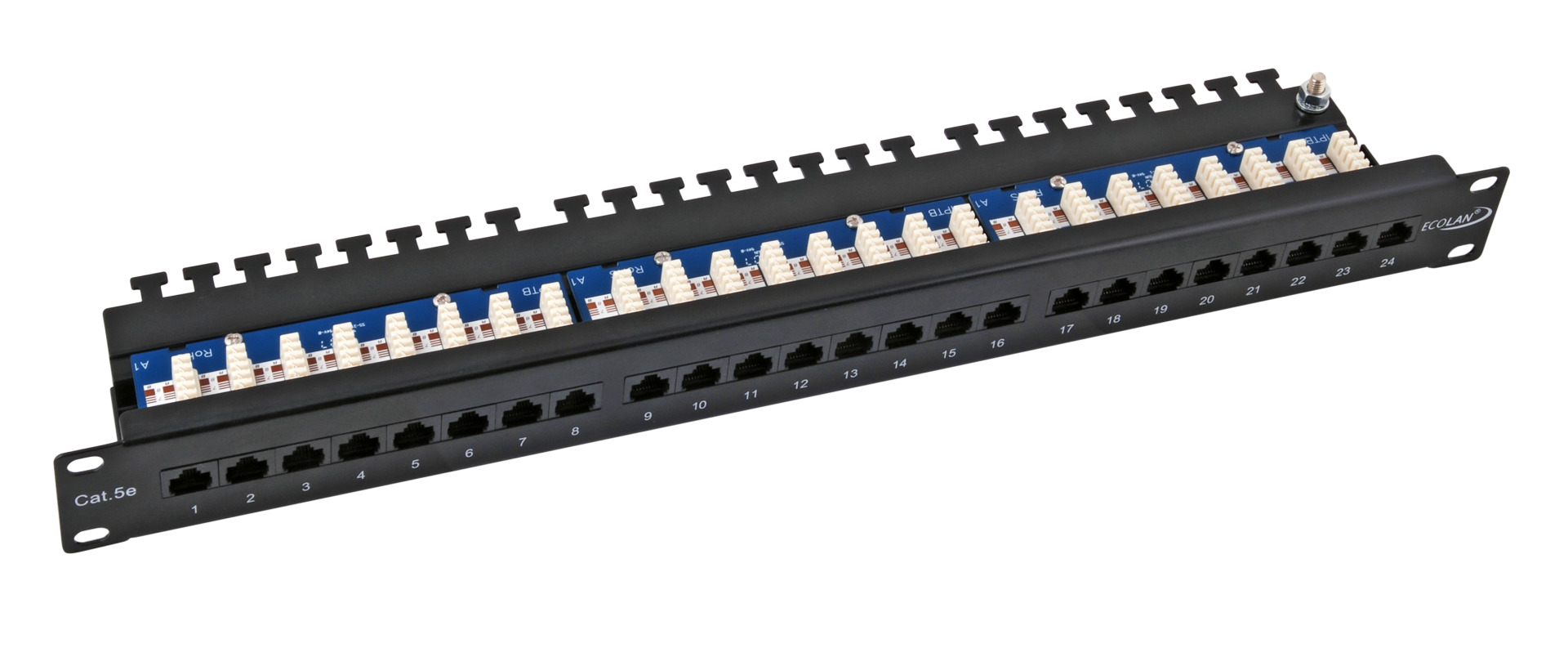

ECOLAN® Patchpanel UTP 24xRJ45 Cat.5e,,19“ 1HE, RAL9005 schwarz
Varenummer:
11324123
EAN Nr.:
4049759083663
Produktinformation til ECOLAN® Patchpanel UTP 24xRJ45 Cat.5e,,19“ 1HE, RAL9005 schwarz
Die hohe Qualität des ungeschirmten Cat.5e RJ45 ECOLAN® Patchpanels gewährleistet sehr gute Eigenschaften für 2,5 Gigabit Ethernet Anwendungen.
19" Montage, 1HE
24 Ports
LSA Anschlussleiste für Verlegekabel AWG26..AWG22
Farbcode nach TIA/EIA 568 A/B
19" Montage, 1HE
24 Ports
LSA Anschlussleiste für Verlegekabel AWG26..AWG22
Farbcode nach TIA/EIA 568 A/B
Tekniske egenskaber
| Bandwidth: | 100 MHz |
|---|---|
| Category: | 5e |
| Colour Code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 20 mΩ |
| Contact coating: | 50 µ" gold plated |
| Cross section: | AWG 26 - AWG 22 |
| Current Rating: | 1.8 A |

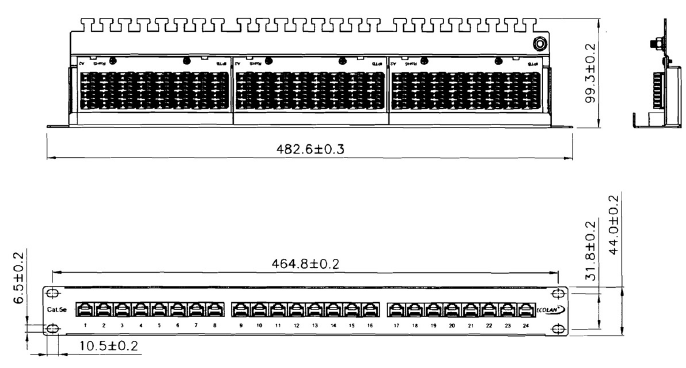

| Depth: | 109.0 mm |
| Dielectric Withstanding Voltage: | 1500 V DC |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.0 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | SPCC Steel, 155mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 20 N |
| Insulation Resistance: | 500 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: |
POE POE+ |
| Screened: | False |
| Suitable for number of connectors: | 24 |
| Temperature Range (Operation): | -40 – 80 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Transmission: | 2.5 Gbit |
| Type of connector: | RJ45 8(4) |
| Width: | 482.6 mm |
