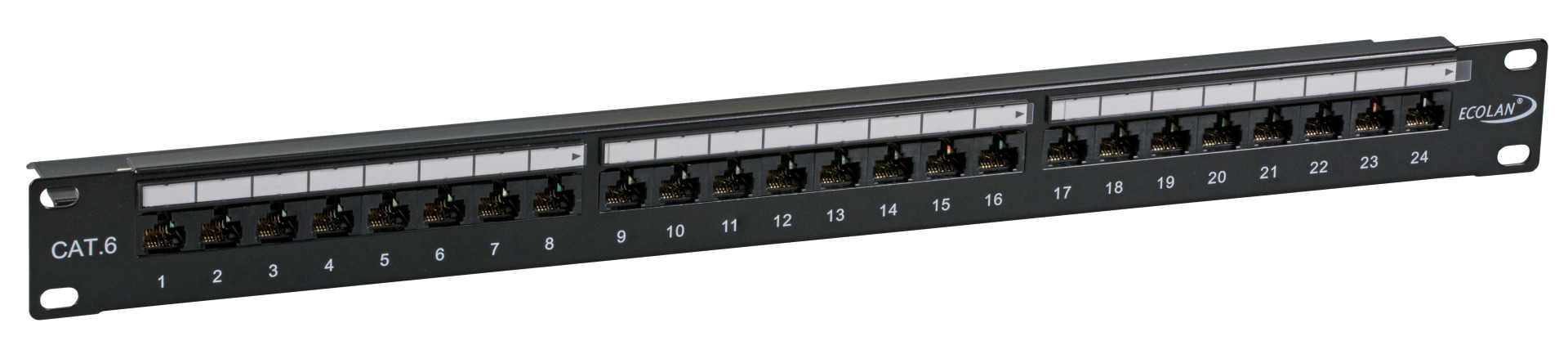

ECOLAN® Patchpanel UTP 24xRJ45 Cat.6, 19“ 1HE
ECOLAN® Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
Varenummer:
11324126
EAN Nr.:
4049759084349
Produktinformation til ECOLAN® Patchpanel UTP 24xRJ45 Cat.6, 19“ 1U, RAL9005 black
The high quality of the unshielded Cat.6 RJ45 ECOLAN® patch panel ensures excellent performance for 5 Gigabit Ethernet applications.
19 "mounting, 1U
24 ports
LSA connection strip for installation cable AWG26..AWG22
Color code according to TIA / EIA 568 A / B
19 "mounting, 1U
24 ports
LSA connection strip for installation cable AWG26..AWG22
Color code according to TIA / EIA 568 A / B
Tekniske egenskaber
| Category: | 6 |
|---|---|
| Colour code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | < 20 mΩ |
| Contact coating: | 50 µ" gold plated |
| Cross section: | AWG 26 - AWG 22 |
| Current capacity: | 1.8 A |

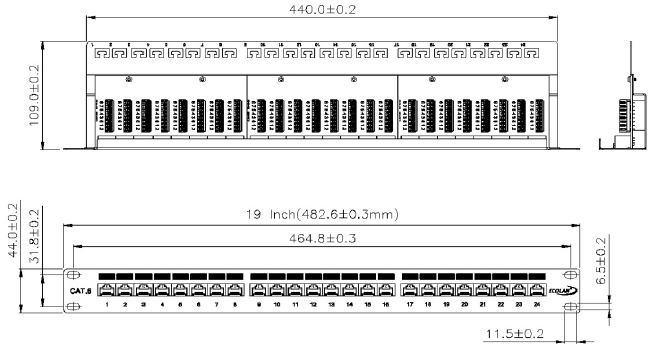

| Depth: | 109.0 mm |
| Dielectric Withstanding Voltage: | 1500 V DC |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.0 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | SPCC Steel, 1,2mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 20 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: | POE |
| POE Standard: | POE+ |
| Screened: | False |
| Tape width: | 250 MHz |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 80 °C |
| Transmission: | 5 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 482.6 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
