ECOLAN® RJ45 Connector UTP, Cat.6, Field-Plug
ECOLAN® RJ45 Connector UTP, Cat.6, Field-Plug
Varenummer:
88035UTP.1
EAN Nr.:
4049759157029
Produktinformation til ECOLAN® RJ45 Connector UTP, Cat.6, Field-Plug
The ECOLAN® RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

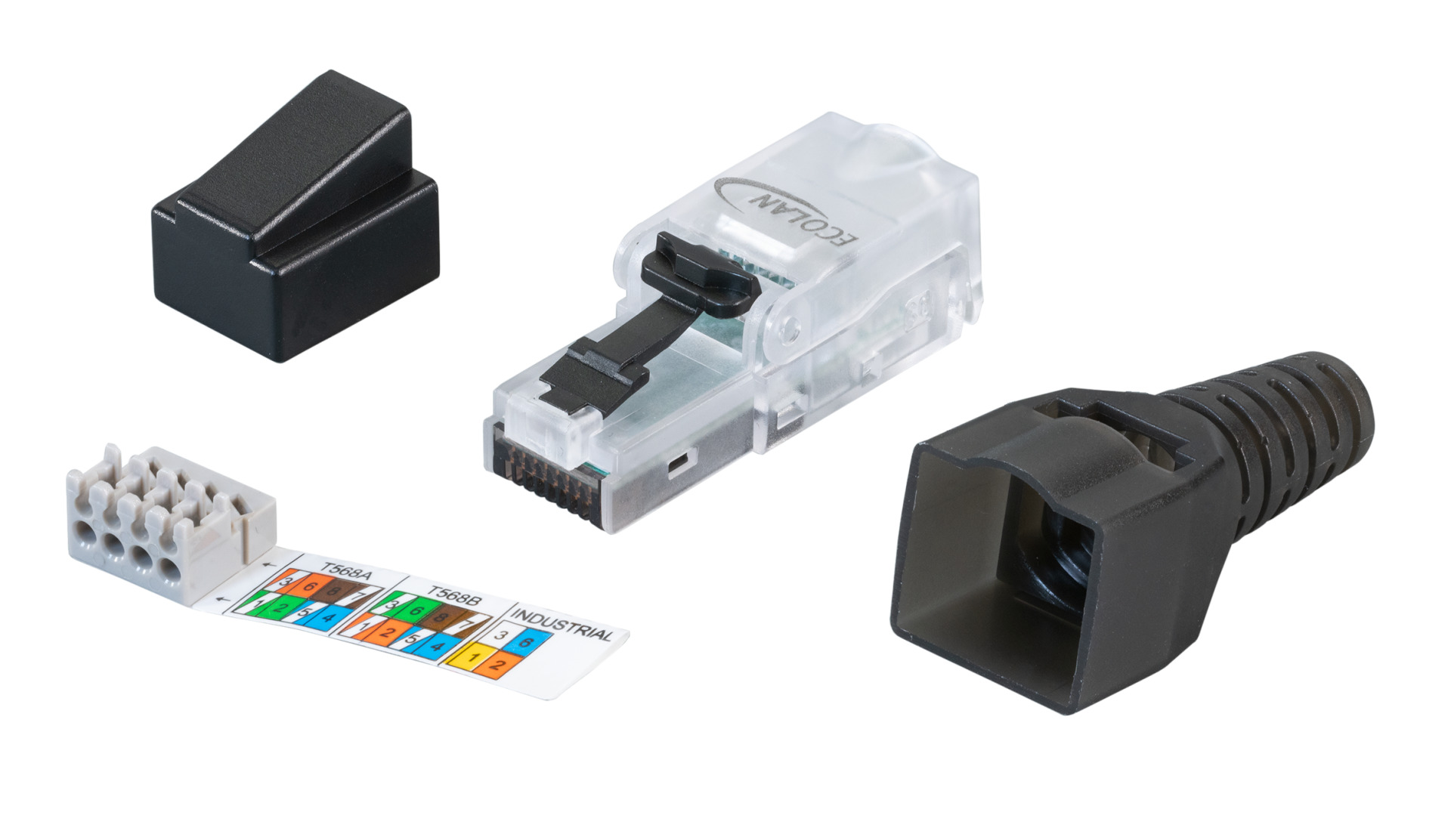

Unshielded polycarbonate body with separate dust cap and anti-kink sleeve
Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7-4
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable tie
Unshielded polycarbonate body with separate dust cap and anti-kink sleeve
Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7-4
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6.0 mm .. 9.0 mm
Strain relief with cable tie
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | False |
| AWG-range: | 22 – 27 |
| Category: | 6 |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current Rating: | 1.5 A |
| Dielectric Withstanding Voltage: | 1000 V DC |
| Dust cover: | true |
| Housing material: | Plastic |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Max. cable diameter: | 9.0 mm |
| Model: | plug |
| Screened: | False |
| Separate earthing flag: | False |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP20 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Temperature range: | -40 – 66 °C |
| Type of connector: | RJ45 8(8) |
| Type of locking: | snap lock |
