Fiber Checker 3000 for Single- and Multimode 2.5 mm Ferrules
Priser kun synlige for indloggede brugere
Fiber Checker 3000 for SM and MM 2.5mm Ferrules
Varenummer:
39990.1
EAN nr.:
4049759064044
Produktinformation für Fiber Checker 3000 for SM and MM 2.5mm Ferrules
The compact design of the visual locator is very suitable for daily use in all fiber optic applications e.g. in the field, in industrial environments as well as in laboratories. Suitable to check single-/multimode optical fibers, faulty fiber optical components and for the identifying and patching of fibers.
Due to 635nm wavelength (visible red light) easier fault location
Suitable 2.5mm ferrule: DIN, E2000®, FC, SC, ST
Scope of delivery:

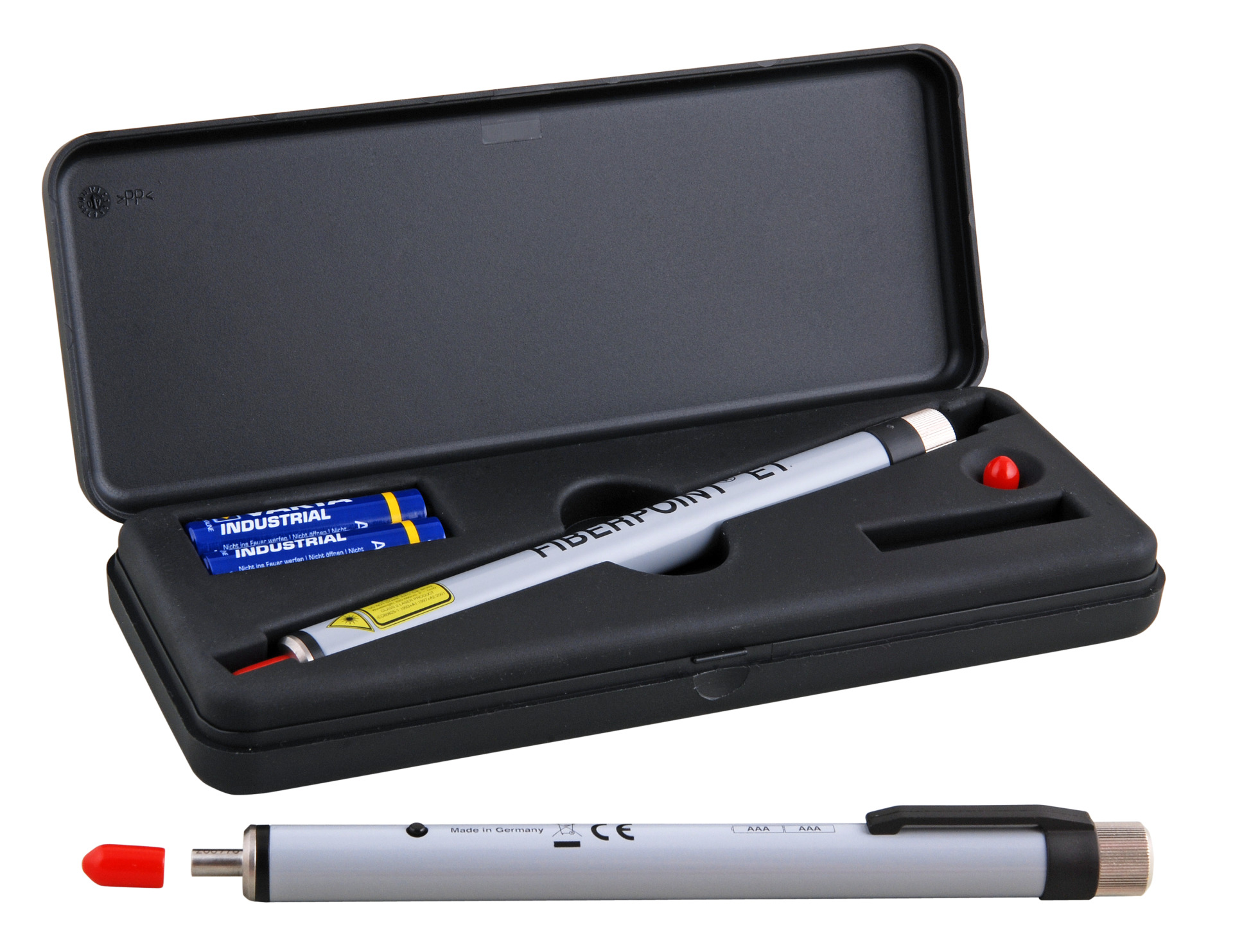

Fiber checker with dust cap, battery set (2 x AAA), plastic etui and instruction manual
Due to 635nm wavelength (visible red light) easier fault location
Suitable 2.5mm ferrule: DIN, E2000®, FC, SC, ST
Scope of delivery:
Fiber checker with dust cap, battery set (2 x AAA), plastic etui and instruction manual
Tekniske egenskaber
| Available Connector: |
2.5 mm universal FC LC SC ST |
|---|---|
| Detecting range: | 3 km |
| Dimensions: | 167x12 mm |
| Laser class: | 2 |
| Measured value memory: | False |
| Net weight: | 60 g |
| Operating Temperature: | -10 – 45 °C |
| Output power: | 600 µW |
| Power: | 2 x AAA |
| Storage Temperature: | -40 – 70 °C |
| Suitable for network protocol measurement: | False |
| Type of indication: | LED |
| Wave length: | 635 – nm |
| With PC/printer interface: | False |
