Fiber Checker for Single- and Multimode, for 1.25 mm and 2.5 mm Ferrules
Fiber Checker for SM and MM, for 1.25 mm and 2.5 mm ferrules
Varenummer:
399900.2
EAN Nr.:
4049759210816
Produktinformation til Fiber Checker for SM and MM, for 1.25 mm and 2.5 mm ferrules

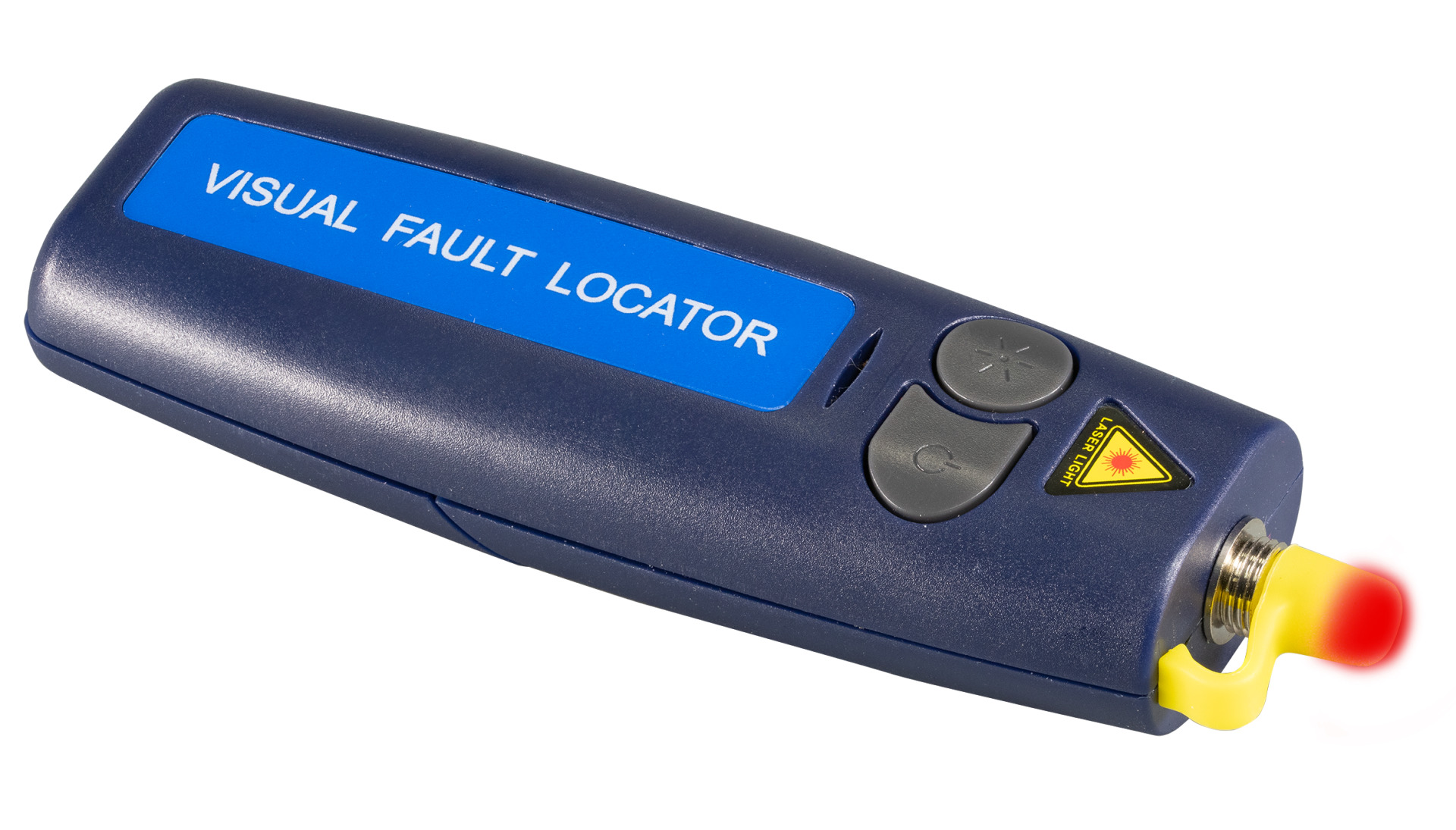

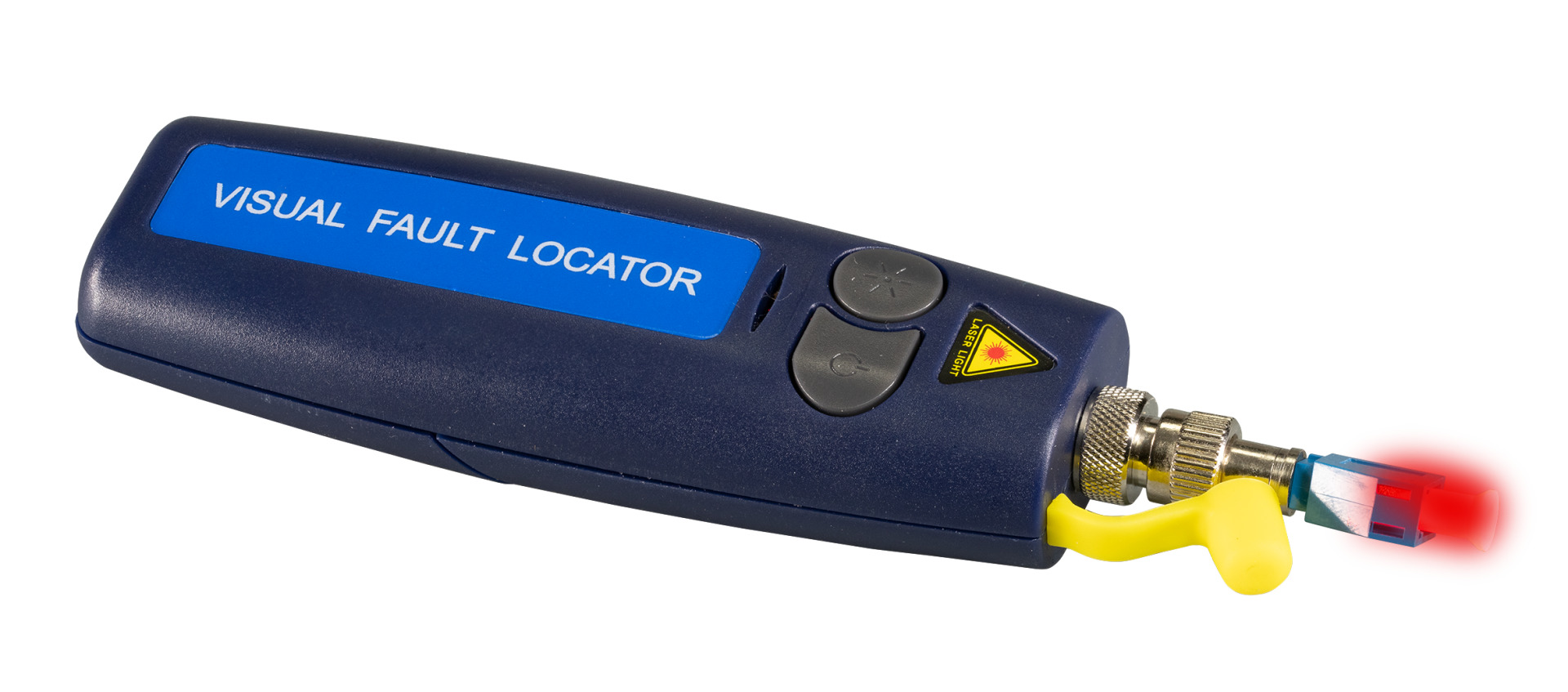

The compact visual fault locator is an excellent tool for daily use of field, industrial and laboratory fiber optic applications.
Suitable for testing single / multimode fiber optic cables, faulty fiber optic components, and identifying and patching fibers
The 630 nm - 670 nm wavelength (visible red light) makes it easier to locate faults
Range: measured up to 6 km
Matching 2.5 mm ferrules: DIN, FC, SC, ST, E2000
Matching 1.25 mm ferrules: LC
Delivery incl. dust cover, adapter for LC. SC and FC
Delivery without batteries
Suitable for testing single / multimode fiber optic cables, faulty fiber optic components, and identifying and patching fibers
The 630 nm - 670 nm wavelength (visible red light) makes it easier to locate faults
Range: measured up to 6 km
Matching 2.5 mm ferrules: DIN, FC, SC, ST, E2000
Matching 1.25 mm ferrules: LC
Delivery incl. dust cover, adapter for LC. SC and FC
Delivery without batteries
Tekniske egenskaber
| Available Connector: |
2.5 mm universal FC LC SC ST |
|---|---|
| Detecting range: | OM5 km |
| Dimensions: | 113 x 34 x 20 mm |
| Laser class: | 2M |
| Measured value memory: | False |
| Net weight: | 100 g |
| Operating Temperature: | -10 – 50 °C |
| Output power: | 1 mW |
| Power: | 2 x AAA |
| Storage Temperature: | -20 – 70 °C |
| Suitable for network protocol measurement: | False |
| Type of indication: | LED |
| Wave length: | 630 – 670 nm |
| With PC/printer interface: | False |
