SC Fiber Pigtail Set 12-colours OM2

Priser kun synlige for indloggede brugere

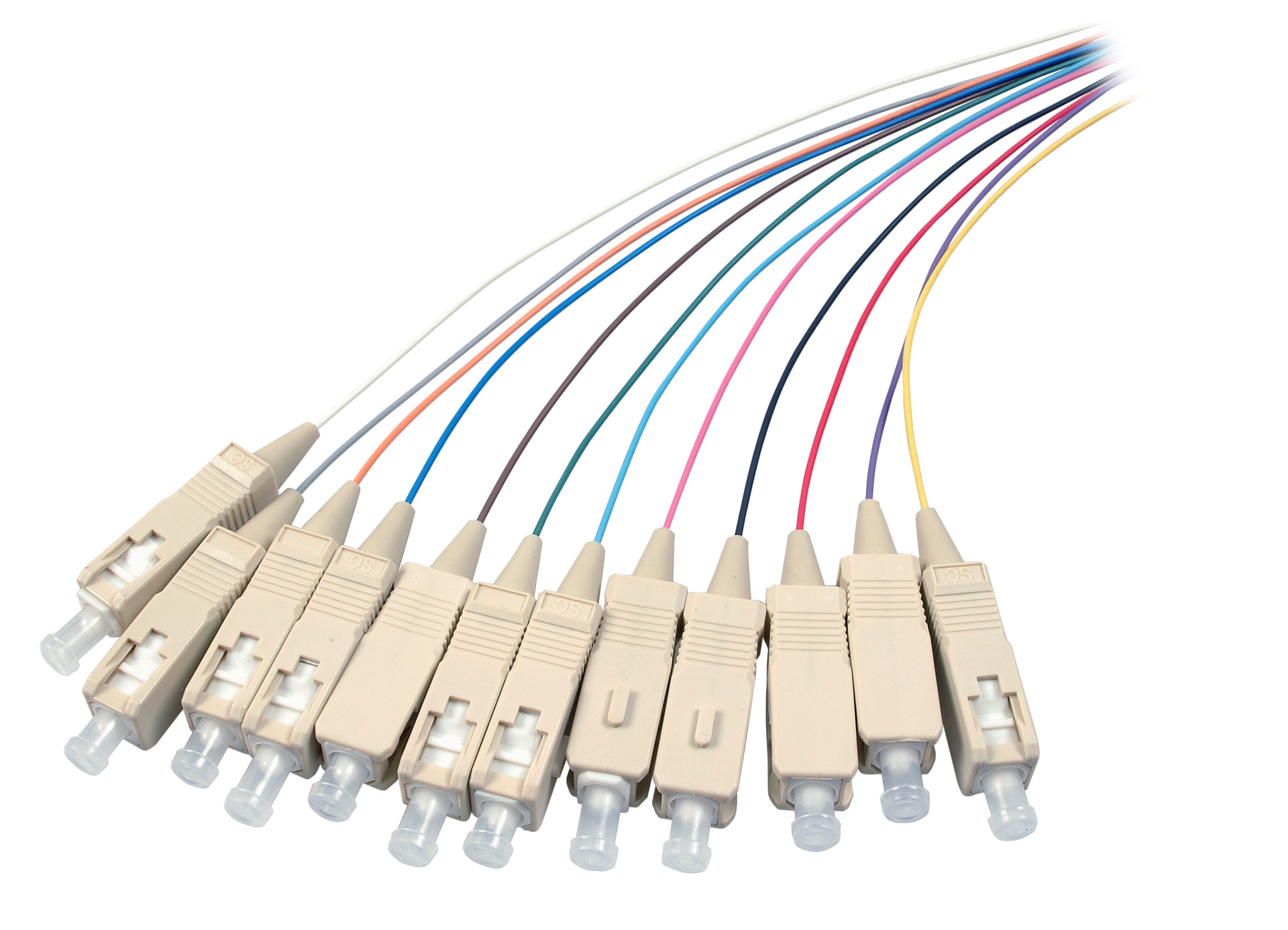

Fiber pigtail 12 set SC 50/ 125µ, OM2, 2m,
Varenummer: O3324.2
EAN nr.: 4049759026721

Produktinformation für Fiber pigtail 12 set SC 50/ 125µ, OM2, 2m,

The SC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.

Tekniske egenskaber

Anti-kink sleeve: Put-on
Cable Conform to Standard: IEC60793-2
Colour Code: VDE-0888
Connector Conform to Standard: IEC61754-4
Core type: Semi tight
Jacket material: LSZH
Length: 2.0 m
Max. Tension: 3 N
Minimaler Biegeradius Dynamic: 20xOD
Mion. Bending Radius Static: 10xOD
Operating Temperature: -20 – 70 °C
Outer Diameter: 0.9 mm
Type: Conductor pigtail
