LC Fiber Pigtails
Priser kun synlige for indloggede brugere

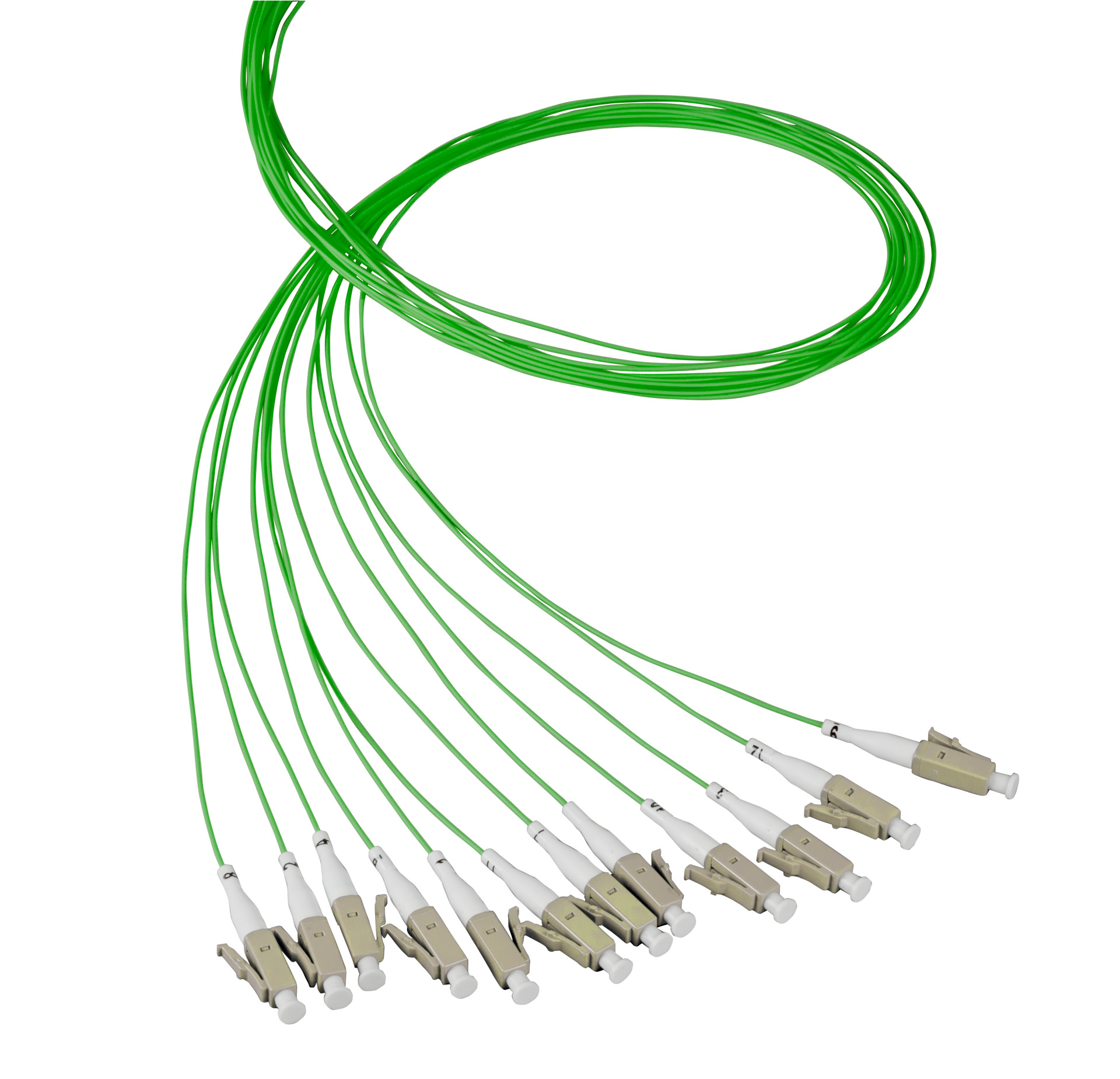

Fiber pigtail LC 50/125µ OM5, lime green,2m
Varenummer:
O3686.2OM5
EAN nr.:
4049759181383
Produktinformation für Fiber pigtail LC 50/125µ OM5, lime green,2m
The LC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| Anti-kink sleeve: | Put-on |
|---|---|
| Cable Conform to Standard: | IEC60793-2 |
| Connector Conform to Standard: | IEC61754-20 |
| Core type: | Semi tight |
| Insertion loss 1310nm: | - |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class singlemode: | - |
| Type: | Conductor pigtail |
Varianter
| Art. Nej. | Betegnelse | APC-version | Quality class multimode | Category | Colour | Type of connector | Bend optimized fiber | Fibre type | Insertion loss 1310nm | Quality class singlemode | Insertion loss 850nm | Connector Colour | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O0485.2 | Fiber pigtail LC-APC 8° 9/125µ OS2, 2m | True | - | OS2 acc. to ITU-T G.652.D | yellow | LC/APC | no | Single mode 9/125 | < 0.3 dB | B/2 acc. IEC 61753-1 | - | green | |
| O3491.2 | Fiber pigtail LC 62,5/125µ 2m, | False | A/1 according to IEC-61753-222-2 | OM1 | blue | LC | - | Multi mode 62.5/125 | - | - | < 0.3 dB | beige | |
| O3481.2 | Fiber pigtail LC 50/125µ, OM2, 2m, | False | A/1 according to IEC-61753-222-2 | OM2 | green | LC | OM2 acc. to IEC60793-2-10 type A1a.1 | Multi mode 50/125 | - | - | < 0.3 dB | beige | |
| O3686.2 | Fiber pigtail LC 50/125µ OM4 2m, erika-violet | False | A/1 according to IEC-61753-222-2 | OM4 | erica-violet | LC | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 | Multi mode 50/125 | - | - | < 0.3 dB | beige | |
| O3686.2OM5 | Fiber pigtail LC 50/125µ OM5, lime green,2m | False | A/1 according to IEC-61753-222-2 | OM5 | lime green | LC | OM5 acc. to IEC60793-2-10 type A1a.4 | Multi mode 50/125 | - | - | < 0.3 dB | beige |
