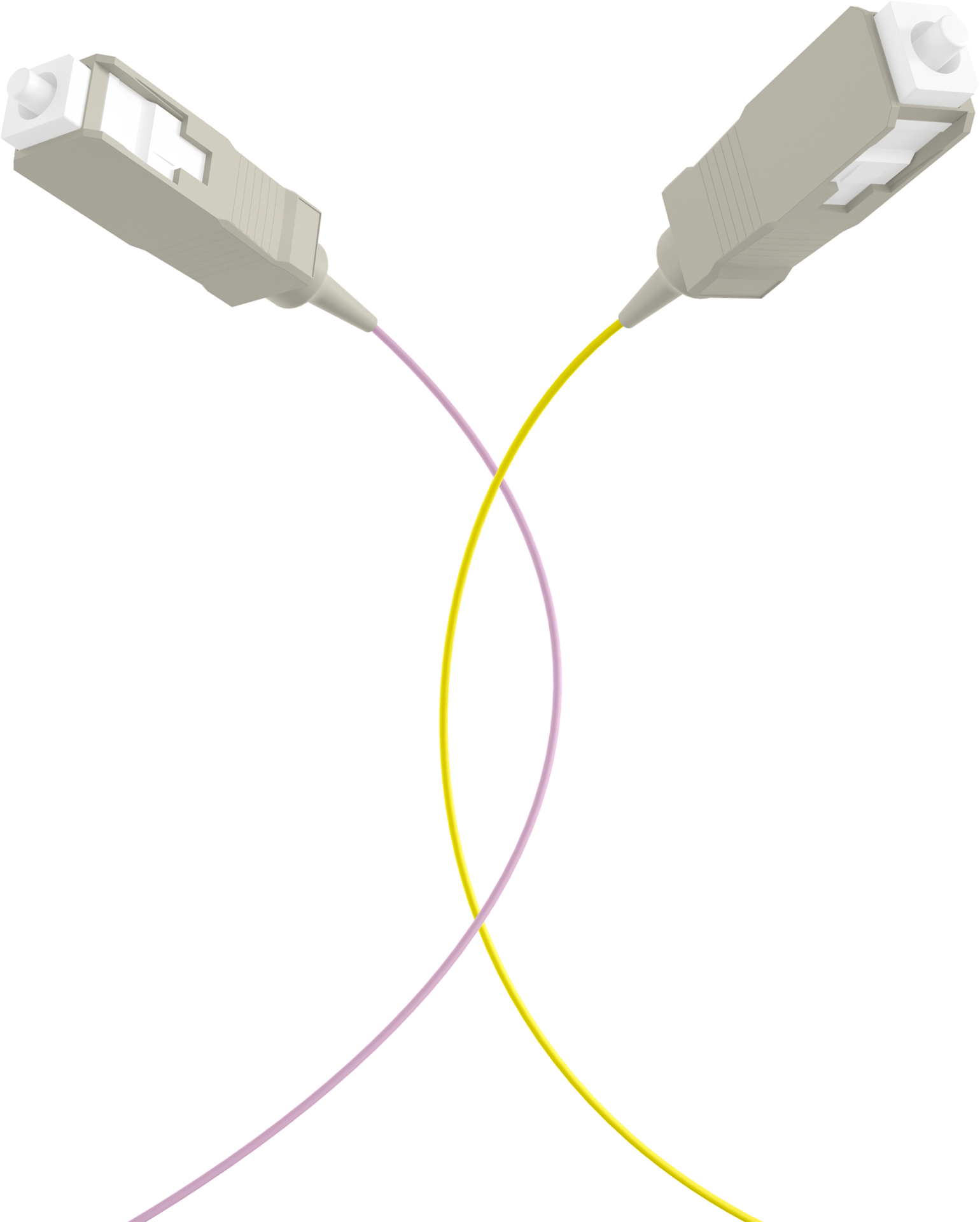

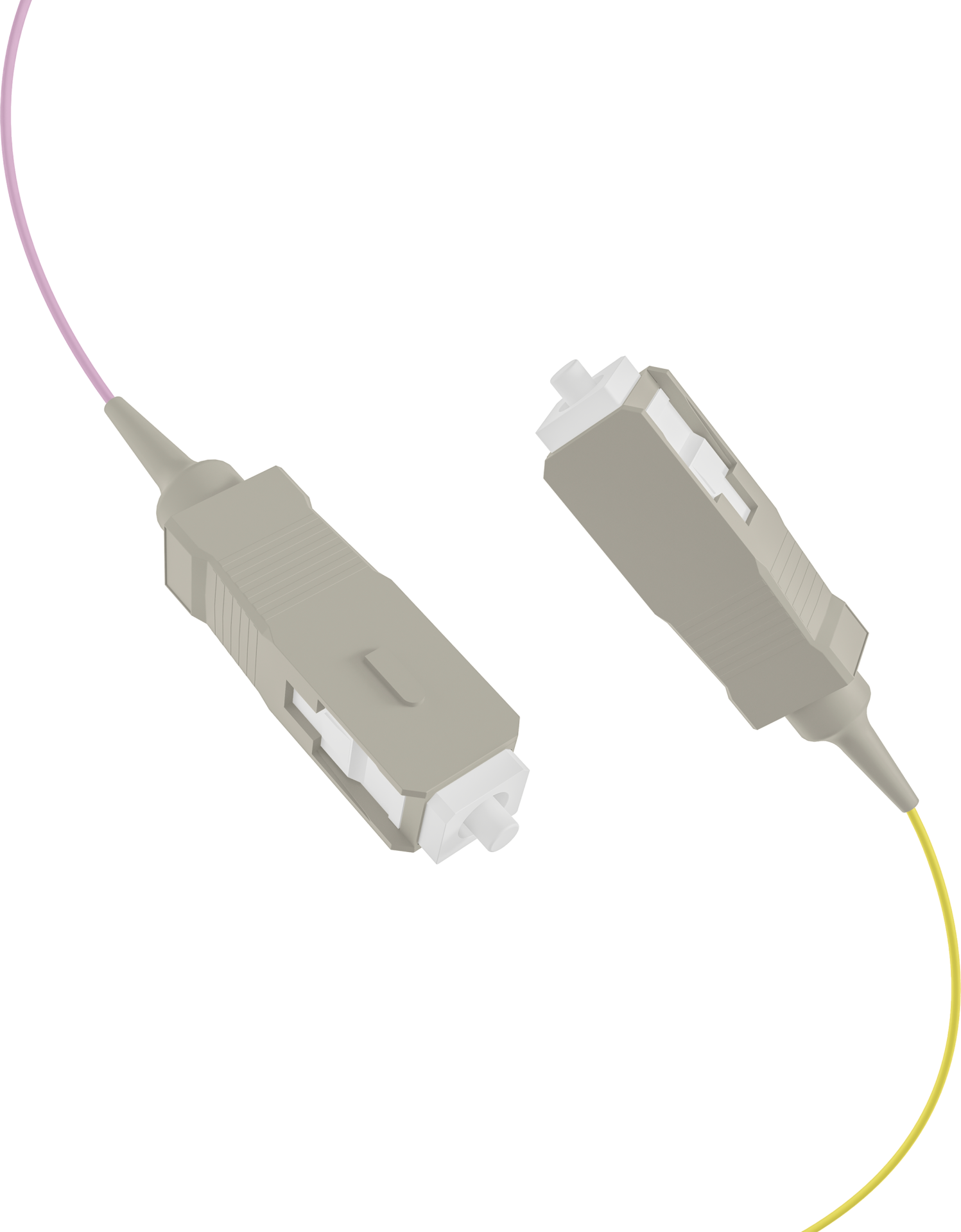

Fiber Pigtail SC OM2 -colored set - 12 pieces
Fiber Pigtail SC OM2 -colored set 2m - 12 pieces
Varenummer:
O3324.2
EAN Nr.:
4049759026721
Produktinformation til Fiber Pigtail SC OM2 -colored set 2m - 12 pieces

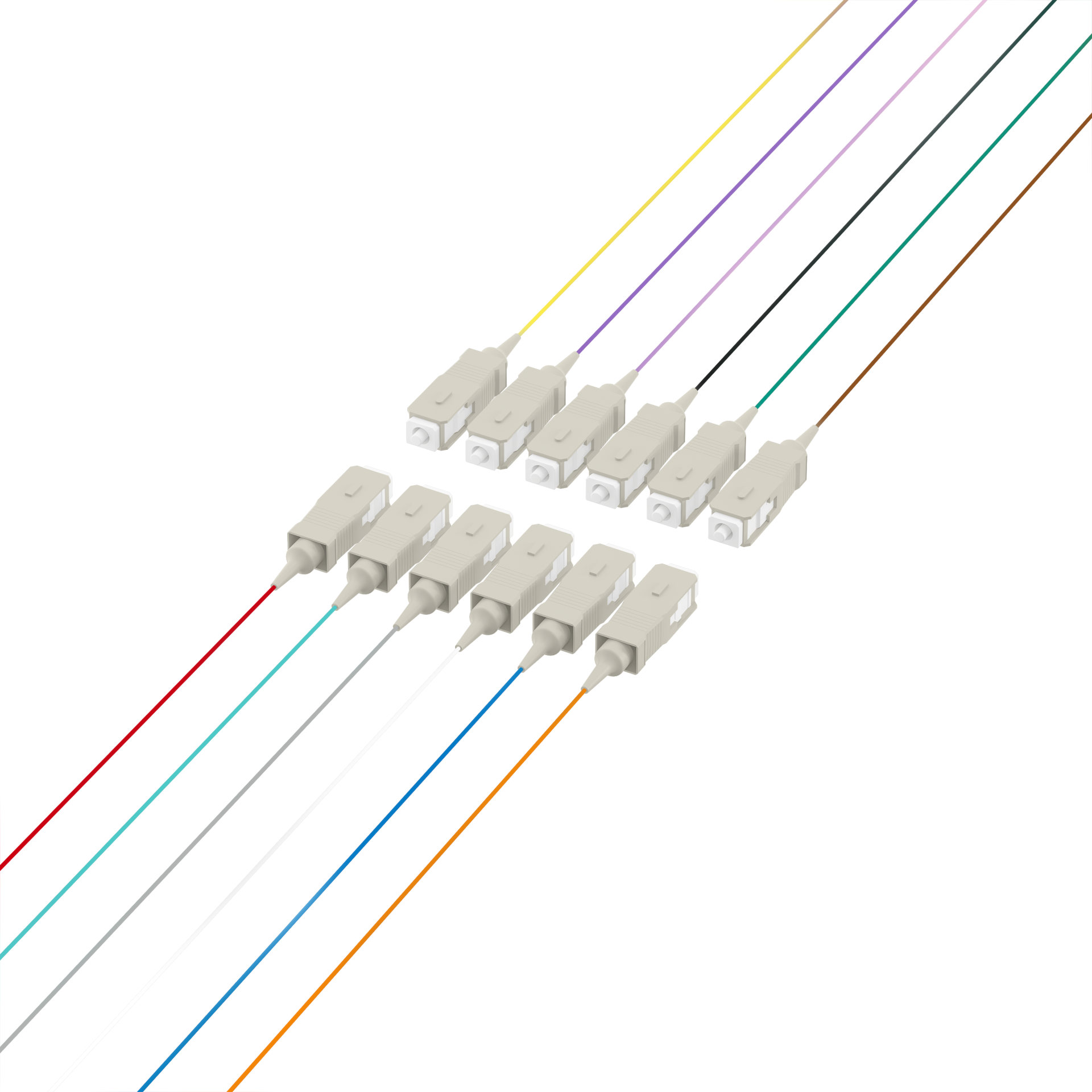

The SC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
APC-version: | False |
---|---|
Anti-kink sleeve: | Put-on |
Bend optimized fiber: | OM2 acc. to IEC60793-2-10 type A1a.1 |
Cable Conform to Standard: | IEC60793-2 |
Category: | OM2 |
Colour: | DIN-Colorcode |
Colour Code: | VDE-0888 |
Connector Colour: | beige |
Connector Conform to Standard: | IEC61754-4 |
Core type: | Semi tight |
Fibre type: | Multi mode 50/125 |
Insertion loss 850nm: | < 0.3 dB |
Jacket material: | LSZH |
Length: | 2.0 m |
Max. Tension: | 3 N |
Minimaler Biegeradius Dynamic: | 20xOD |
Mion. Bending Radius Static: | 10xOD |
Operating Temperature: | -20 – 70 °C |
Outer diameter: | 0.9 mm |
Quality class multimode: | A/1 according to IEC-61753-222-2 |
Type: | Conductor pigtail |
Type of connector: | SC |
