Fiber Pigtail SC OM2 -Green - 1 piece
Fiber Pigtail SC OM2 -Green 2m - 1 piece
Varenummer:
O3323.2
EAN Nr.:
4049759026714
Produktinformation til Fiber Pigtail SC OM2 -Green 2m - 1 piece

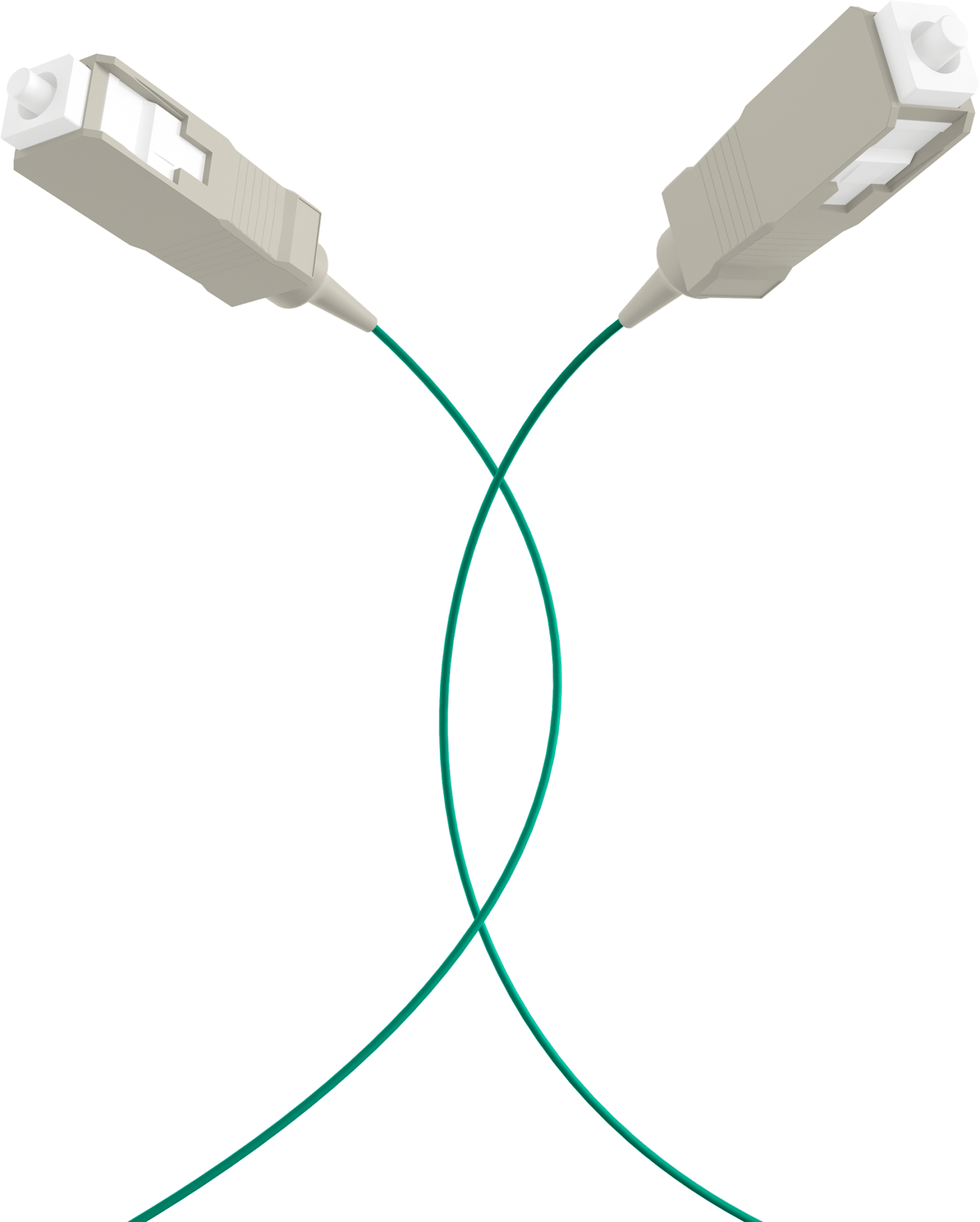

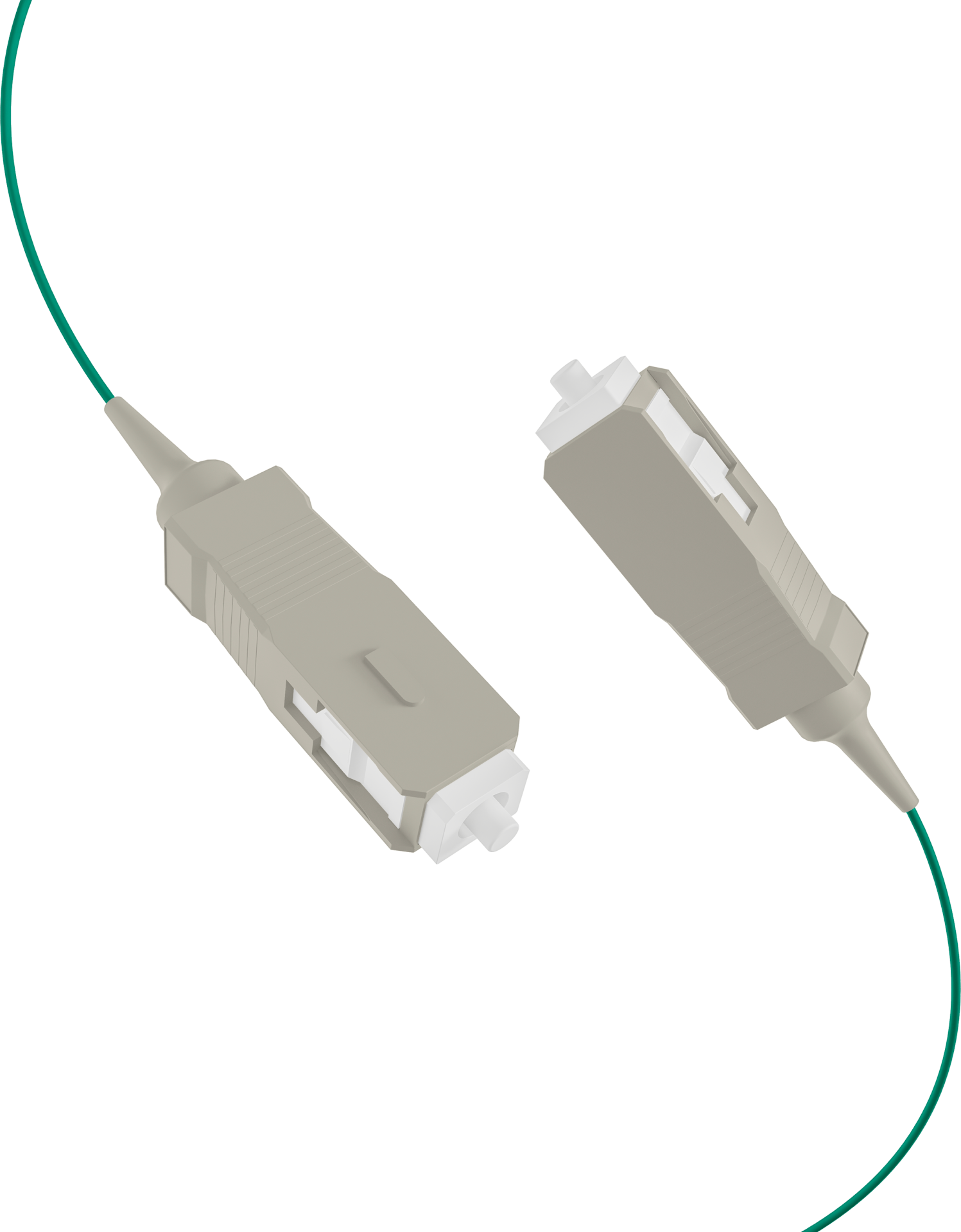

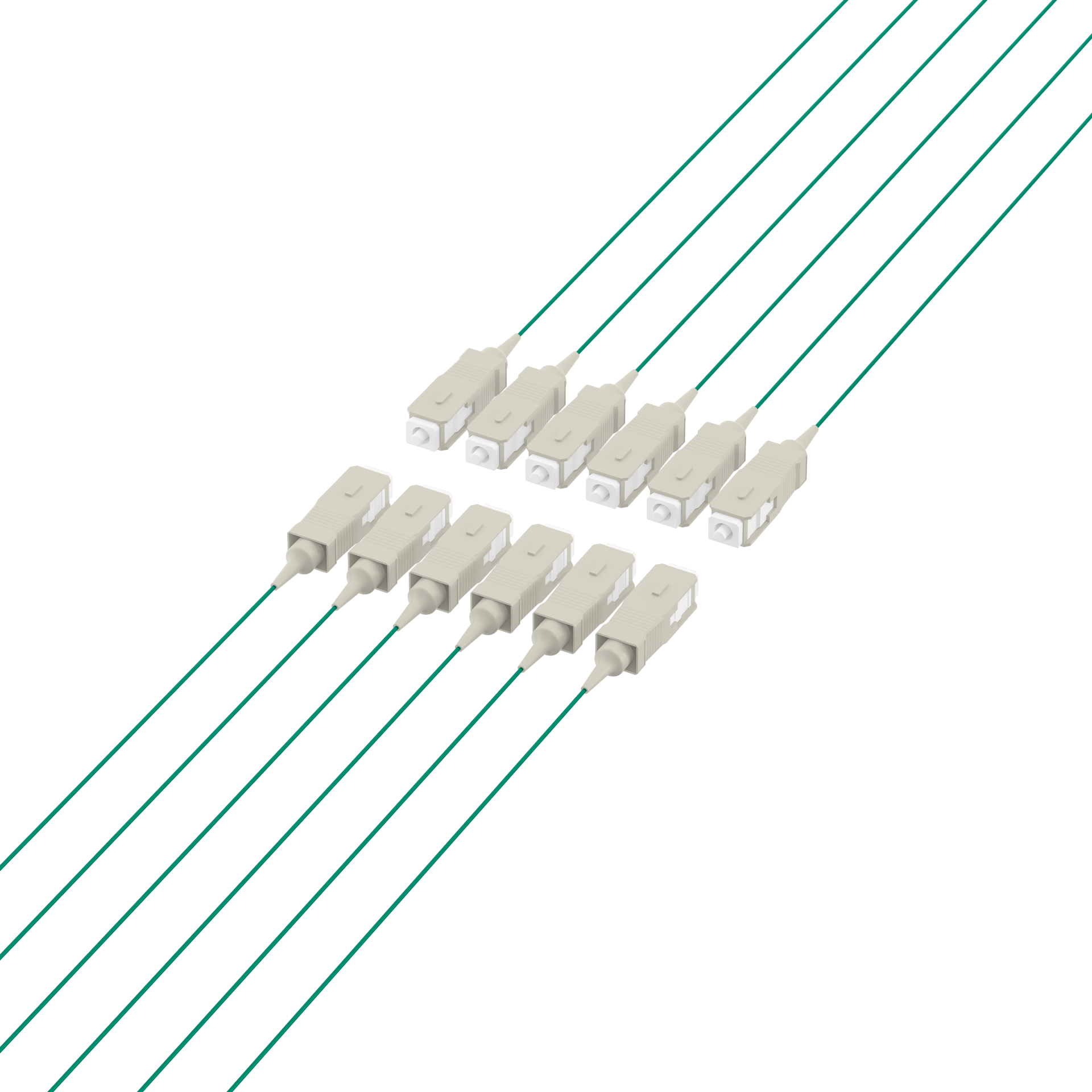

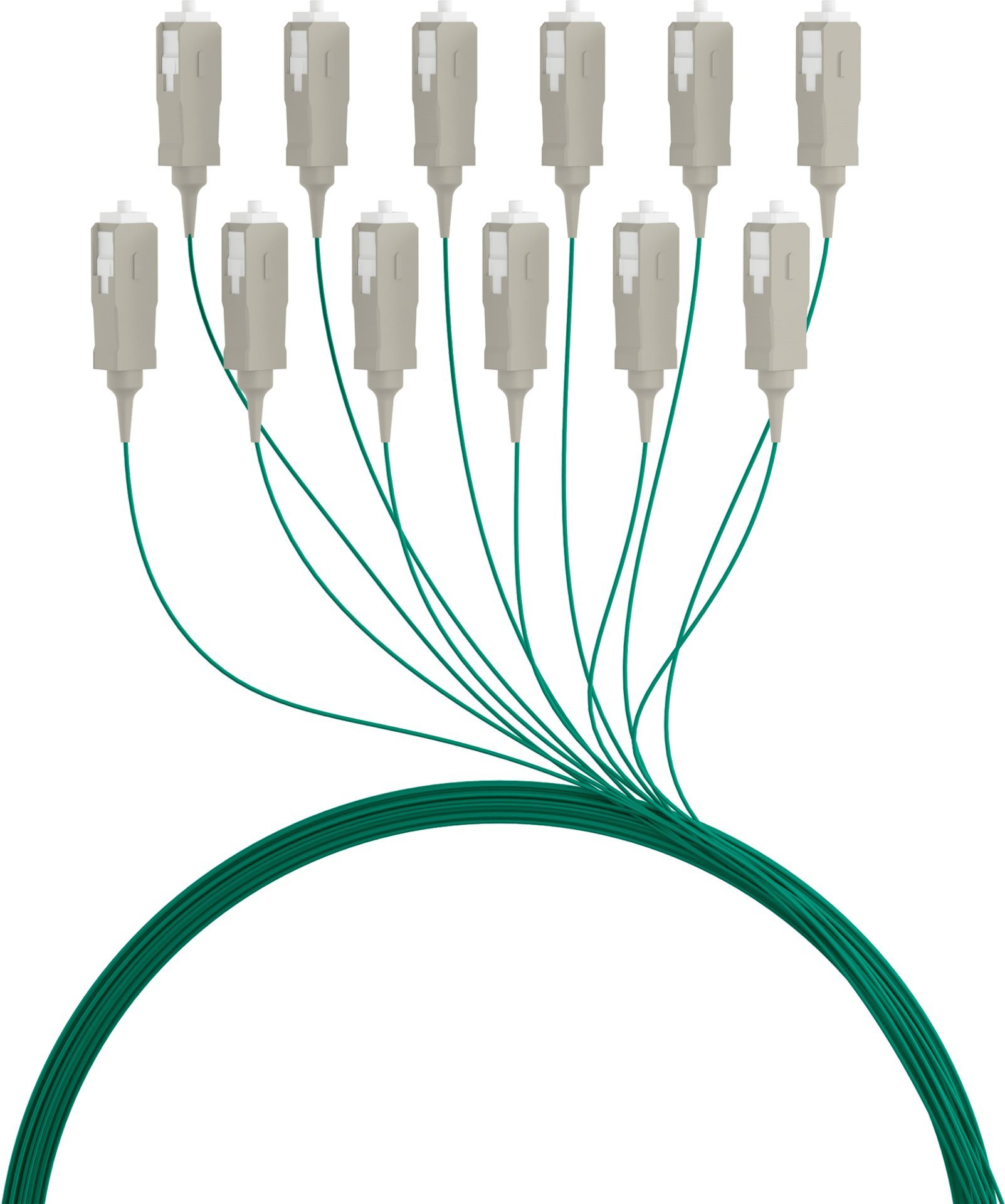

The SC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC-version: | False |
|---|---|
| Anti-kink sleeve: | Put-on |
| Bend optimized fiber: | OM2 acc. to IEC60793-2-10 type A1a.1 |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM2 |
| Colour: | green |
| Connector Colour: | beige |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Multi mode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket Material: | LSZH |

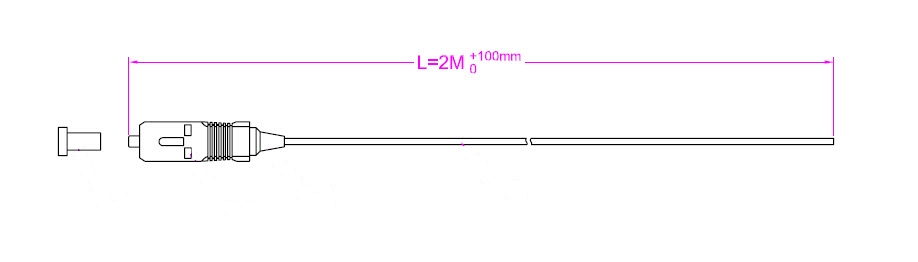

| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class Multimode: | A/1 according to IEC-61753-222-2 |
| Type: | Conductor pigtail |
| Type of connector: | SC |
