Fiber Pigtail SC OM4 -Heather violet - 1 piece
Fiber Pigtail SC OM4 -Heather violet 2m - 1 piece
Varenummer:
O3685.2
EAN Nr.:
4049759026790
Produktinformation til Fiber Pigtail SC OM4 -Heather violet 2m - 1 piece

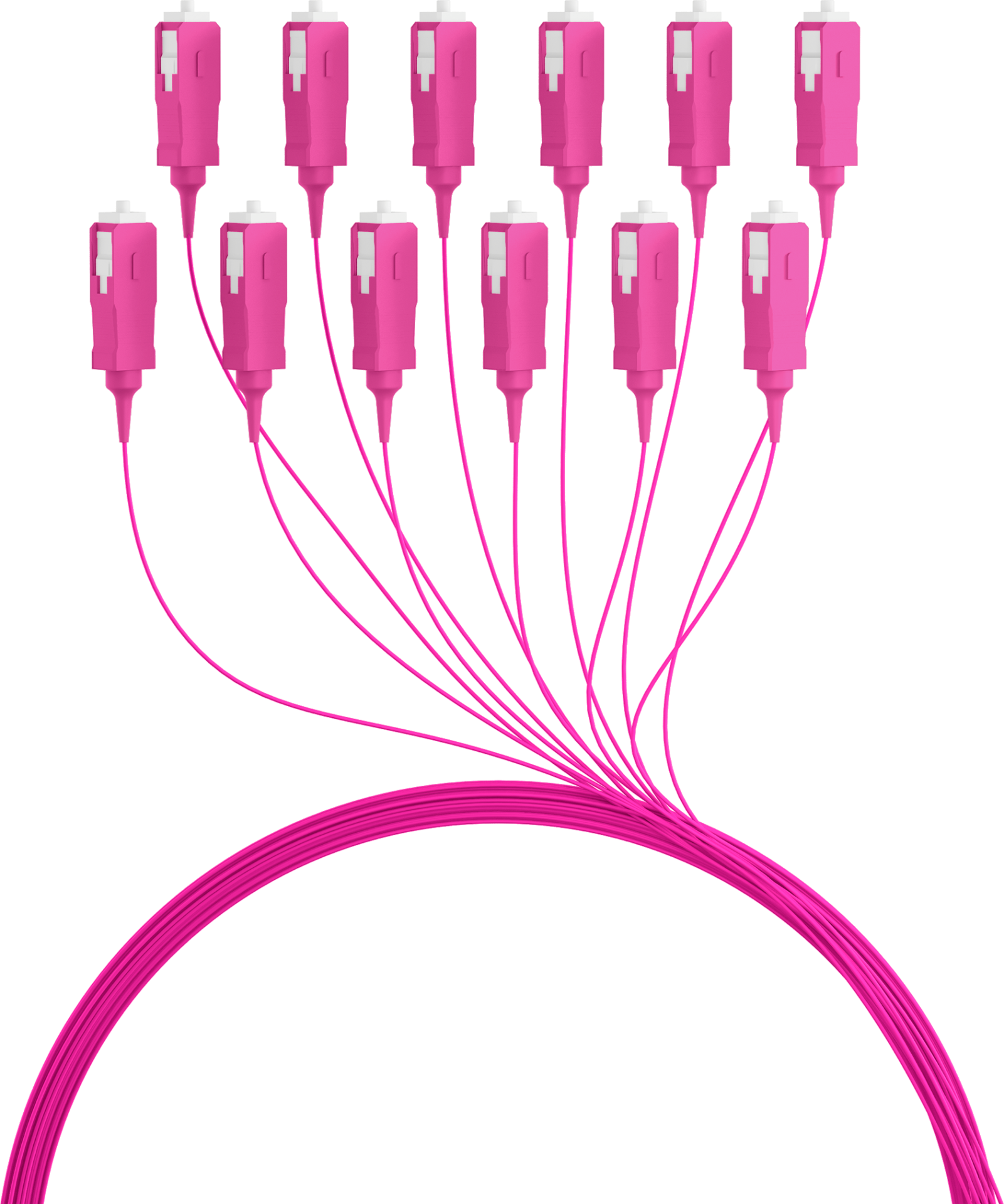

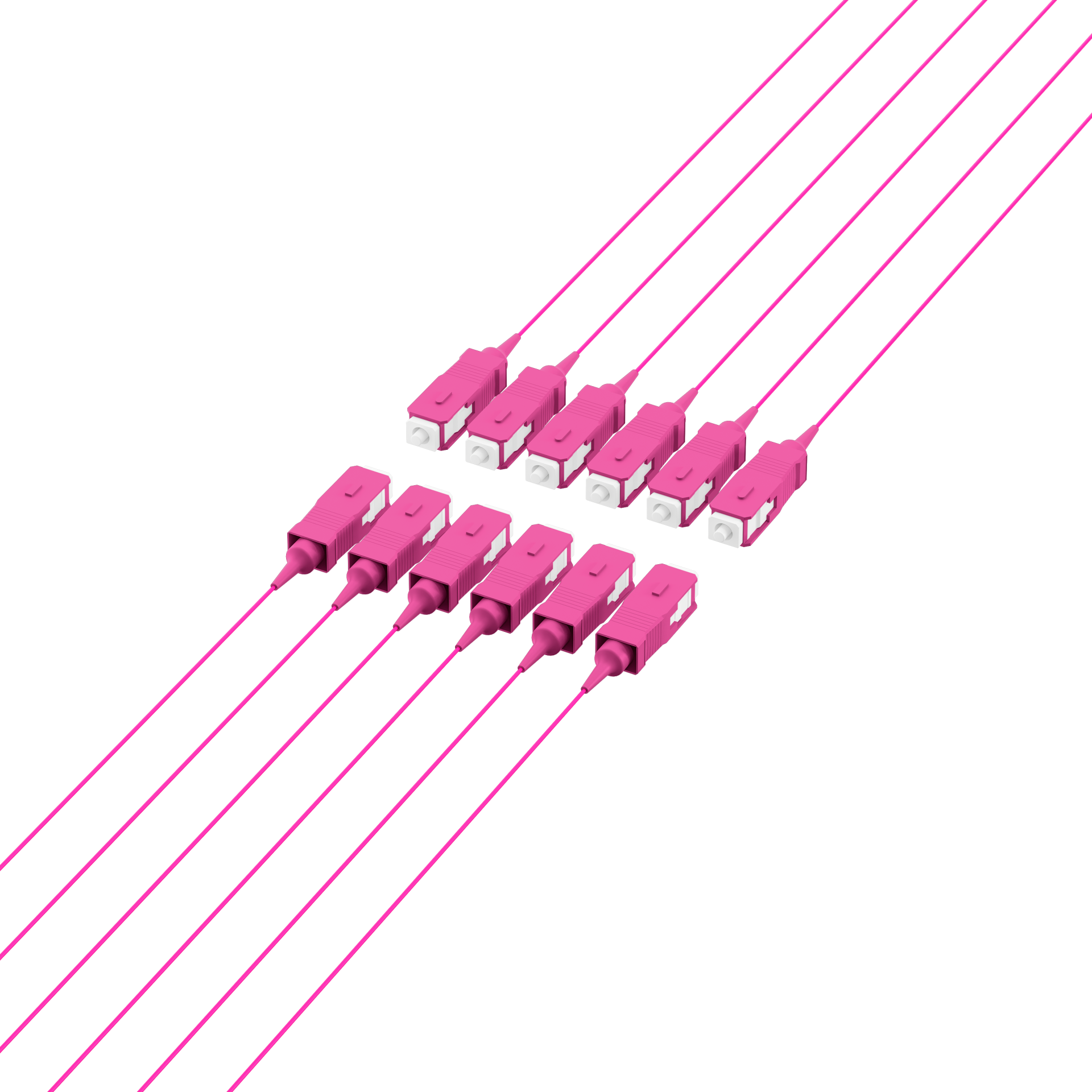

The SC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC Ausführung: | Nein |
|---|---|
| Adertyp: | Kompaktader |
| Außendurchmesser: | 0,9 mm |
| Betriebstemperatur: | -20 – 70 °C |
| Biegeoptimierte Faser: | OM4 nach IEC60793-2-10 type A1a.2 und A1a.3 |
| Einfügedämpfung 850nm: | < 0.3 dB |
| Farbe: | erika-violett |
| Faserart: | Multimode 50/125 |
| Kabel Konform zu Standard: | IEC60793-2 |
| Kategorie: | OM4 |
| Knickschutztülle: | aufgesteckt |

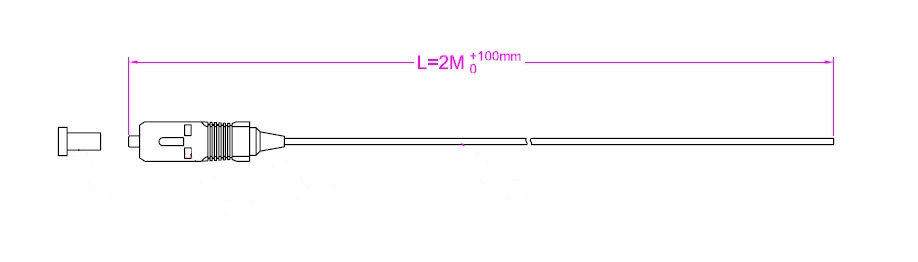

| Länge: | 2,0 m |
| Mantel-Material: | LSZH |
| Maximale Zugkraft: | 3 N |
| Minimaler Biegeradius Dynamisch: | 20xOD |
| Minimaler Biegeradius Statisch: | 10xOD |
| Qualitätsklasse Multimode: | A/1 nach IEC-61753-222-2 |
| Stecker Konform zu Standard: | IEC61754-4 |
| Steckerfarbe: | beige |
| Steckverbindertyp: | SC |
| Typ: | Aderpigtail |
