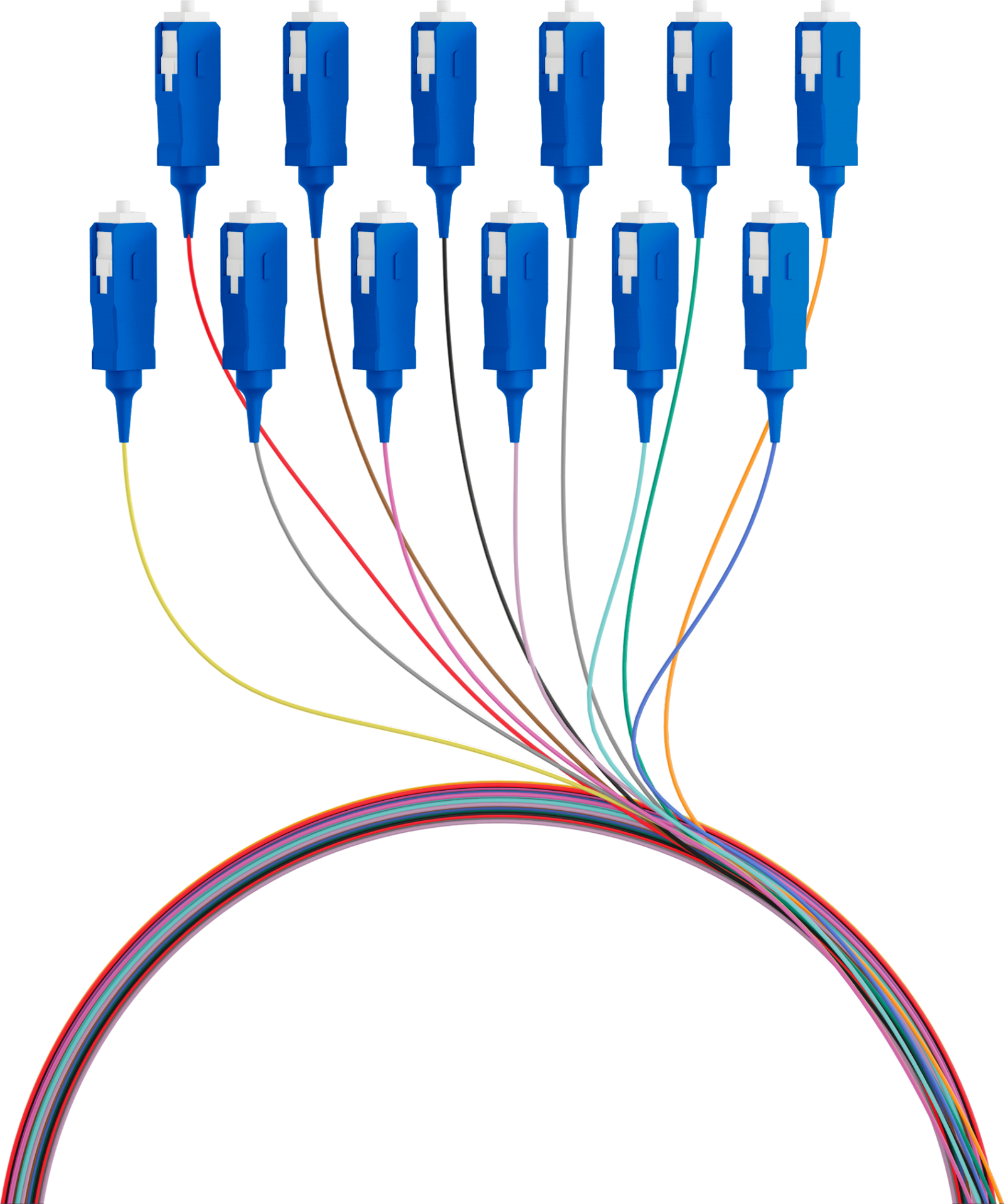

Fiber Pigtail SC OS2 G652D-colored set - 12 pieces
Fiber Pigtail SC OS2 G652D-colored set 2m - 12 pieces
Varenummer:
O1022.2
EAN Nr.:
4049759026219
Produktinformation til Fiber Pigtail SC OS2 G652D-colored set 2m - 12 pieces

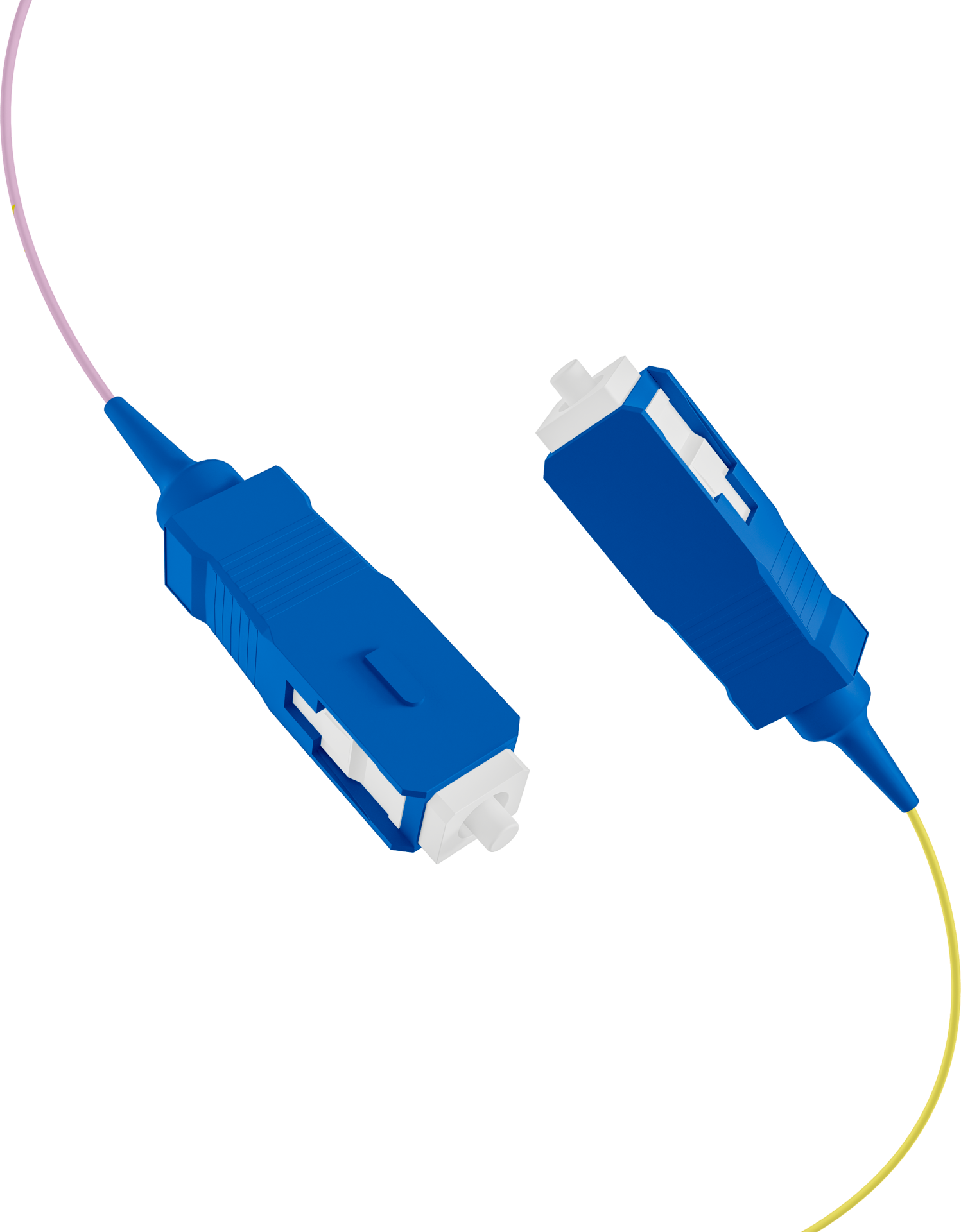

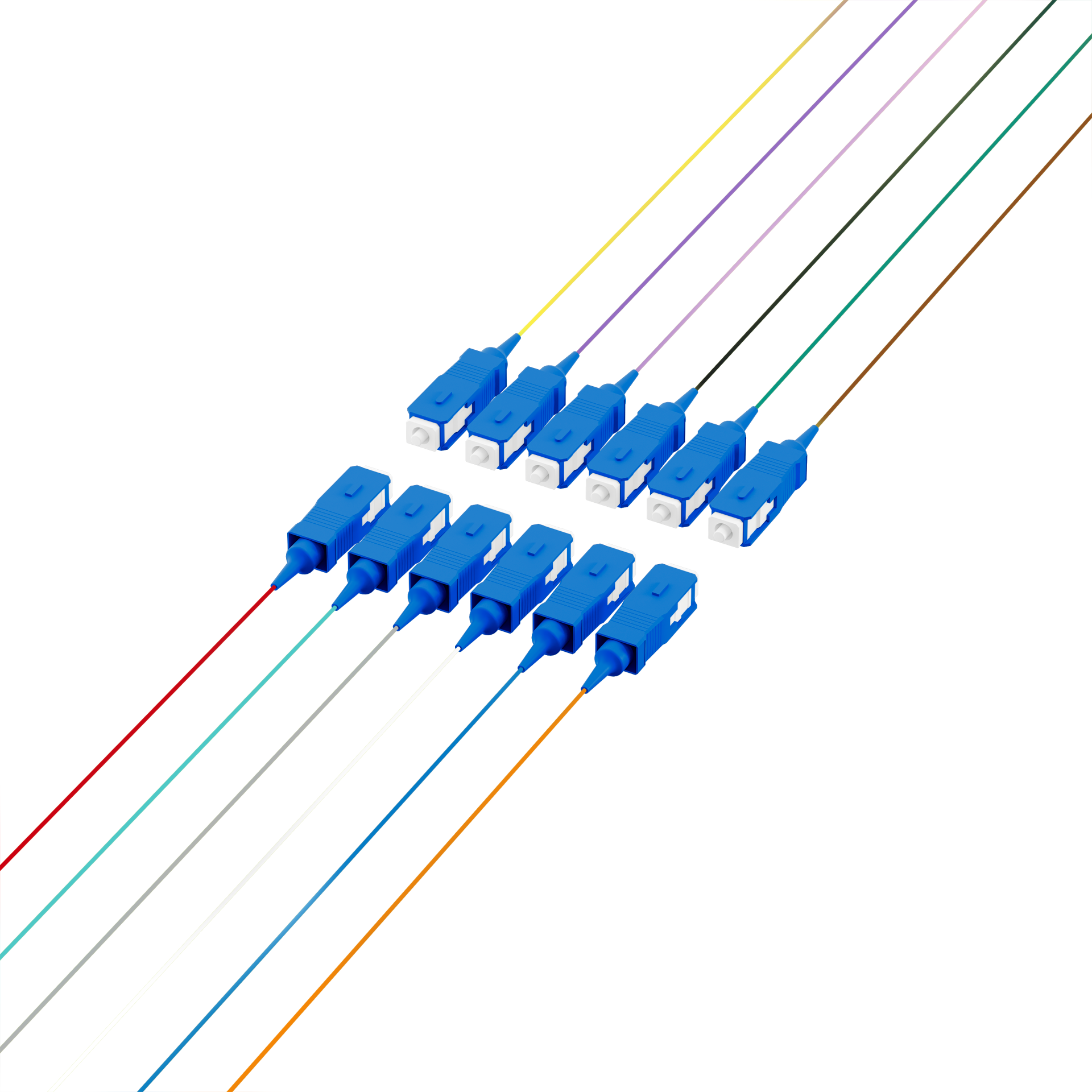

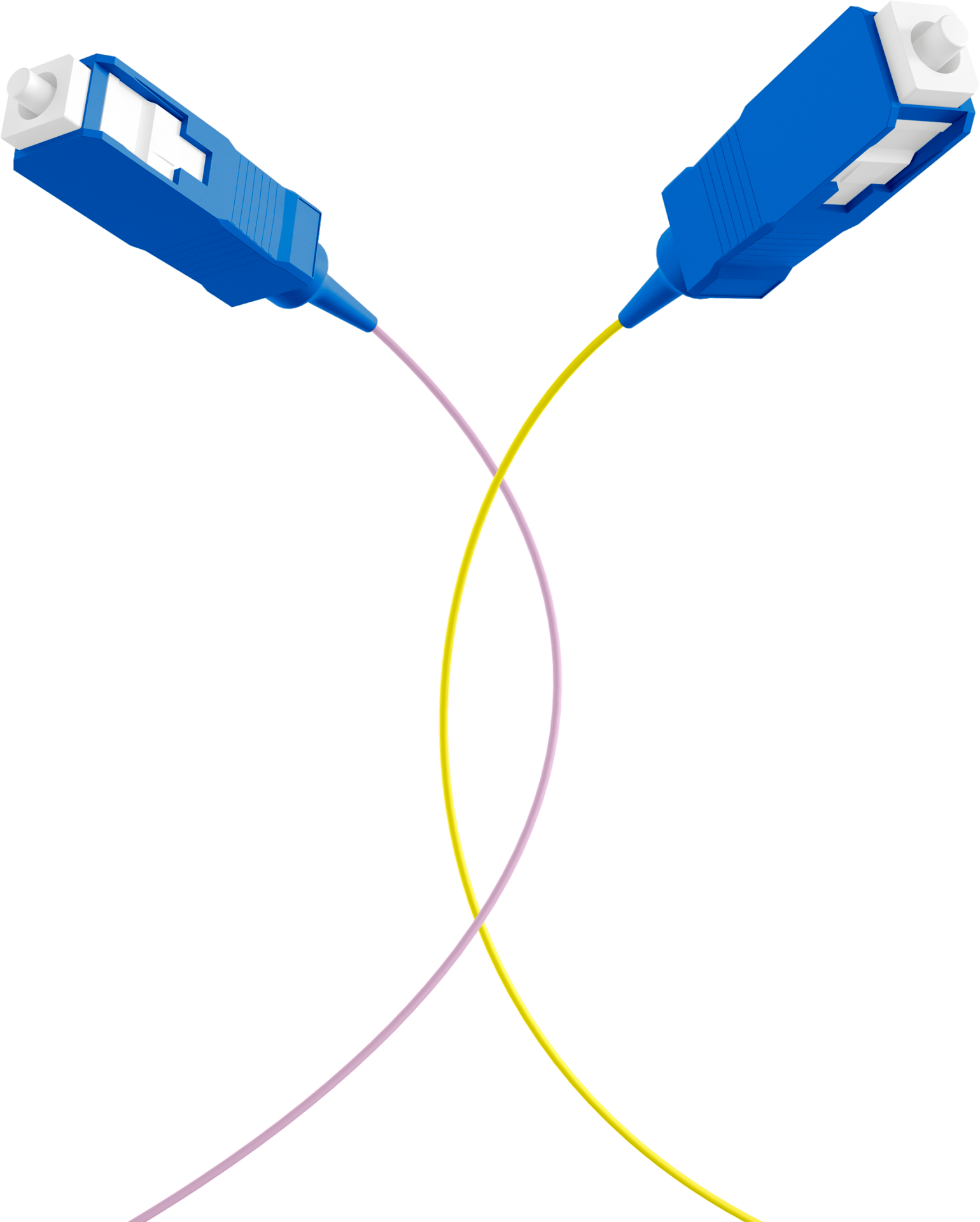

The SC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC Ausführung: | Nein |
|---|---|
| Adertyp: | Kompaktader |
| Außendurchmesser: | 0,9 mm |
| Betriebstemperatur: | -20 – 70 °C |
| Einfügedämpfung 1310nm: | < 0,3 dB |
| Farbcode: | VDE-0888 |
| Farbe: | DIN-Farbcode |
| Faserart: | Singlemode 9/125 |
| Kabel Konform zu Standard: | IEC60793-2 |
| Kategorie: | OS2 G652D |
| Knickschutztülle: | aufgesteckt |
| Länge: | 2,0 m |
| Mantel-Material: | LSZH |
| Maximale Zugkraft: | 3 N |
| Minimaler Biegeradius Dynamisch: | 20xOD |
| Minimaler Biegeradius Statisch: | 10xOD |
| Qualitätsklasse Singlemode: | B/2 nach IEC 61753-1 |
| Stecker Konform zu Standard: | IEC61754-4 |
| Steckerfarbe: | blau |
| Steckverbindertyp: | SC |
| Typ: | Aderpigtail |
