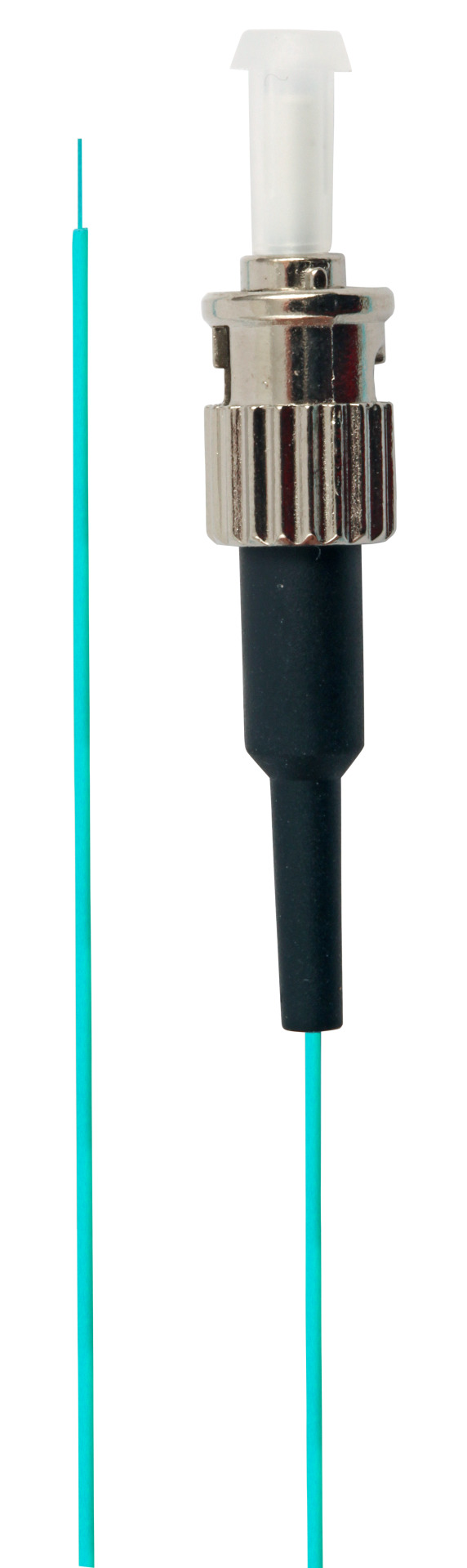

Fiber Pigtail ST OM3 -Aqua - 1 piece
Fiber Pigtail ST OM3 -Aqua 2m - 1 piece
Varenummer:
O3603.2
EAN Nr.:
4049759023171
Produktinformation til Fiber Pigtail ST OM3 -Aqua 2m - 1 piece
The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM3 |
| Color: | aqua |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Multimode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0,9 mm |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Type: | Conductor pigtail |
| Type of connector: | ST |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
