Fiber Pigtail ST OM1 -Blue - 1 piece
Fiber Pigtail ST OM1 -Blue 2m - 1 piece
Varenummer:
O3313.2
EAN Nr.:
4049759026707
Produktinformation til Fiber Pigtail ST OM1 -Blue 2m - 1 piece

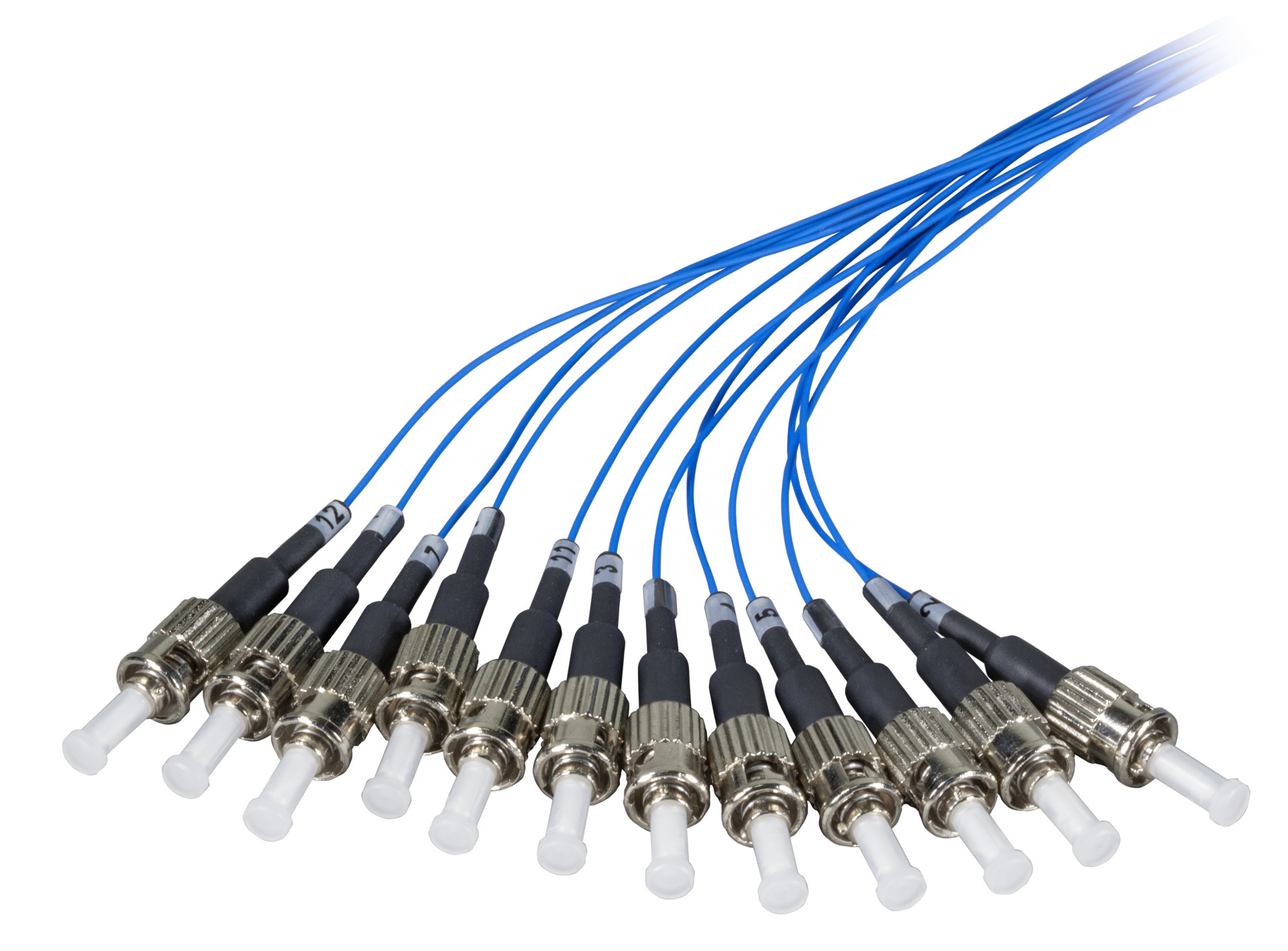

The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
APC Ausführung: | Nein |
---|---|
Adertyp: | Kompaktader |
Außendurchmesser: | 0,9 mm |
Betriebstemperatur: | -20 – 70 °C |
Einfügedämpfung 850nm: | < 0.3 dB |
Farbe: | blau |
Faserart: | Multimode 62,5/125 |
Kabel Konform zu Standard: | IEC60793-2 |
Kategorie: | OM1 |
Knickschutztülle: | aufgesteckt |
Länge: | 2,0 m |
Mantel-Material: | LSZH |
Maximale Zugkraft: | 3 N |
Minimaler Biegeradius Dynamisch: | 20xOD |
Minimaler Biegeradius Statisch: | 10xOD |
Qualitätsklasse Multimode: | A/1 nach IEC-61753-222-2 |
Stecker Konform zu Standard: | IEC61754-2 |
Steckverbindertyp: | ST |
Typ: | Aderpigtail |
