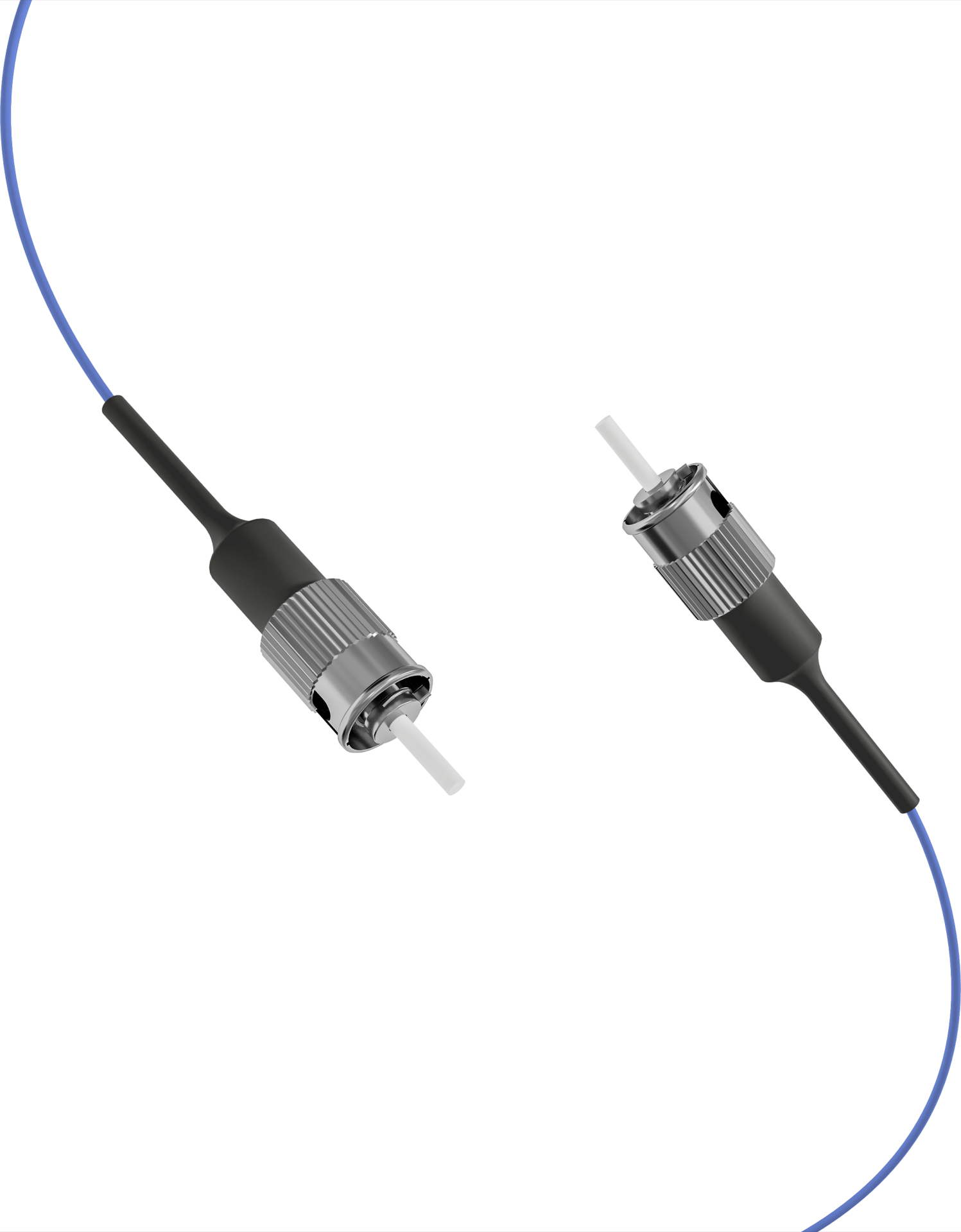

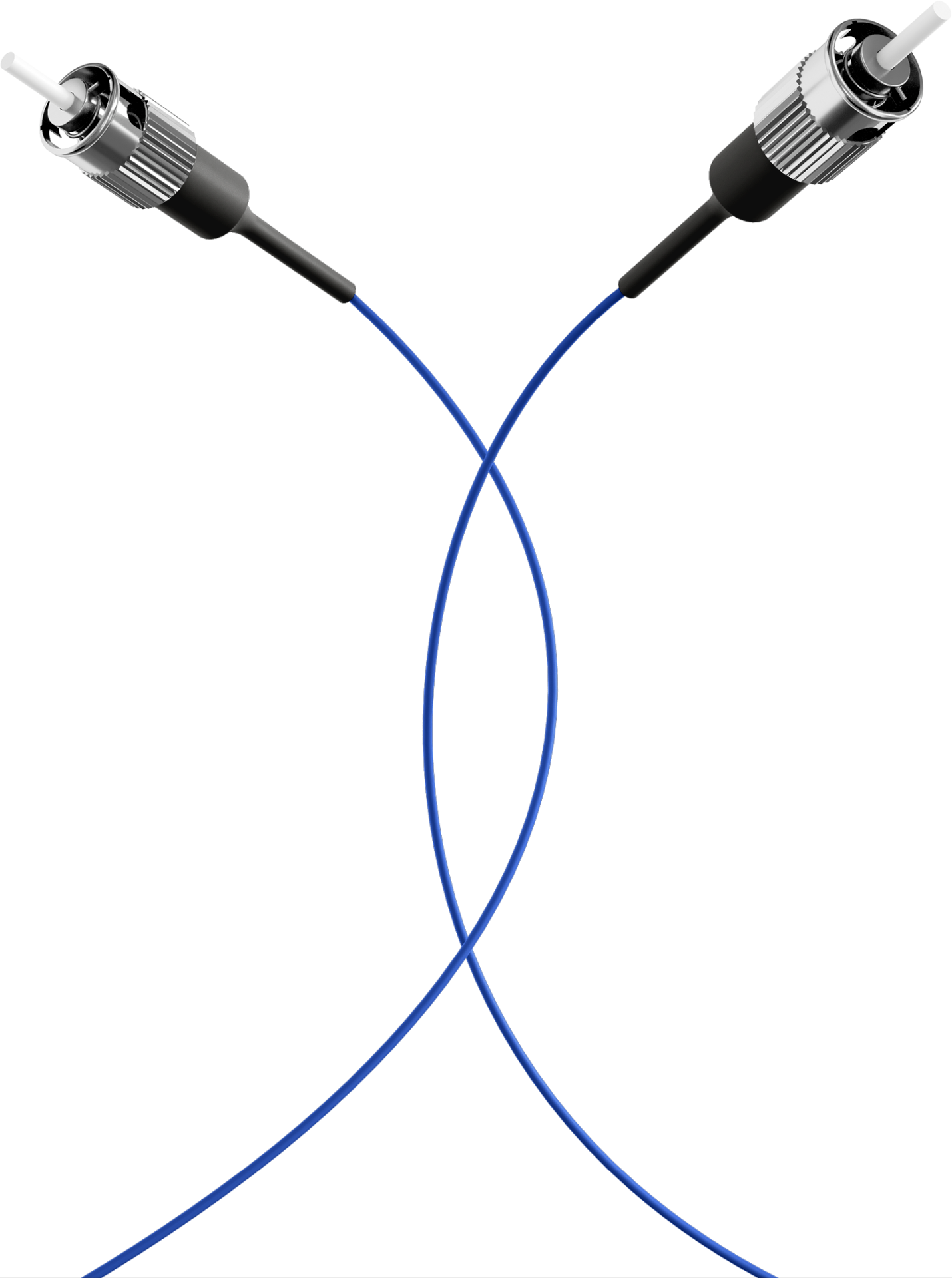

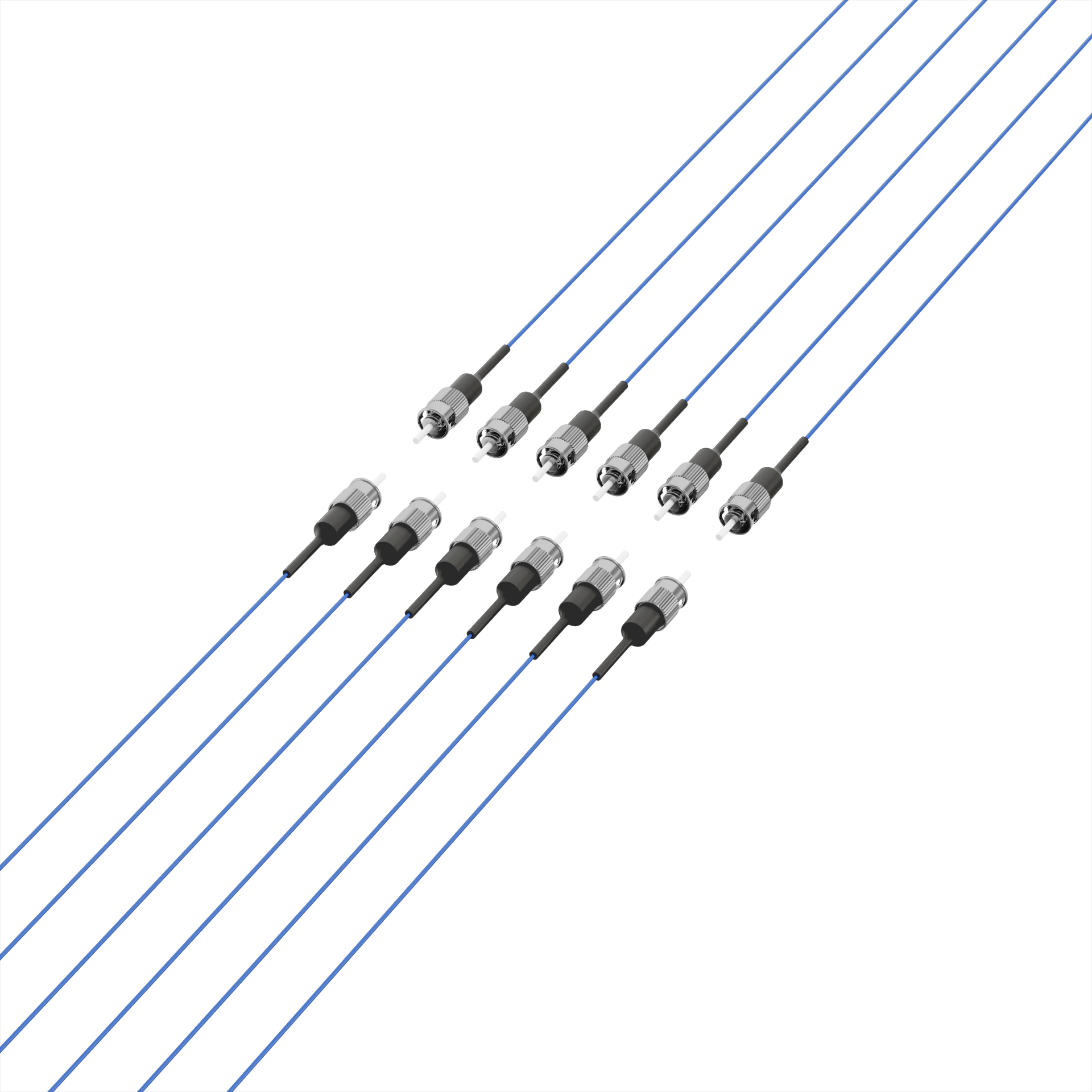

Fiber Pigtail ST OM1 -Blue - 1 piece
Fiber Pigtail ST OM1 -Blue 2m - 1 piece
Varenummer:
O3313.2
EAN Nr.:
4049759026707
Produktinformation til Fiber Pigtail ST OM1 -Blue 2m - 1 piece
The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM1 |
| Color: | blue |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Multi mode 62.5/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0,9 mm |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Type: | Conductor pigtail |
| Type of connector: | ST |
