Fiber Pigtail ST OM2 -Green - 1 piece
Fiber Pigtail ST OM2 -Green 2m - 1 piece
Varenummer:
O3303.2
EAN Nr.:
4049759026677
Produktinformation til Fiber Pigtail ST OM2 -Green 2m - 1 piece

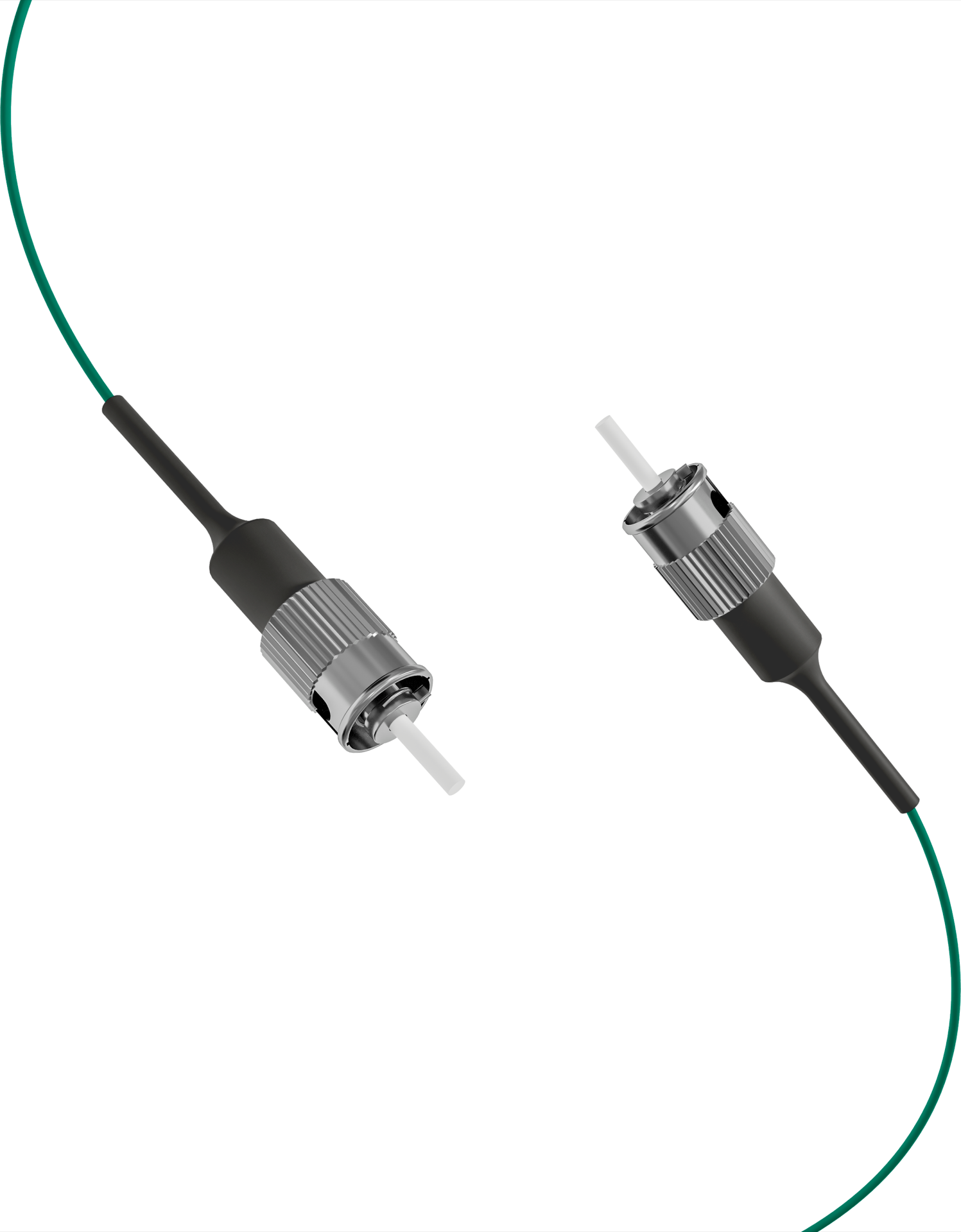

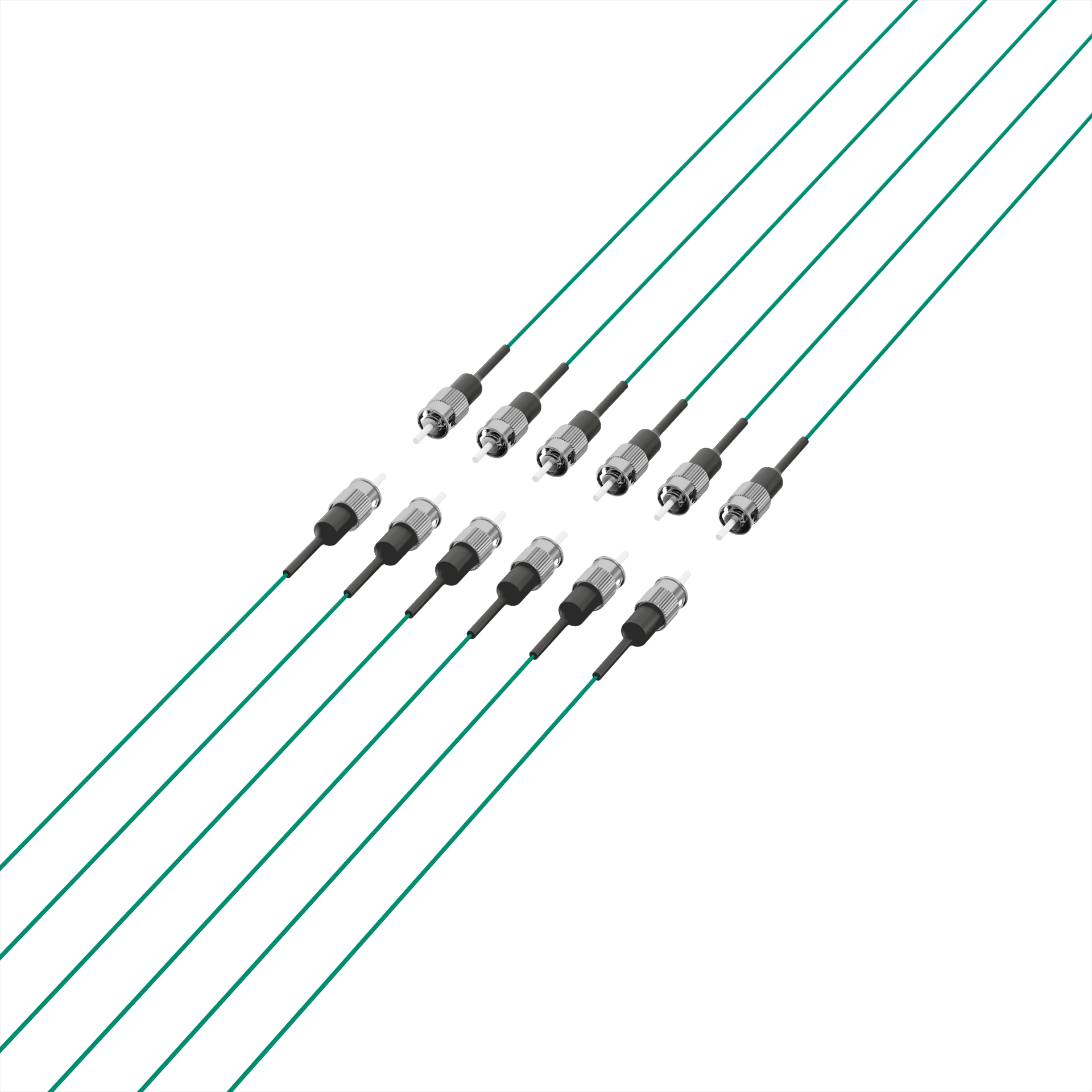

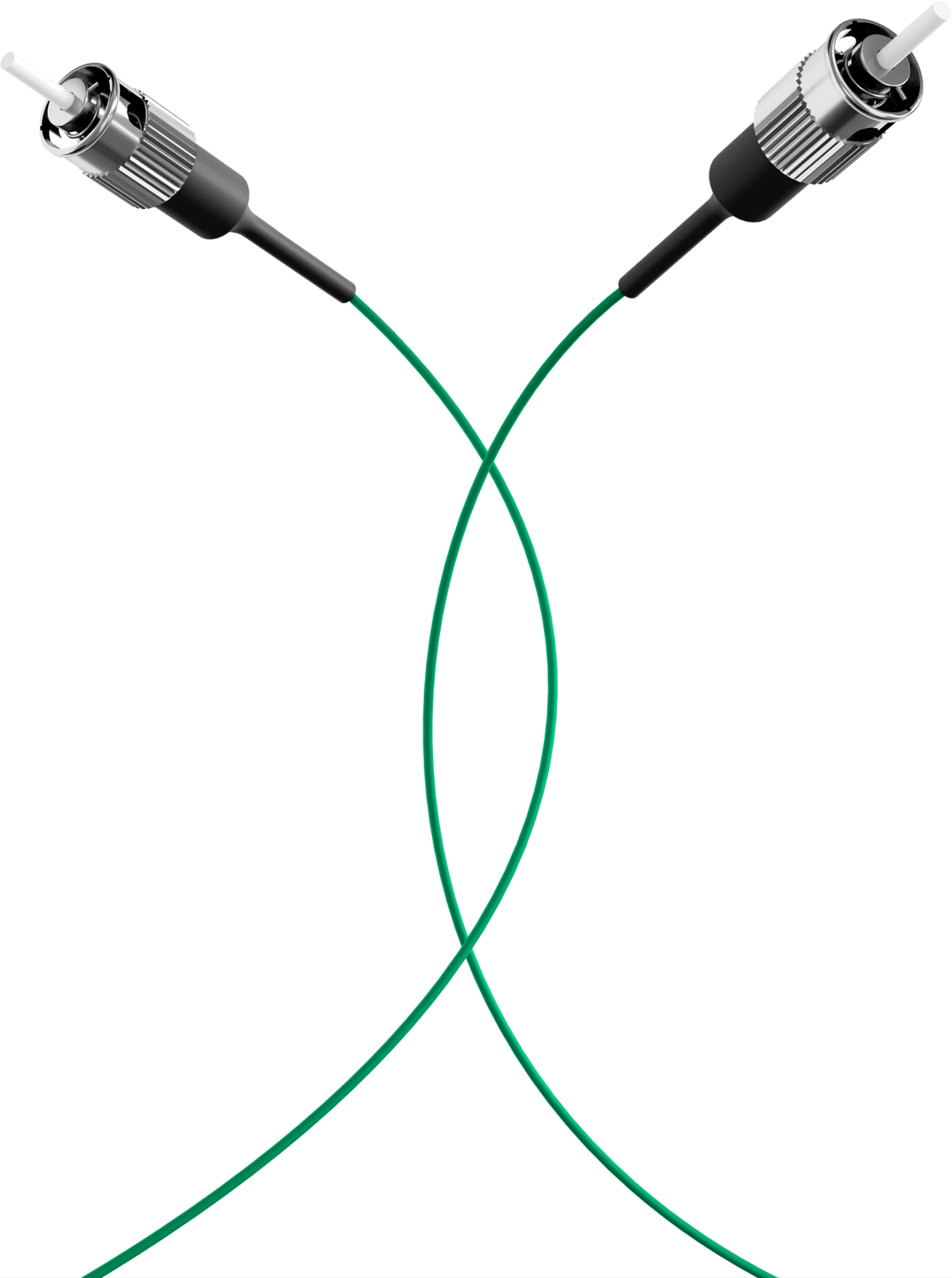

The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
APC-version: | False |
---|---|
Anti-kink sleeve: | Put-on |
Bend optimized fiber: | OM2 acc. to IEC60793-2-10 type A1a.1 |
Cable Conform to Standard: | IEC60793-2 |
Category: | OM2 |
Colour: | green |
Connector Conform to Standard: | IEC61754-2 |
Core type: | Semi tight |
Fibre type: | Multi mode 50/125 |
Insertion loss 850nm: | < 0.3 dB |
Jacket material: | LSZH |

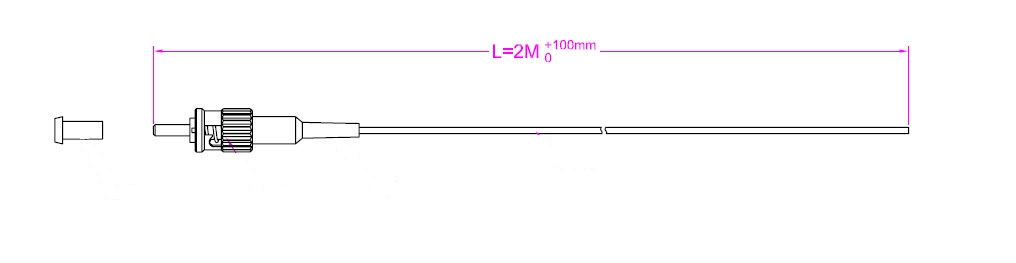

Length: | 2.0 m |
Max. Tension: | 3 N |
Minimaler Biegeradius Dynamic: | 20xOD |
Mion. Bending Radius Static: | 10xOD |
Operating Temperature: | -20 – 70 °C |
Outer diameter: | 0.9 mm |
Quality class multimode: | A/1 according to IEC-61753-222-2 |
Type: | Conductor pigtail |
Type of connector: | ST |
