Fiber Pigtail ST OM3 -Aqua - 1 piece
Fiber Pigtail ST OM3 -Aqua 2m - 1 piece
Varenummer:
O3603.2
EAN Nr.:
4049759023171
Produktinformation til Fiber Pigtail ST OM3 -Aqua 2m - 1 piece
The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
APC Ausführung: | Nein |
---|---|
Adertyp: | Kompaktader |
Außendurchmesser: | 0,9 mm |
Betriebstemperatur: | -20 – 70 °C |
Biegeoptimierte Faser: | OM3 nach IEC60793-2-10 type A1a.2 und A1a.3 |
Einfügedämpfung 850nm: | < 0.3 dB |
Farbe: | aqua |
Faserart: | Multimode 50/125 |
Kabel Konform zu Standard: | IEC60793-2 |
Kategorie: | OM3 |
Knickschutztülle: | aufgesteckt |

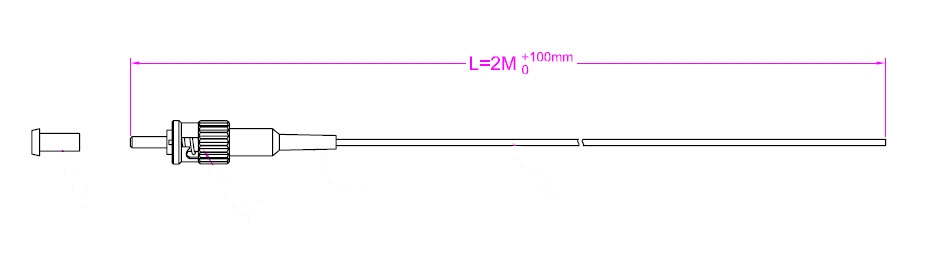

Länge: | 2,0 m |
Mantel-Material: | LSZH |
Maximale Zugkraft: | 3 N |
Minimaler Biegeradius Dynamisch: | 20xOD |
Minimaler Biegeradius Statisch: | 10xOD |
Qualitätsklasse Multimode: | A/1 nach IEC-61753-222-2 |
Stecker Konform zu Standard: | IEC61754-2 |
Steckverbindertyp: | ST |
Typ: | Aderpigtail |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
