Field Installable SC Connector
Priser kun synlige for indloggede brugere

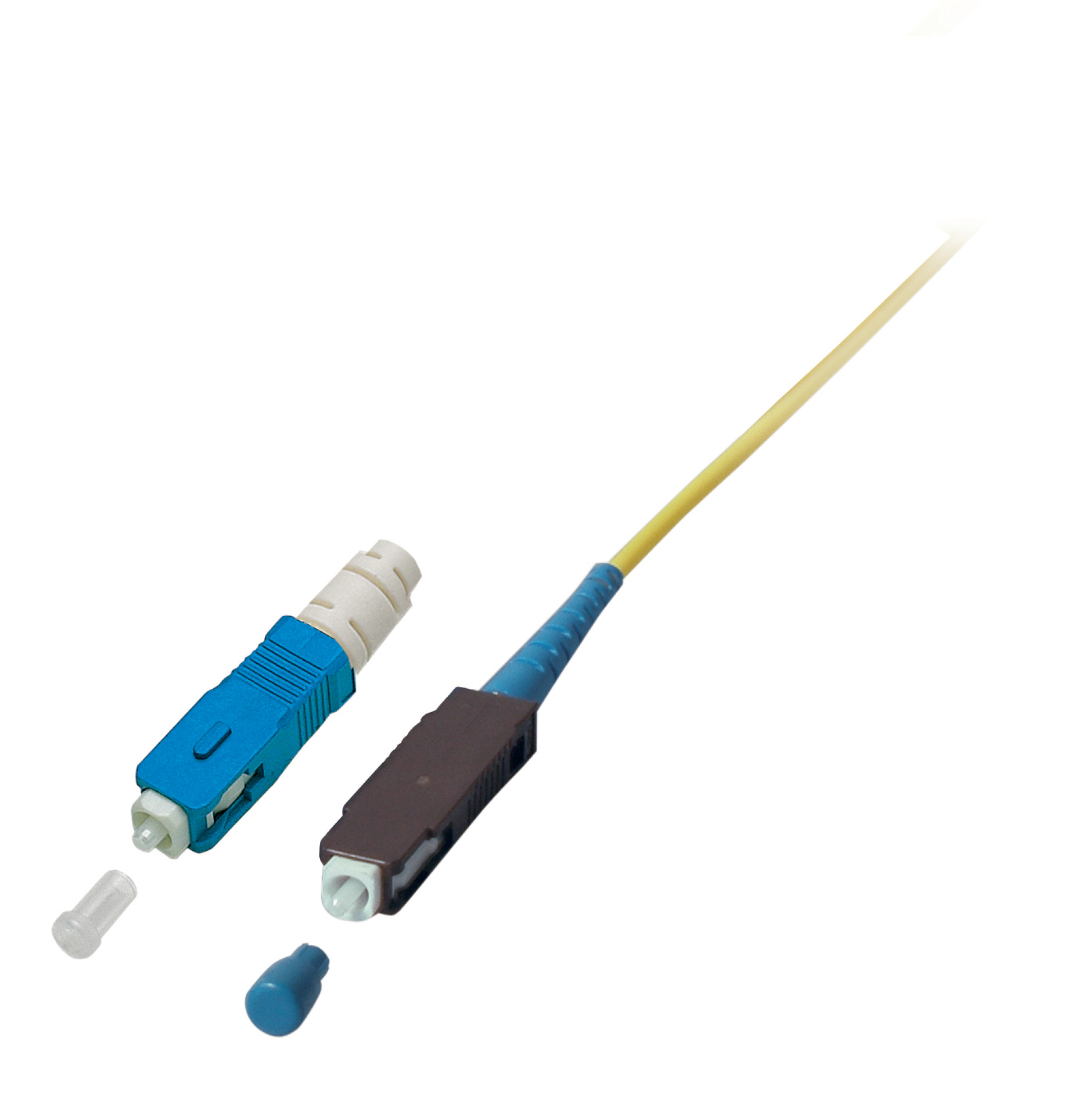

Field installable SC connectors OS2 blue
Varenummer:
53199.2
EAN nr.:
4049759161910
Produktinformation für Field installable SC connectors OS2 blue
Compatible with all standard SC connectors and adapter
Easy installation in less than 2 minutes
No need for glue
No need of electrical power

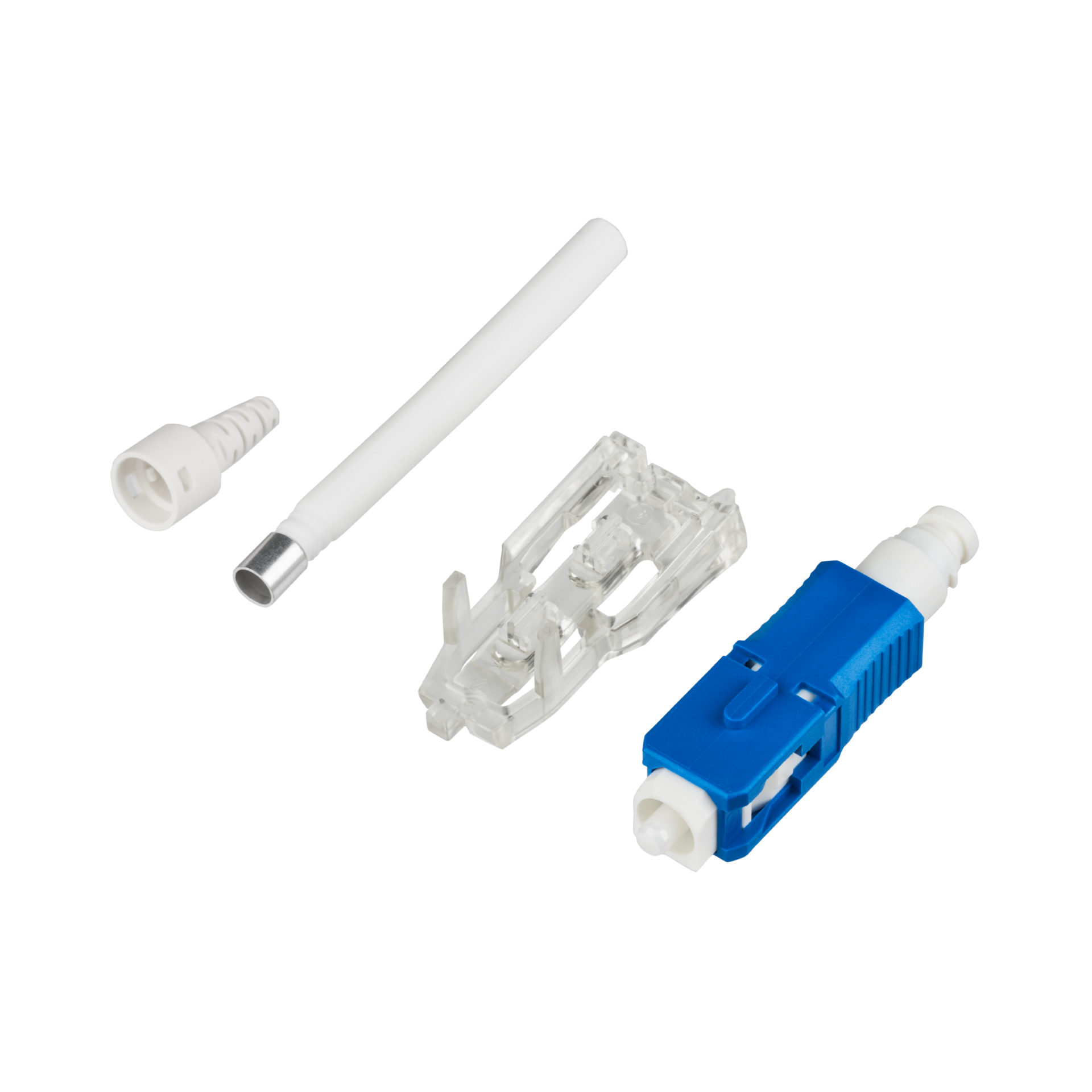

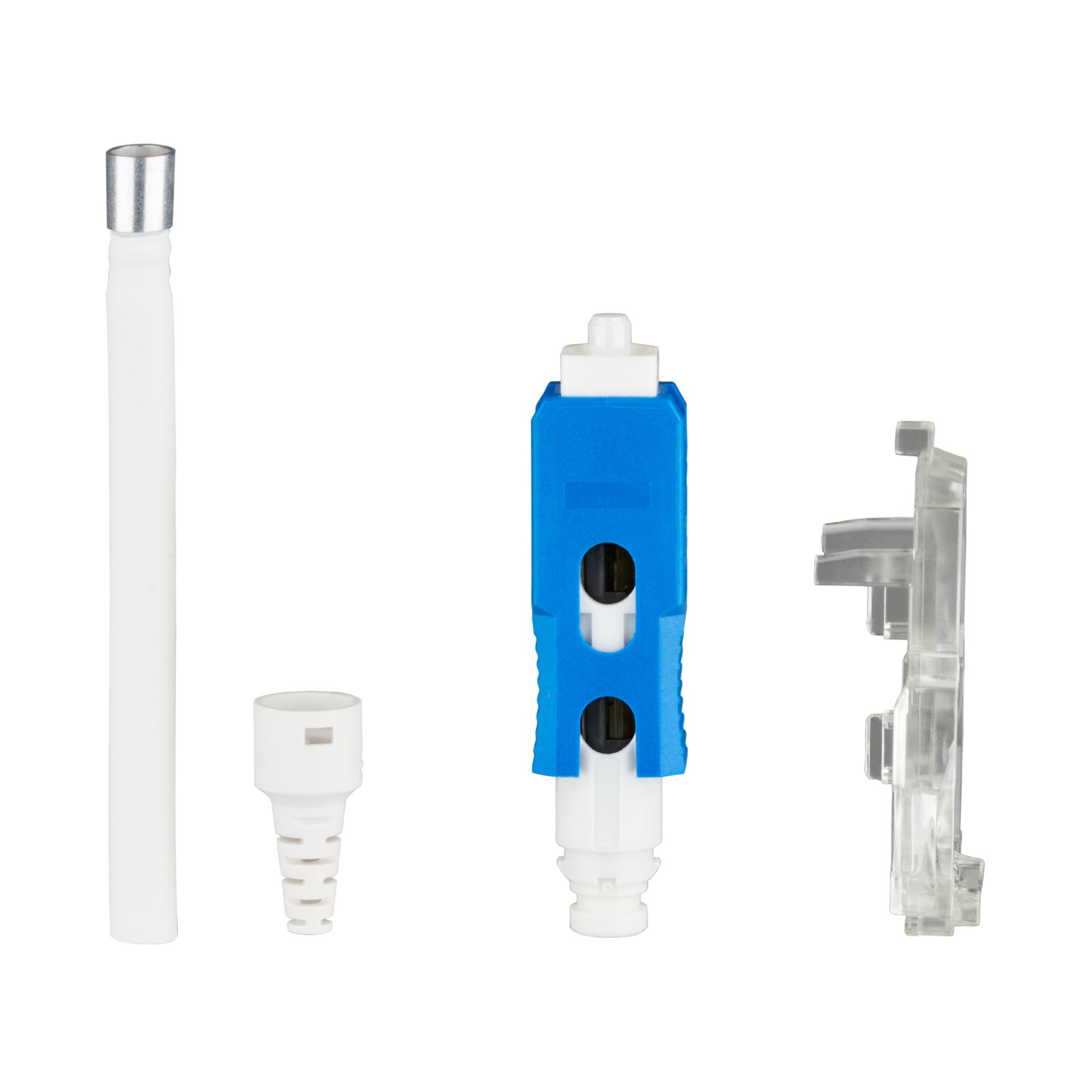

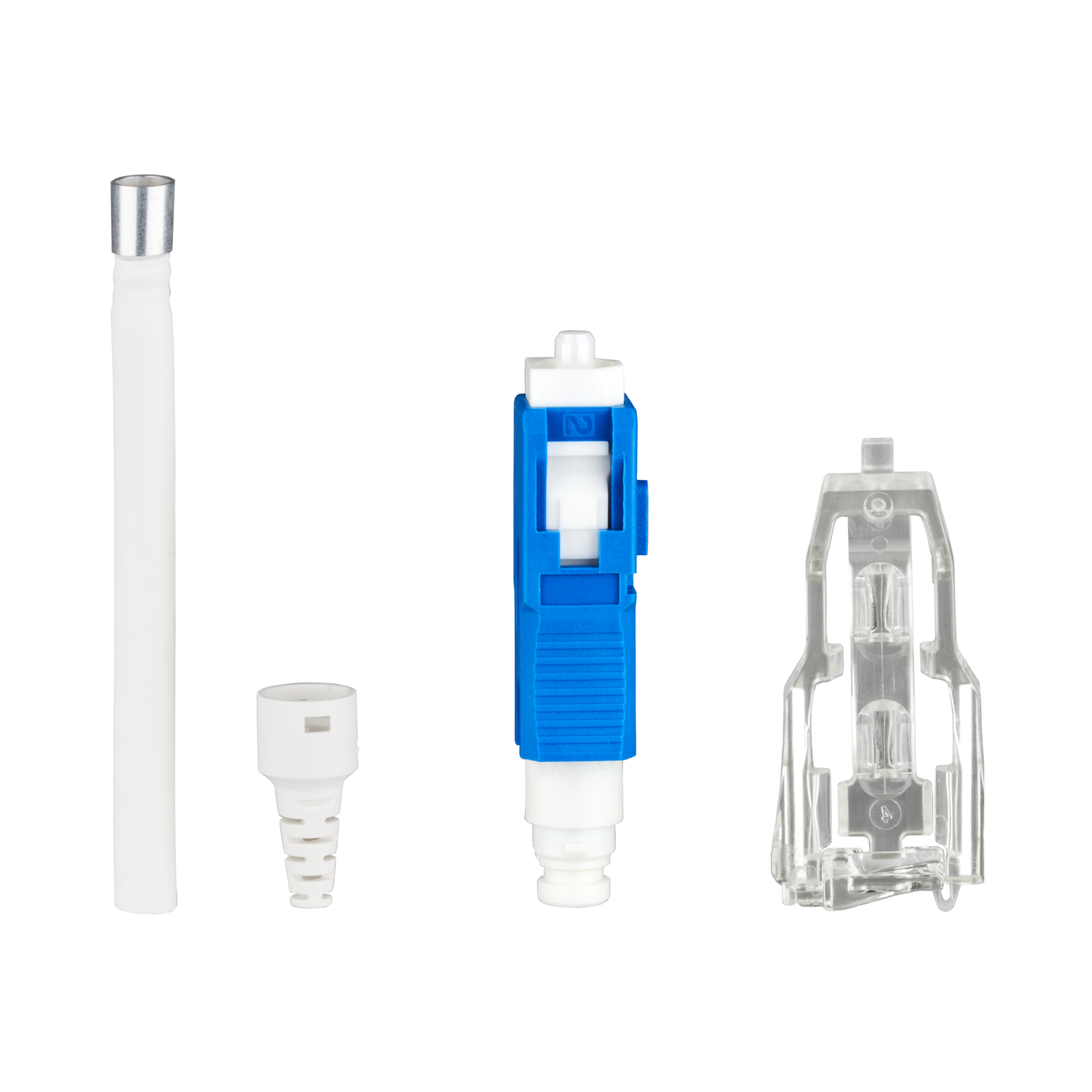

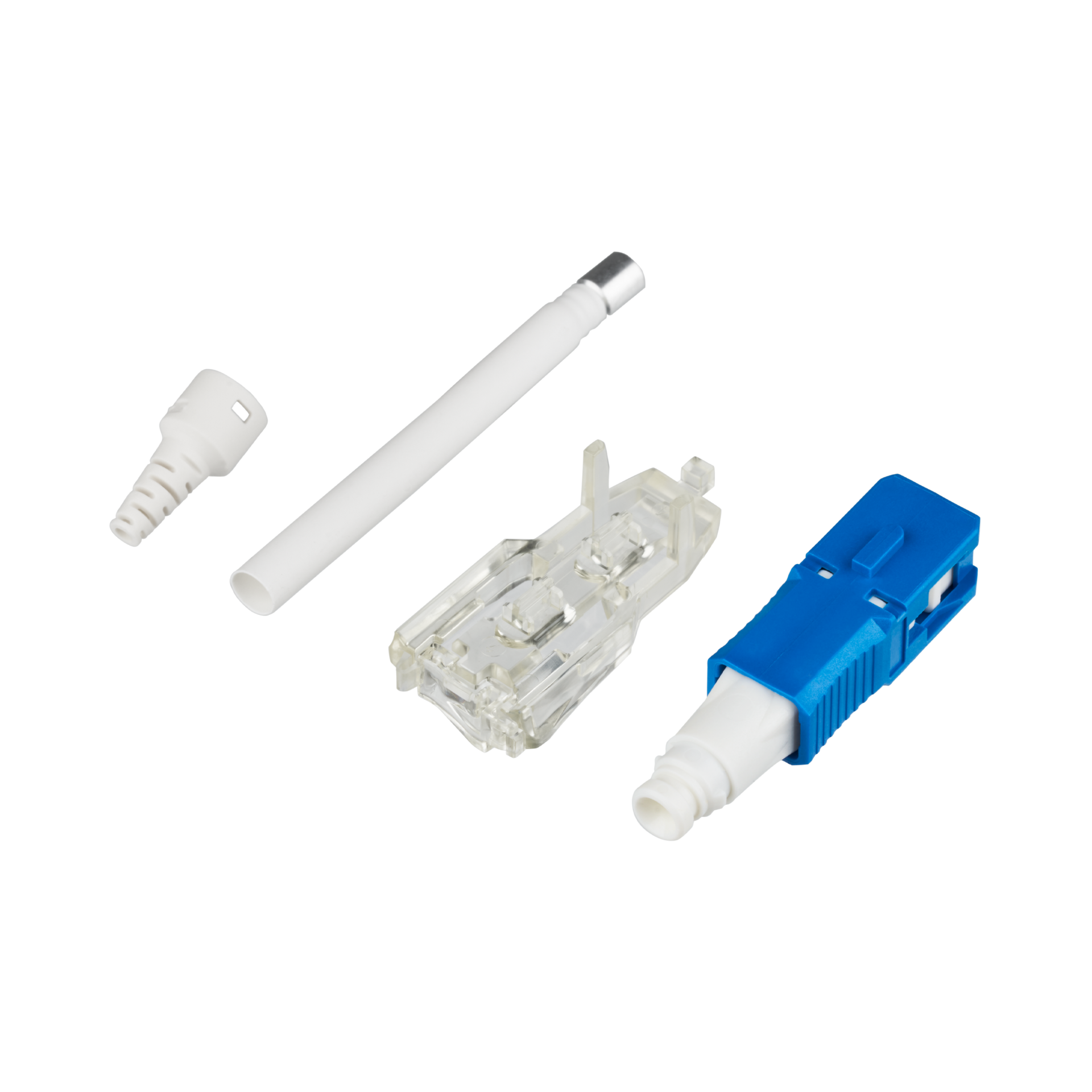

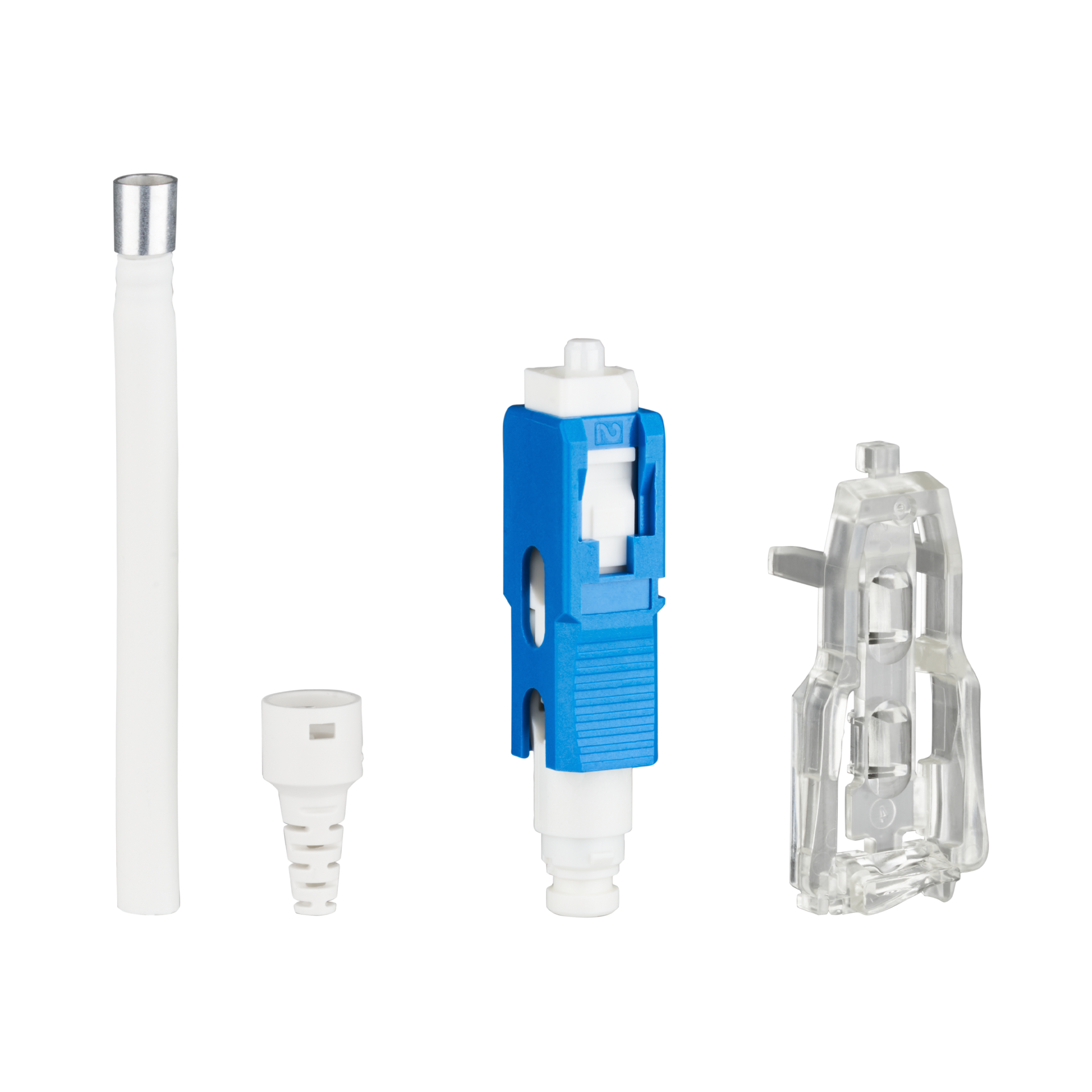

Scope of delivery:
1 x connector with wedge
1 x boot
1x protection tube for 250µ fiber
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver
39901.1 - Miller® Fiber Stripper "Tri-Hole"
53171.1 - Fiber holder + Jig base SC
Easy installation in less than 2 minutes
No need for glue
No need of electrical power
Scope of delivery:
1 x connector with wedge
1 x boot
1x protection tube for 250µ fiber
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver
39901.1 - Miller® Fiber Stripper "Tri-Hole"
53171.1 - Fiber holder + Jig base SC
Tekniske egenskaber
| Connection type: | Clamping |
|---|---|
| Durability: | < 0.1dB change, 500 matings |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating Temperature: | -40 – 75 °C |
| Plug: | IEC 61754-4 |
| Tensile: | TIA/EIA 568-C.3 |
| Type of connector: | SC |
Varianter
| Art. Nej. | Betegnelse | APC-version | Colour | Suitable for type of fibre | Insertion Loss | Return Loss | |
|---|---|---|---|---|---|---|---|
| 53199.2 | Field installable SC connectors OS2 blue | False | blue | Single mode | 0.2 dB | 55 dB | Vælg varianter |
| 53200.2 | Field installable SC connectors OM3 aqua | False | other | Multi mode | 0.1 dB | 35 dB | Vælg varianter |
necessary tools
