Auto-detection and protection of non-standard PoE devices
IEEE 802.3af/at/bt PoE compliant to simplify deployment and installation
10/100/1000Mbps wire speed transmission and reception
Total PoE power budget: 90W

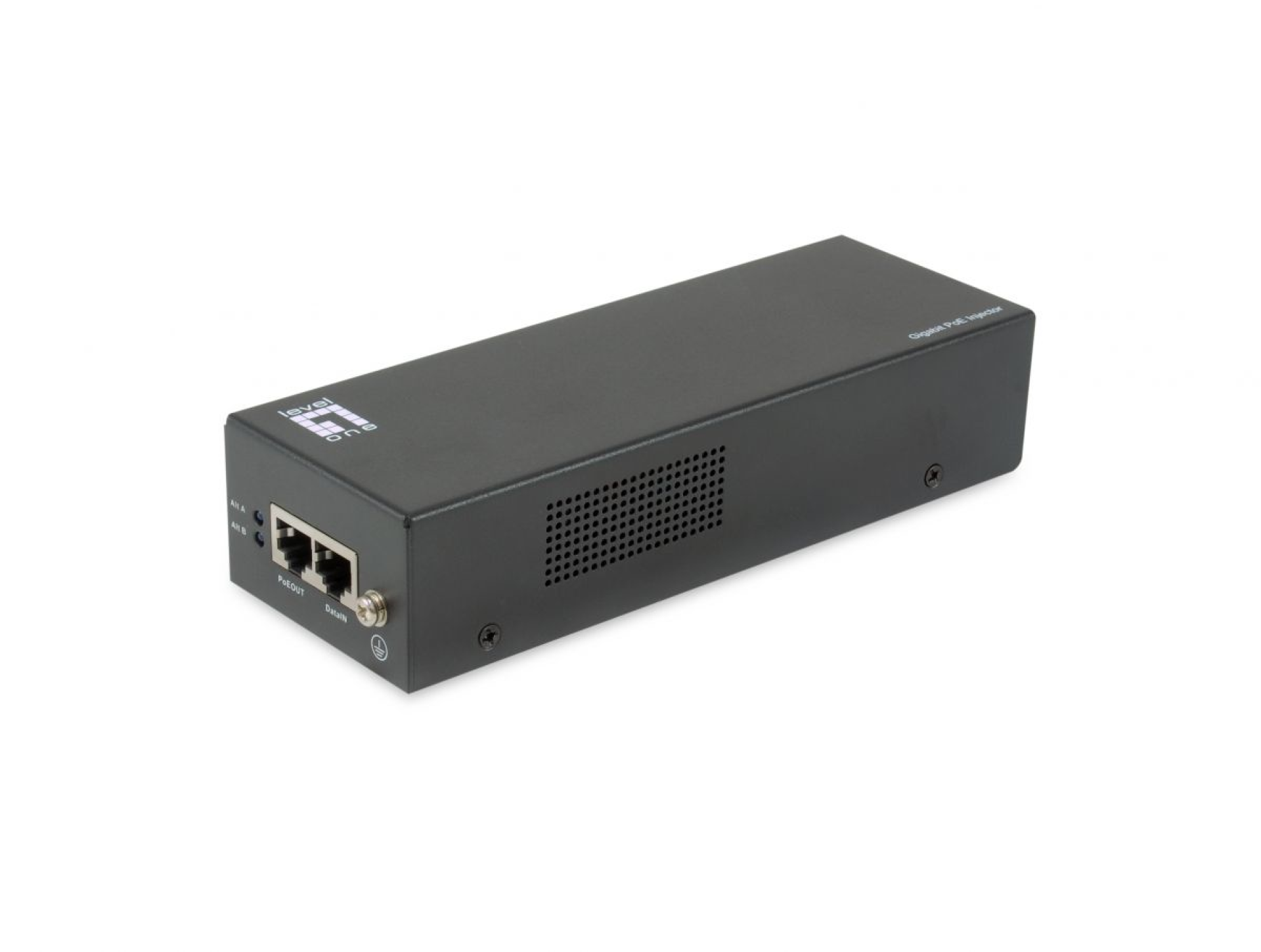

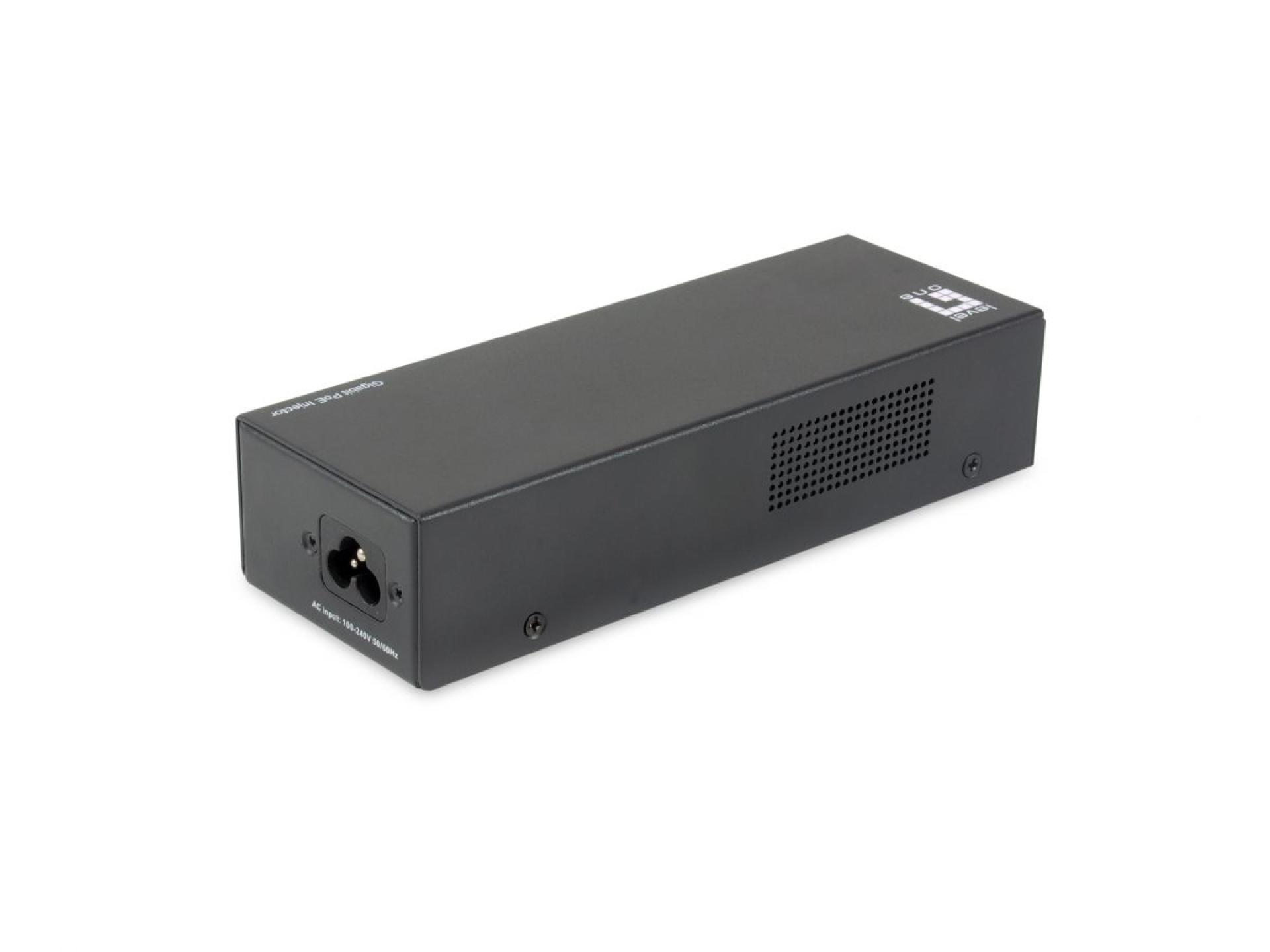

The POI-5003 is a single port, high-power 90W PoE PSE solution for remote PoE PD devices. Generating up to 90W through 8 pins, POI-5003 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, lighting, panel display for digital signage and video-phones. It complies to IEEE 802.3bt PoE standards to deliver 90W on both end-point and midspan pairs with a total power of 90W PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

General
Color: Black

Features
10/100/1000Mbps wire speed transmission and reception
Output power 90W,

Miscellaneous
Injector Port Type Single Port
Data rate Gigabit Ethernet
Grade Commercial

Others
Approvals and Compliance 10/700us 6kV (IEC 61000-4-5)
Operating humidity 0%RH ~ 95%RH
Operating temperature 0°C ~ 40°C
Storage humidity 0%RH ~ 95%RH
Storage temperature 0°C ~ 70°C

scope of delivery
POI-5003
Power cord

Physical Specifications
Dimensions (W x D x H) 179.5x65.3x40
Product weight (kg) 0.75

System specifications
Indicator Power
Link/Act
Fashion A/B
Fixing ceiling mount
Pin assignment and polarity 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-)
Standards
IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
