HDMI Extender by Cat.6/6A/7 with PoE (40m)
HDMI Extender by Cat.6/6A/7 with PoE (40m)
Varenummer:
IDATA-EXT-E70POED
EAN Nr.:
8051128100709
Produktinformation til HDMI Extender by Cat.6/6A/7 with PoE (40m)

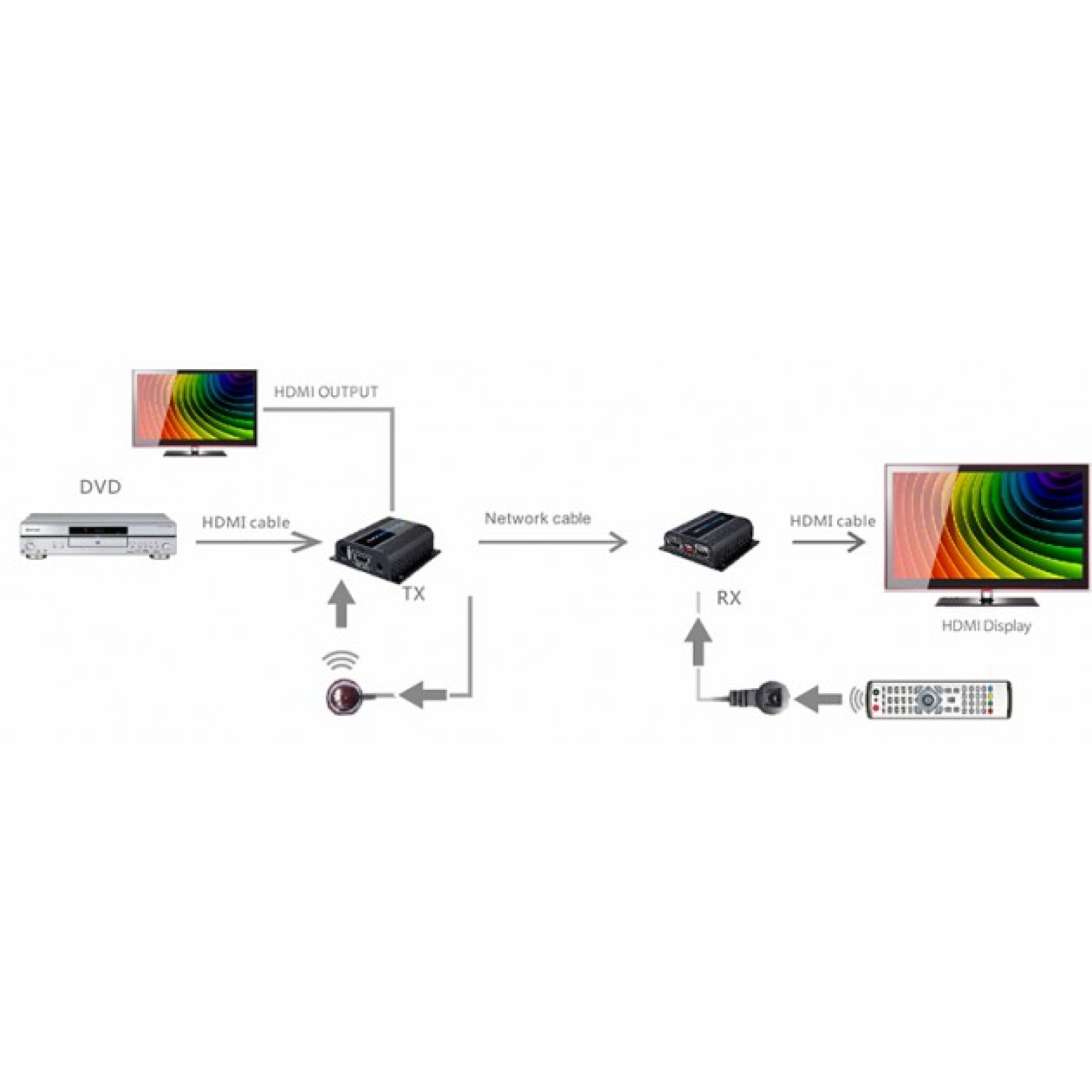

This HDMI Extender allows you to transmit a HDTV signal over long distances using a Cat. 6 / 6A / 7 network cable.
Thanks to the use of a network cable you can reach up to 40 m of transmission length with a video resolution of 1080p.
Due to the Extended Display Identification Data (EDID) function via the switch, you can adjust the signal to the correct resolution and frequency and get the optimal quality of the HDMI signal.
IDATA-EXT-E70POED can be used through the included power supply or you can leverage the PoE function to power the receiver.
The product also features infrared (IR) synchronization technology, supports 3D signal and is HDCP 1.2a.
Thanks to its versatility the product is ideal for a lot of applications, both for work and leisure, as well as public and commercial premises, studios, offices, conference rooms and also for home installation.
Features Allows you to easily extend the HDTV signal up to 40 m using a Cat. 6 / 6A / 7 network cable With EDID option for optimal signal / frequency adjustment and support for IR technology With the LENGTH-button for manual adjustment of the distance / signal ratio Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 3D: 1080p @ 60Hz Max. supported video resolution: 1080p Supports PCM, AC3, DTS audio Conform to HDCP 1.2a Supports HDMI 1.4a and 3D IR remote control: 20-60 kHz Consumption: TX: <3W; RX: <3W Environmental temperature: 0 ℃ ~ 60 ℃ Power supply via 5V / 2A power device, receiver also powered by PoE Colour: Black

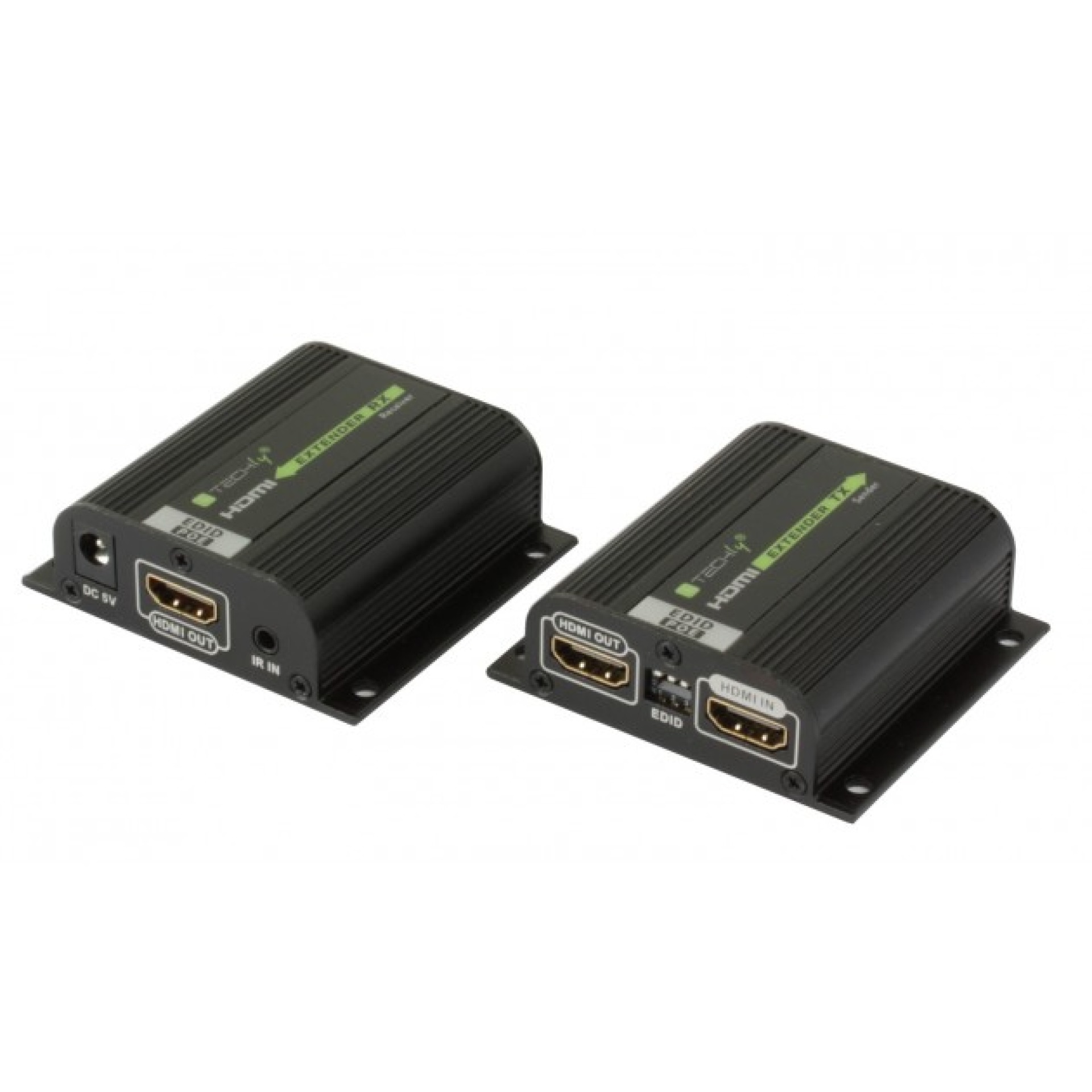

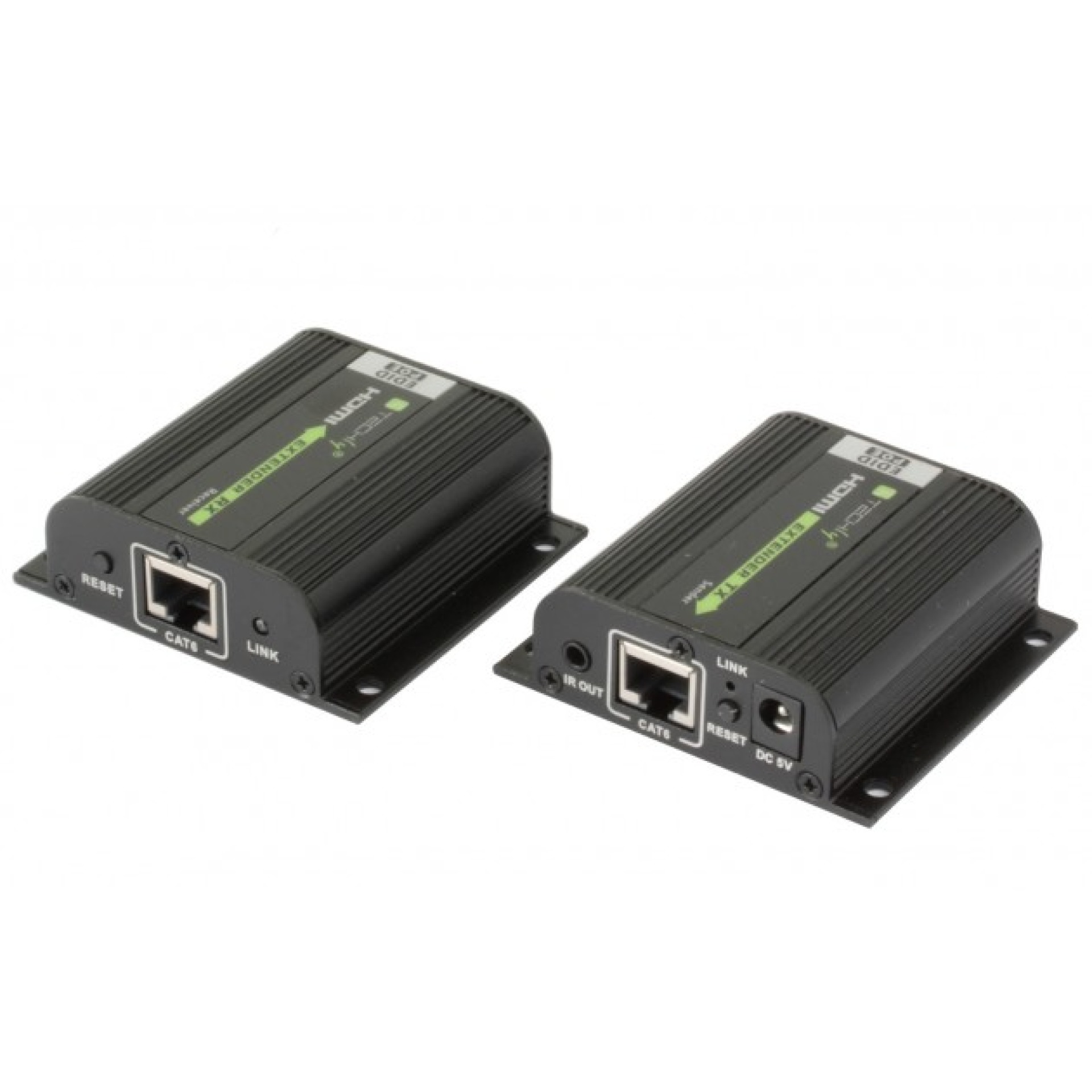

Transmitter Connections 5V DC power input HDMI signal input HDMI output through IR signal output for connection with IR blaster extension cable Reset RJ45 signal output LED Signal indicator
Receiver Connections Reset RJ45 signal input LED indicator for connection status 5V DC power input HDMI signal output IR signal input LENGTH-button for manual adjustment of distance / signal ratio
Dimensions Width: 71.6 mm Depth: 66.9 mm Height: 22.6 mm
Certifications CE FCC RoHS WEEE
Package Contents 1x Transmitter from HDMI to LAN 1x Receiver from LAN to HDMI 1x DC 5V 2A power supply 1x Extension for IR blaster 1x Extender for IR Receiver 1x User’s Manual
Thanks to the use of a network cable you can reach up to 40 m of transmission length with a video resolution of 1080p.
Due to the Extended Display Identification Data (EDID) function via the switch, you can adjust the signal to the correct resolution and frequency and get the optimal quality of the HDMI signal.
IDATA-EXT-E70POED can be used through the included power supply or you can leverage the PoE function to power the receiver.
The product also features infrared (IR) synchronization technology, supports 3D signal and is HDCP 1.2a.
Thanks to its versatility the product is ideal for a lot of applications, both for work and leisure, as well as public and commercial premises, studios, offices, conference rooms and also for home installation.
Features
Transmitter Connections
Receiver Connections
Dimensions
Certifications
Package Contents
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
