HDMI Extender over CAT6/6a/7, up to 60m
HDMI Extender over CAT6/6a/7, up to 60m
Varenummer:
IDATA-EXT-E70
EAN Nr.:
8057685309739
Produktinformation til HDMI Extender over CAT6/6a/7, up to 60m

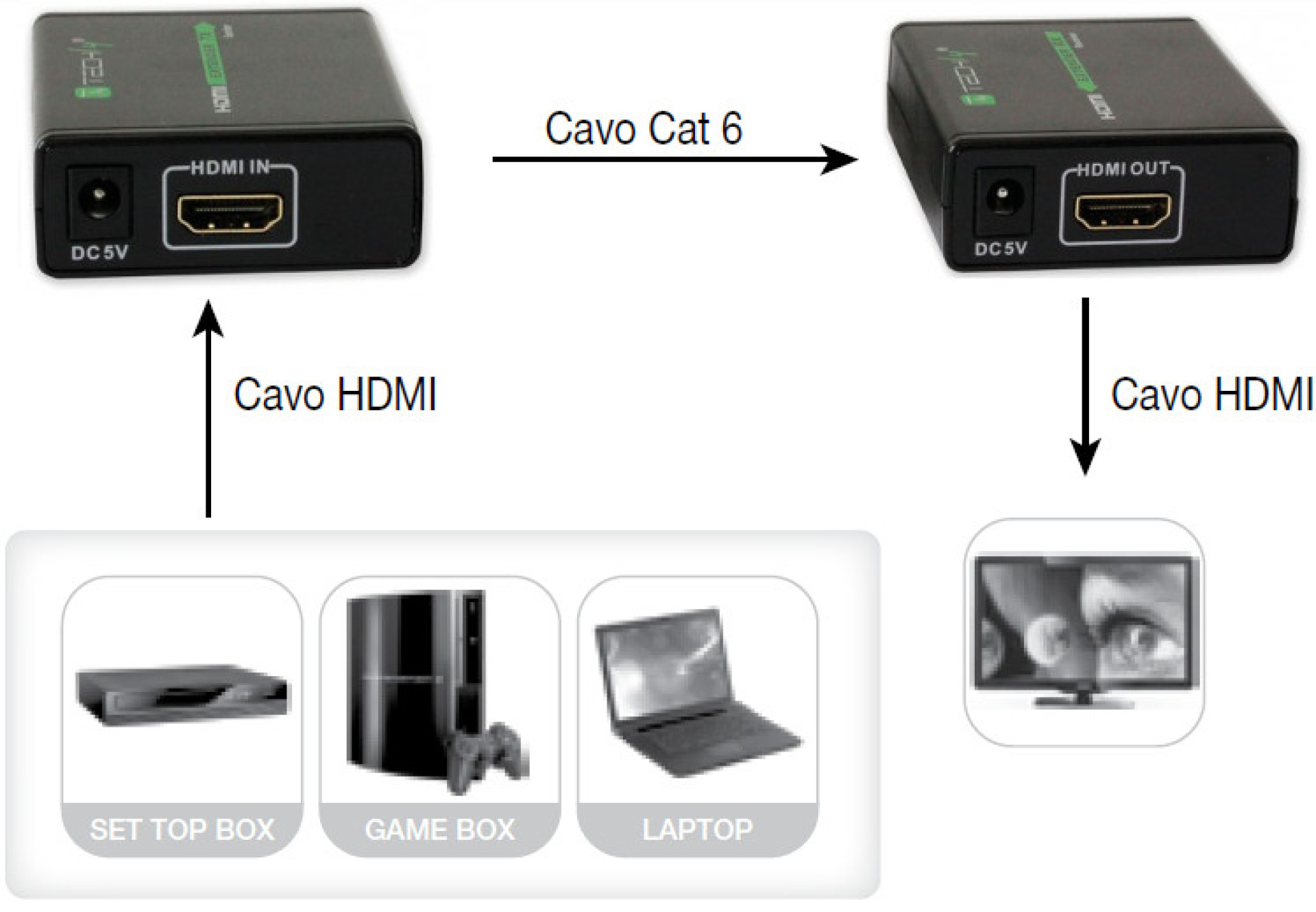

• It allows to easily extend the HDMI signal using cables Cat. 6 / 6A / 7 to extend the transmission distances
• Helps identify the best placement of monitors or projectors
• Supports video bandwidth up to 10.2 Gbps
• Provides a clear and clean image from DVD and Blu-ray players, set-top boxes, satellite receivers and other sources
• Compliance with HDCP 1.3 provides protection in the transmission of high-definition content and assures quality reception
• Easy to install, does not require any configuration
Features
• Supported resolution: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: Cat. 6 / 6A / 7, copper
• Transmission distance Supported: 60m
• Maximum supported video resolution: 1080p
• Bandwidth supported: 10.2 Gbps
• Supports deep color 8 bit
• Supports PCM stereo audio
• HDCP 1.3 compliant
• Consumption: Transmitter: 5W; Receiver: 5W
Dimensions
• Width 66 mm
• Depth 56 mm
• Height 22 mm
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents

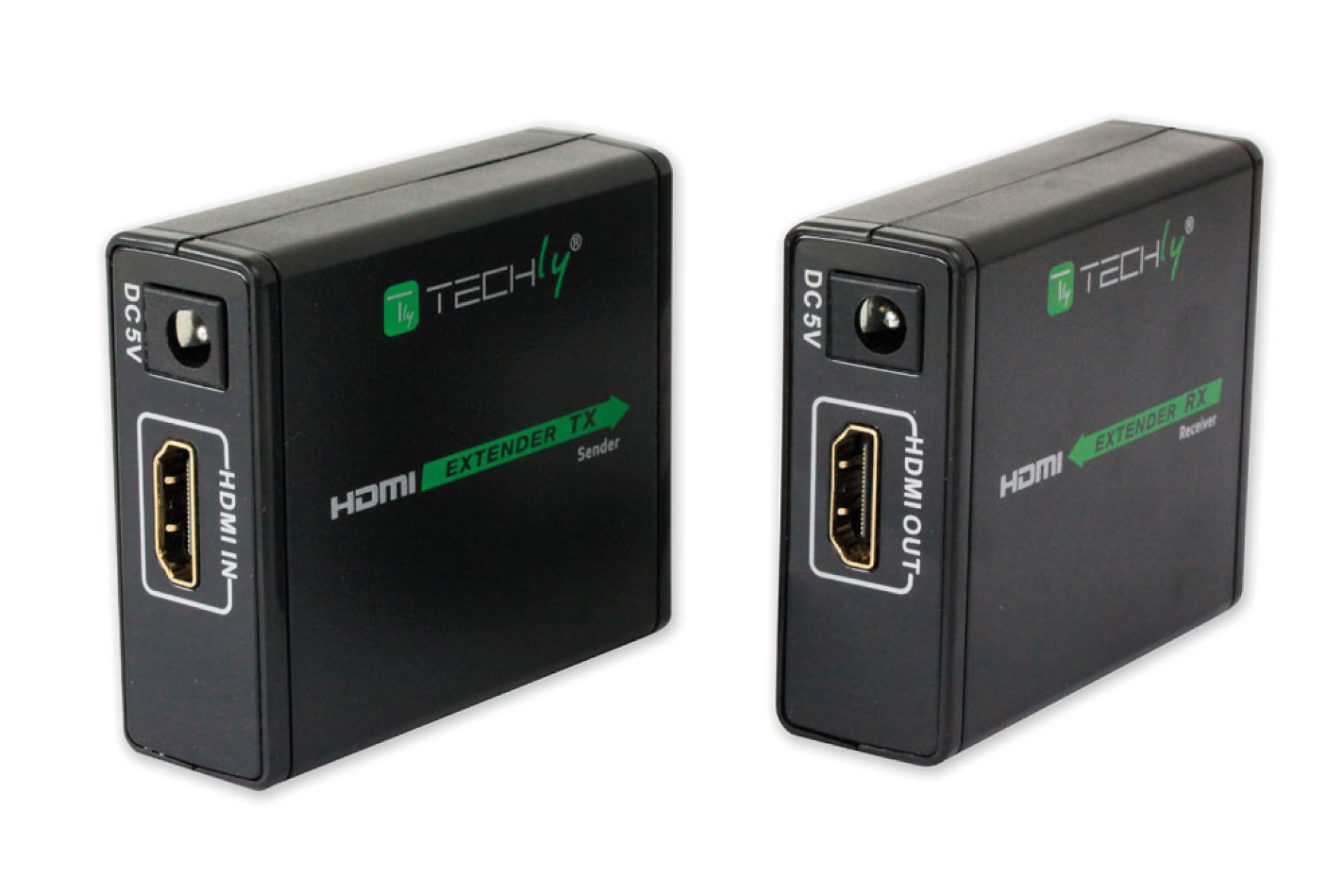

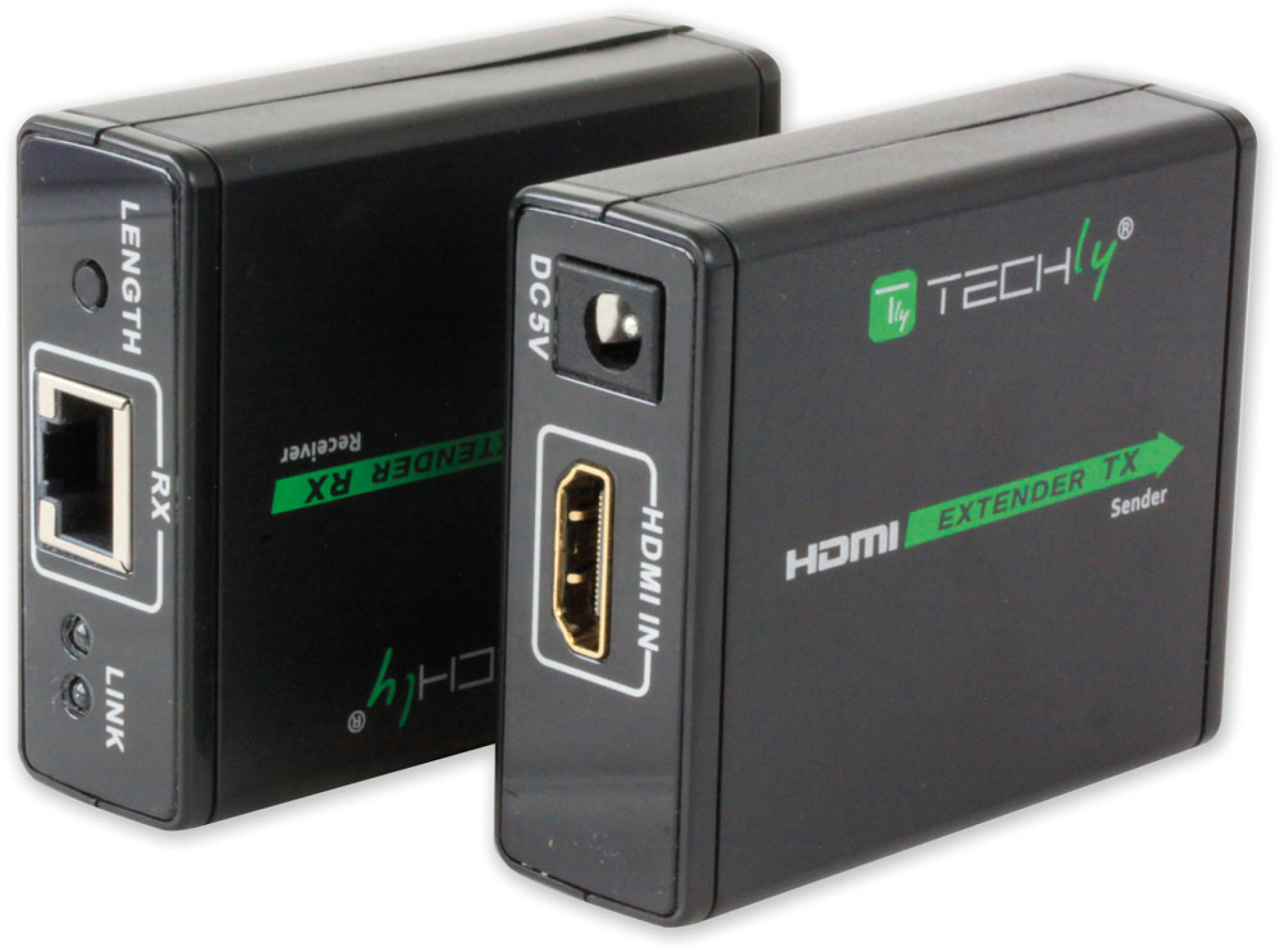

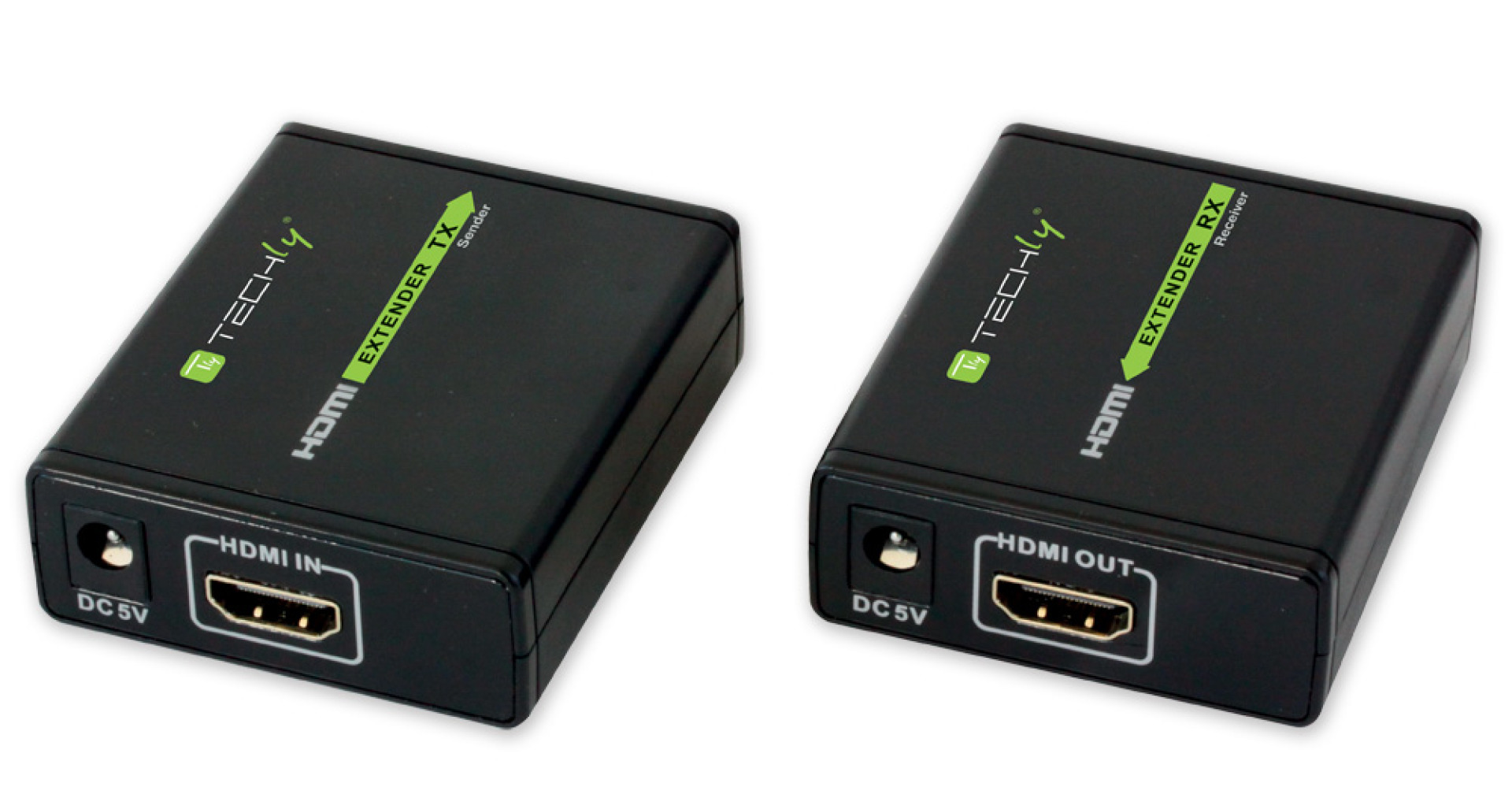

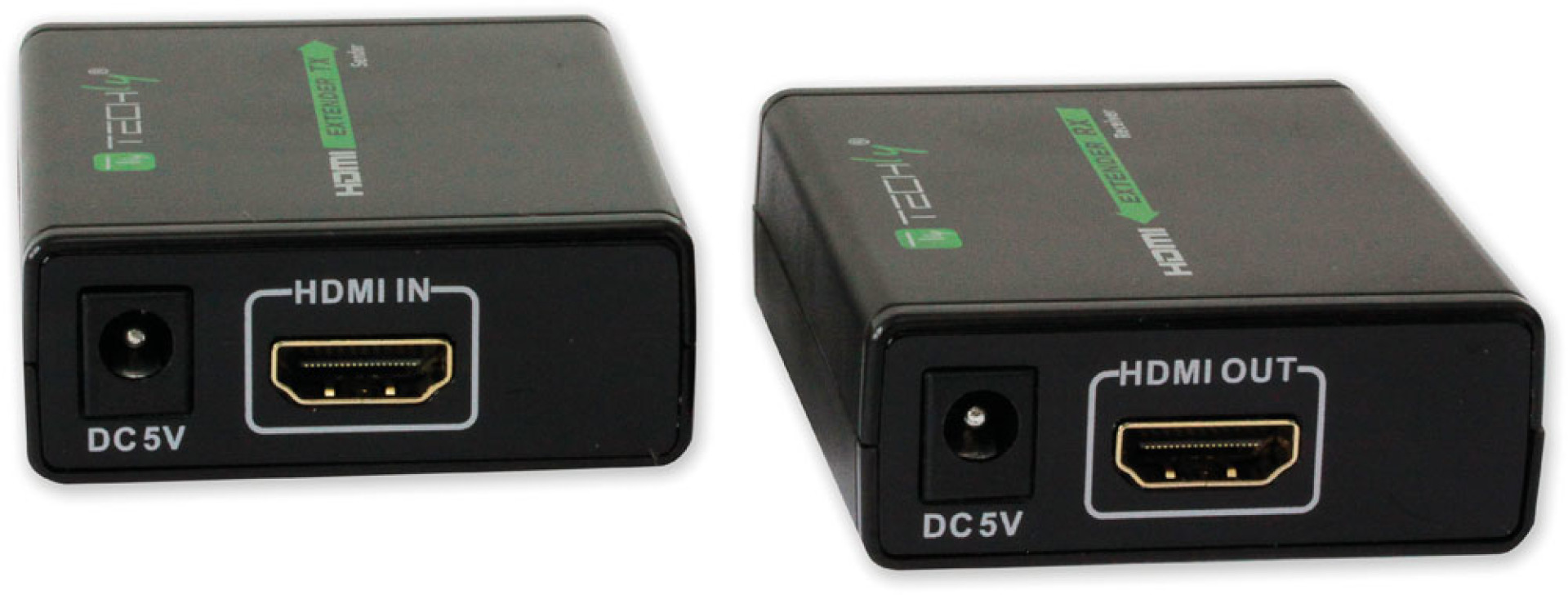

• 1x Transmitter HDMI to LAN
• 1x Receiver LAN to HDMI
• 2x Power Supply DC 5V 1A
• 1x Instruction Manual
• Helps identify the best placement of monitors or projectors
• Supports video bandwidth up to 10.2 Gbps
• Provides a clear and clean image from DVD and Blu-ray players, set-top boxes, satellite receivers and other sources
• Compliance with HDCP 1.3 provides protection in the transmission of high-definition content and assures quality reception
• Easy to install, does not require any configuration
Features
• Supported resolution: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: Cat. 6 / 6A / 7, copper
• Transmission distance Supported: 60m
• Maximum supported video resolution: 1080p
• Bandwidth supported: 10.2 Gbps
• Supports deep color 8 bit
• Supports PCM stereo audio
• HDCP 1.3 compliant
• Consumption: Transmitter: 5W; Receiver: 5W
Dimensions
• Width 66 mm
• Depth 56 mm
• Height 22 mm
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents
• 1x Transmitter HDMI to LAN
• 1x Receiver LAN to HDMI
• 2x Power Supply DC 5V 1A
• 1x Instruction Manual
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
