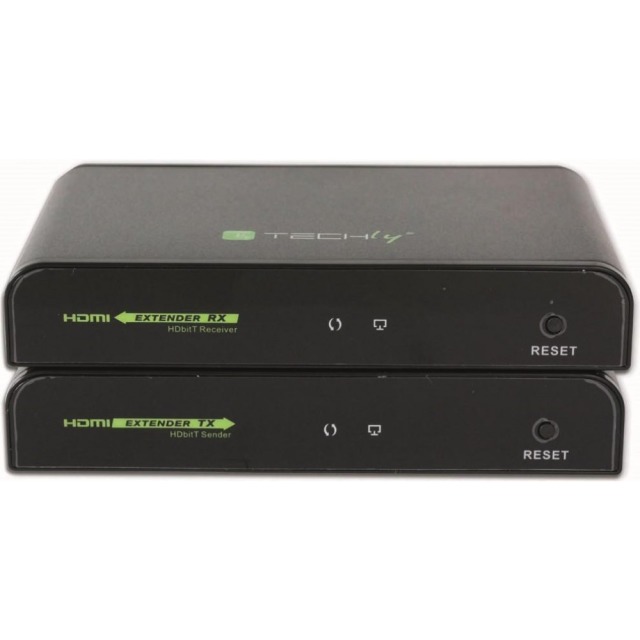

HDMI Extender Set with IR over Cat.6 max. 120m, 1080P
Produktinformation til HDMI Extender Set with IR over Cat.6 max. 120m, 1080P

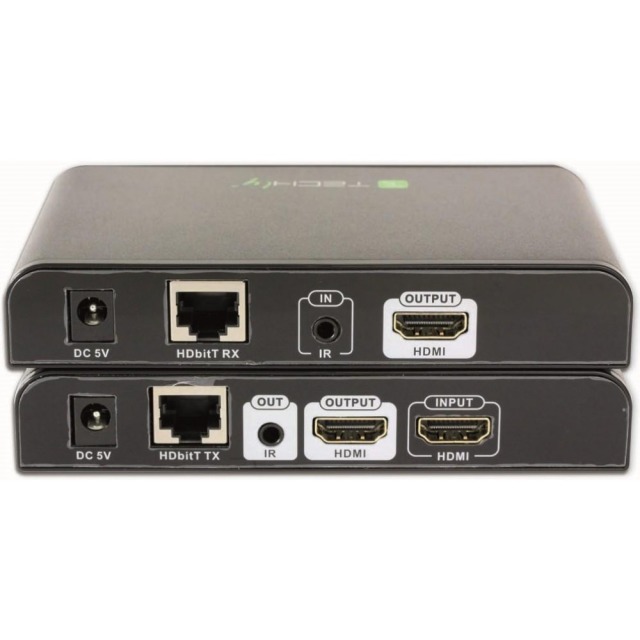

It allows you to connect two displays with HDMI output (one local and one remote) for perfect signal transmission in different places over long distances.
IDATA EXTIP-383IR4 transmits the HDMI signal remotely and distributes it to routers or network switches for cascading: in this way it guarantees its use both as a splitter and as an extender.
Support plug and play function, no need driver installation. It also automatically adjusts the specifications for different cable lengths (1-120m) to achieve the best possible video display without any configuration.
The HDMI extender is also able to support the IR transmission function, which allows using the source device's remote control even from a long distance. Supports IR standard 20/60kHz.
Designed and manufactured for the HDMI standard and network transmission protocol, it is compatible with all types of existing or new systems and offers flexible installation and integration.
Due to the high bandwidth consumption, it is advisable to use these devices with IGMP routers or alternatively in dedicated networks or in separate port-based VLANs.
Not compatible with previous versions
Product Specifications
HDMI signal: HDCP compliant
Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Video encoding: H.264
Audio format supported: PCM Stereo
Bandwidth: 18Mbps
Supported network cables: UTP/STP Cat5/5e/6
Transmission range: Transmission range up to 120 meters in FullHD 1080p via CAT6 cable
It supports up to 253 recipients
IR Signal: Supports 20-60kHz IR devices
Operating temperature: 0℃～60℃
Power
5V DC 1A external power supply
Consumption (max.) Transmitter: 3.5 W - Receiver: 3 W

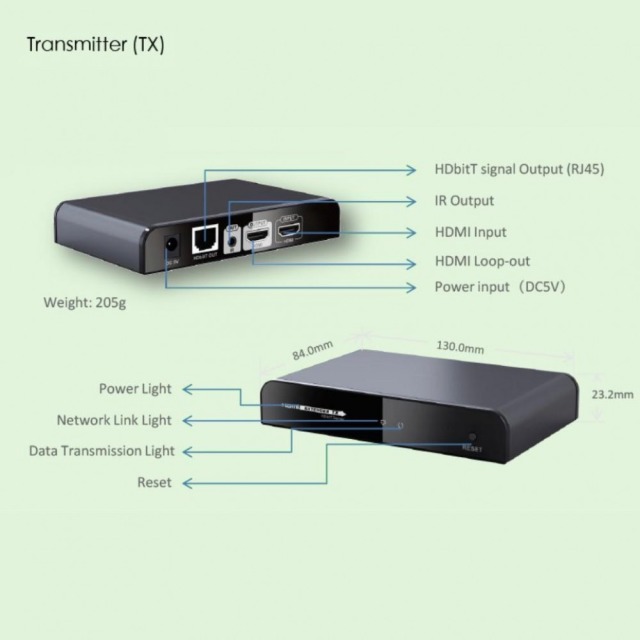

Dimensions
(x2 pieces):
Width: 130mm
Depth: 84mm
Height: 23.2mm
certifications
FCC
WEEE
scope of delivery
1x extender transmitter
1x extender receiver
1x IR transmission cable
1x IR receiver cable
2x 5V 1A power adapter
1x Installation Guide
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
Tekniske egenskaber
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
Produktinformation til HDMI Extender Set with IR over Cat.6 max. 120m, 1080P
It allows you to connect two displays with HDMI output (one local and one remote) for perfect signal transmission in different places over long distances.
IDATA EXTIP-383IR4 transmits the HDMI signal remotely and distributes it to routers or network switches for cascading: in this way it guarantees its use both as a splitter and as an extender.
Support plug and play function, no need driver installation. It also automatically adjusts the specifications for different cable lengths (1-120m) to achieve the best possible video display without any configuration.
The HDMI extender is also able to support the IR transmission function, which allows using the source device's remote control even from a long distance. Supports IR standard 20/60kHz.
Designed and manufactured for the HDMI standard and network transmission protocol, it is compatible with all types of existing or new systems and offers flexible installation and integration.
Due to the high bandwidth consumption, it is advisable to use these devices with IGMP routers or alternatively in dedicated networks or in separate port-based VLANs.
Not compatible with previous versions
Product Specifications
HDMI signal: HDCP compliant
Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Video encoding: H.264
Audio format supported: PCM Stereo
Bandwidth: 18Mbps
Supported network cables: UTP/STP Cat5/5e/6
Transmission range: Transmission range up to 120 meters in FullHD 1080p via CAT6 cable
It supports up to 253 recipients
IR Signal: Supports 20-60kHz IR devices
Operating temperature: 0℃～60℃
Power
5V DC 1A external power supply
Consumption (max.) Transmitter: 3.5 W - Receiver: 3 W
Dimensions
(x2 pieces):
Width: 130mm
Depth: 84mm
Height: 23.2mm
certifications
FCC
WEEE
scope of delivery
1x extender transmitter
1x extender receiver
1x IR transmission cable
1x IR receiver cable
2x 5V 1A power adapter
1x Installation Guide
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
