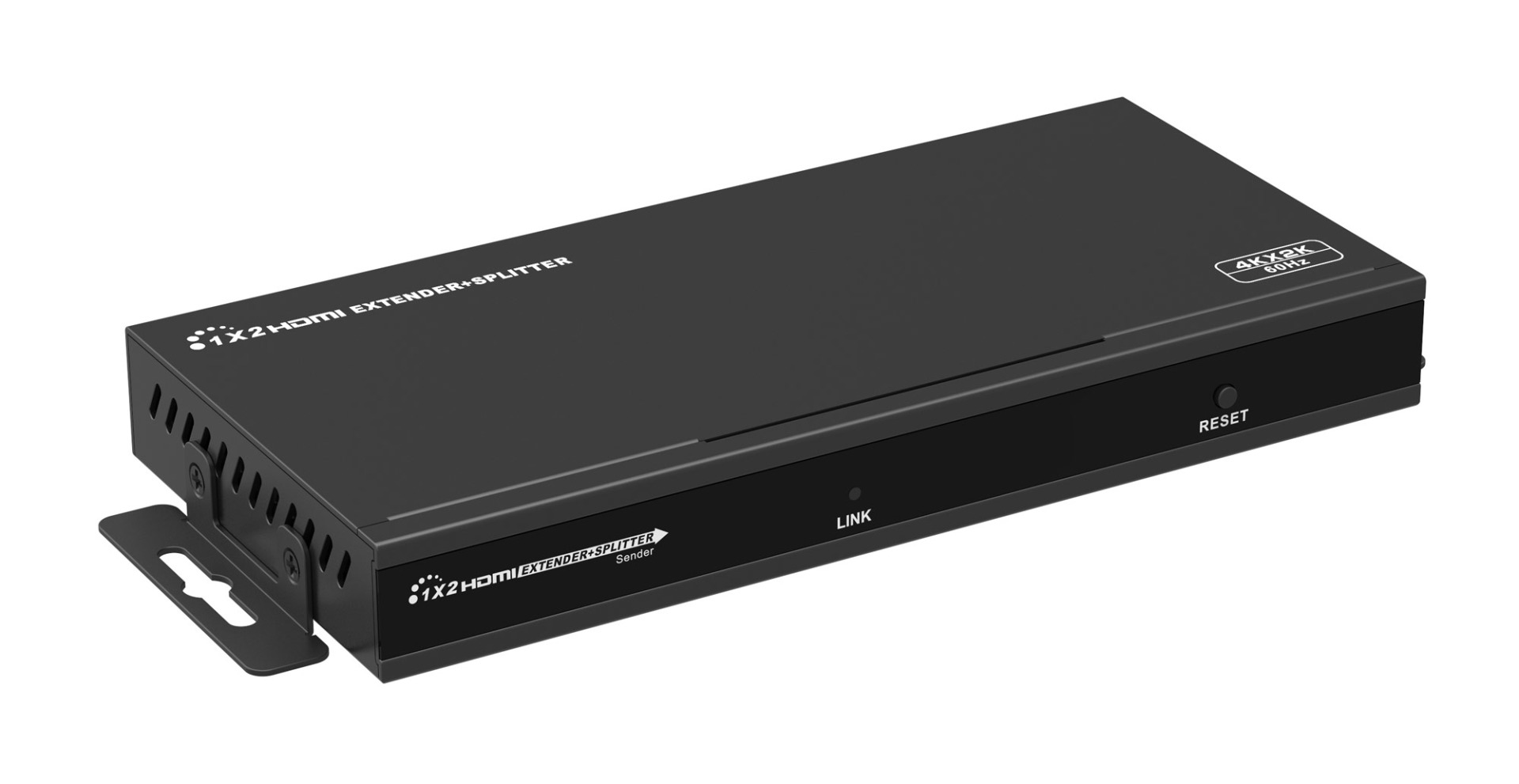

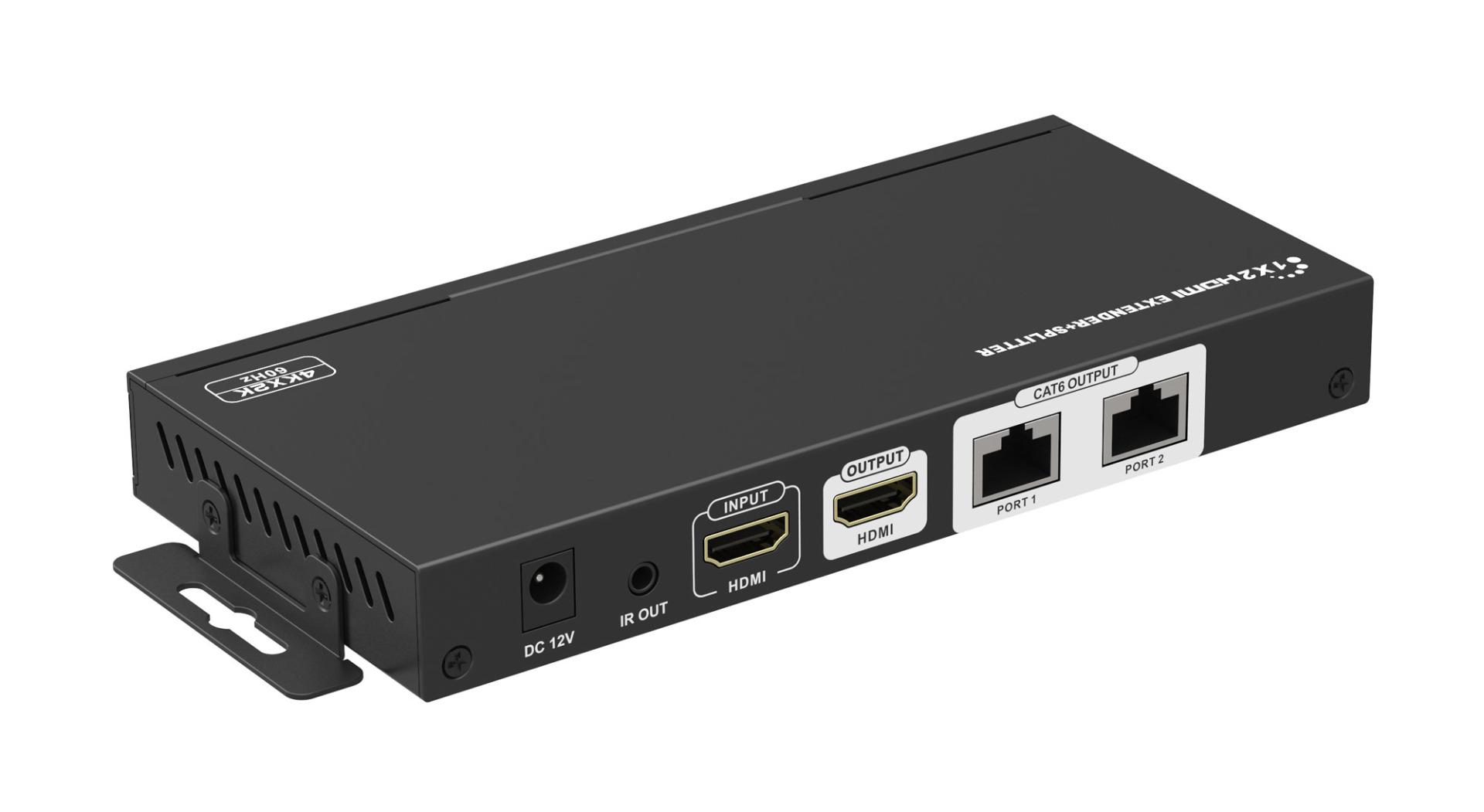

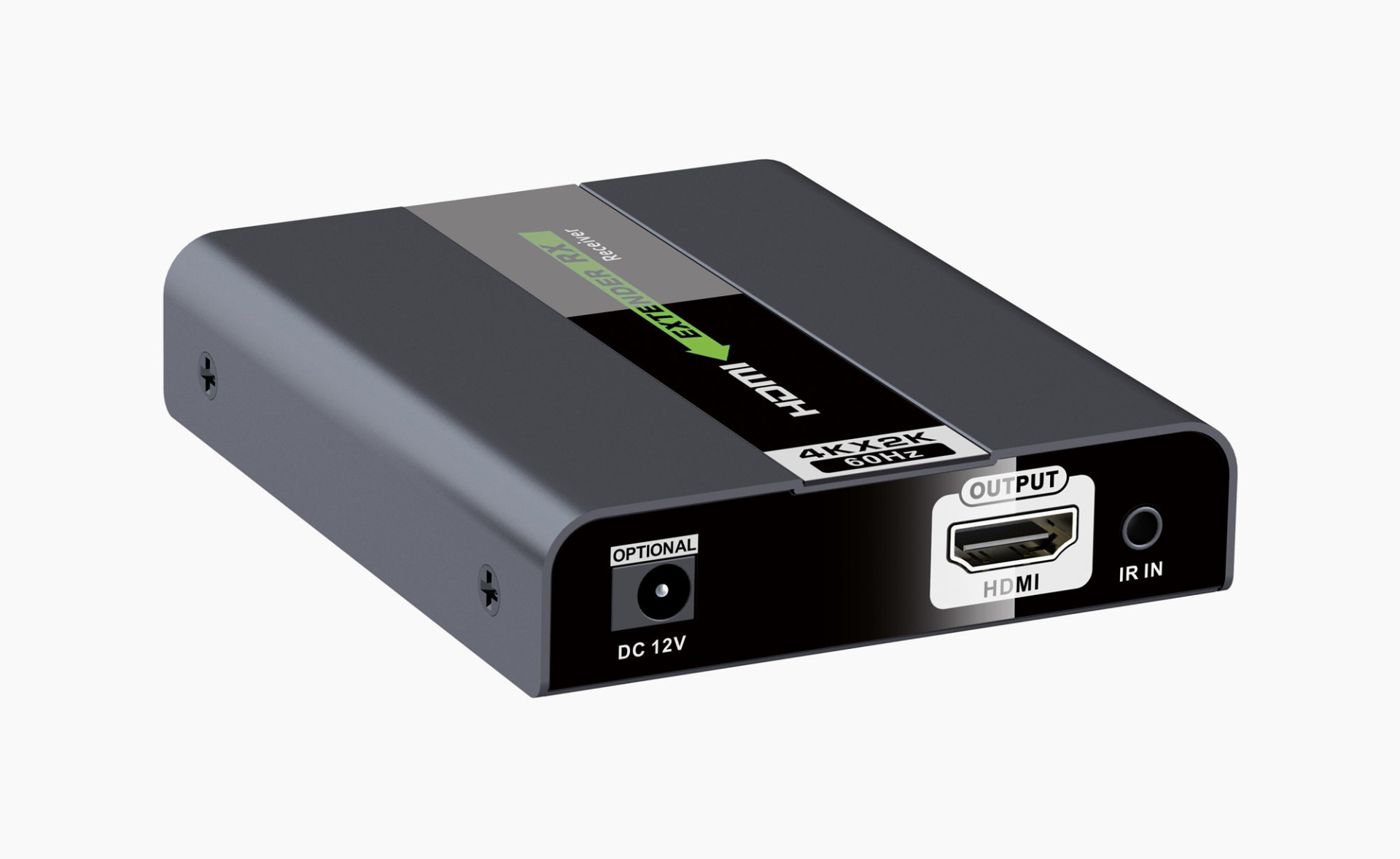

HDMI Splitter/Extender 1x2
HDMI Splitter/Extender 1x2
Varenummer:
IDATA-EX-HL21TY2
EAN Nr.:
8051128104868
Produktinformation til HDMI Splitter/Extender 1x2
This HDMI extender splitter includes one transmitter and two receivers, extends 1 HDMI source to 2 HDMI displays over single CAT6/6a/7 cable up to 60m. The highest resolution supported is 4Kx2K@60Hz ultra HD, and it supports IR pass back, EDID pass through and only one power adapter for the transmitter is needed, the receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, video conference and show center, etc.
FeaturesDistributes 1 HDMI source to 2 HD displays over network cable simultaneously Supports one HDMI Loop-out Compatible with CAT6/6a/7 network cables Extends HDMI signal up to 60m over CAT6 cable The highest resolution supported is up to 4Kx2K@60Hz ultra HD Supports 20~60Hz IR pass back Supports EDID Supports power from transmitter to receiver unit over CAT6 cable Plug and play Wall-mounted function, easy installation
Technical specifications
HDMI2.0, compatible with HDCP2.2 Support resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2140@30/60Hz Supports distance up to 30 m with 4Kx2K@60Hz resolution, up to 50 m with 4Kx2K@30Hz resolution, up to 60 m with 1080p@60Hz resolution IR Signal: supports 20-60KHz IR devices EDID: support EDID setting function Working temperature: 0°C – 60°C Power Supply: DC12V/2A Power consumption: Transmitter < 12W / Receiver < 6W Dimensions: Transmitter 161.6 x 85.31 x 31.0 mm / Receiver 101.1 x 81.6 x 20.6 mm Color: black
Package contentsTransmitter unit x 1pc Receiver unit x 2pcs DC12V/2A x 1pc IR Blaster extension cable x 1pc IR receiver extension cable x 2pc User manual x 1pc
Features
Technical specifications
Package contents
Tekniske egenskaber
| Automatic alarm processing: | False |
|---|---|
| Automatic sequence: | False |
| Full screen at alarm: | False |
| OSD-programming: | False |
| Suitable for 19 inch mounting: | False |
| Text generator: | False |
| Video loss function: | False |
| Video norm: | Colour PAL |
| With communication interface: | False |
| With loop through function: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
