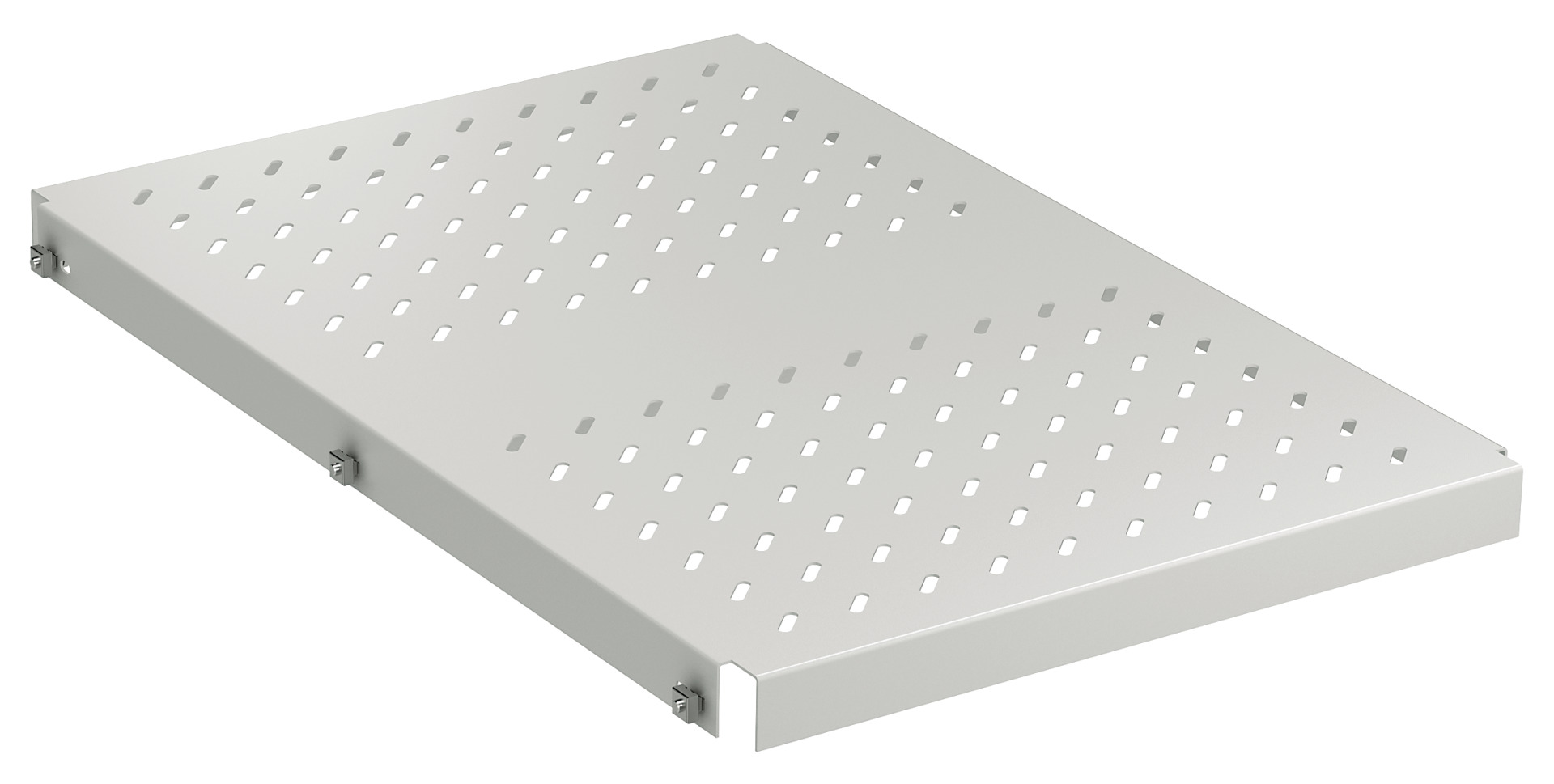

Heavy-Duty Shelf, Fixed, Max. Load 200 kg
Heavy-Duty Shelf, Fixed, 6 x Side Mounting, 200 kg, RAL7035
Varenummer:
691640FGR.02
EAN Nr.:
4049759252359
Produktinformation til Heavy-Duty Shelf, Fixed, 6 x Side Mounting, 200 kg, RAL7035
For mounting in 1000 or 1200 mm deep cabinets PRO or EFB-Server

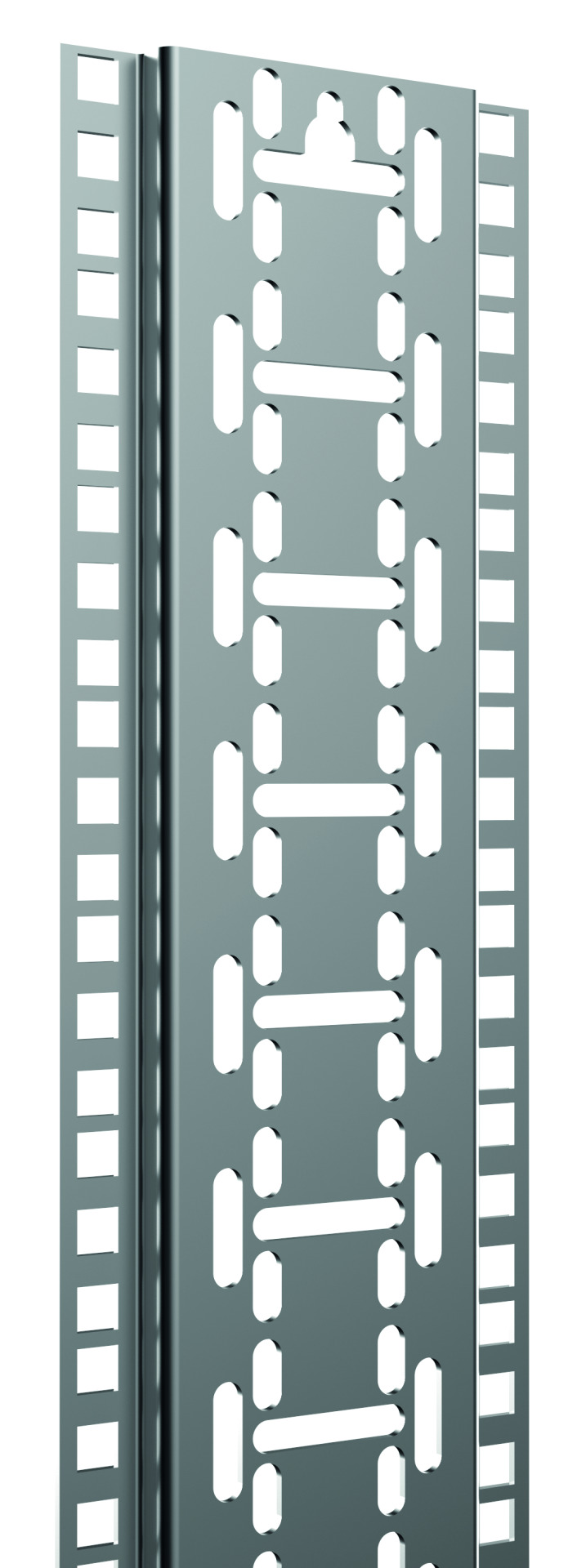

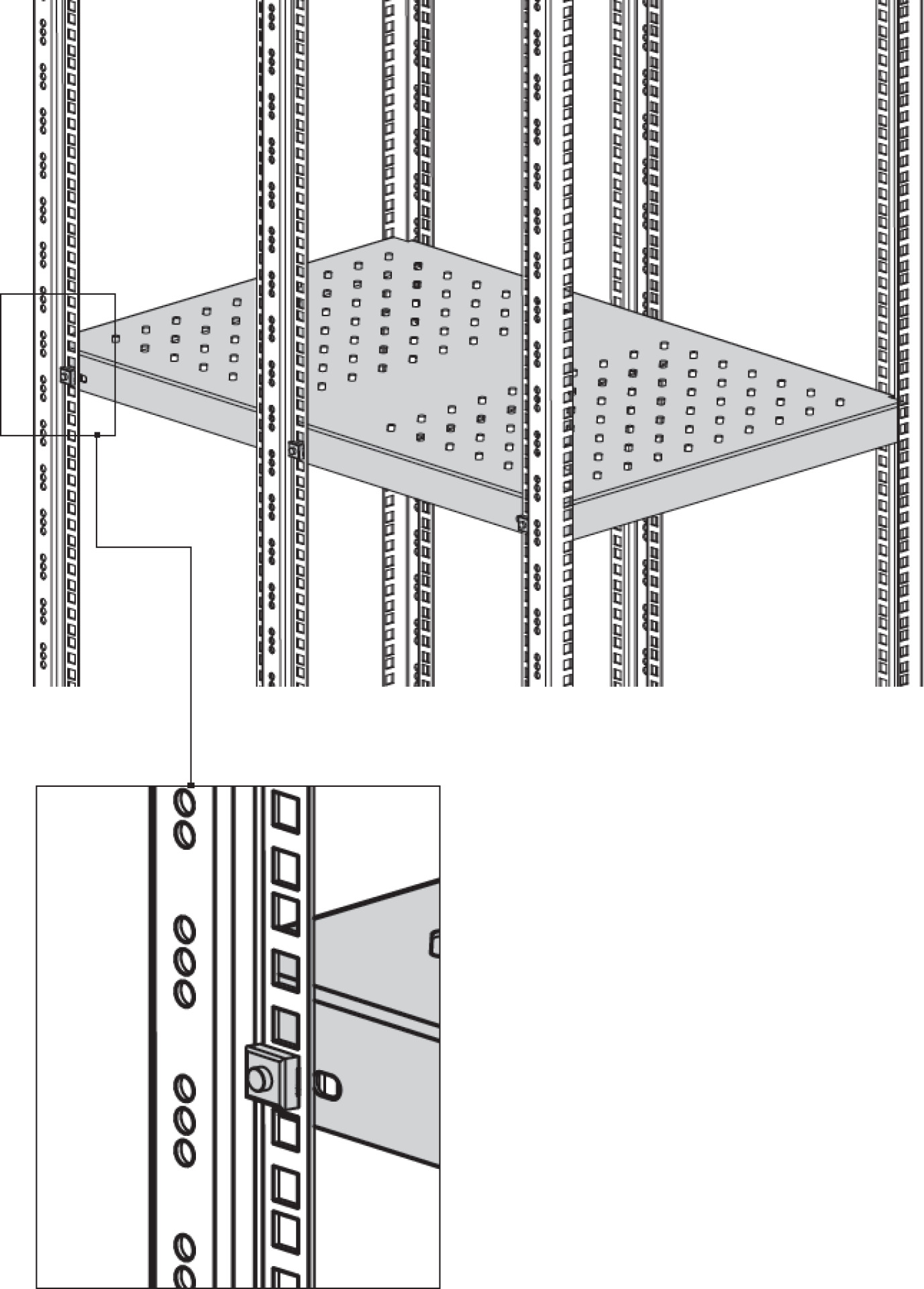

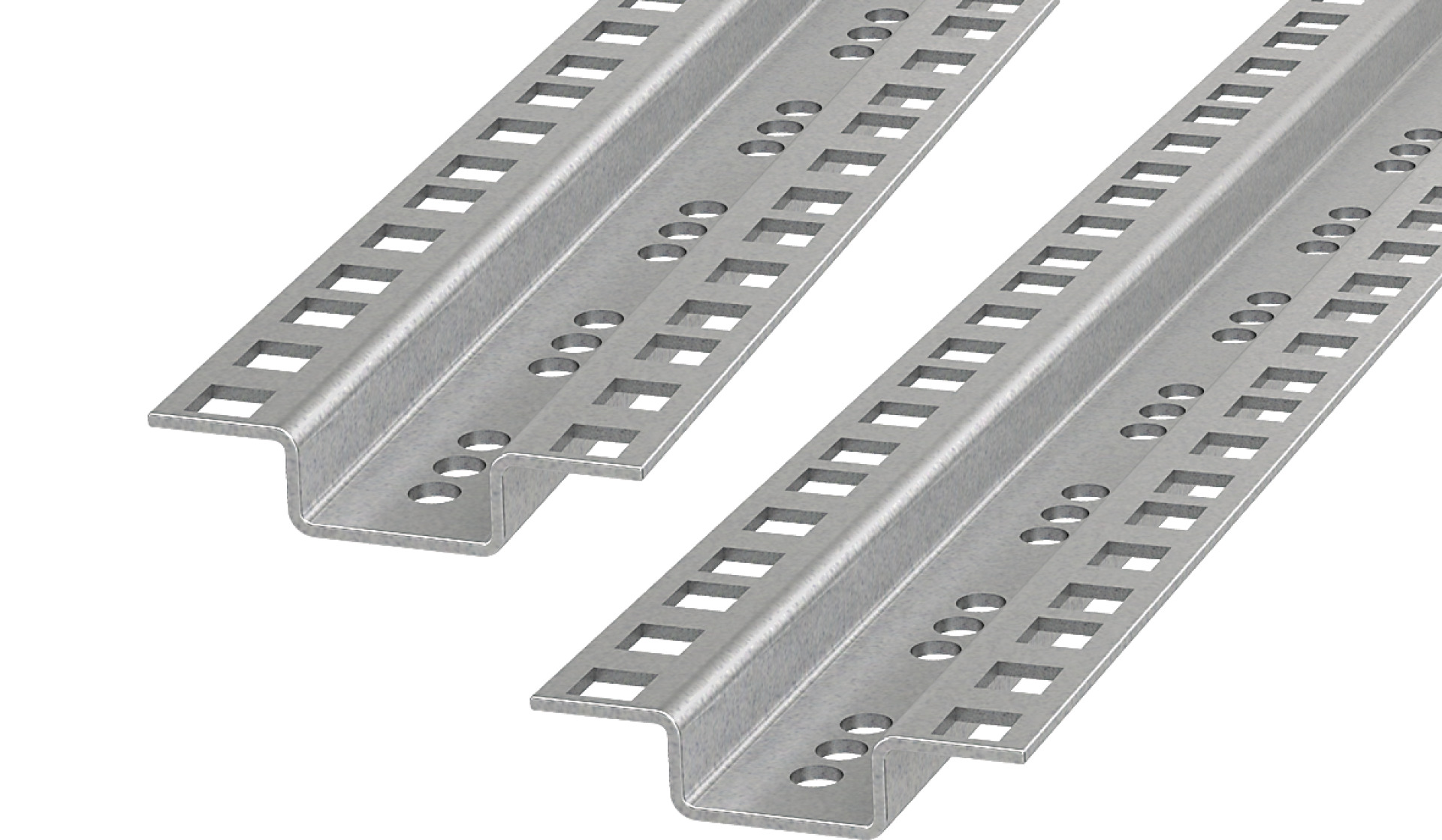

Mounting on 6 x 19" profiles (additional middle profiles necessary, Art.-No. PRO-MPRxx resp. ESV-MPRxx
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Mounting on 6 x 19" profiles (additional middle profiles necessary, Art.-No. PRO-MPRxx resp. ESV-MPRxx
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianten
| Art. Nr. | Bezeichnung | Depth | Colour | Max. Load | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 691640FGR.02 | Heavy-Duty Shelf, Fixed, 6 x Side Mounting, 200 kg, RAL7035 | 700 mm | grey | 200 kg | 482.6 mm | 38 mm | 7035 | 482.6 mm | 1000 - 1200 mm | 700 mm | |
| 691640FTS.02 | Heavy-Duty Shelf, Fixed, 6 x Side Mounting, 200 kg, RAL9005 | 700 mm | black | 200 kg | 482.6 mm | 38 mm | 9005 | 482.6 mm | 1000 - 1200 mm | 700 mm |
necessary additional product
