IDC Circuit Board Connectors, pitch 2.54
Priser kun synlige for indloggede brugere

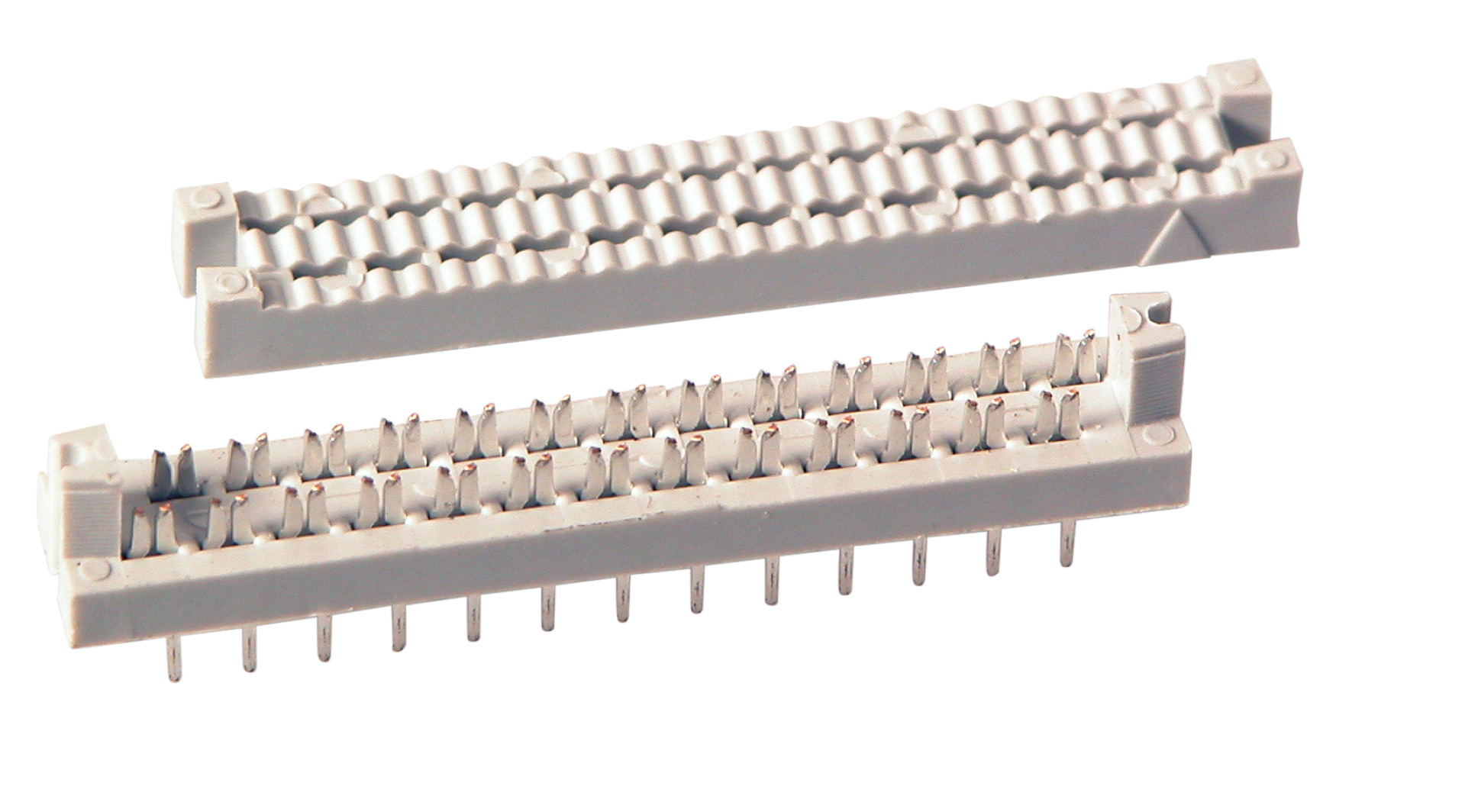

IDC Circuit Board Connector 26pole ,pitch 2.54,EWLP
Varenummer:
22026.1
EAN nr.:
4049759066291
Produktinformation für IDC Circuit Board Connector 26pole ,pitch 2.54,EWLP
Double row PCB Connector with straight solder Pins
Tekniske egenskaber
| Ambient temperature: | 105 – °C |
|---|---|
| Angle PCB/contact: | 0°/180° (horizontal) |
| Colour housing: | grey |
| Connector model: | fixed connector |
| Contact type: | pen |
| Diameter connection pin: | - mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Length pin: | 3.2 mm |
| Material insulation body: | other |
| Material of contact surface: | tin |
| Modular spacing connections: | 1.27 mm |
| Modular spacing contacts: | 2.54 mm |
| Operating Temperature: | 105 – °C |
| Over voltage category: | - |
| Packaging type: | blister |
| Pollution degree: | - |
| Rated current In: | 2 A |
| Rated surge voltage: | - kV |
| Rated voltage: | - V |
| Suitable for PCB thickness: | 1.5 mm |
| Type of PCB fastening: | connecting contact |
| Type of banding: | - |
| Type of connection: | board to cable |
| Type of electric connection: | other |
| Type of fastening: | solder |
Varianter
| Art. Nej. | Betegnelse | Type | Number of plug-in contacts | Number of plug-in contact rows | |
|---|---|---|---|---|---|
| 22016.1 | IDC Circuit Board Connector 16pole ,pitch 2.54,EWLP | E-WLP 16pol. | 16 | 2 | |
| 22020.1 | IDC Circuit Board Connector 20pole ,pitch 2.54,EWLP | E-WLP 20pol. | 20 | 2 | |
| 22026.1 | IDC Circuit Board Connector 26pole ,pitch 2.54,EWLP | E-WLP 26pol. | 26 | 2 | |
| 22034.1 | IDC Circuit Board Connector 34pole ,pitch 2.54,EWLP | E-WLP 34pol. | 34 | 2 | |
| 22040.1 | IDC Circuit Board Connector 40pole ,pitch 2.54,EWLP | E-WLP 40pol. | 40 | 2 |

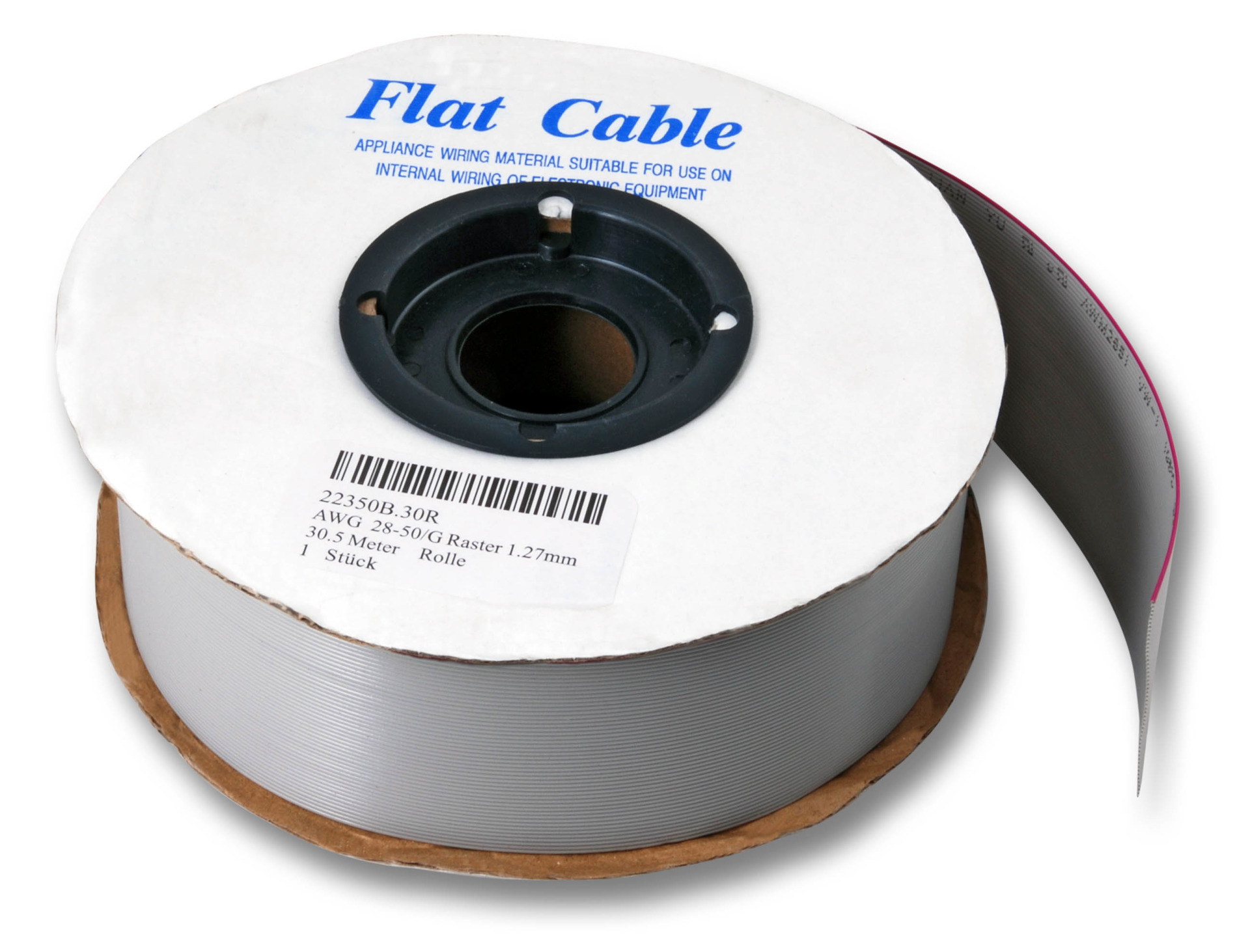

used with
