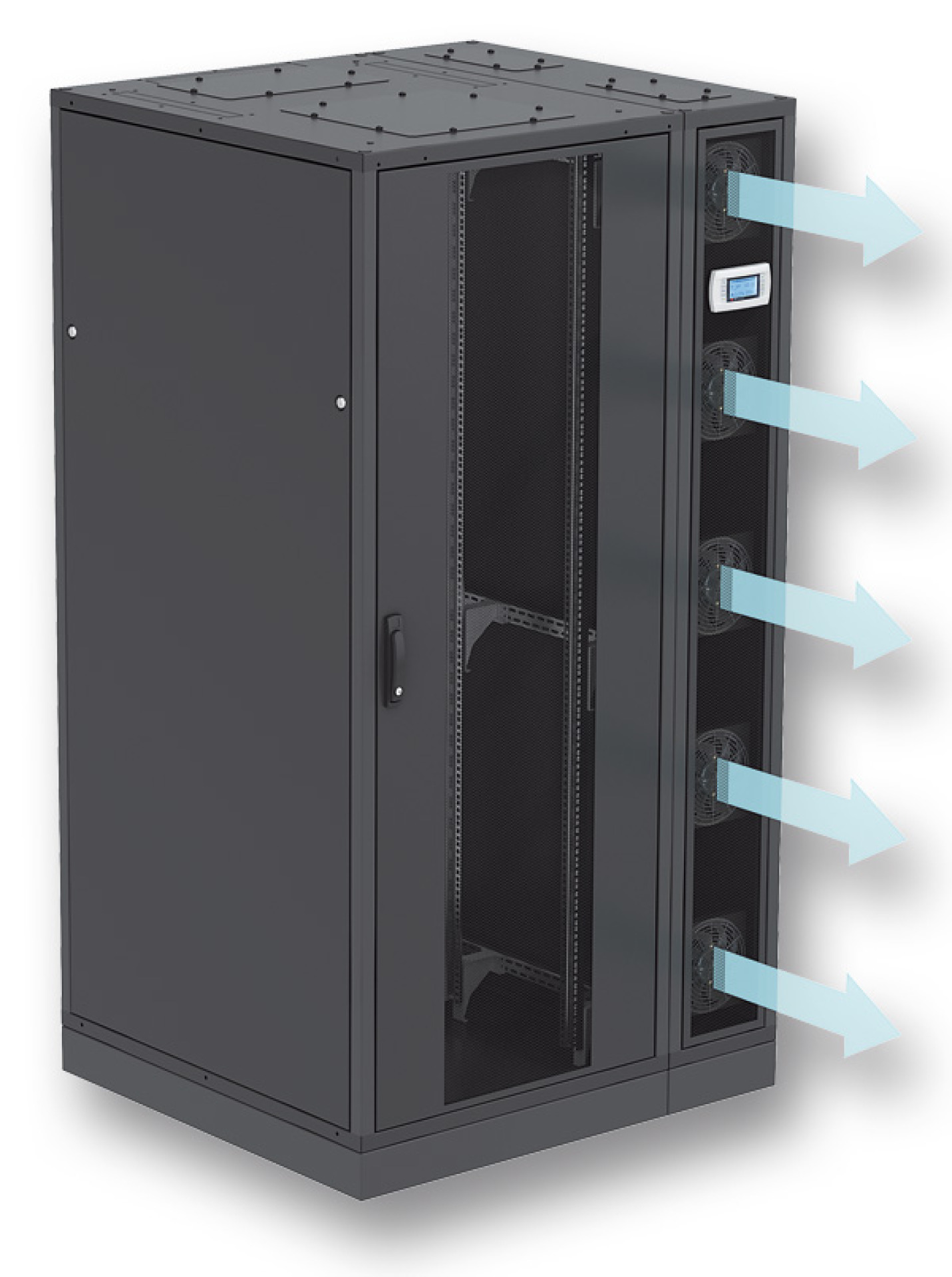

In-Row coolers (heat exchanger / evaporator unit) suitable for use with cabinet series PRO and EFB-Server (ESV)
Operating mode direct expansion, refrigerant R410a
Operation combined with outdoors units PRO-ADX1 or PRO-ADX2
Cooling performance with PRO-ADX1 4.4 kW, with PRO-ADX2 8 kW
Easy installation without access to inside of the cabinet

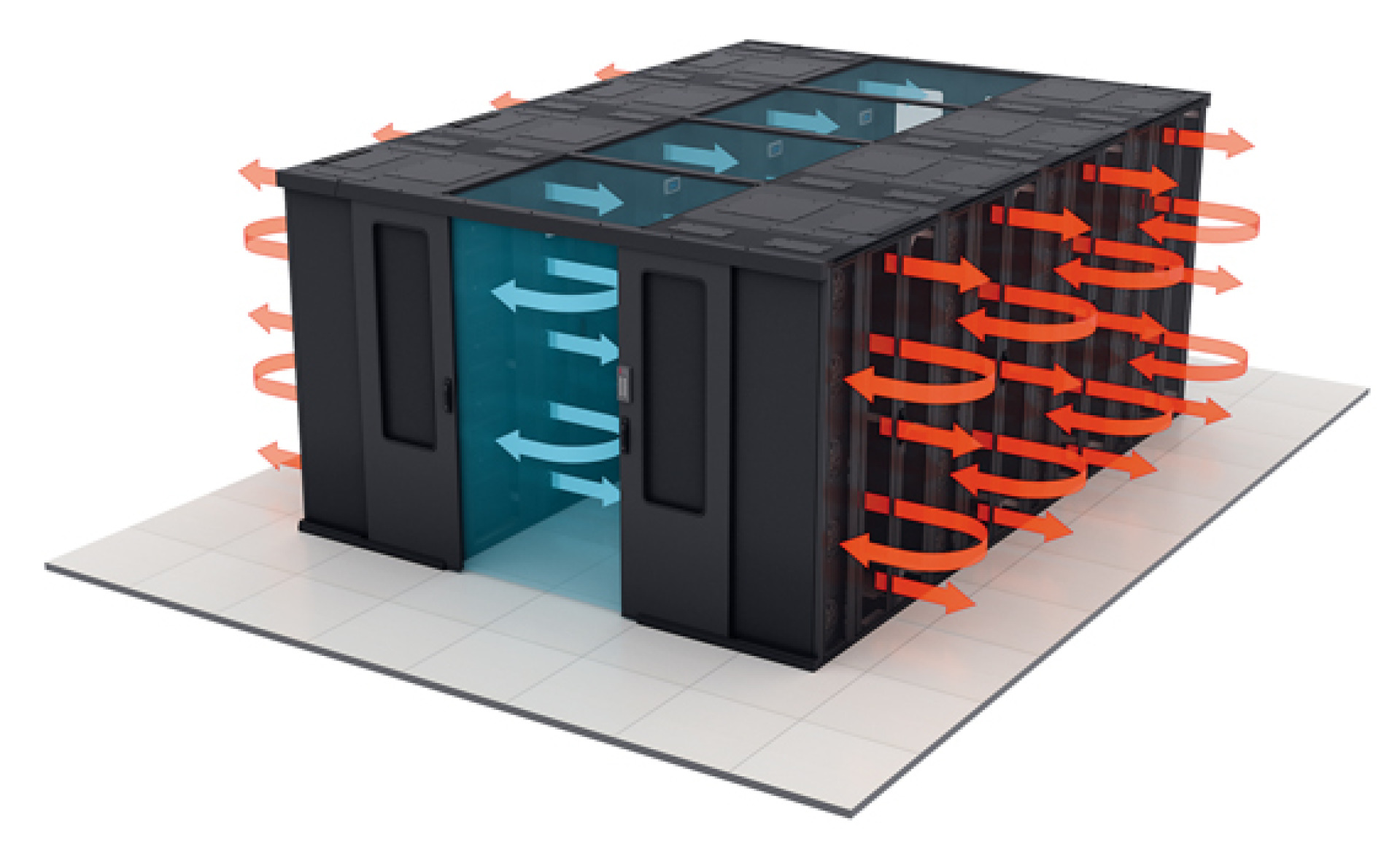

Ensuring a constant air flow and avoiding hot spots
Short distance between cold air supplay and active devices
Immediate discharge of hot air from the active devices
Easy realisation of N+1 redundancy
Supply of the cooling medium from above or below of the heat exchanger
Hydraulic connectors enable the connection at the top or bottom side of the heat exchanger
Different dimensions possible: 42U .. 47U, depths 1000 or 1200 mm
Change of filter possible while operation
Collection and discharge of condensate via condensat pump
Measuring of humidity and temperature
Sophisticated control unit for control of operation modi
Communication via Ethernet
Power supply 230 V, 50/60 Hz (1-phase)
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x in-row cooler complete, consiting of housing with heat exchanger, 3 x AC fans, condensate pump, control unit, Ethernet
Corresponding outdoor unit PRO-ADX1/AD2 please order separately
Delivery in transport packaging on disposable pallet
Note: for connection and filling with refrigerant a certified climatic technician is necessary

We advise & deliver individual solutions for your propject - please contact us.
