Industrial Splice Distributor with Metal Housing, unassembled

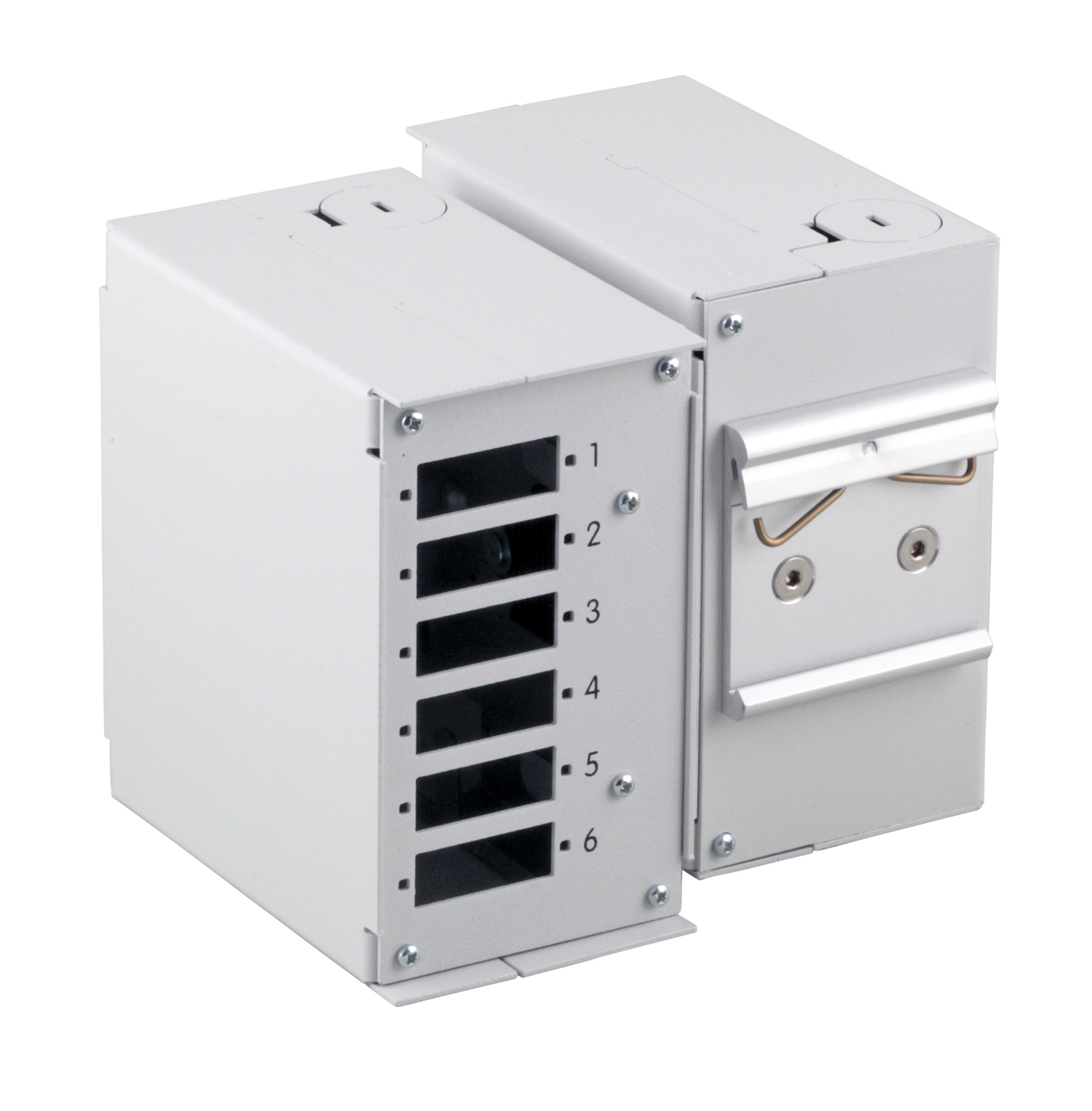

Industrial Splice housing for DIN Rail without front panel RAL7035
Varenummer:
53705.1V3
EAN Nr.:
4049759115128
Produktinformation til Industrial Splice housing for DIN Rail without front panel RAL7035
Fully assembled metal housing
For DIN Rail mounting
Cable entries top/bottom, prepared for M20
Delivery incl. screws for front panel

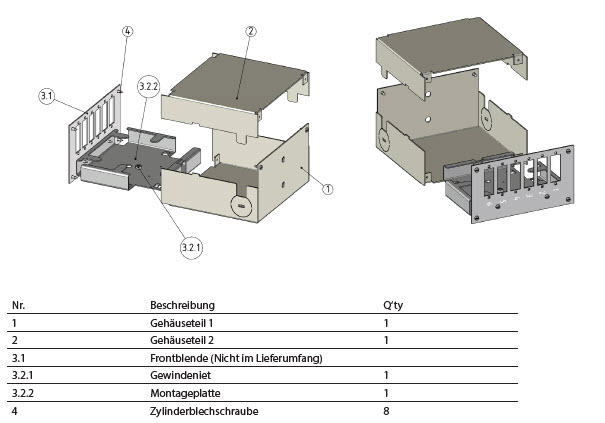

Included:1 x splice distributor housing
1x splice cassette
1 x splice holder for 12 crimp splices (Attach of an optional additional splice holder only with double-sided adhesive tape)
1 x cable gland M20
1 x Alu DIN Rail clip
Delivery unassembled and without Front panel

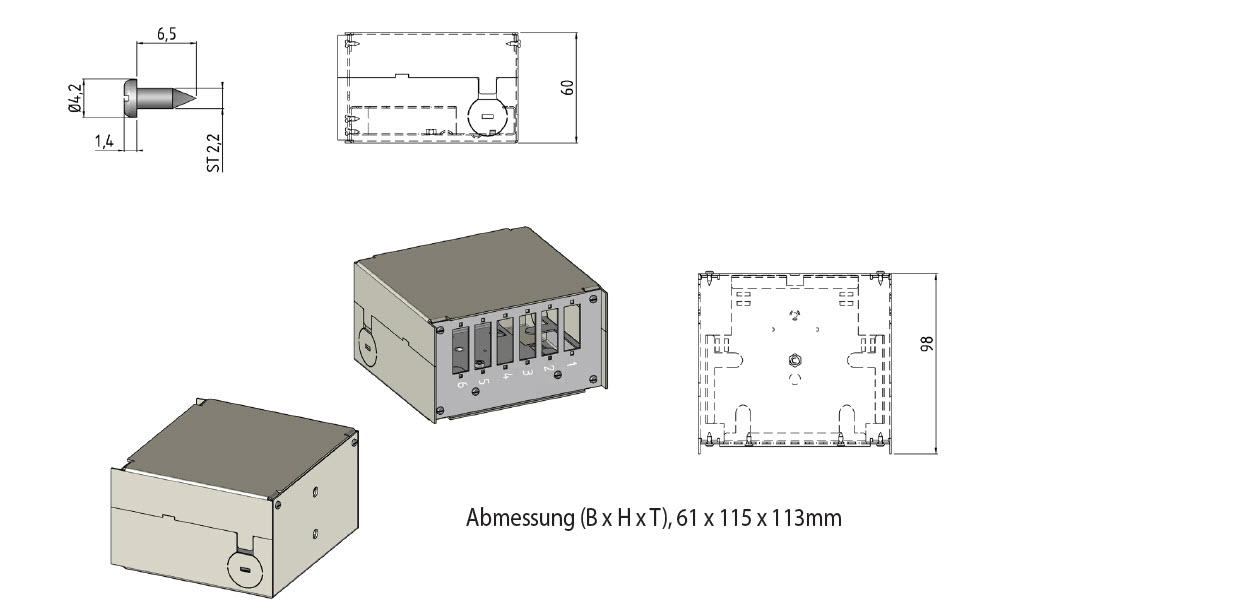

Dimensions: 61x115x113mm
For DIN Rail mounting
Cable entries top/bottom, prepared for M20
Delivery incl. screws for front panel
Included:1 x splice distributor housing
1x splice cassette
1 x splice holder for 12 crimp splices (Attach of an optional additional splice holder only with double-sided adhesive tape)
1 x cable gland M20
1 x Alu DIN Rail clip
Delivery unassembled and without Front panel
Dimensions: 61x115x113mm
Tekniske egenskaber
| Depth: | 113.0 mm |
|---|---|
| Height: | 115.0 mm |
| Mounting method: | DIN rail (top hat rail) |
| Temperature Range (Operation): | -40 – 75 °C |
| Temperature Range (Storage): | -40 – 85 °C |
| Width: | 61.0 mm |
| With front plate: | False |
| With housing: | True |
| With pigtails: | False |
