INFRALAN® A-DQ(ZN)B2Y OS2 Fca 3000N 7.5mm
INFRALAN® A-DQ(ZN)B2Y OS2 12E (1x12) Fca 3000N PE black, 7.5mm G657A1
Varenummer:
55412D2E
EAN-nr.:
4049759312572
Produktinformation til INFRALAN® A-DQ(ZN)B2Y OS2 12E (1x12) Fca 3000N PE black, 7.5mm G657A1

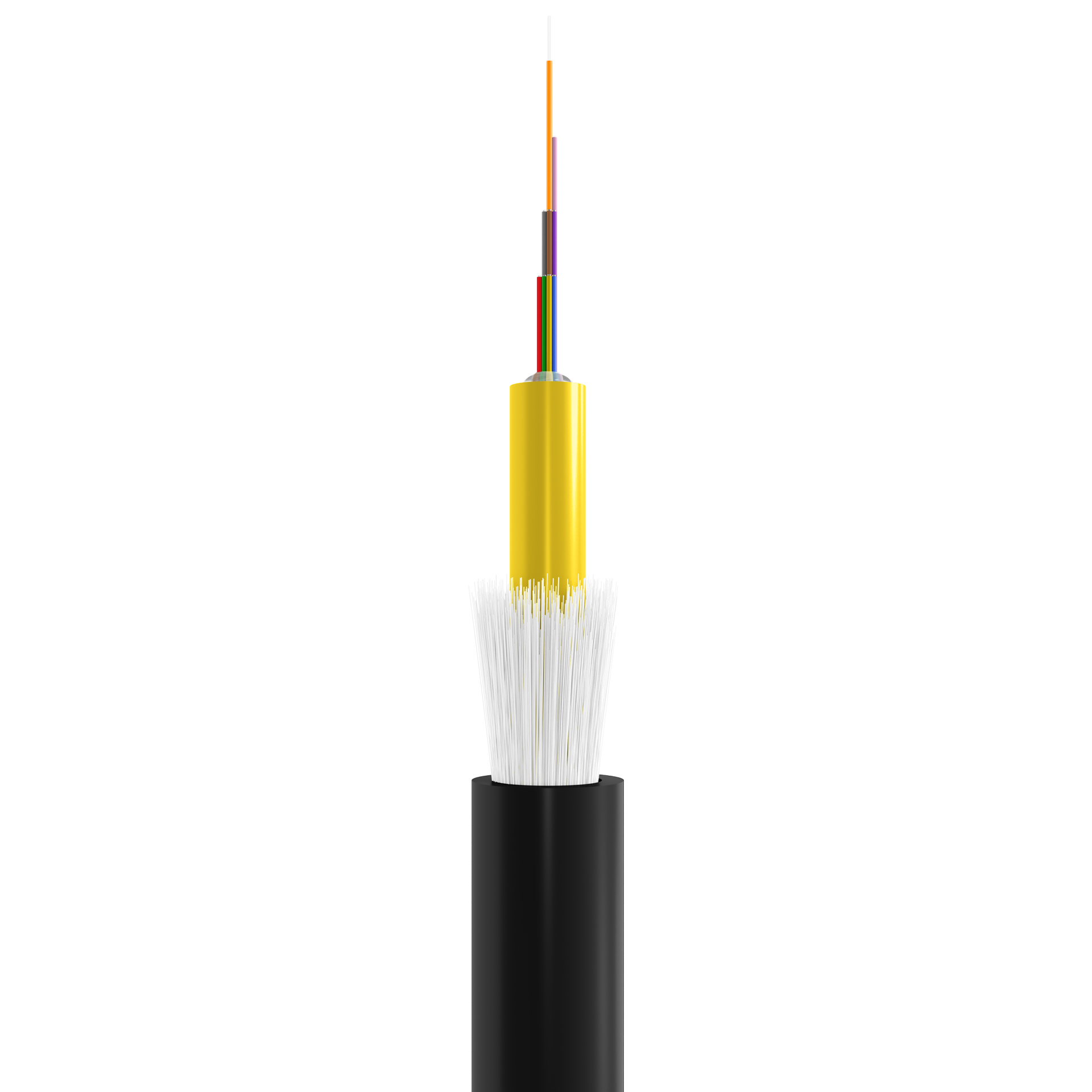

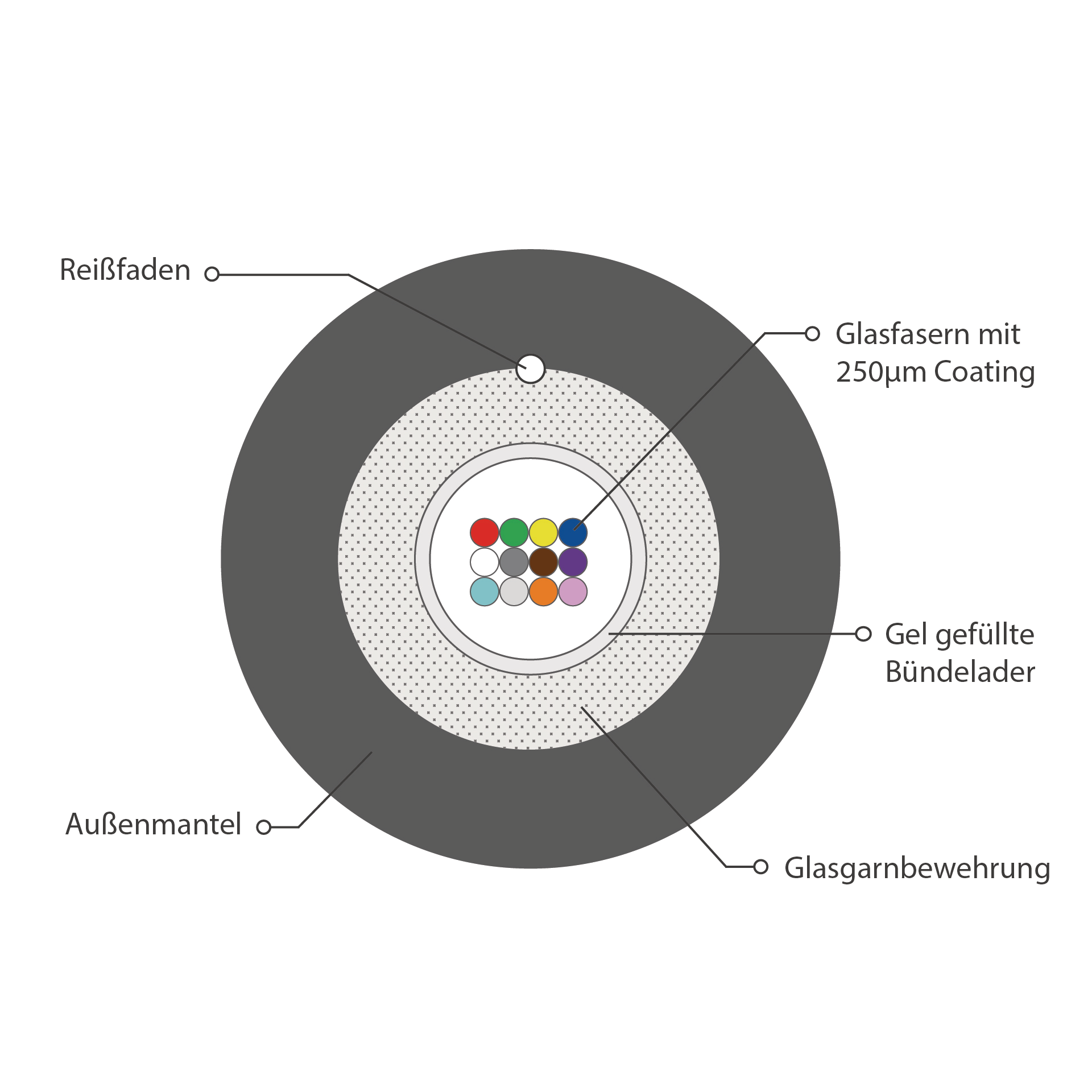

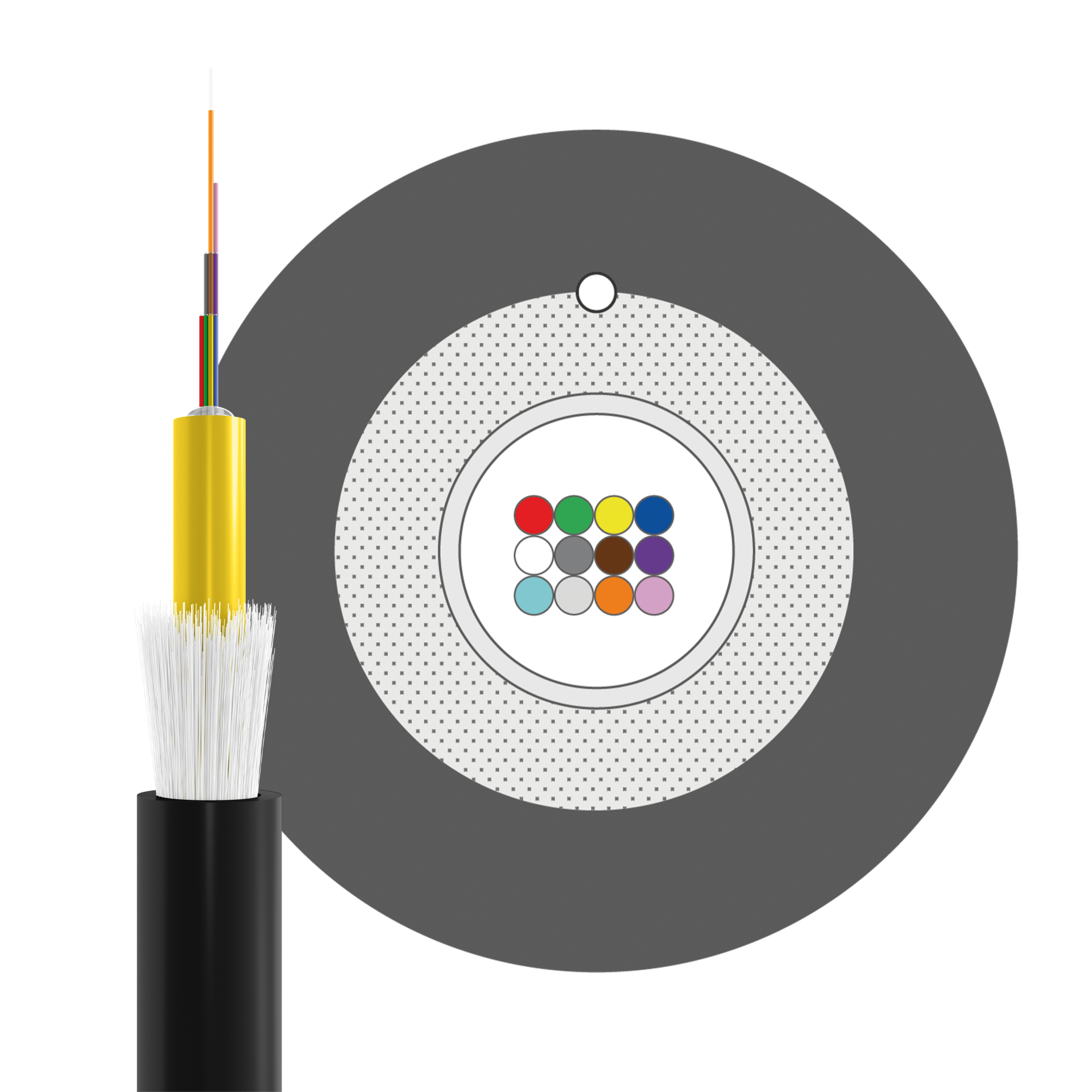

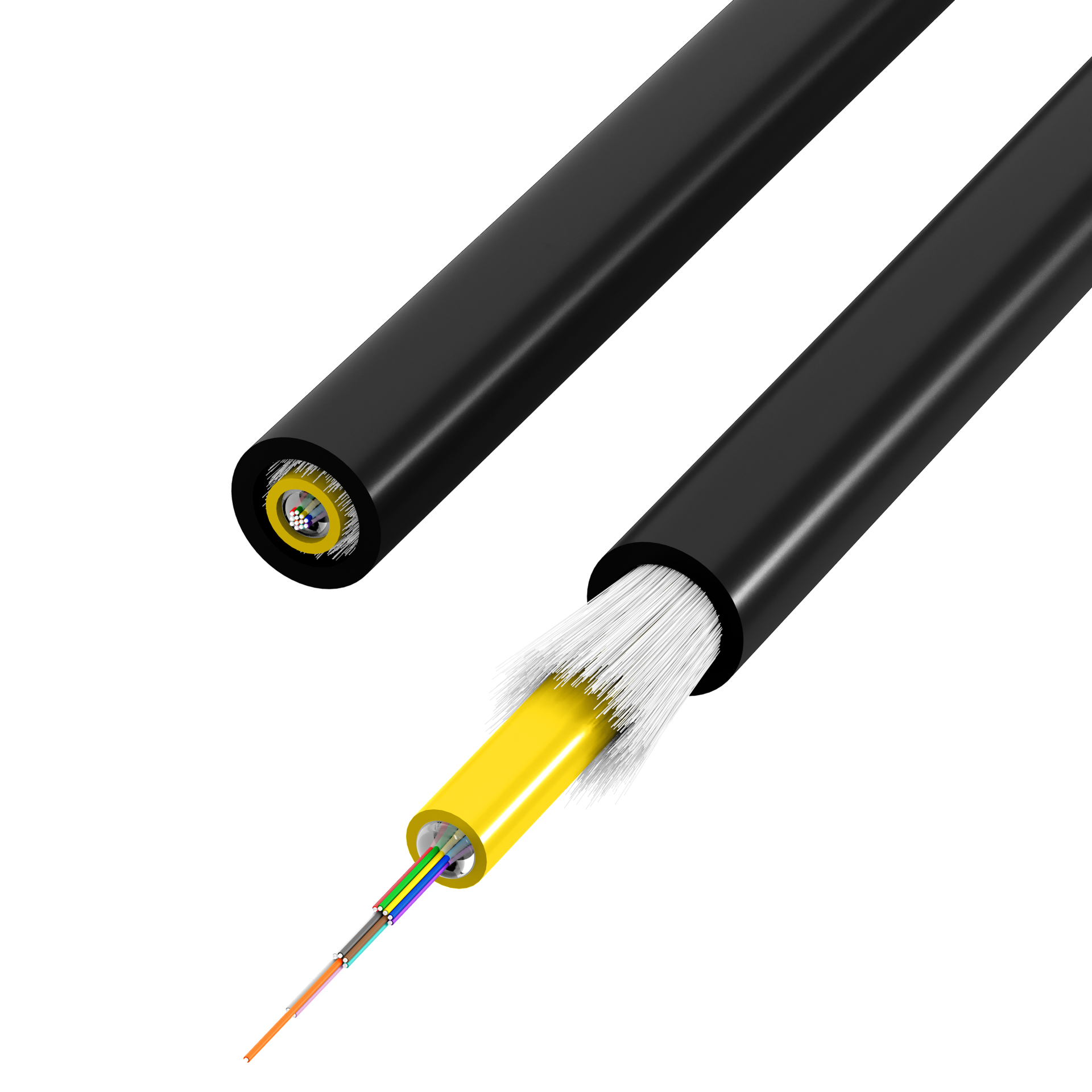

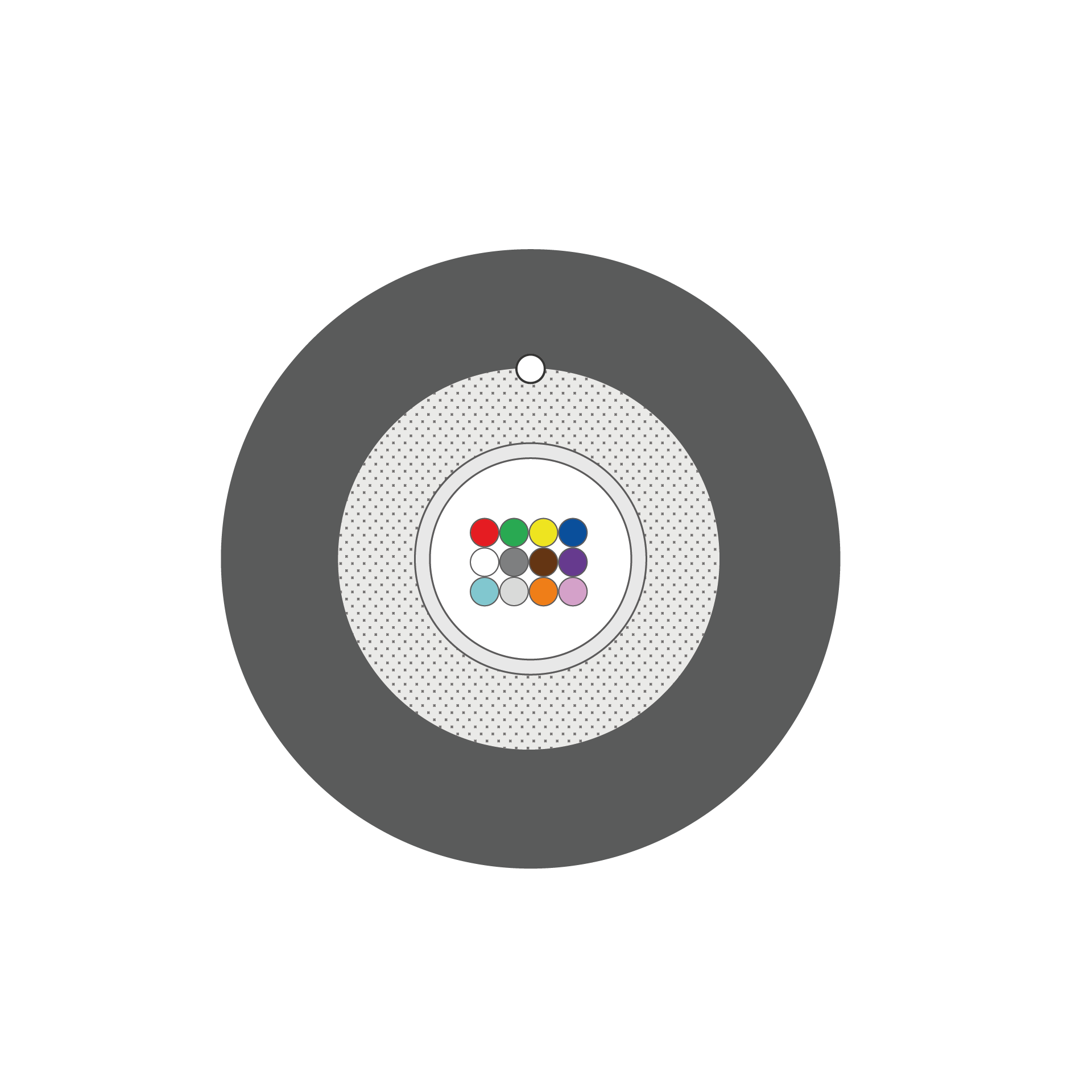

This fiber optic cable with a central gel-filled loose tube offers an outstanding solution for outdoor applications and direct burial. With a capacity of up to 24 fibers and a dielectrically armored construction, it ensures maximum stability and durability, even under extreme conditions. The longitudinally watertight design protects the fibers from moisture, while the robust LDPE jacket offers additional protection against environmental influences. Thanks to its rodent resistance, the cable is particularly suitable for demanding environments.
Applications include LAN and WAN backbones, telecom access lines and drop connections for fiber-to-business, fiber-to-the-building and fiber-to-the-home.
Applications include LAN and WAN backbones, telecom access lines and drop connections for fiber-to-business, fiber-to-the-building and fiber-to-the-home.
Tekniske egenskaber
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OS2 G657A1 |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | No |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | - |
| IL max. (dB/km) 1310nm: | 0.39 dB/km |
| IL max. (dB/km) 1550nm: | 0.22 dB/km |
| Jacket material: | Polyethylene (PE) |
| Longitudinal water blocking: | True |
| Low smoke: | nein |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -15 – 60 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.8 mm |
| Type of tube: | Central tube |
| UV resistant: | yes |
| With rodent protection: | True |
| With strain relief: | True |
