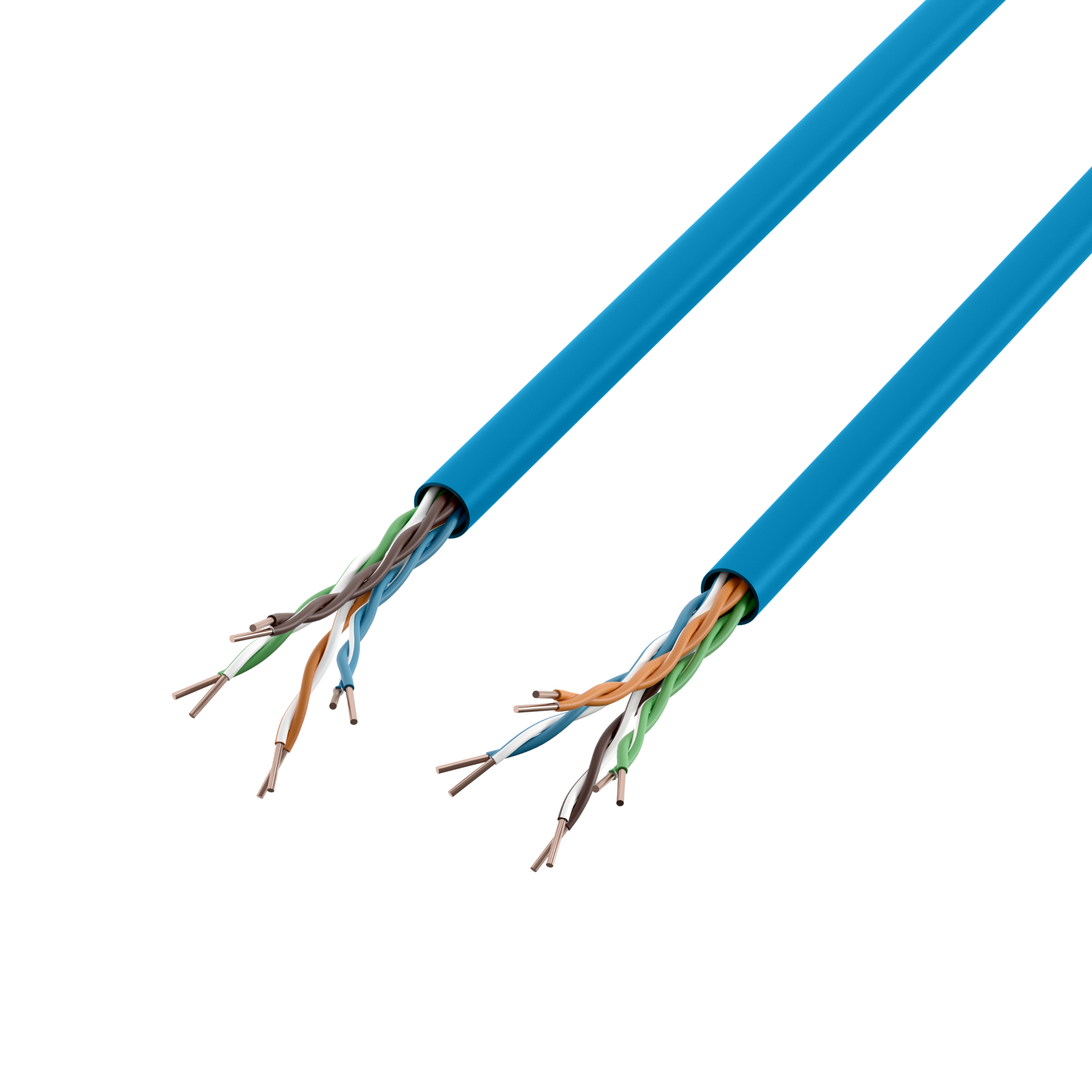

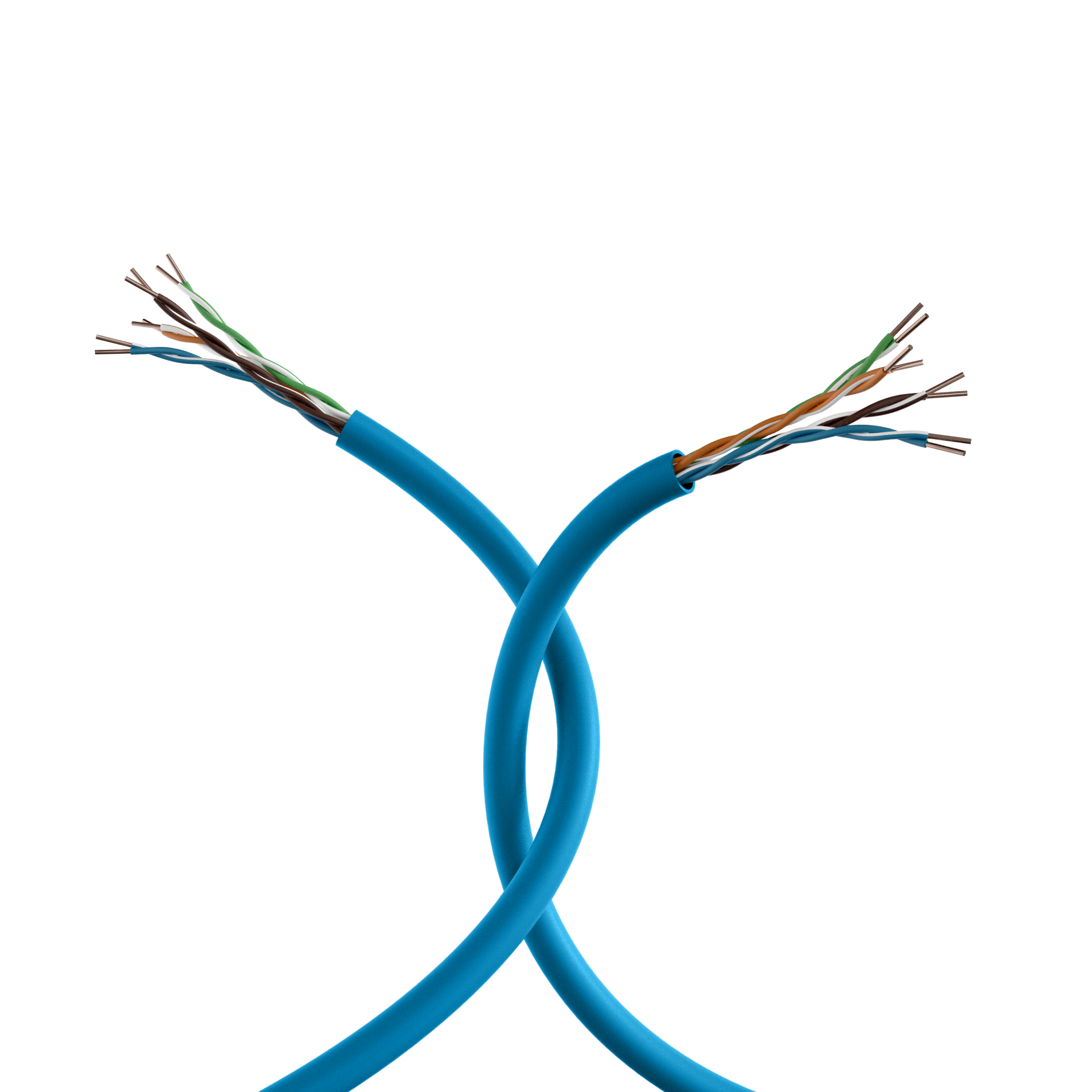

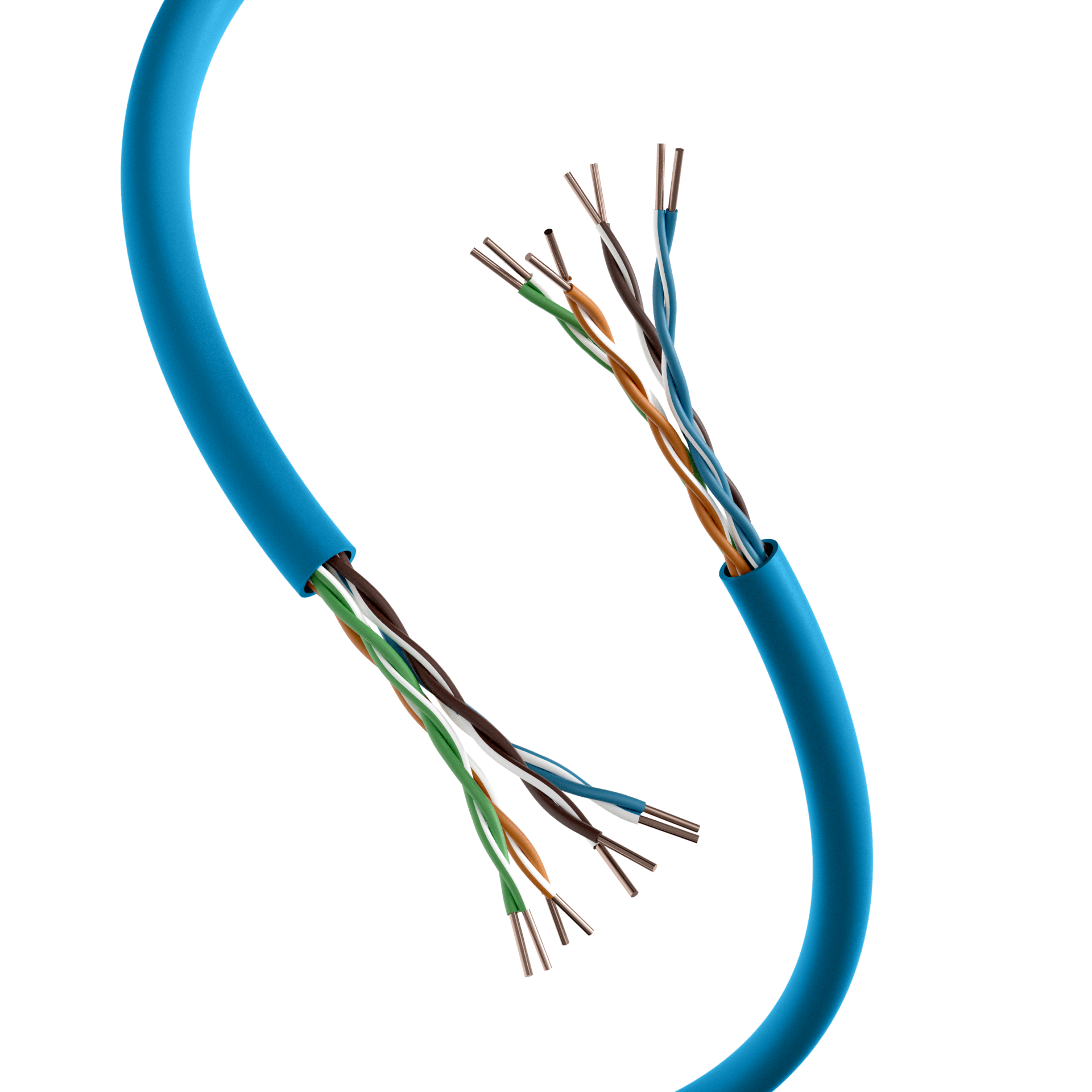

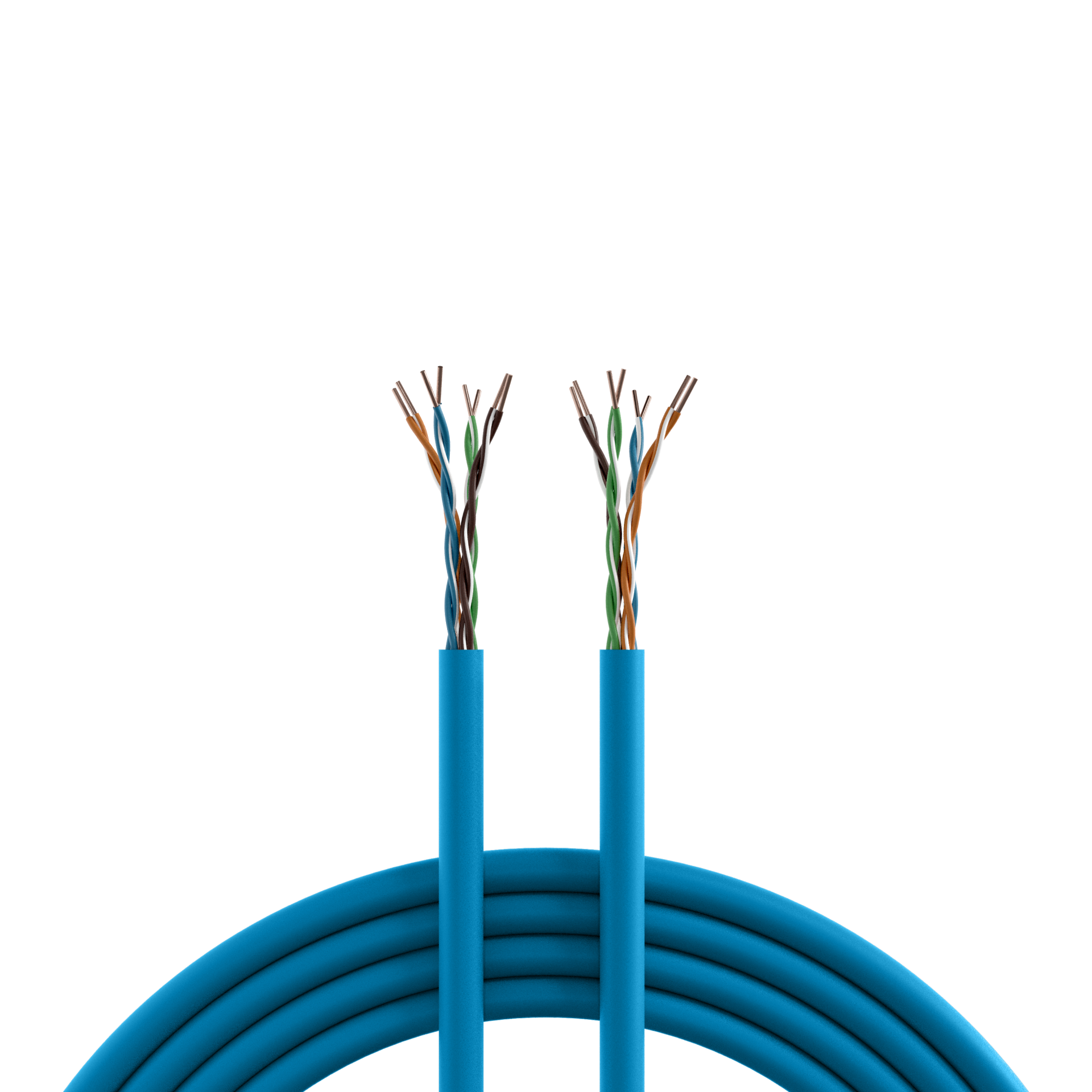

INFRALAN® Cat.6A 500 AWG23 U/UTP 4P CPR, B2ca, RAL5015 blue 500m

Produktinformation til INFRALAN® Cat.6A 500 AWG23 U/UTP 4P CPR, B2ca, RAL5015 blue 500m

The INFRALAN Cat.6A LAN cable in blue is designed for high-performance network cabling. The U/UTP structure with LSZH jacket supports stable data connections up to 500 MHz and is therefore suitable for modern installations with high bandwidth. The blue version in RAL 5015 complements the installation with a clearly defined marking.

• 500 MHz Cat.6A (IEC) – Supports IEEE 802.3 from 10Mbit to 10Gbit and creates scope for high-performance networks.
• U/UTP construction without shielding over stranding – Relies on an unshielded construction for structured cabling.
• LSZH sheath in blue according to RAL 5015 and Euroclass B2ca – Combines halogen-free material properties according to EN 60754-1/2 with a contemporary CPR classification.

In the technical design, the cable uses 23/1 conductors with 8 wires in simplex design. The dynamic bending radius of 30 mm facilitates installation in narrow routes. The unshielded construction is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The structure does not require reinforcement and complies with RoHS 2011/65/UE.

Technical details
• Brand: INFRALAN
• Category: 6A (IEC)
• Transmission standards: IEEE 802.3 10Mbit to 10Gbit
• Max. frequency: 500 MHz
• Cable construction: U/UTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 23/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: blue
• RAL colour: RAL 5015
• Armour: without
• Bend radius (dynamic): 30 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: B2ca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: without
AWG-size: 23/1
Armour: none
Bending radius (dynamic): 30 mm
Cable: EN 50288-4-1 500, IEC 61156-6
Cable silicone free: True
Cable structure: U/UTP
Cable type: EFB Cat.6A U/UTP 500 AWG23 B2ca
Cabling standards: EN 50173-1, ISO/IEC 11801
Category: 6A (IEC)
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Copper, bare
Core identification: Colour
Core insulation: Foam-Skin-PE
Coupling attenuation: ≥ 50 dB
Diameter conductor: 0.55 mm
Directive/Regulation: RoHS 2011/65/UE
Euro class: B2ca
Flame retardant: acc. to IEC/EN 60332-1, acc. to IEC/EN 60332-3
Halogen free: acc. to EN 60754-1/2
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Loop resistance: 196 Ohm/km
Low smoke: acc. to EN 61034
Material outer sheath: LSZH
Max. Freuqency: MHz MHz
NVP value: 69 %
Nominal cross section conductor: 0.26 mm²
Operating capacity: 43 pF/km
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
Operating temperature, storage: -20 – 60 °C
PoE: acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 5 %
Screen over stranding: None
Screen over stranding element: without
Separation class acc. EN50174-2: C
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transmission standards: IEEE 802.3 10Mbit bis 10Gbit
UV resistant: no

Tekniske egenskaber

AWG-size: 23/1
Armour: none
Bending radius (dynamic): 30 mm
Cable: EN 50288-4-1 500, IEC 61156-6
Cable silicone free: True
Cable structure: U/UTP
Cable type: EFB Cat.6A U/UTP 500 AWG23 B2ca
Cabling standards: EN 50173-1, ISO/IEC 11801
Category: 6A (IEC)
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Copper, bare
Core identification: Colour
Core insulation: Foam-Skin-PE
Coupling attenuation: ≥ 50 dB
Diameter conductor: 0.55 mm
Directive/Regulation: RoHS 2011/65/UE
Euro class: B2ca
Flame retardant: acc. to IEC/EN 60332-1, acc. to IEC/EN 60332-3
Halogen free: acc. to EN 60754-1/2
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Loop resistance: 196 Ohm/km
Low smoke: acc. to EN 61034
Material outer sheath: LSZH
Max. Freuqency: MHz MHz
NVP value: 69 %
Nominal cross section conductor: 0.26 mm²
Operating capacity: 43 pF/km
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
Operating temperature, storage: -20 – 60 °C
PoE: acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 5 %
Screen over stranding: None
Screen over stranding element: without
Separation class acc. EN50174-2: C
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transmission standards: IEEE 802.3 10Mbit bis 10Gbit
UV resistant: no

Produktinformation til INFRALAN® Cat.6A 500 AWG23 U/UTP 4P CPR, B2ca, RAL5015 blue 500m

The INFRALAN Cat.6A LAN cable in blue is designed for high-performance network cabling. The U/UTP structure with LSZH jacket supports stable data connections up to 500 MHz and is therefore suitable for modern installations with high bandwidth. The blue version in RAL 5015 complements the installation with a clearly defined marking.

• 500 MHz Cat.6A (IEC) – Supports IEEE 802.3 from 10Mbit to 10Gbit and creates scope for high-performance networks.
• U/UTP construction without shielding over stranding – Relies on an unshielded construction for structured cabling.
• LSZH sheath in blue according to RAL 5015 and Euroclass B2ca – Combines halogen-free material properties according to EN 60754-1/2 with a contemporary CPR classification.

In the technical design, the cable uses 23/1 conductors with 8 wires in simplex design. The dynamic bending radius of 30 mm facilitates installation in narrow routes. The unshielded construction is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The structure does not require reinforcement and complies with RoHS 2011/65/UE.

Technical details
• Brand: INFRALAN
• Category: 6A (IEC)
• Transmission standards: IEEE 802.3 10Mbit to 10Gbit
• Max. frequency: 500 MHz
• Cable construction: U/UTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 23/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: blue
• RAL colour: RAL 5015
• Armour: without
• Bend radius (dynamic): 30 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: B2ca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: without
AWG-size: 23/1
Armour: none
Bending radius (dynamic): 30 mm
Cable: EN 50288-4-1 500, IEC 61156-6
Cable silicone free: True
Cable structure: U/UTP
Cable type: EFB Cat.6A U/UTP 500 AWG23 B2ca
Cabling standards: EN 50173-1, ISO/IEC 11801
Category: 6A (IEC)
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Copper, bare
Core identification: Colour
Core insulation: Foam-Skin-PE
Coupling attenuation: ≥ 50 dB
Diameter conductor: 0.55 mm
Directive/Regulation: RoHS 2011/65/UE
Euro class: B2ca
Flame retardant: acc. to IEC/EN 60332-1, acc. to IEC/EN 60332-3
Halogen free: acc. to EN 60754-1/2
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Loop resistance: 196 Ohm/km
Low smoke: acc. to EN 61034
Material outer sheath: LSZH
Max. Freuqency: MHz MHz
NVP value: 69 %
Nominal cross section conductor: 0.26 mm²
Operating capacity: 43 pF/km
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
Operating temperature, storage: -20 – 60 °C
PoE: acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 5 %
Screen over stranding: None
Screen over stranding element: without
Separation class acc. EN50174-2: C
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transmission standards: IEEE 802.3 10Mbit bis 10Gbit
UV resistant: no

AWG-size: 23/1
Armour: none
Bending radius (dynamic): 30 mm
Cable: EN 50288-4-1 500, IEC 61156-6
Cable silicone free: True
Cable structure: U/UTP
Cable type: EFB Cat.6A U/UTP 500 AWG23 B2ca
Cabling standards: EN 50173-1, ISO/IEC 11801
Category: 6A (IEC)
Characteristic impedance: 100 ± 5 Ohm
Conductor category: Class 1 = solid
Conductor material: Copper, bare
Core identification: Colour
Core insulation: Foam-Skin-PE
Coupling attenuation: ≥ 50 dB
Diameter conductor: 0.55 mm
Directive/Regulation: RoHS 2011/65/UE
Euro class: B2ca
Flame retardant: acc. to IEC/EN 60332-1, acc. to IEC/EN 60332-3
Halogen free: acc. to EN 60754-1/2
Harmonised Standard: EN 50575
Installation standard: EN 50174
Insulation resistance (500V): ≥ 2000 MOhm/km
Loop resistance: 196 Ohm/km
Low smoke: acc. to EN 61034
Material outer sheath: LSZH
Max. Freuqency: MHz MHz
NVP value: 69 %
Nominal cross section conductor: 0.26 mm²
Operating capacity: 43 pF/km
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
Operating temperature, storage: -20 – 60 °C
PoE: acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE
Resistance unbalance: 5 %
Screen over stranding: None
Screen over stranding element: without
Separation class acc. EN50174-2: C
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transmission standards: IEEE 802.3 10Mbit bis 10Gbit
UV resistant: no

Sikkerhedsanvisninger


Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
