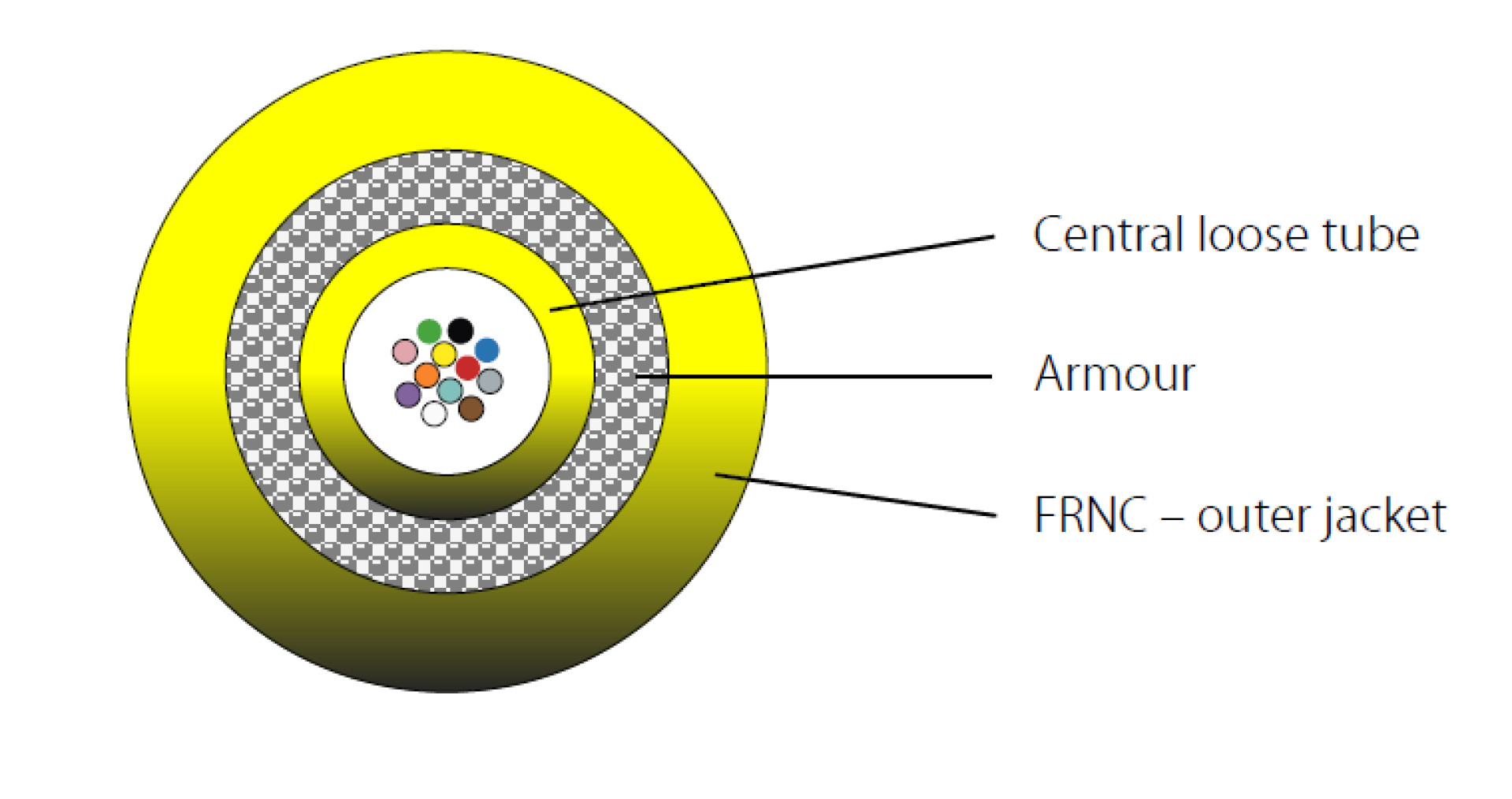

INFRALAN® I-B(ZN)BH 12E 9/125µ, OS2
INFRALAN® I-B(ZN)BH OS2 12E (1x12) B2ca 1500N LSZH yellow 6.5mm G657A1
Varenummer:
56312.1OS2-CPR
EAN-nr.:
4049759223151
Produktinformation til INFRALAN® I-B(ZN)BH OS2 12E (1x12) B2ca 1500N LSZH yellow 6.5mm G657A1
Fields of application:
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
Tekniske egenskaber
| Application: | Inside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | No |
| Colour outer sheath: | yellow |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OS2 G657A1 |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 1310nm: | 0.40 dB/km |
| IL max. (dB/km) 1550nm: | 0.30 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | False |
| Low smoke: | Yes |
| Oil resistant: | no |
| Radial water blocking: | False |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |
| Tube Ø: | 3.0 mm |
| Type of tube: | Central tube |
| UV resistant: | no |
| With rodent protection: | True |
| With strain relief: | True |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
