Installation Cable Cat.7 S/FTP LSZH, Class Dca
EFB-Elektronik GmbH

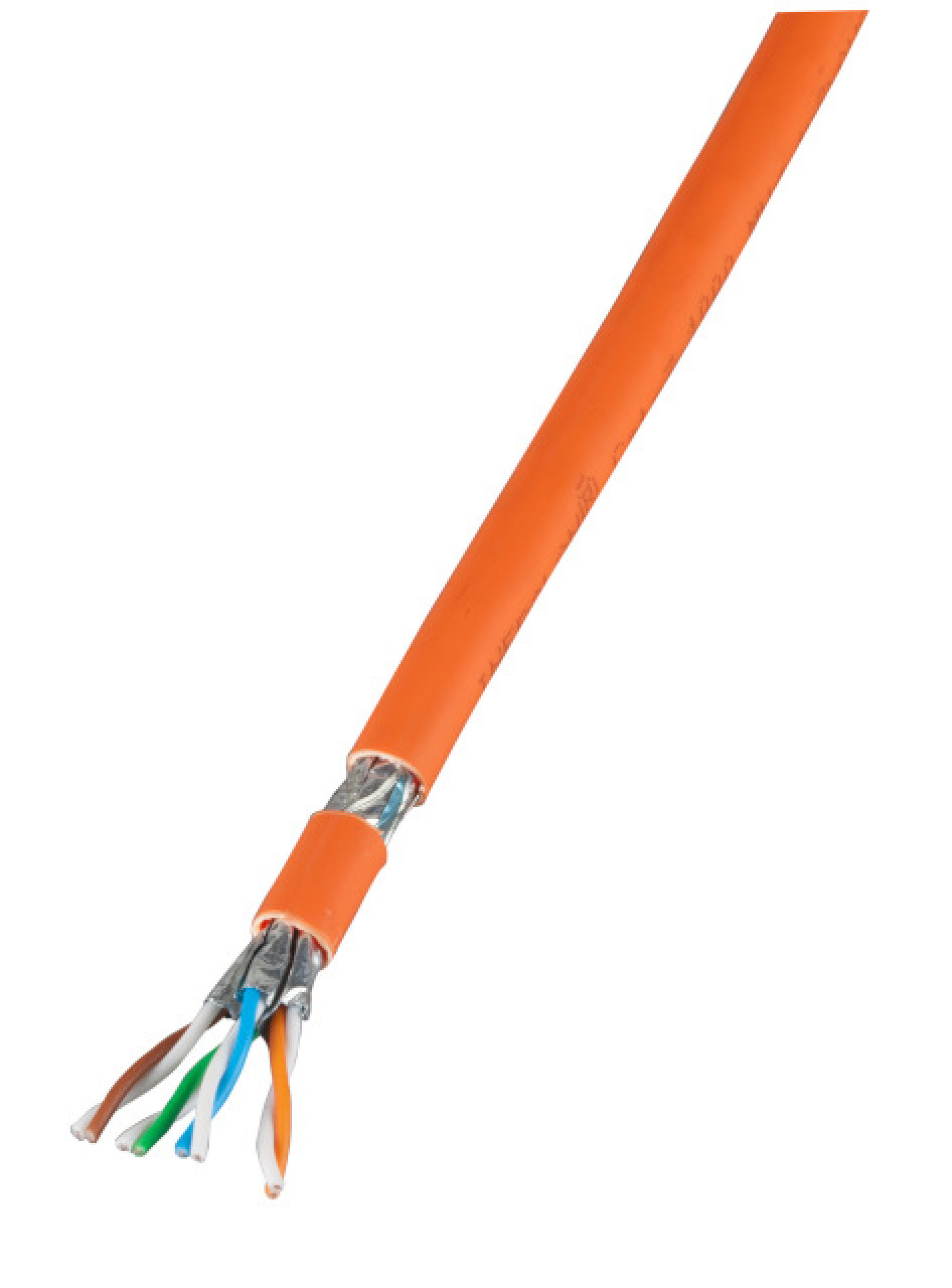

CABLE CAT.7 S/FTP (4X2XAWG23) LSZH orange, 500 Mtr Drum
Varenummer:
DK-ICD7SFO.500-V1
EAN nr.:
5705721143955
Produktinformation til CABLE CAT.7 S/FTP (4X2XAWG23) LSZH orange, 500 Mtr Drum
InfraLan Datkabel Kat.7 2x4xAWG23, S/FTP med flettet CU skærm og parvis aluskærm
LSZH - halogenfri kappe
for indendørs installation
LSZH - halogenfri kappe
for indendørs installation
| AWG-size: | 23/1 |
|---|---|
| Conductor category: | Class 1 = solid |
| Conductor material: | CU, tinned |
| Core identification: | colour |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.56 |
| Euro class: | Dca |
| Low smoke: | acc. to EN 61034-2 |
| NVP value: | 76 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | foil |
| Separation class acc. EN50174-2: | D |
| UV resistant: | no |
Tekniske egenskaber
| AWG-size: | 23/1 |
|---|---|
| Conductor category: | Class 1 = solid |
| Conductor material: | CU, tinned |
| Core identification: | colour |
| Coupling attenuation: | 80 |
| Diameter conductor: | 0.56 |
| Euro class: | Dca |
| Low smoke: | acc. to EN 61034-2 |
| NVP value: | 76 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | foil |
| Separation class acc. EN50174-2: | D |
| UV resistant: | no |
Varianter
| Art. Nej. | Betegnelse | Colour outer sheath | RAL colour | Length | Type | Number of cores | |
|---|---|---|---|---|---|---|---|
| DK-ICD7SFO.500-V1 | CABLE CAT.7 S/FTP (4X2XAWG23) LSZH orange, 500 Mtr Drum | orange | RAL2003 | 500 m | simplex | 8 | |
| DK-ICD7SFW.500-V1 | CABLE CAT.7 S/FTP (4X2XAWG23) LSZH weoß, 500 Mtr Drum | white | RAL9003 | 500 m | simplex | 8 |
