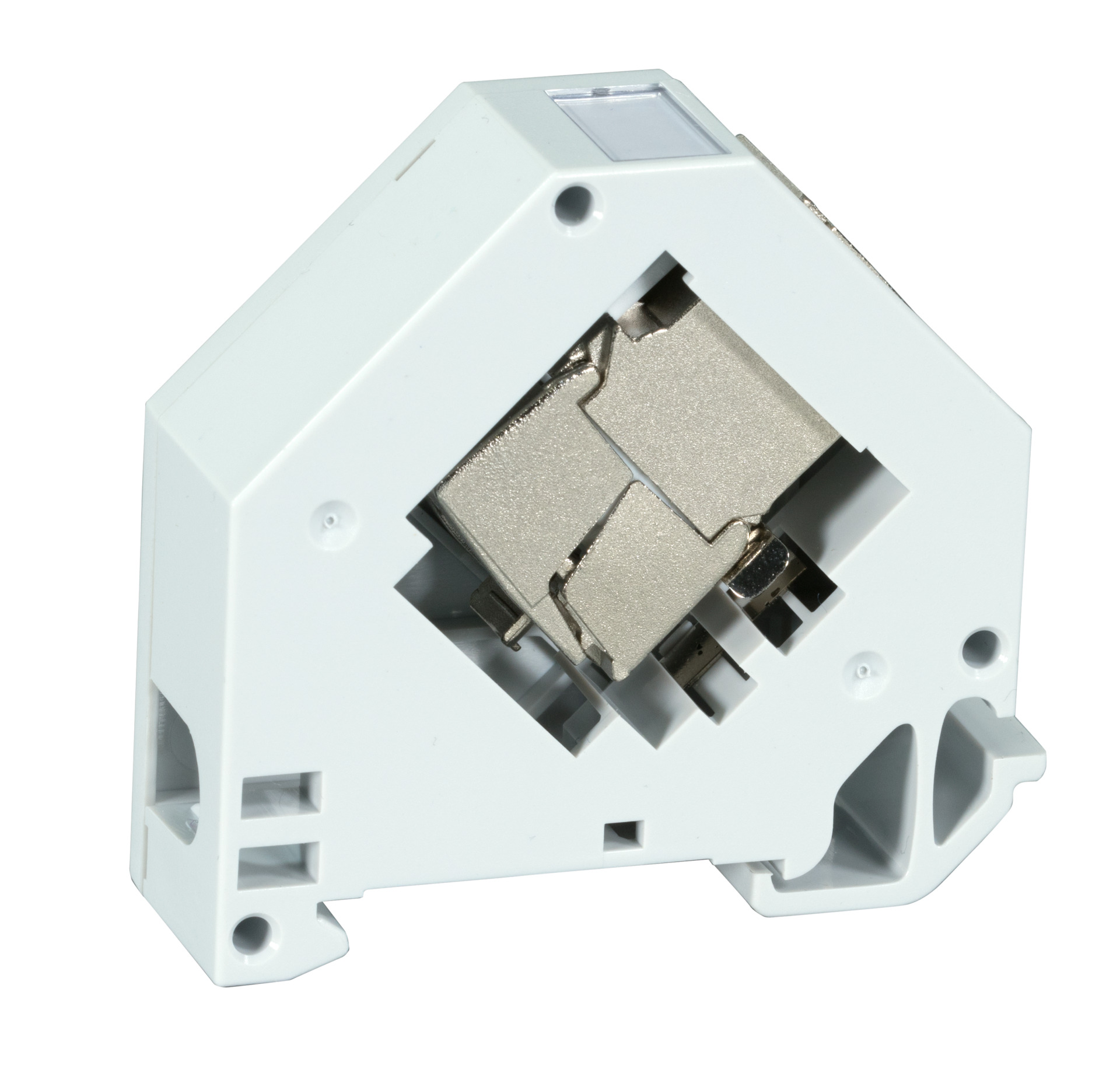

Keystone holder 1-Port, for DIN Rail, plastic
Priser kun synlige for indloggede brugere
Keystone holder 1-Port, for DIN Rail, plastic
Varenummer:
ET-25186.V2
EAN nr.:
4049759130312
Produktinformation für Keystone holder 1-Port, for DIN Rail, plastic

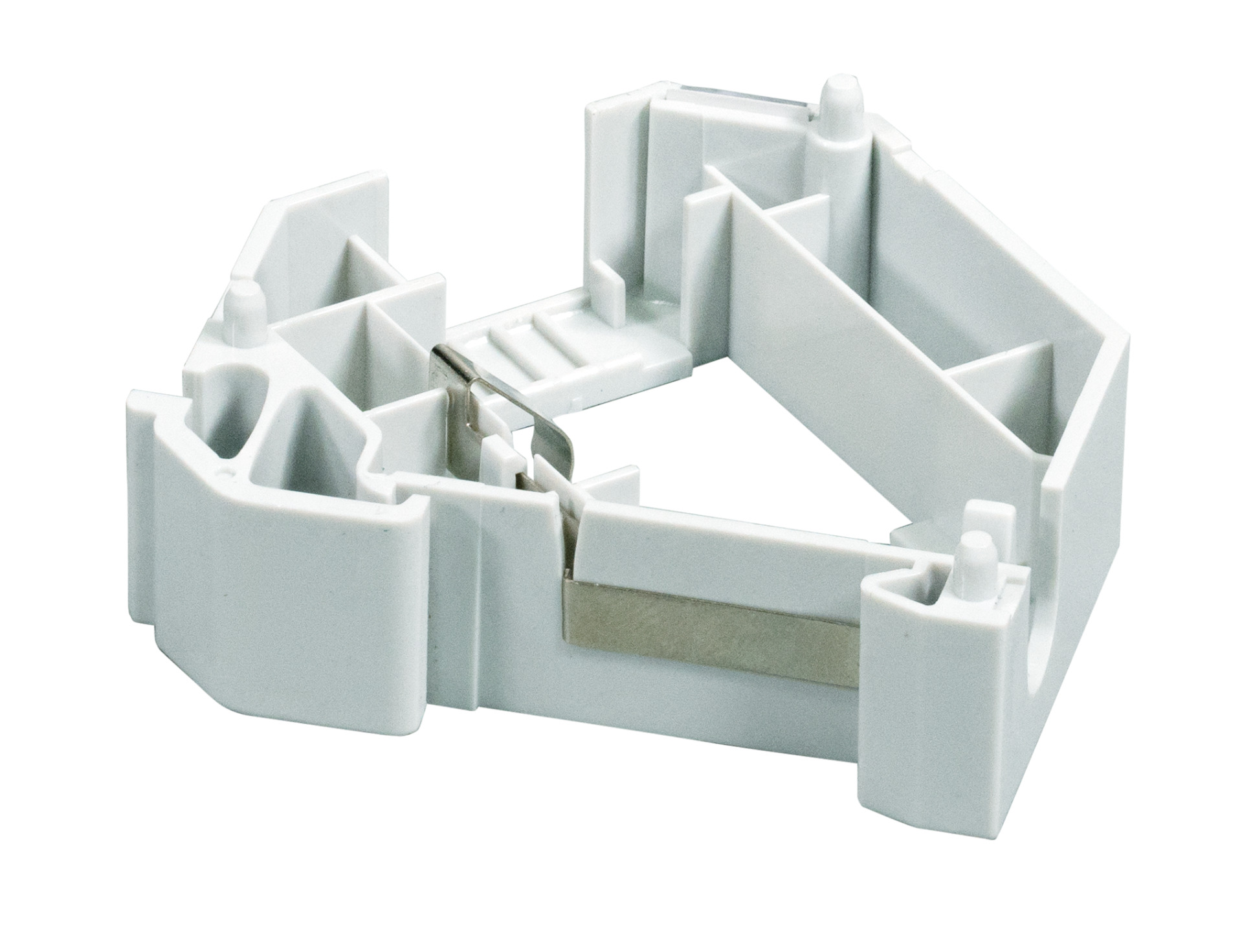

Module holder 1-Port, plastic
For mounting on DIN-Rail TH35 acc. to DIN EN60715
Width: 22mm
For Keystones
Side-by-side mountable, with earthing spring
Colour: RAL7035, light grey
Closed on one side

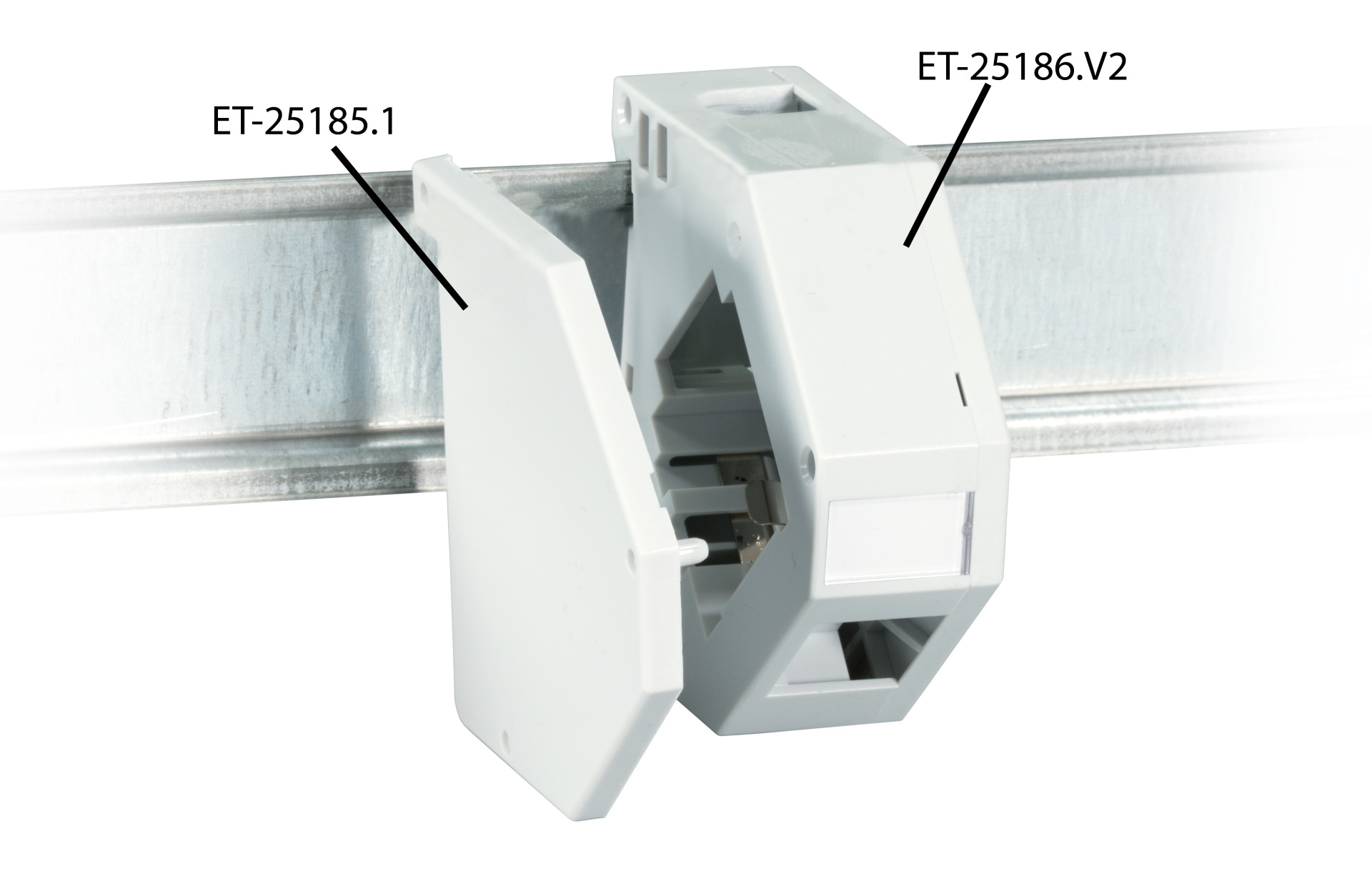

Delivery unloaded and without end plate left (ET-25185.1)
An end plate left is always necessary. Module holder requires an end plate left, several connected module holders also require only one end plate left.
For mounting on DIN-Rail TH35 acc. to DIN EN60715
Width: 22mm
For Keystones
Side-by-side mountable, with earthing spring
Colour: RAL7035, light grey
Closed on one side
Delivery unloaded and without end plate left (ET-25185.1)
An end plate left is always necessary. Module holder requires an end plate left, several connected module holders also require only one end plate left.
Tekniske egenskaber
| Abmessungen (WxHxD): | 21.5 x 54.0 x 60.6 mm |
|---|---|
| Colour: | light grey |
| Material: | Plastic |
| Stackable: | True |
| Suitable for: | 1 module (keystone format) |
| Type of DIN-rail adapter: | Inclined |
| Type of fastening: | DIN rail (top hat rail) 35 mm |
| With earthing spring: | True |
| With labeling field: | True |
accessory
