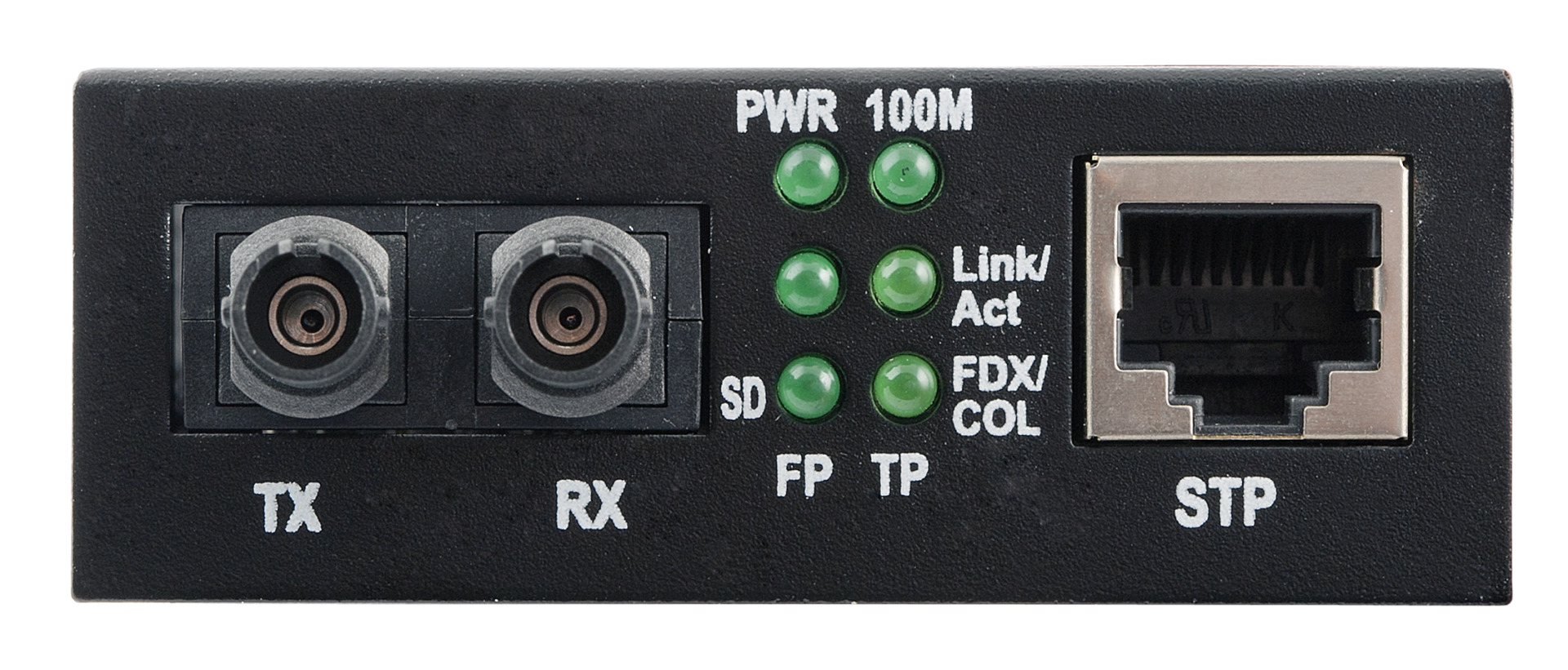

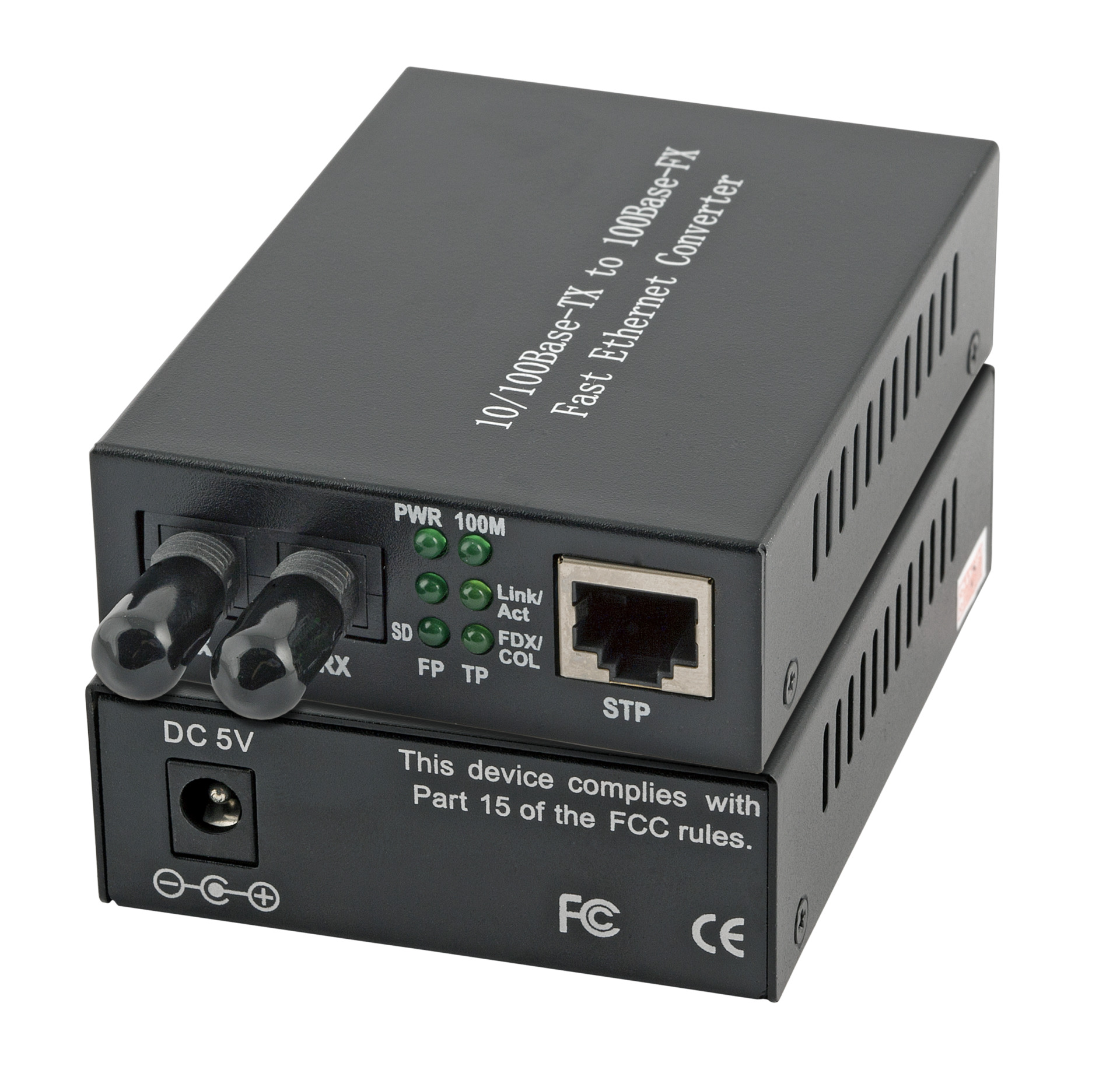

Media Converter Fast Ethernet, MM, ST 100FX-2km
Media Converter RJ45-STP/ST 1310nm/2km, Fast Ethernet
Varenummer:
EL022V2
EAN Nr.:
4049759057893
Produktinformation til Media Converter RJ45-STP/ST 1310nm/2km, Fast Ethernet
Autonegotiation and Auto MDI/MDI-X
Diagnostic LEDs
External power supply included
Single use or in Chassis (EL0CH1)
Metal housing (L x W x H): 94 x 71 x 26 mm
Diagnostic LEDs
External power supply included
Single use or in Chassis (EL0CH1)
Metal housing (L x W x H): 94 x 71 x 26 mm
Tekniske egenskaber
| Construction type: | Single device |
|---|---|
| Depth: | 94.0 mm |
| Distance: | 2000 m |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 26.0 mm |
| LWL-Port: | ST 100 FX |
| Layer 2: | False |
| Managed: | False |
| Medium: | MM |
| Number of ports 10/100 Mbps RJ45: | 1 |
| Number of ports 100 Mbps ST: | 2 |
| Power over Ethernet: | False |
| RJ45-Port: | 10/100 TX |
| Suitable for 19 inch mounting: | False |
| Width: | 71.0 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
