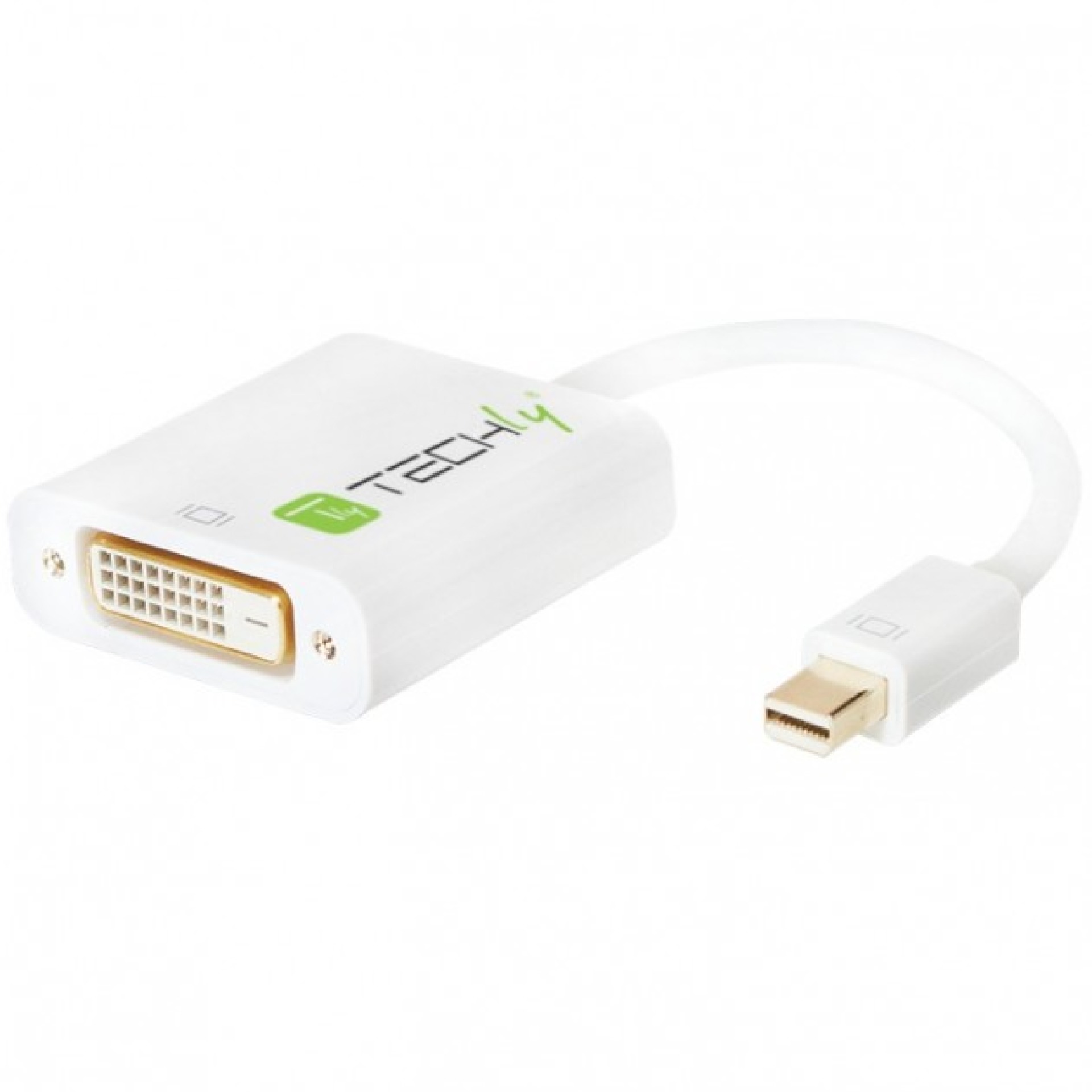

Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm
Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm
Varenummer:
IADAP-MDP-DVIF12
EAN Nr.:
8057685309807
Produktinformationen für Mini DisplayPort (Thunderbolt) 1.2 to DVI 15cm

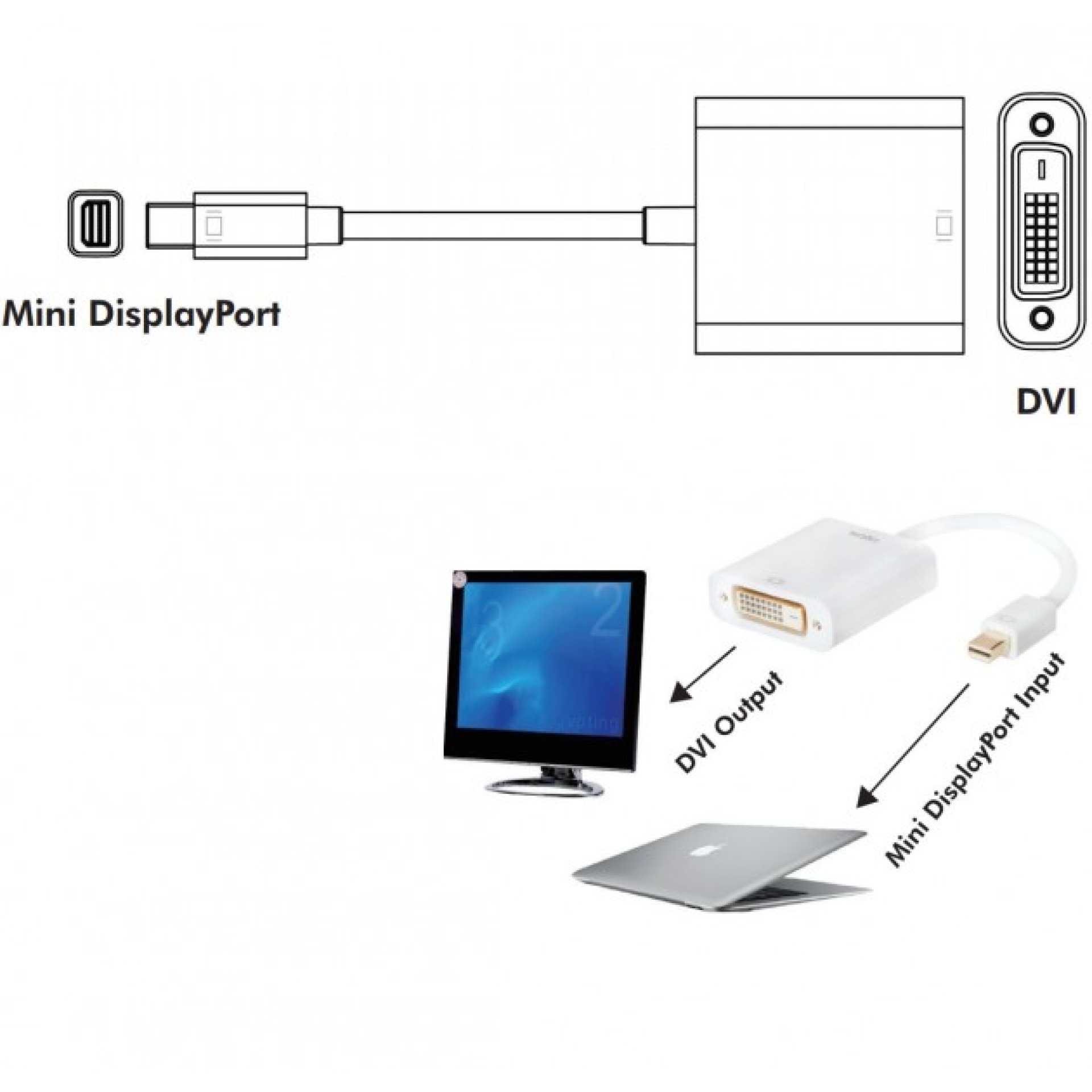

• Connect a source mini-DisplayPort (Thunderbolt) to a DVI monitor cable
• Provides a single high-quality signal to a DVI monitor - ideal for computer MAC
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Contacts
• (1) Mini-DisplayPort 20-pin male (Thunderbolt)
• (1) DVI-D Dual Link
• Molded PVC
• Shielded
Signal IN / OUT
• Input video signal: Mini DisplayPort
• Maximum range Single Link: 4K x 2K
• Video Output: DVI-D Dual Link
• Input Connector: Mini DisplayPort Male 20pin
• Output Connector Type: DVI 24 + 1 female
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth of 1.62Gbps / 2.7Gbps
Resolutions (HDTV)
• 1920x1080 @ 60Hz
• Does not support 3D mode
Dimensions
• Length 43 mm
• Width 43 mm
• Height 15 mm
• Cable length 15 cm
Environmental Characteristics
• Operating Temperature: 0 ° C to + 70 ° C
• Operating humidity 10% to 85% (non-condensing)
• Storage temperature -10 ° C to + 80 ° C
• Storage Humidity 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• Adapter Mini-DisplayPort (Thunderbolt) to DVI
• Instruction Manual
