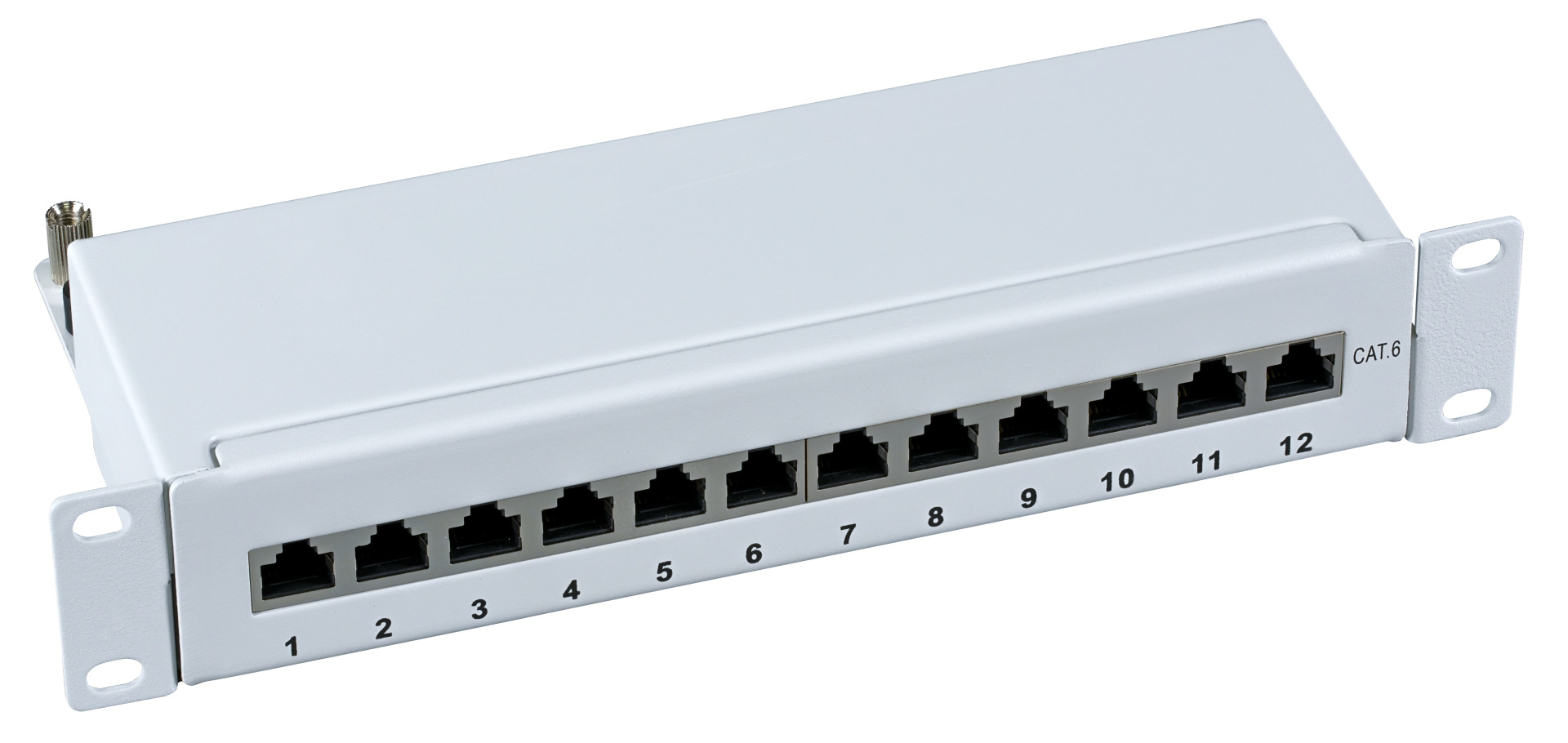

Mini-Patchpanel STP 12xRJ45 Cat.6, 10“ 1U
Mini-Patchpanel STP 12xRJ45 Cat.6, 10“ 1U, RAL7035 grey
Varenummer:
37736.12
EAN Nr.:
4049759186579
Produktinformation til Mini-Patchpanel STP 12xRJ45 Cat.6, 10“ 1U, RAL7035 grey

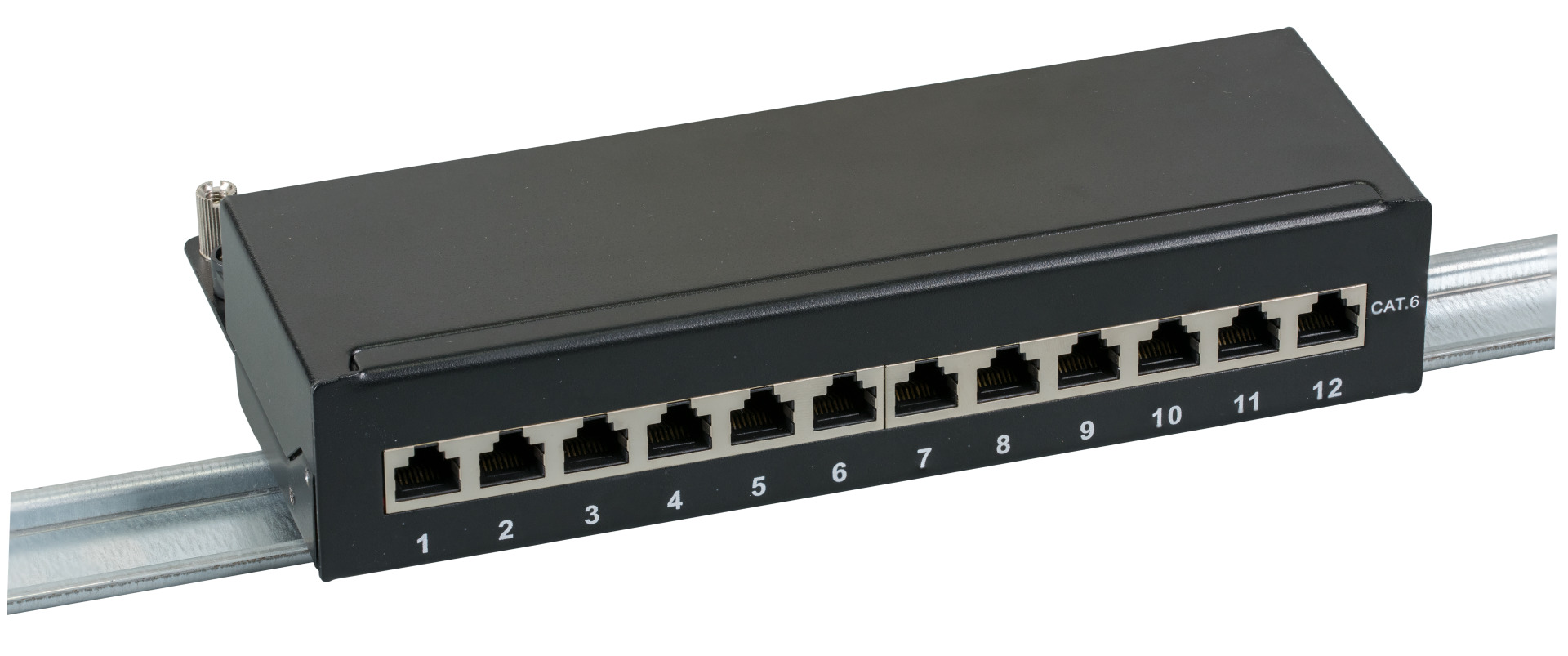

The high quality of the shielded Cat.6 RJ45 mini patch panel ensures excellent performance for 5 Gigabit Ethernet applications. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 "plane, for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting.
10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release

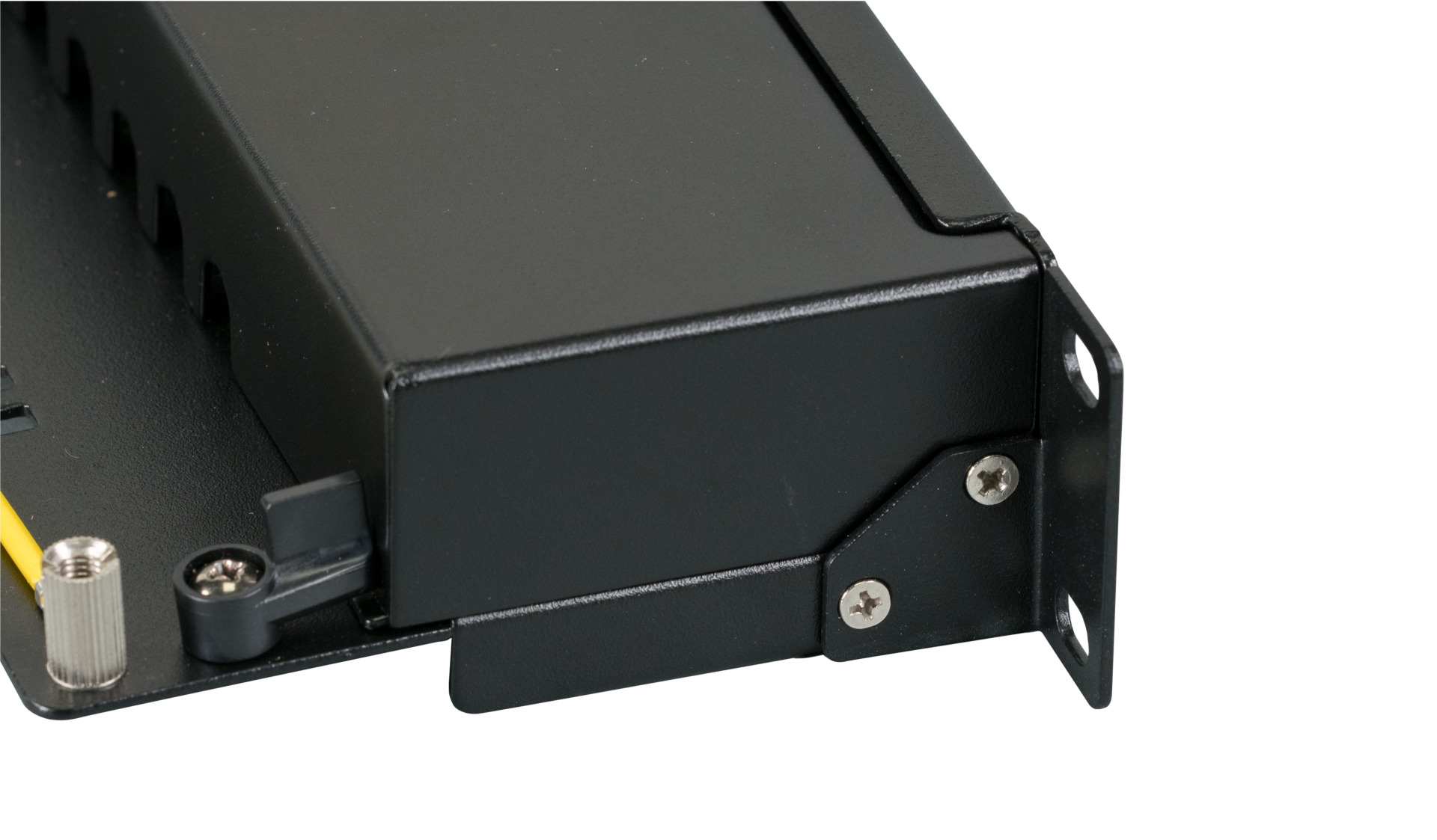

With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut
10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut

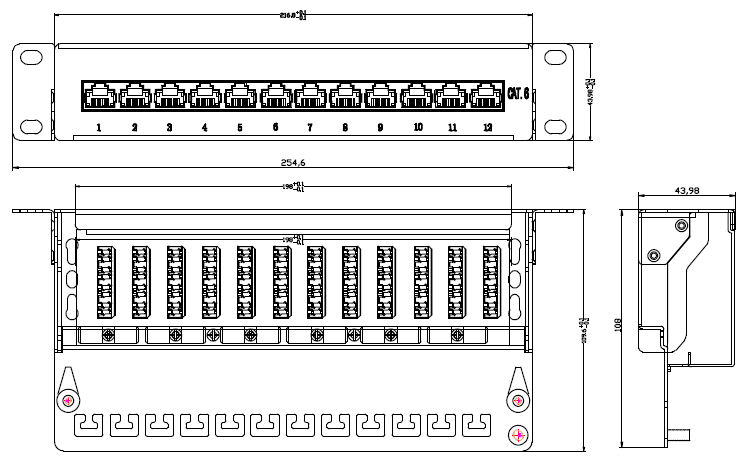

Tekniske egenskaber
| Anschlussart: | LSA |
|---|---|
| Anzahl der Höheneinheiten (HE): | 1 HE |
| Bandbreite: | 250 MHz |
| Breite: | 254.6 mm |
| Farbcode: | nach TIA/EIA 568A/B |
| Geeignet für Anzahl Buchsen/Kupplungen: | 12 |
| Gehäusematerial LSA-Anschlussleiste: | PC |
| Gehäusematerial Panelrahmen: | Stahl, 1,5mm |
| Gehäusematerial RJ45-Buchse: | PBT |
| Geschirmt: | Ja |
| Höhe: | 44.0 mm |
| Isolationswiderstand: | 1000 MΩ |
| Kategorie: | 6 |
| Konform zu UL94: | V-0 |
| Kontaktierungen LSA Leiste: | 200 |
| Kontaktwiderstand: | 100 mΩ |
| Material LSA Klemmen: | Phosphor Bronze, verzinnt |
| Montageart: | sonstige |
| POE Standard: | POE |
| POE Standard: | POE+ |
| Prüfspannung Dieelektrikum: | 750 V AC 60Hz |
| Querschnitt: | AWG 24 - AWG 22 |
| Spannungsfestigkeit: | 125 V AC RMS |
| Steckkraft: | 50 N |
| Steckverbindertyp: | RJ45 8(8) |
| Steckzyklen RJ45 Buchse: | 750 |
| Strombelastbarkeit: | 1.5 A |
| Temperaturbereich (Betrieb): | -10 – 60 °C |
| Temperaturbereich (Lagerung): | -40 – 70 °C |
| Tiefe: | 108.0 mm |
| Übertragung: | 5 Gbit |
