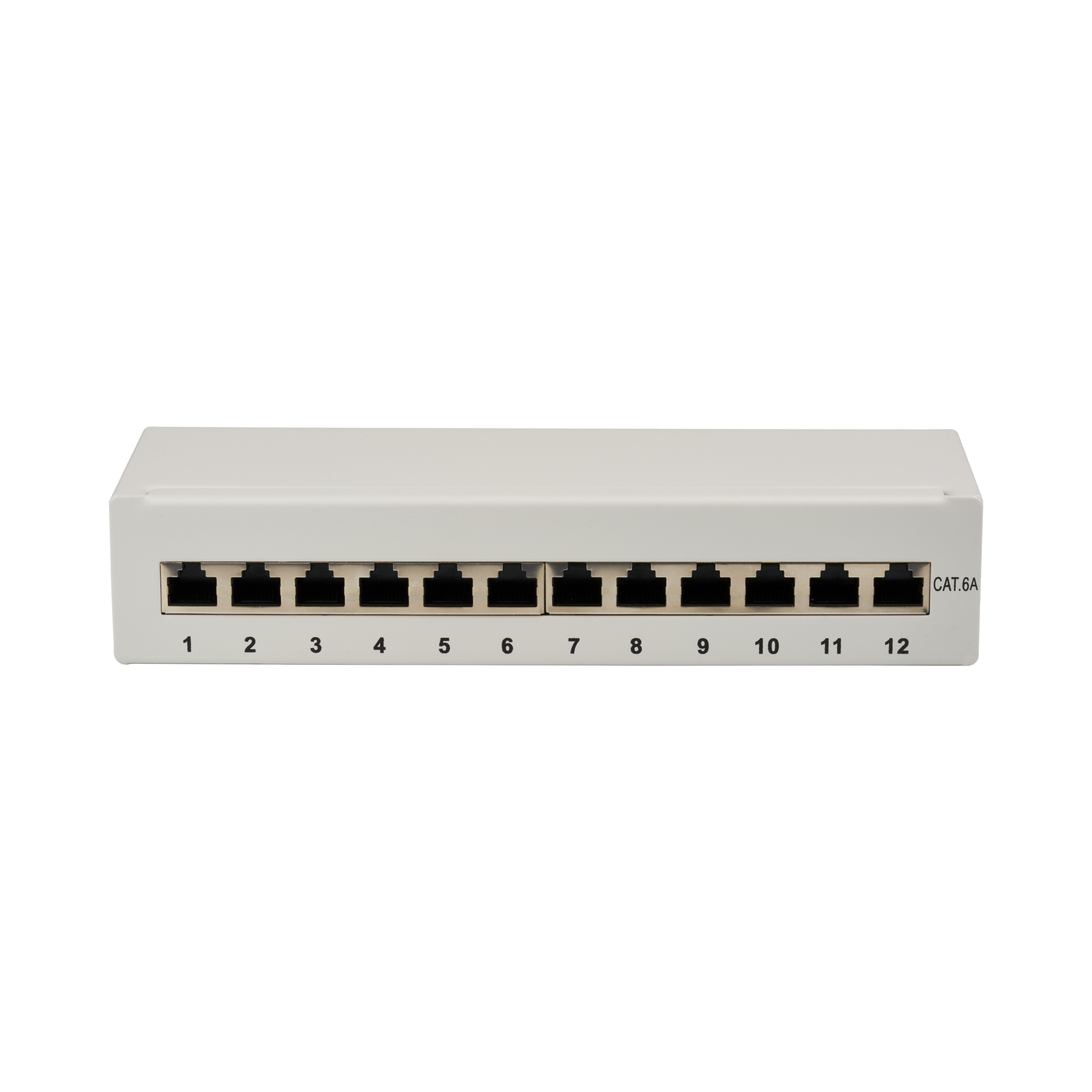

Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1HE
Priser kun synlige for indloggede brugere

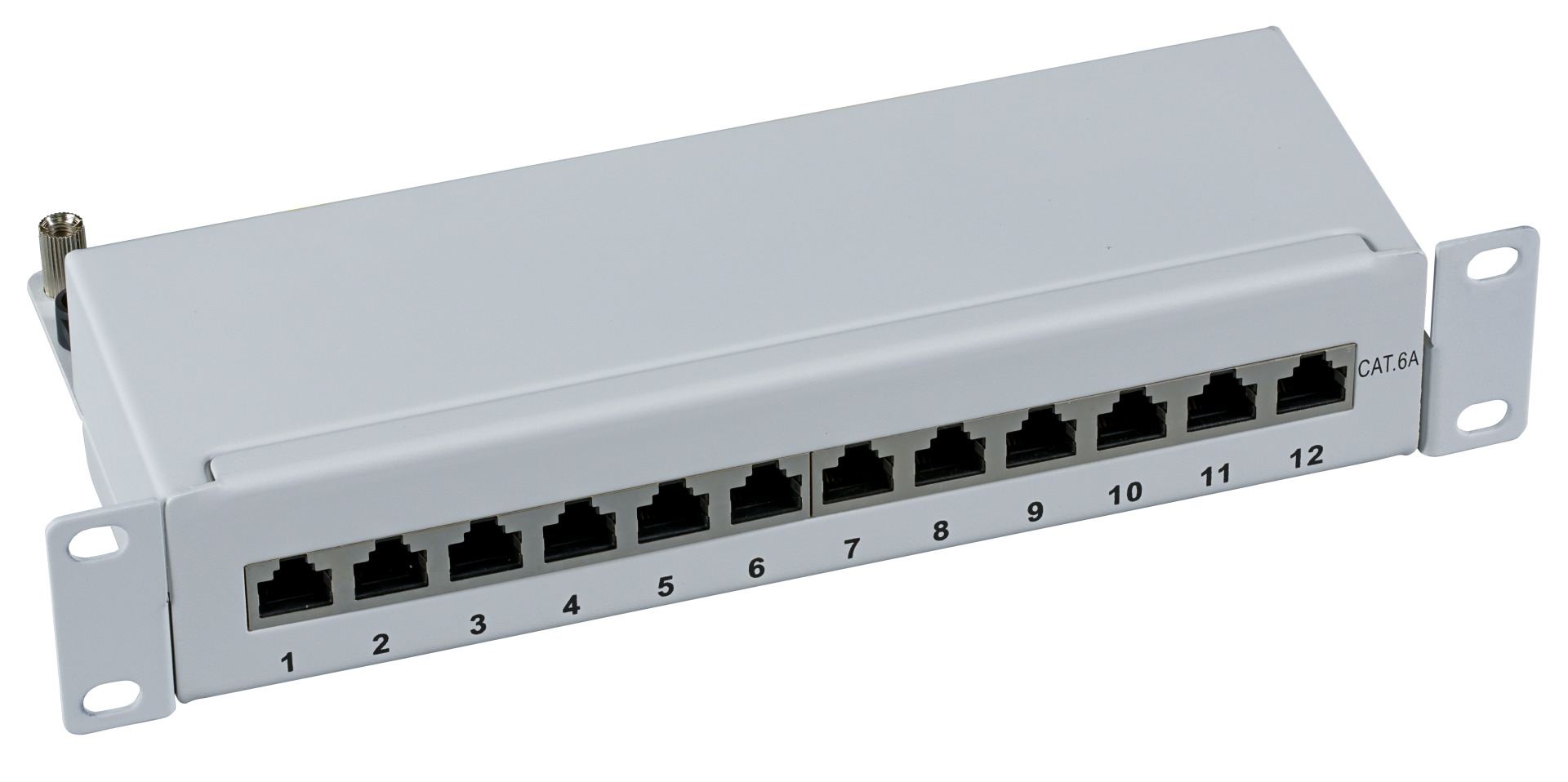

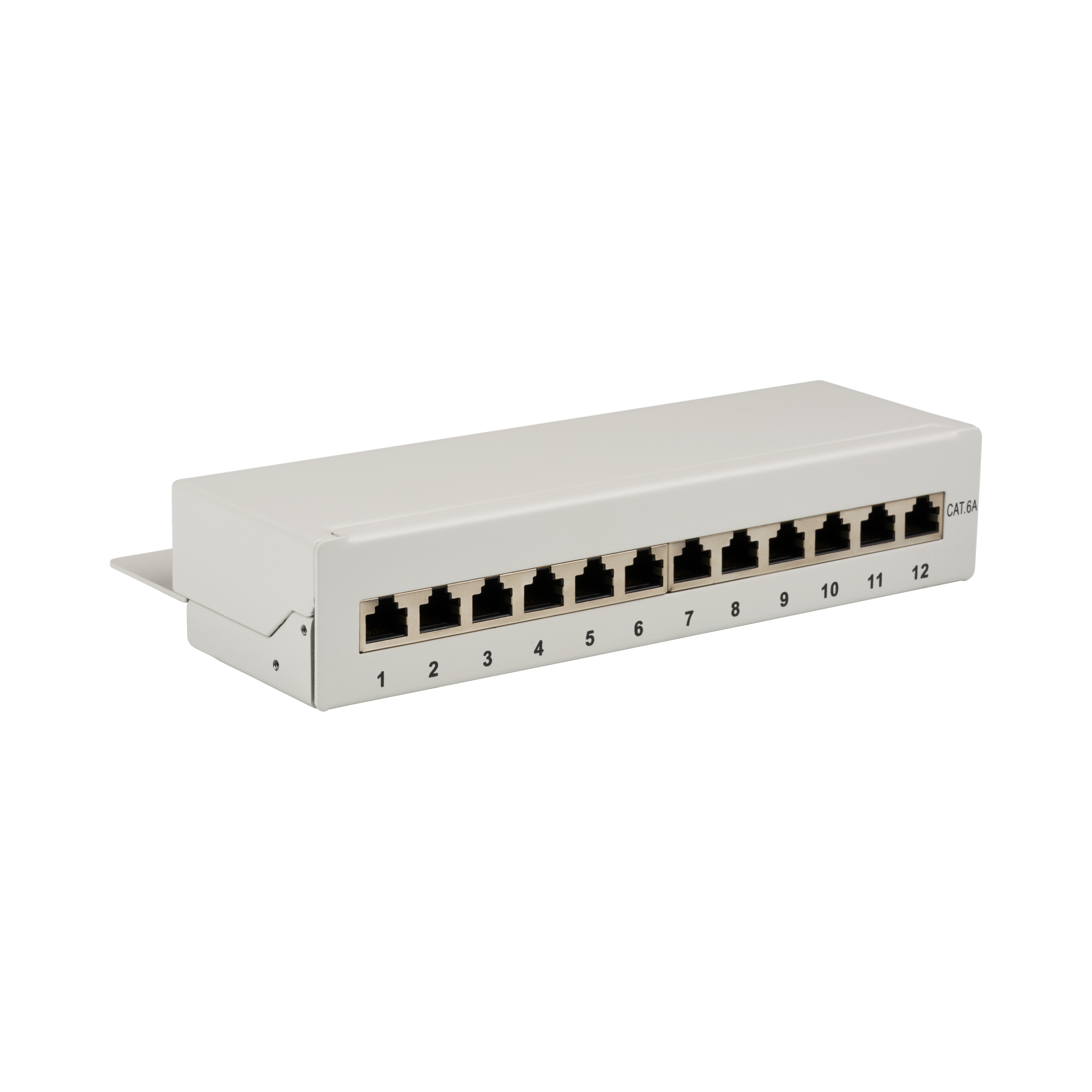

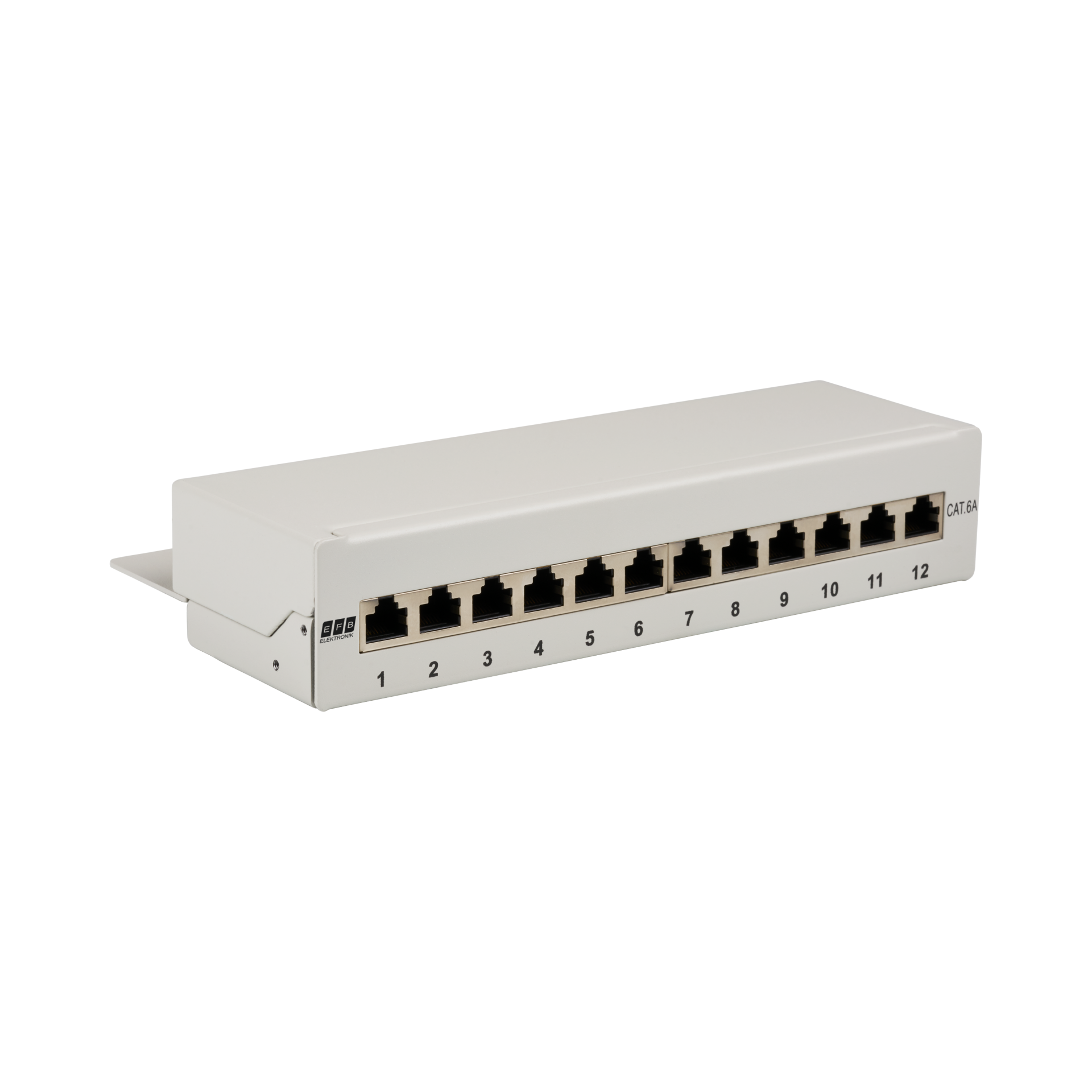

Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1U, RAL7035 grey
Varenummer:
37737.12
EAN nr.:
4049759187859
Produktinformation für Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1U, RAL7035 grey

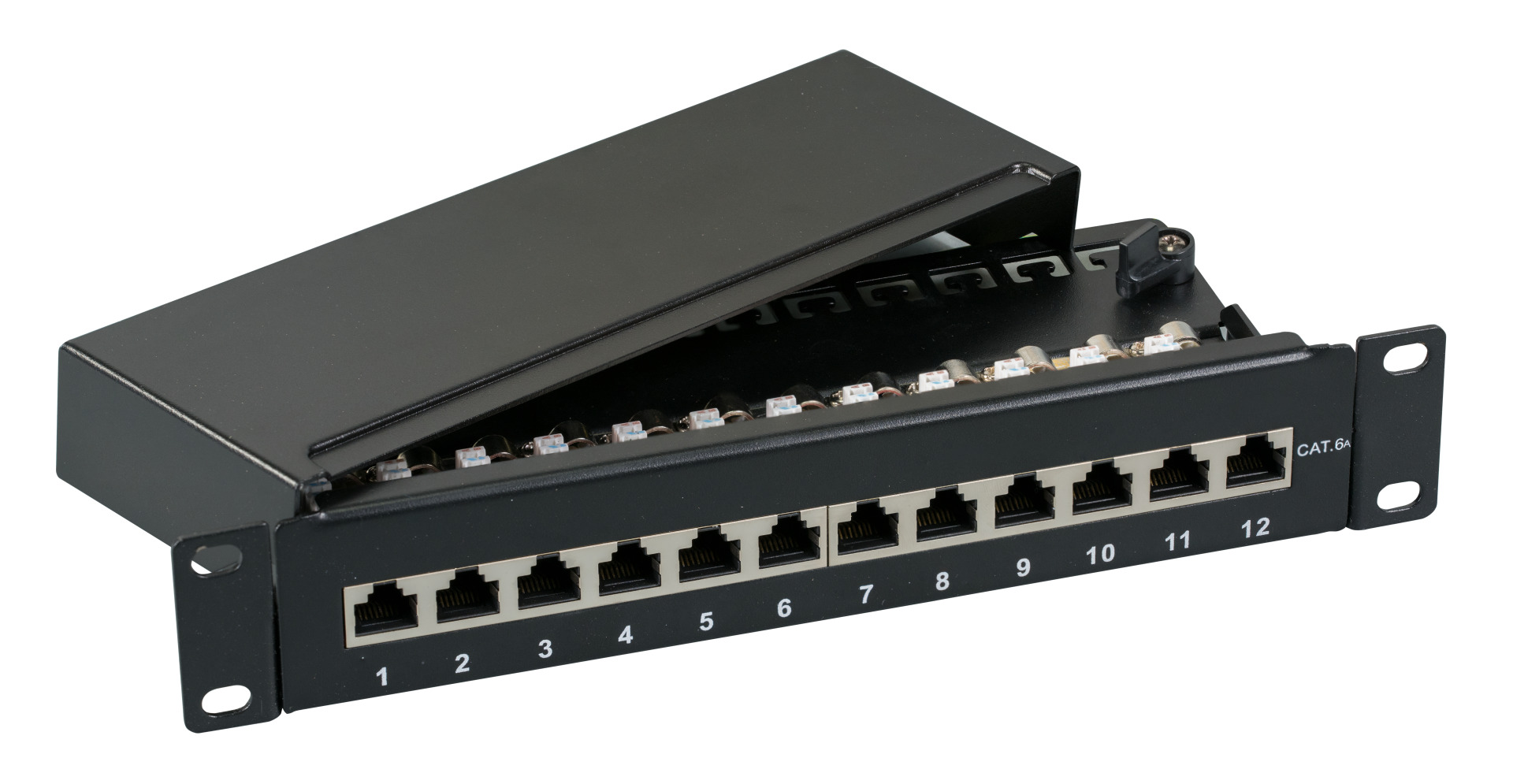

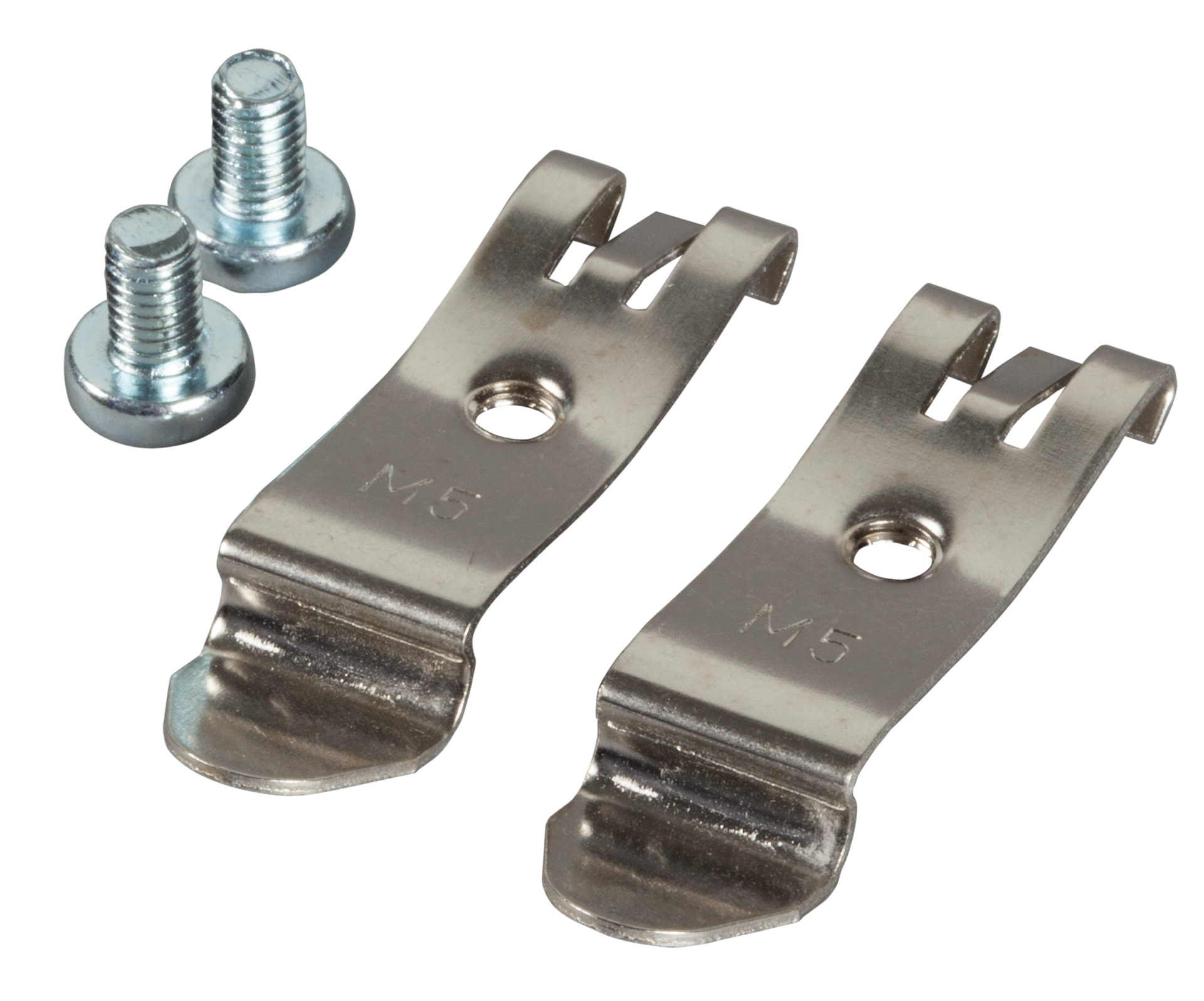

The high quality of the shielded Cat.6A RJ45 mini patch panel ensures excellent performance for 10 Gigabit Ethernet applications. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 "plane, for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting.

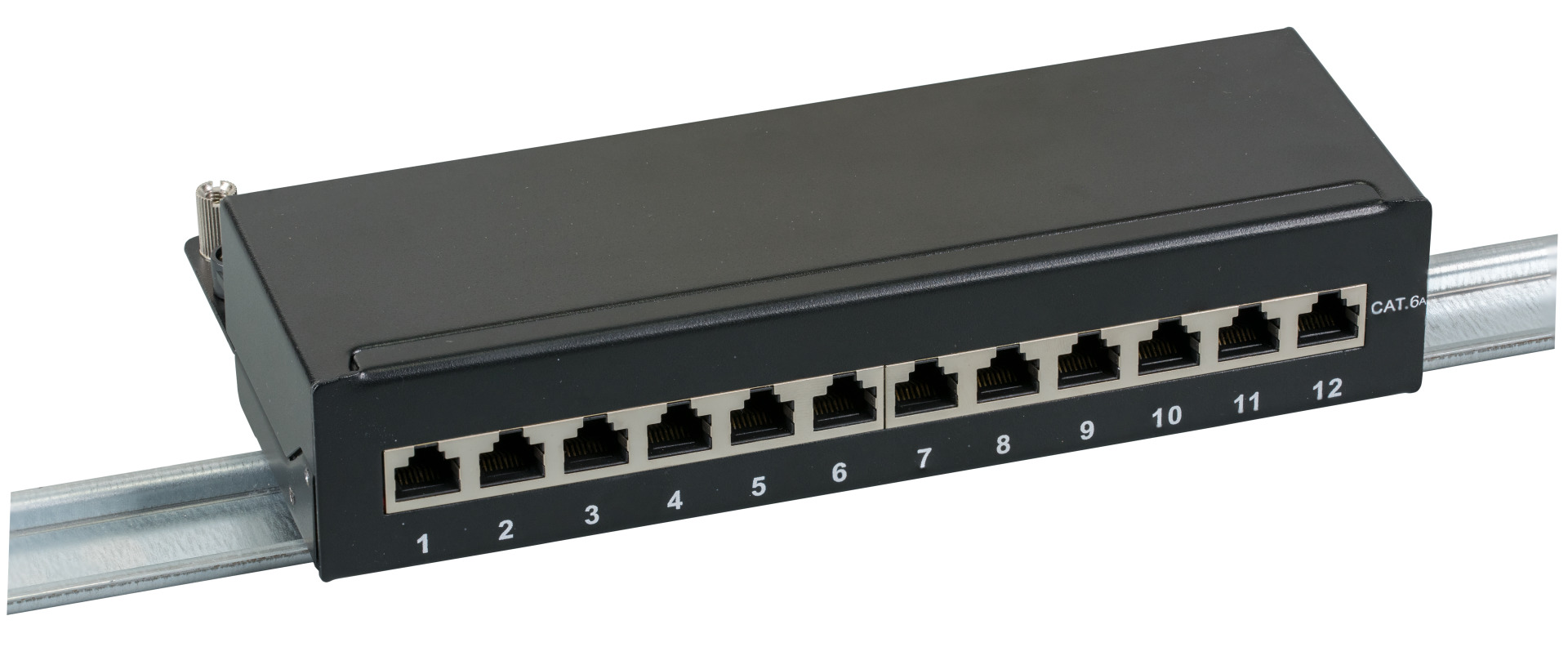

10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B

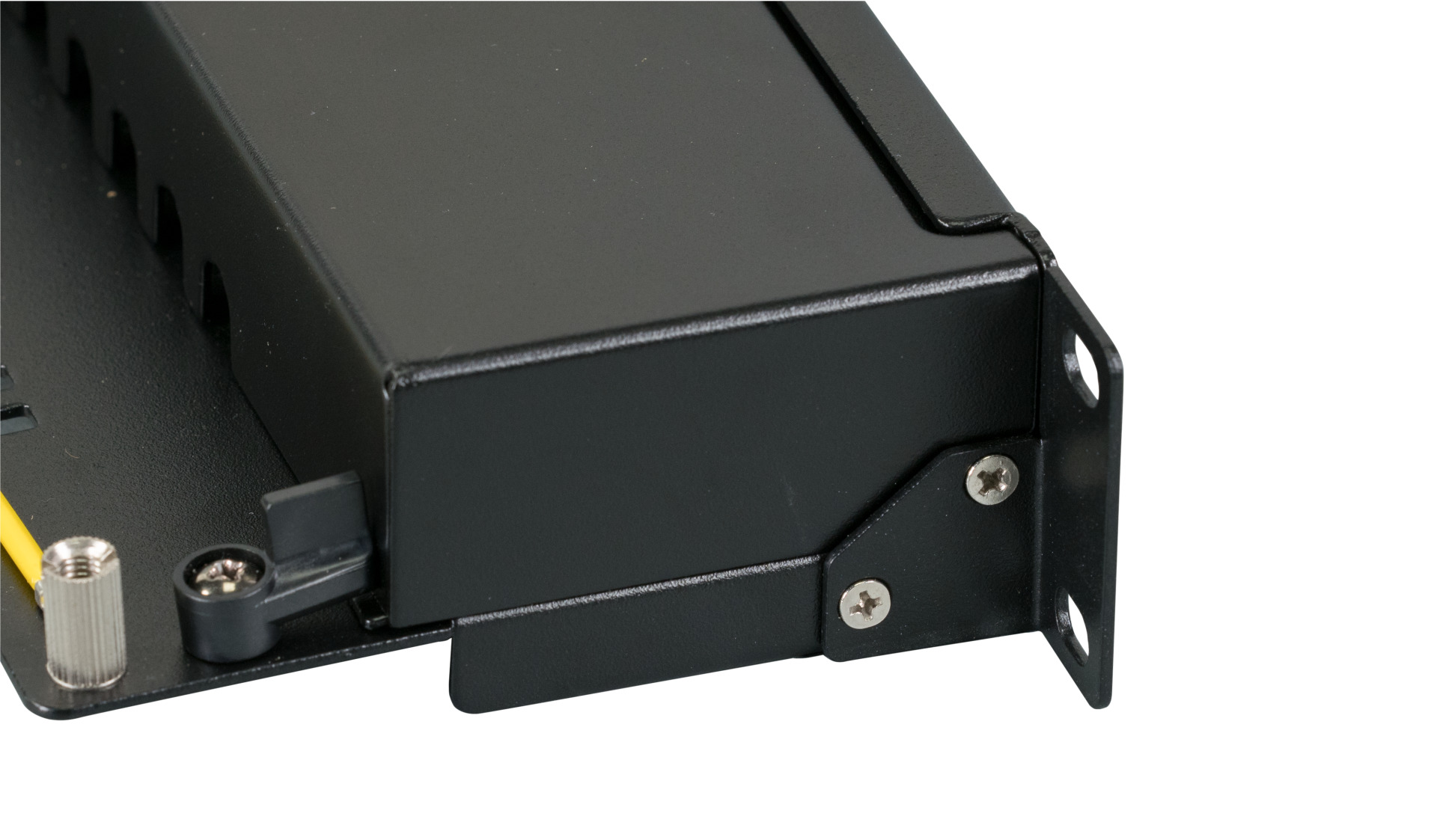

Lid with quick release

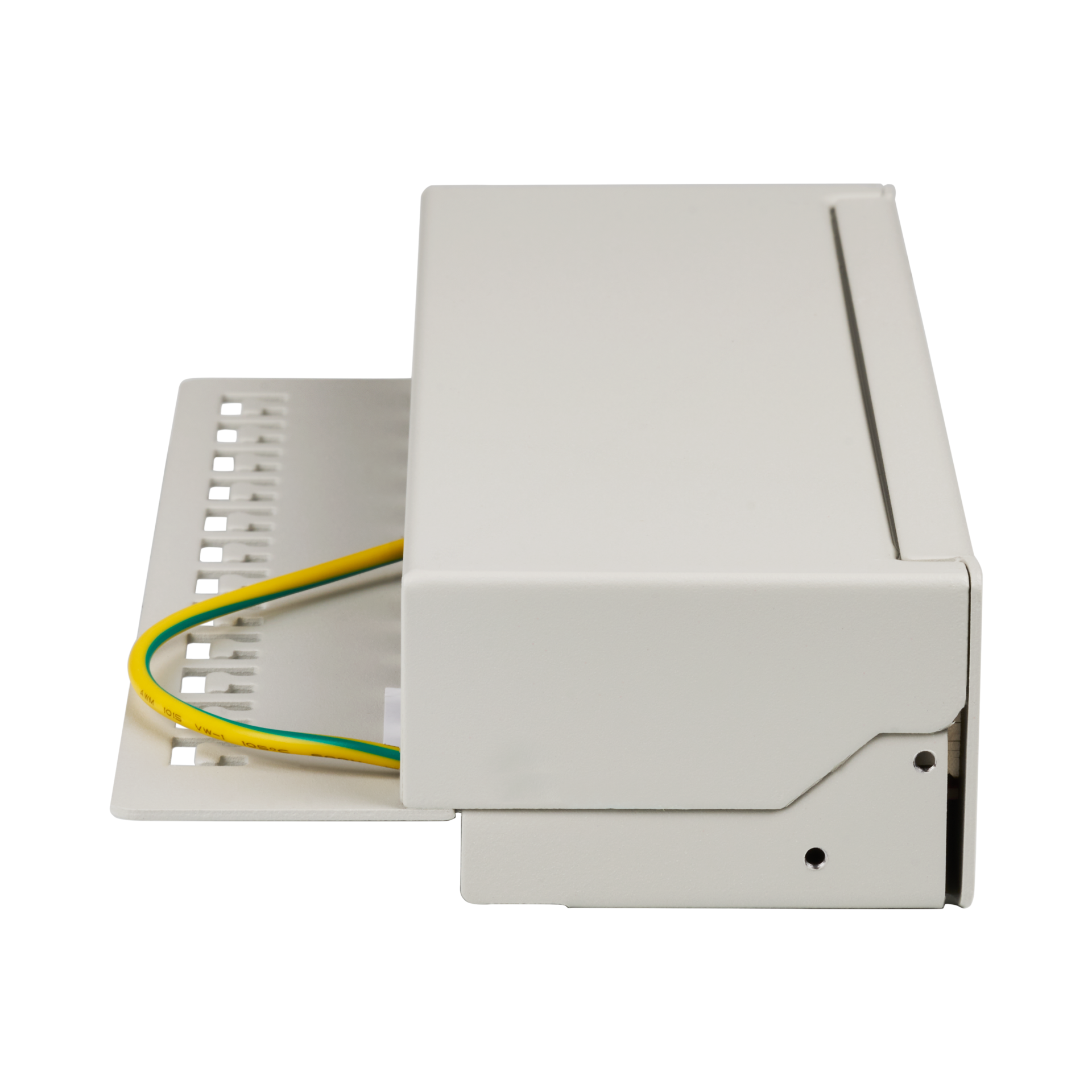

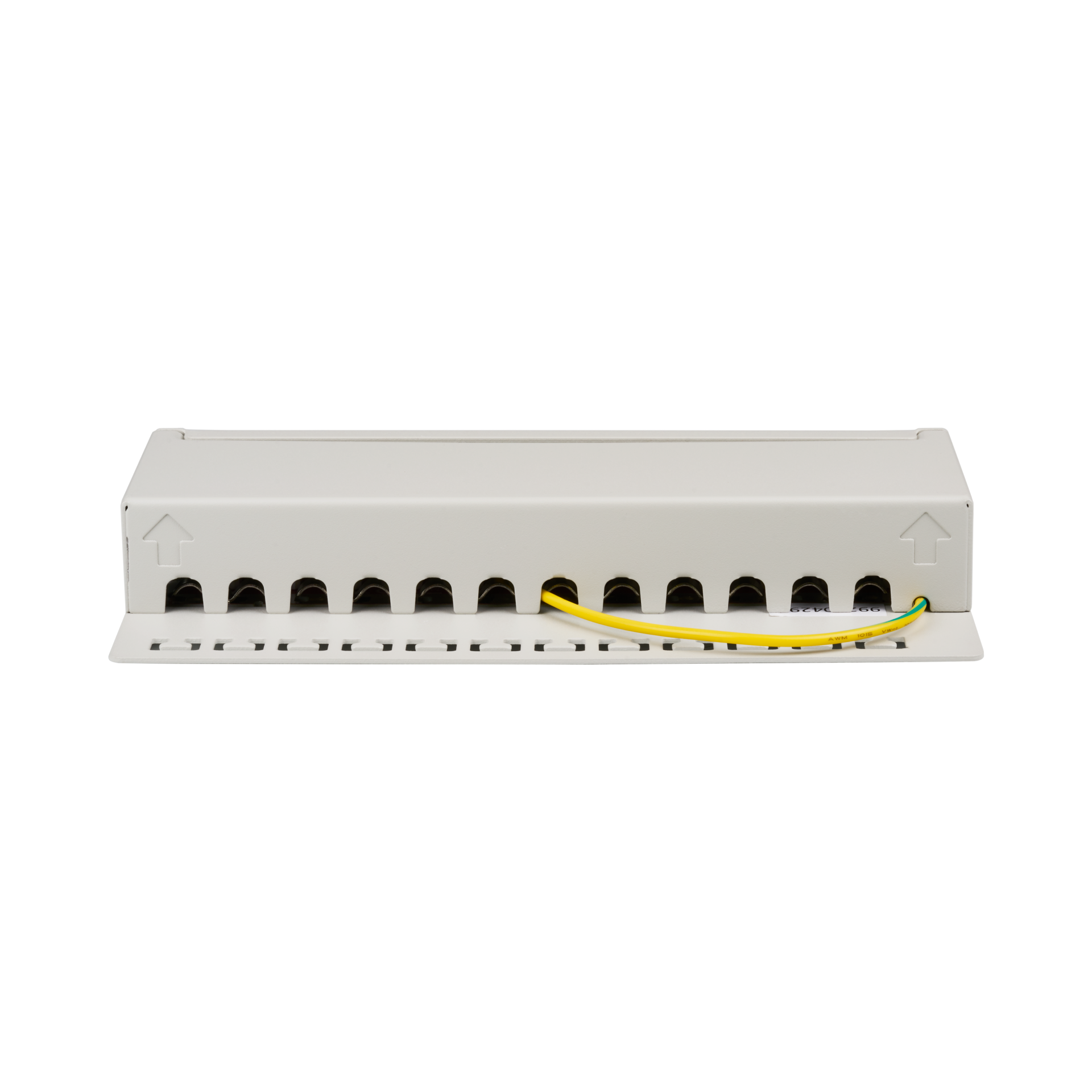

With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut
10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut
Tekniske egenskaber
| Bandwidth: | 500 MHz |
|---|---|
| Category: | 6A (TIA) |
| Colour Code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact resistance: | 100 mΩ |
| Cross section: | AWG 24 - AWG 22 |
| Current capacity: | 1.5 A |

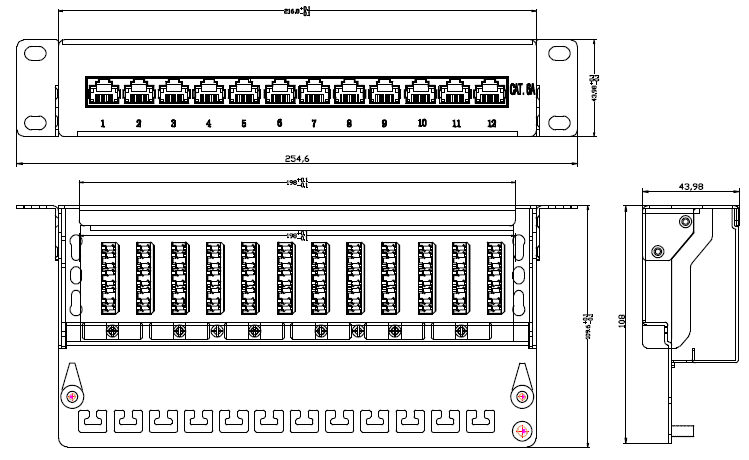

| Depth: | 108.0 mm |
| Dielectric Withstanding Voltage: | 750 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.0 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | Steel, 1.5mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 50 N |
| Insulation resistance: | 1000 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | Other |
| Number of height units: | 1 U |
| POE Standard: | POE;POE+ |
| Screened: | True |
| Suitable for number of connectors: | 12 |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission: | 10 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 254.6 mm |
Varianter
| Art. Nej. | Betegnelse | Number of buses/couplings | RAL-number | Colour | |
|---|---|---|---|---|---|
| 37737.12 | Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1U, RAL7035 grey | 12 | 7035 | grey | Vælg varianter |
| 37737SW.12 | Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 1U, RAL9005 black | 12 | 9005 | black | Vælg varianter |
