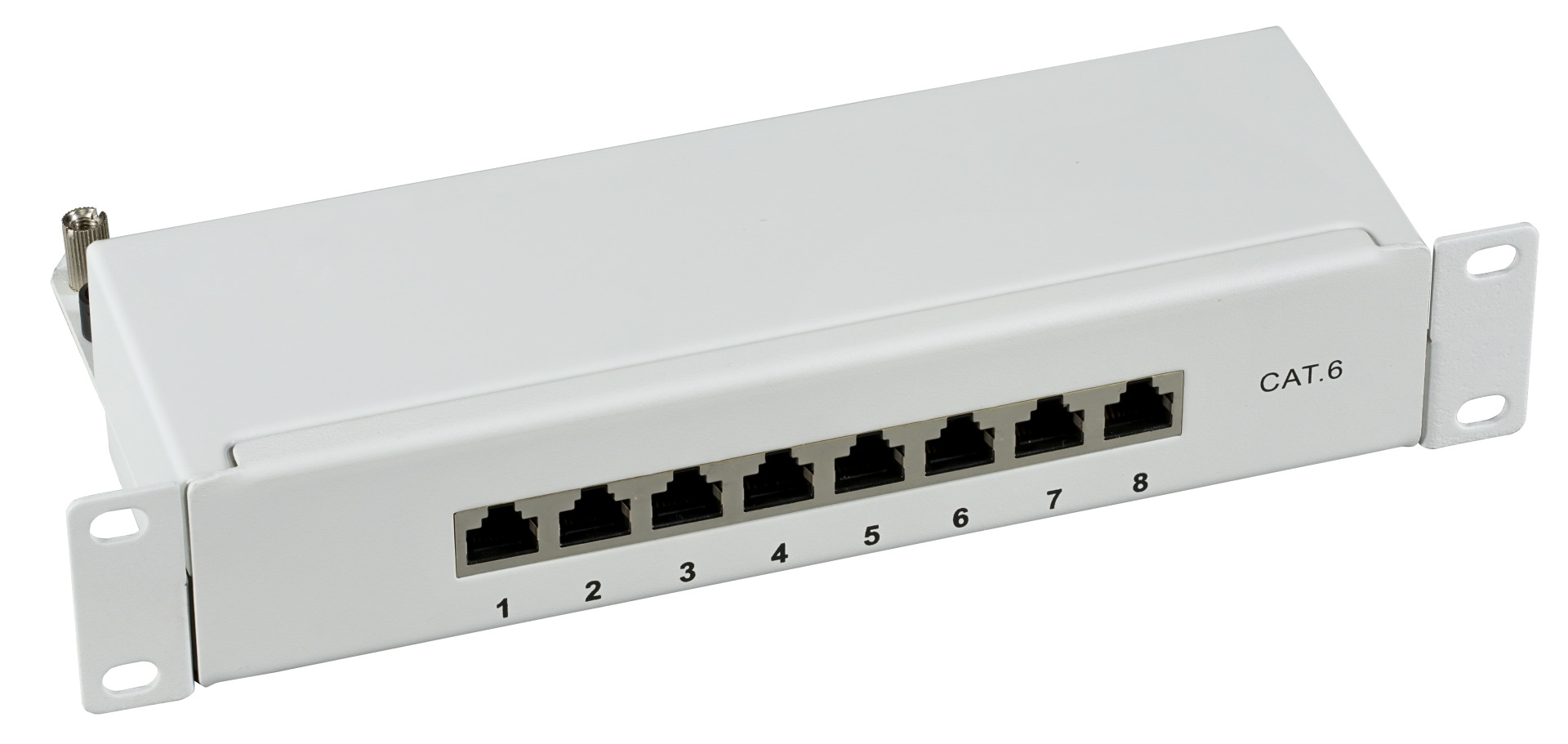

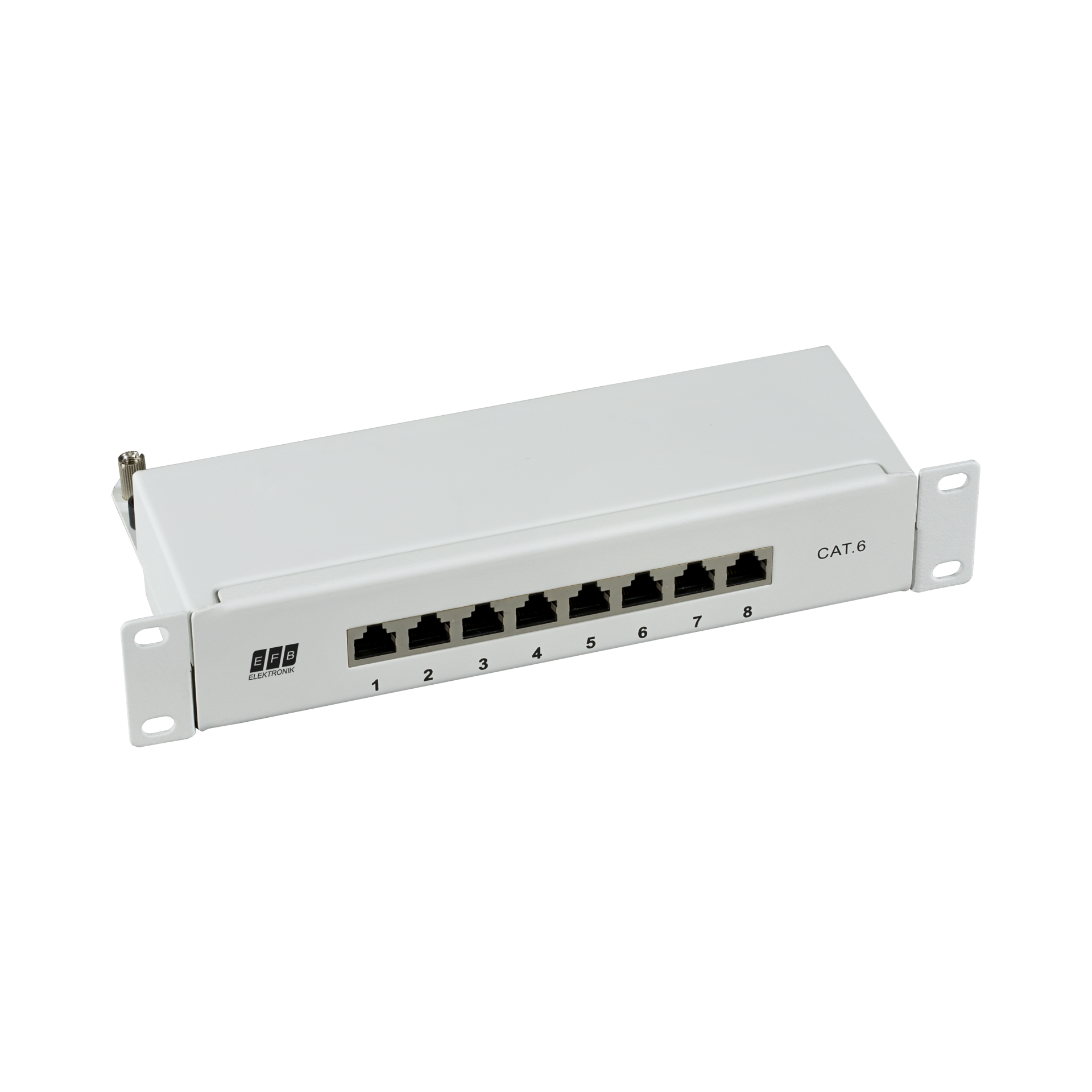

Mini-Patchpanel STP 8xRJ45 Cat.6, 10“ 1U
Mini-Patchpanel STP 8xRJ45 Cat.6, 10“ 1U, RAL7035, grey
Varenummer:
37736.8
EAN Nr.:
4049759186586
Produktinformation til Mini-Patchpanel STP 8xRJ45 Cat.6, 10“ 1U, RAL7035, grey

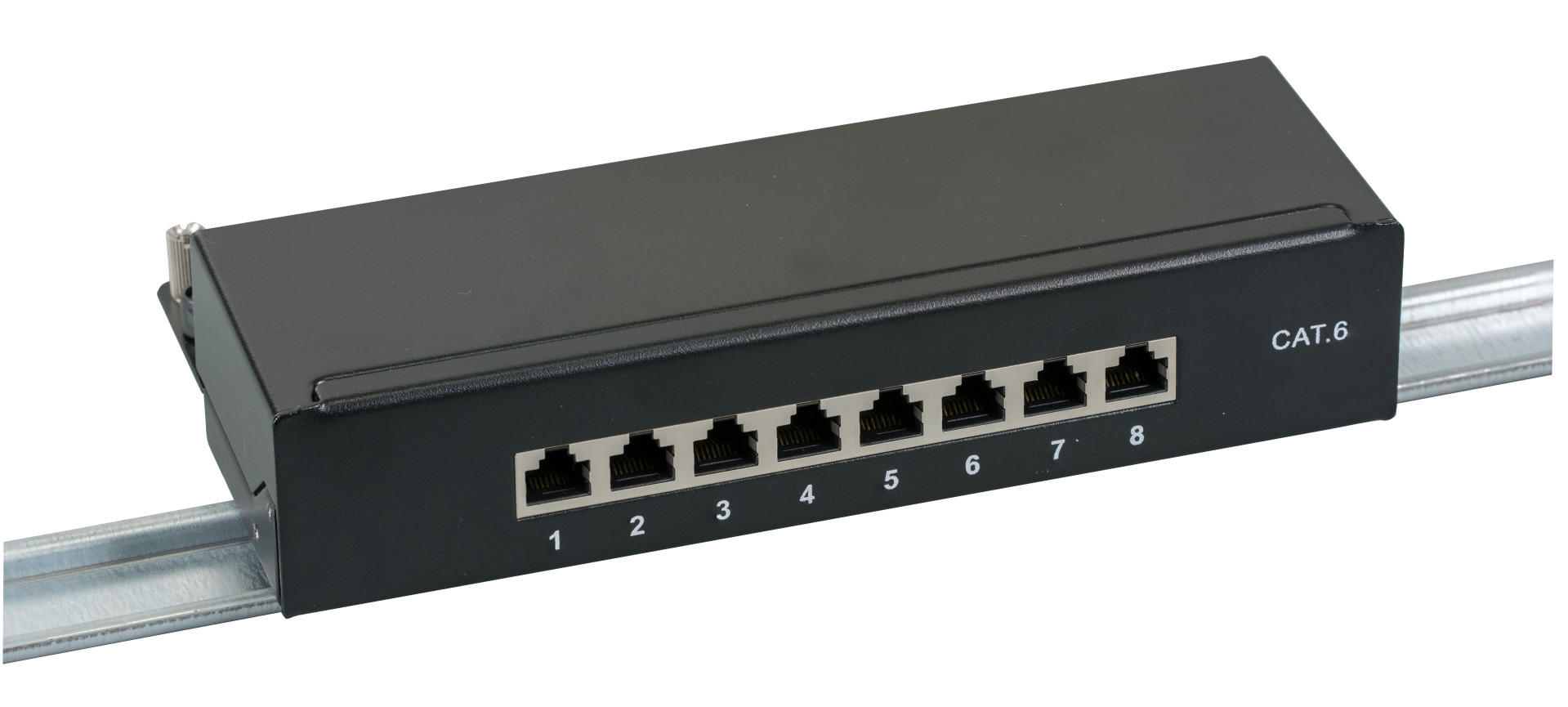

The high quality of the shielded Cat.6 RJ45 mini patch panel ensures excellent performance for 5 Gigabit Ethernet applications. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 "plane, for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting.
10 "mounting / wall mounting or DIN rail mounting possible, 1U
8 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B

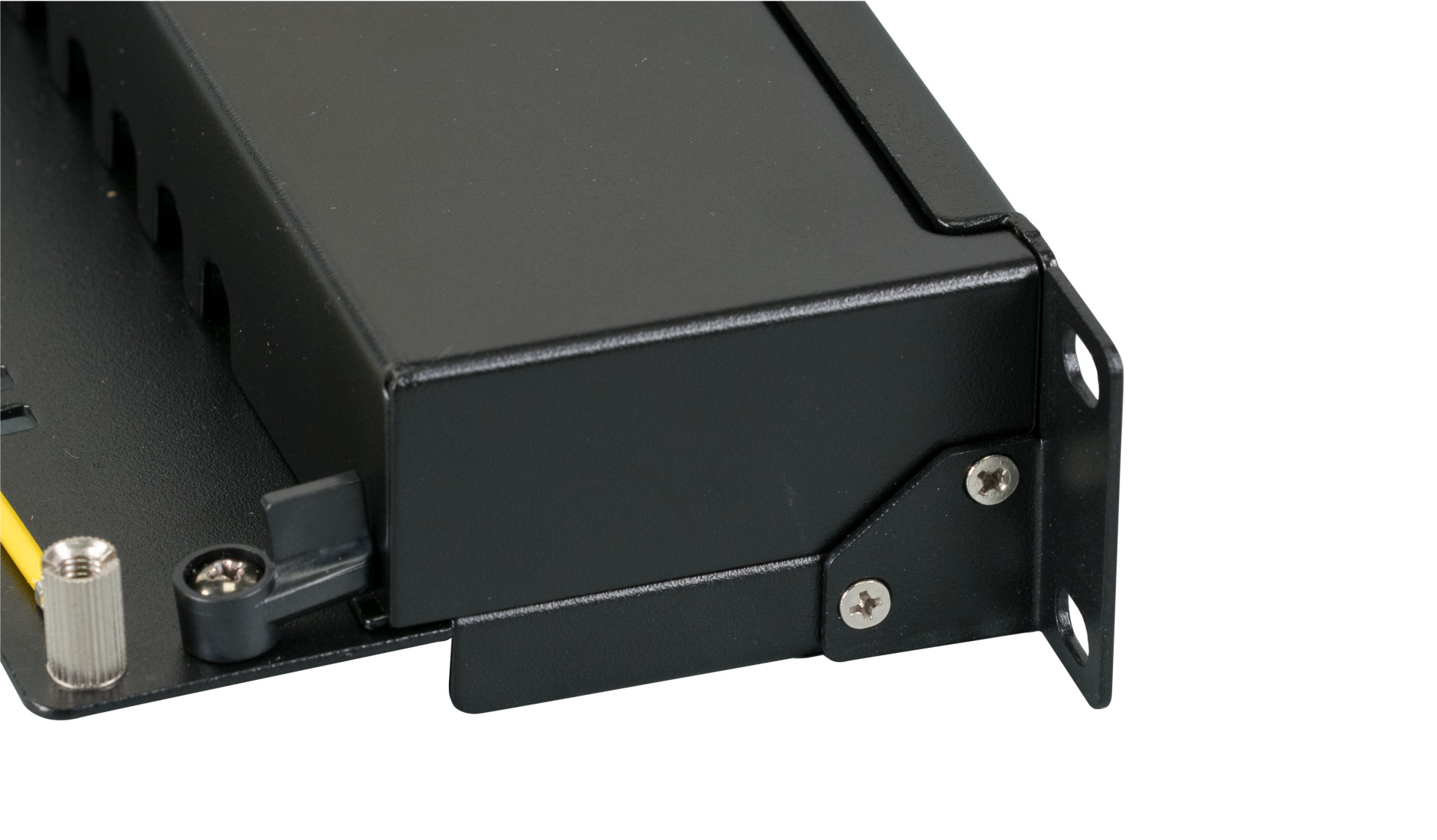

Lid with quick release
With earthing terminal
Scope of delivery:
8 cable ties, assembly instructions
4 screws (M6x16mm) and nut
10 "mounting / wall mounting or DIN rail mounting possible, 1U
8 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
8 cable ties, assembly instructions
4 screws (M6x16mm) and nut
Tekniske egenskaber
| Category: | 6 |
|---|---|
| Colour code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 100 mΩ |
| Cross section: | AWG 24 - AWG 22 |
| Current capacity: | 1.5 A |

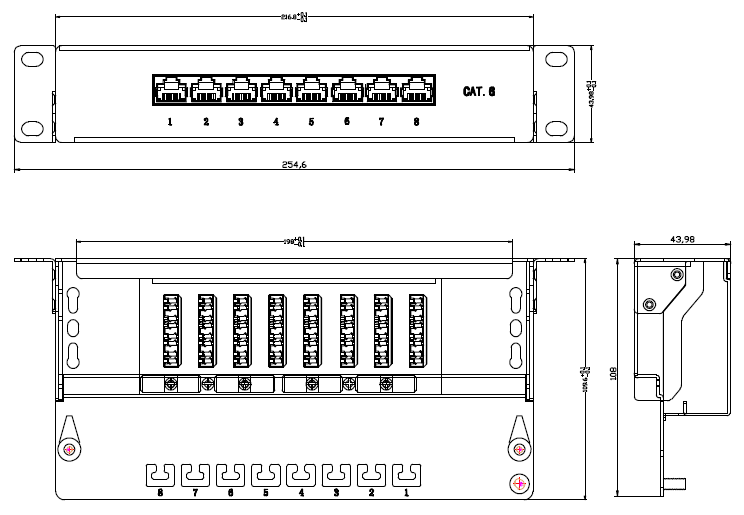

| Depth: | 108.0 mm |
| Dielectric Withstanding Voltage: | 750 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.0 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | Steel, 1.5mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 50 N |
| Insulation Resistance: | 1000 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | other |
| Number of height units: | 1 U |
| POE Standard: | POE |
| POE Standard: | POE+ |
| Screened: | True |
| Suitable for number of connectors: | 8 |
| Tape width: | 250 MHz |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission: | 5 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 254.6 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
