Module with Brush Entry for PRO

Priser kun synlige for indloggede brugere

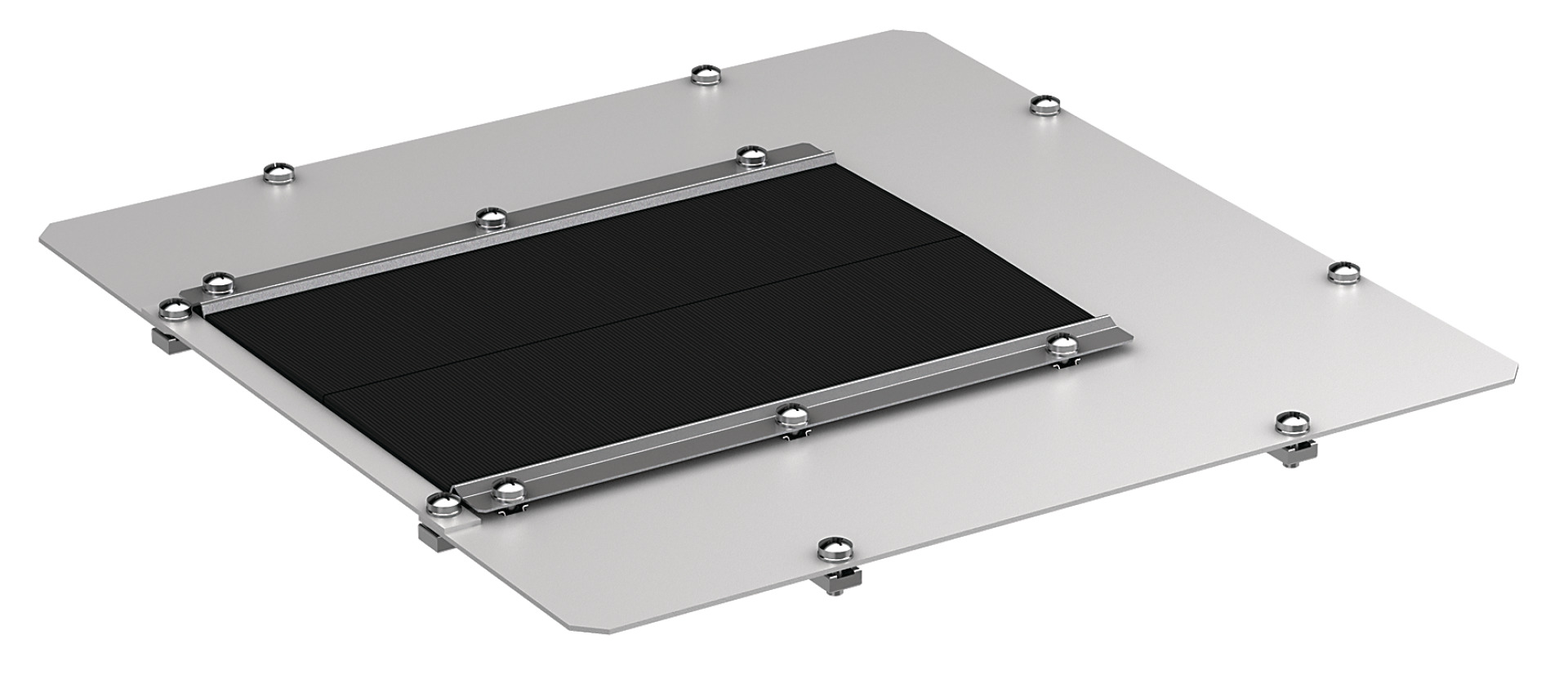

Module w. Brush Entry, Opening A, RAL7035, for PRO
Varenummer: PRO-MOD04A.GR
EAN nr.: 4049759219222

Produktinformation für Module w. Brush Entry, Opening A, RAL7035, for PRO

Module insert for cabinet bottom in cabinet series PRO
Cable entry via brush
Cutout 170 x 300 mm, one side can be opened for retrofitting

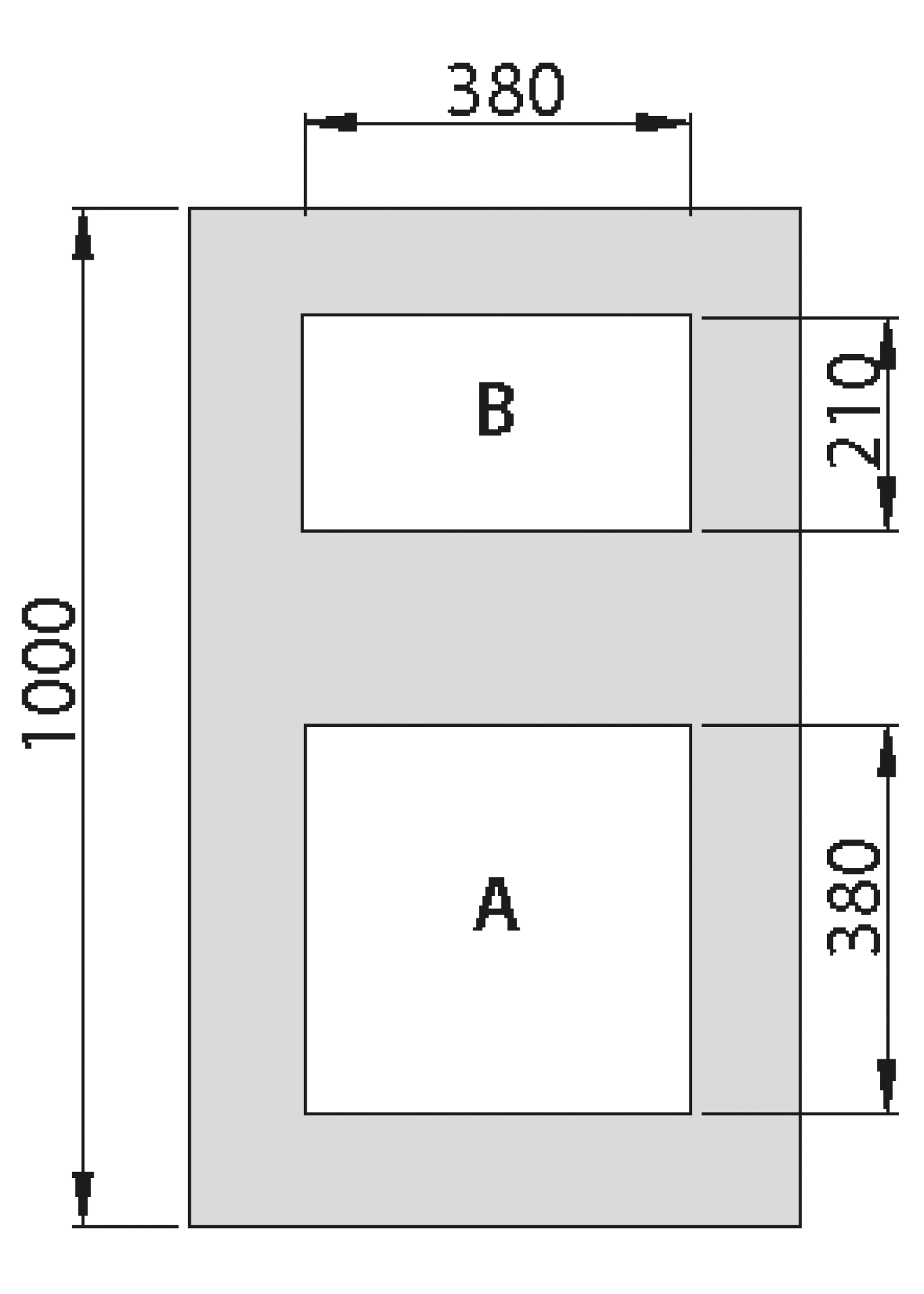

Suitable for opening 380 x 380 mm (A-type, see sketch)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. mounting material

Tekniske egenskaber

Cabinet Series: PRO
For Opening: Type A (380 x 380 mm)
Material: Metal
Model: Floor plate
Variant: With brush entry

Varianter

Art. Nej. Betegnelse Depth Colour Width RAL-number
PRO-MOD04A.GR Module w. Brush Entry, Opening A, RAL7035, for PRO 380 mm grey 380 mm 7035 Vælg
PRO-MOD04A.TS Module w. Brush Entry, Opening A, RAL9005, for PRO 380 mm black 380 mm 9005 Vælg
