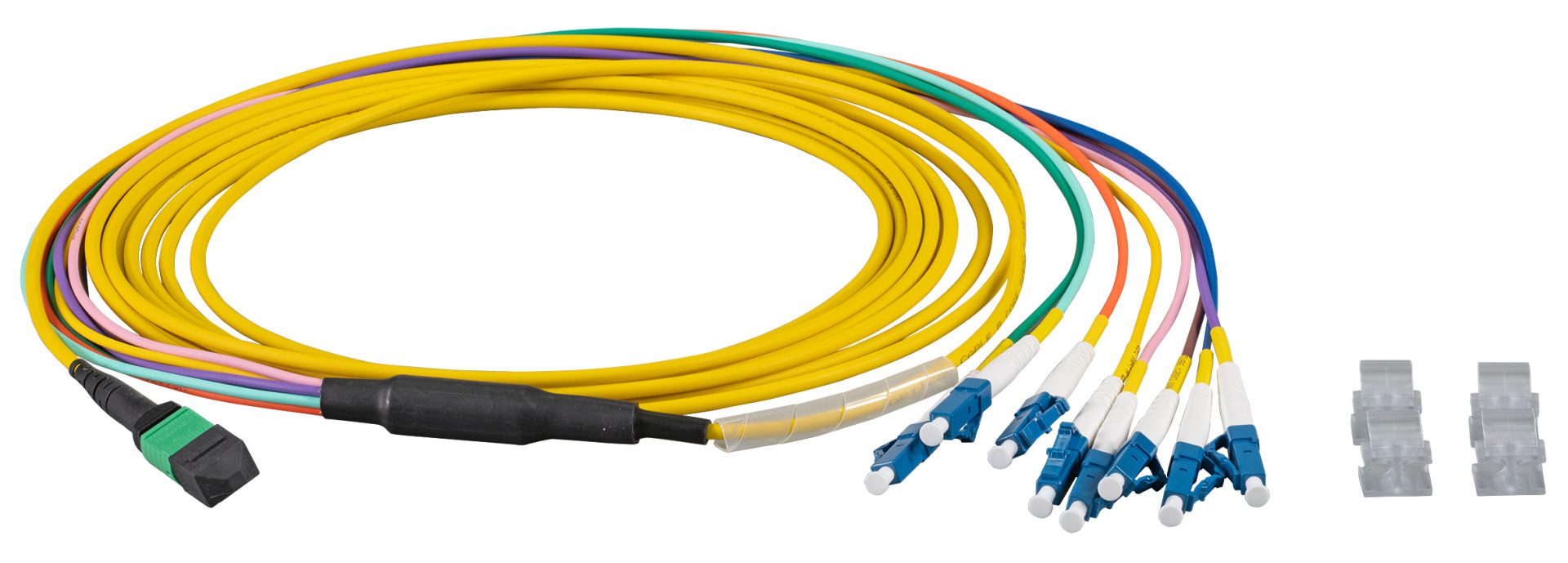

MTP®-F/LC 8-fiber patch cable OS2
MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 1m
Varenummer:
MTPF08LCOS2-1
EAN nr.:
4049759215927
Produktinformation für MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 1m
Application: Suitable for transmission links up to 100 Gigabit
Construction: 1 multi-connector MTP® on one side,
4 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Assignment MTP 1-4 + 9-12
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm

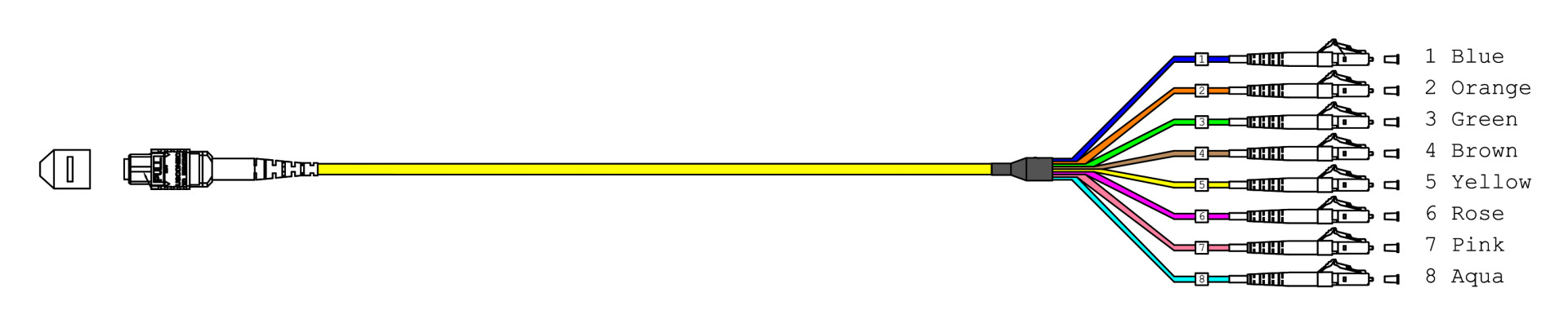

Colour: OM4 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Construction: 1 multi-connector MTP® on one side,
4 LC-Duplex connector on the other side
LowLoss version: attenuation per Fanout max. 0,35dB
Matrix: 8 fibers
Assignment MTP 1-4 + 9-12
Furcation length: 50cm
Cable diameter multi-connector: 3mm
Cable diameter single-connector: 2mm
Colour: OM4 and OS2 acc. to colour code DIN VDE 0888
MTP Singlemode connectors are in APC version
Tekniske egenskaber
| Cable Diameter: | 3.0 mm |
|---|---|
| Category: | OS2 |
| Coding: | 1:1 |
| Colour outer sheath: | yellow |
| Connector connection 1: | MTP-F |
| Connector connection 2: | LC-Duplex |
| Crossed: | False |
| Fibre type: | G657A1 9/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Operating Temperature: | -20 – 70 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Varianter
| Art. Nej. | Betegnelse | Length | Number of connectors connection 1 | Number of connectors connection 2 | Number of fibres | |
|---|---|---|---|---|---|---|
| MTPF08LCOS2-1 | MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 1m | 1.0 m | 1 x MTP® female | 8 x LC | 8 | |
| MTPF08LCOS2-2 | MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 2m | 2.0 m | 1 x MTP® female | 8 x LC | 8 | |
| MTPF08LCOS2-3 | MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 3m | 3.0 m | 1 x MTP® female | 8 x LC | 8 | |
| MTPF08LCOS2-5 | MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 5m | 5.0 m | 1 x MTP® female | 8 x LC | 8 | |
| MTPF08LCOS2-10 | MTP®/APC(F)-LC Tunk cable OS2 8 fibers Typ B LSZH yellow 10m | 10.0 m | 1 x MTP® female | 8 x LC | 8 |
