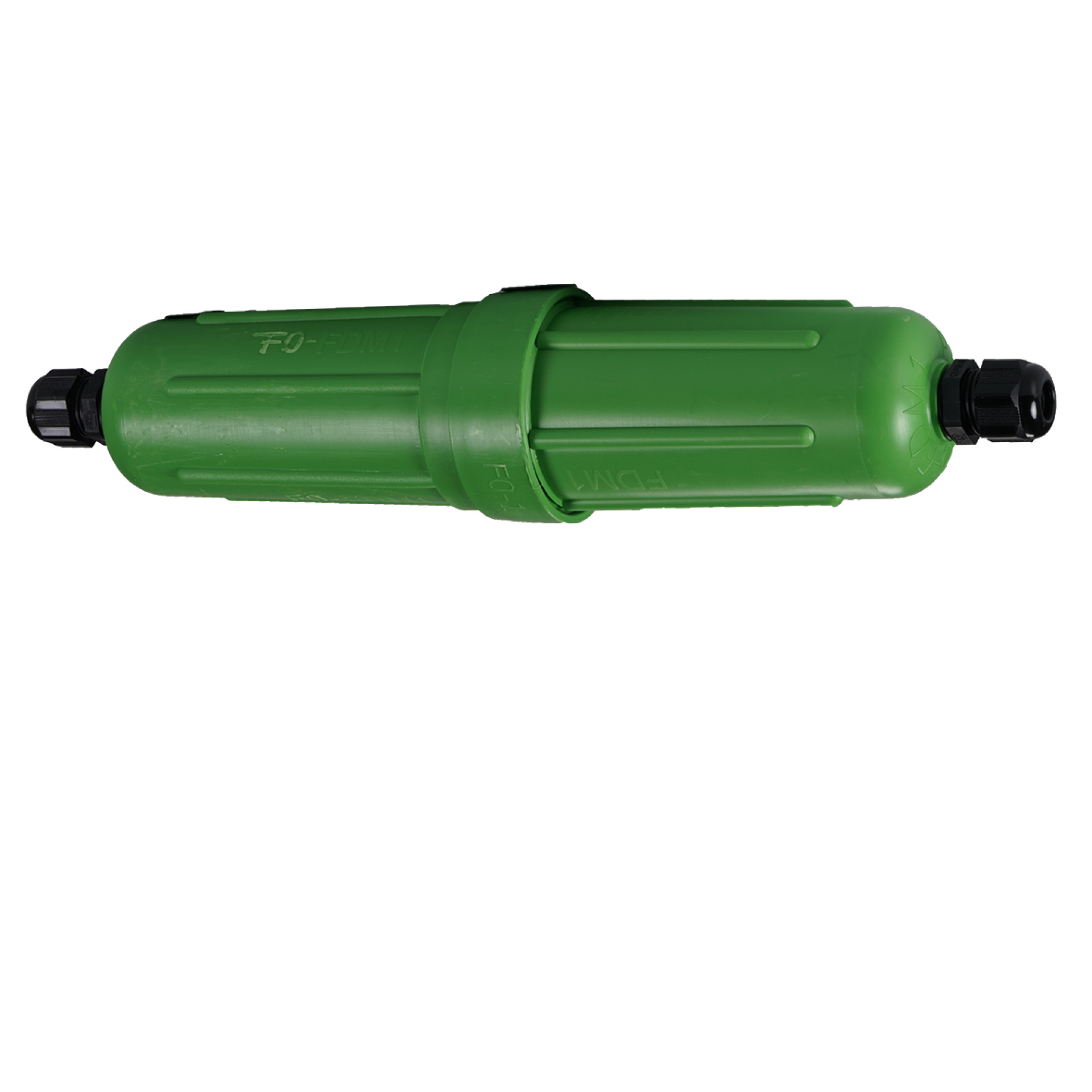

Outdoor Pipe Closure, for Connecting
Outdoor Pipe Closure, for Connecting, crimp-version
Varenummer:
83187.1
EAN Nr.:
4049759159542
Produktinformation til Outdoor Pipe Closure, for Connecting, crimp-version
Outdoor Pipe Closure with 2 cable entries for connecting of fiber optic cable. Including 2 splice holder
Features
Installation: direct burial in the ground
Material: Green Polypropylene (PP 4408) Housing
Seals made of thermoplastic elastomer and Sconablend
Features
Installation: direct burial in the ground
Material: Green Polypropylene (PP 4408) Housing
Seals made of thermoplastic elastomer and Sconablend
Tekniske egenskaber
| Bending diameter fiber carrier: | 42 mm |
|---|---|
| Cable diameter: | 3.5 – 10.7 mm |
| Cable glands: | M16 |
| Color: | Green |
| Degree of protection: | IP68 |
| Diameter, housing: | 69 mm |
| Direct Burial: | True |
| In-/Outputs: | 2 |
| Length of housing: | 307 mm |
| Material: | Plastic |
| Max. Fiber storage length: | 180 mm |
| Number of splice holders: | 2 |
| Operating Temperature: | -30 – 65 °C |
| Splice Cassette: | integrated |
| Splice Holder: | crimp |
| Suitable for number of fibres: | 24 |
| Tensile stress / compression: | 55 N |
| Type of closure: | Connecting closure |
| UV resistant: | True |
