Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U
Priser kun synlige for indloggede brugere

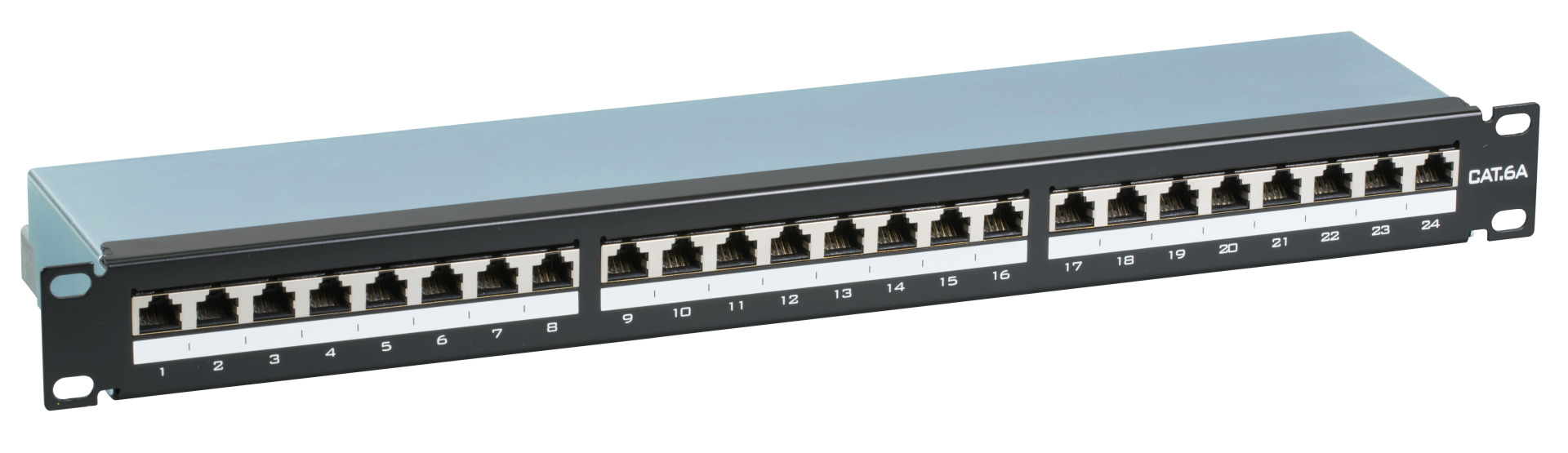

Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005 black
Varenummer:
37666SW.1M
EAN nr.:
4049759180096
Produktinformation für Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005 black
The high quality of the shielded Cat.6A RJ45 patch panel ensures excellent performance for 10 Gigabit Ethernet applications.
19" mounting, 1U
24 Ports

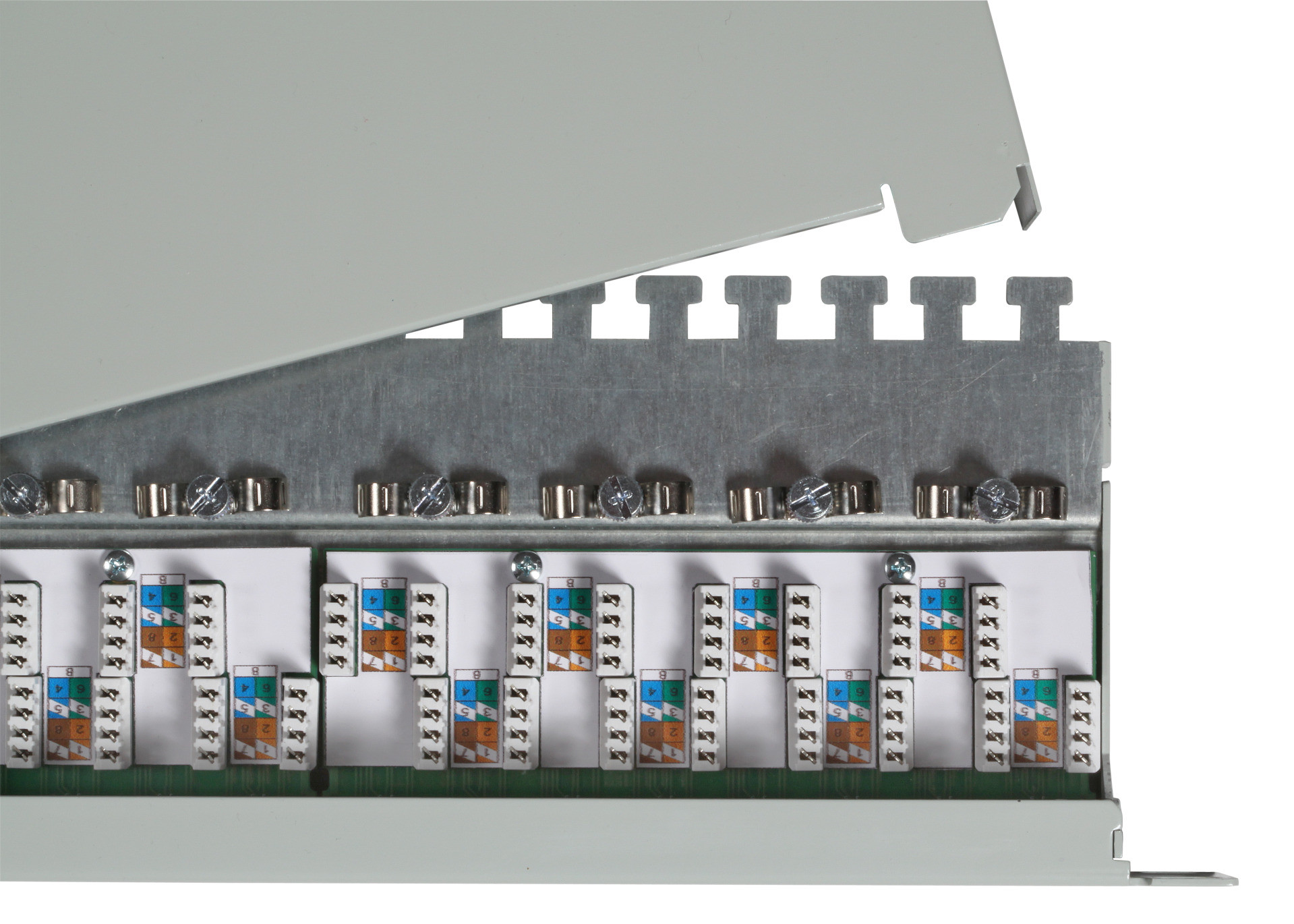

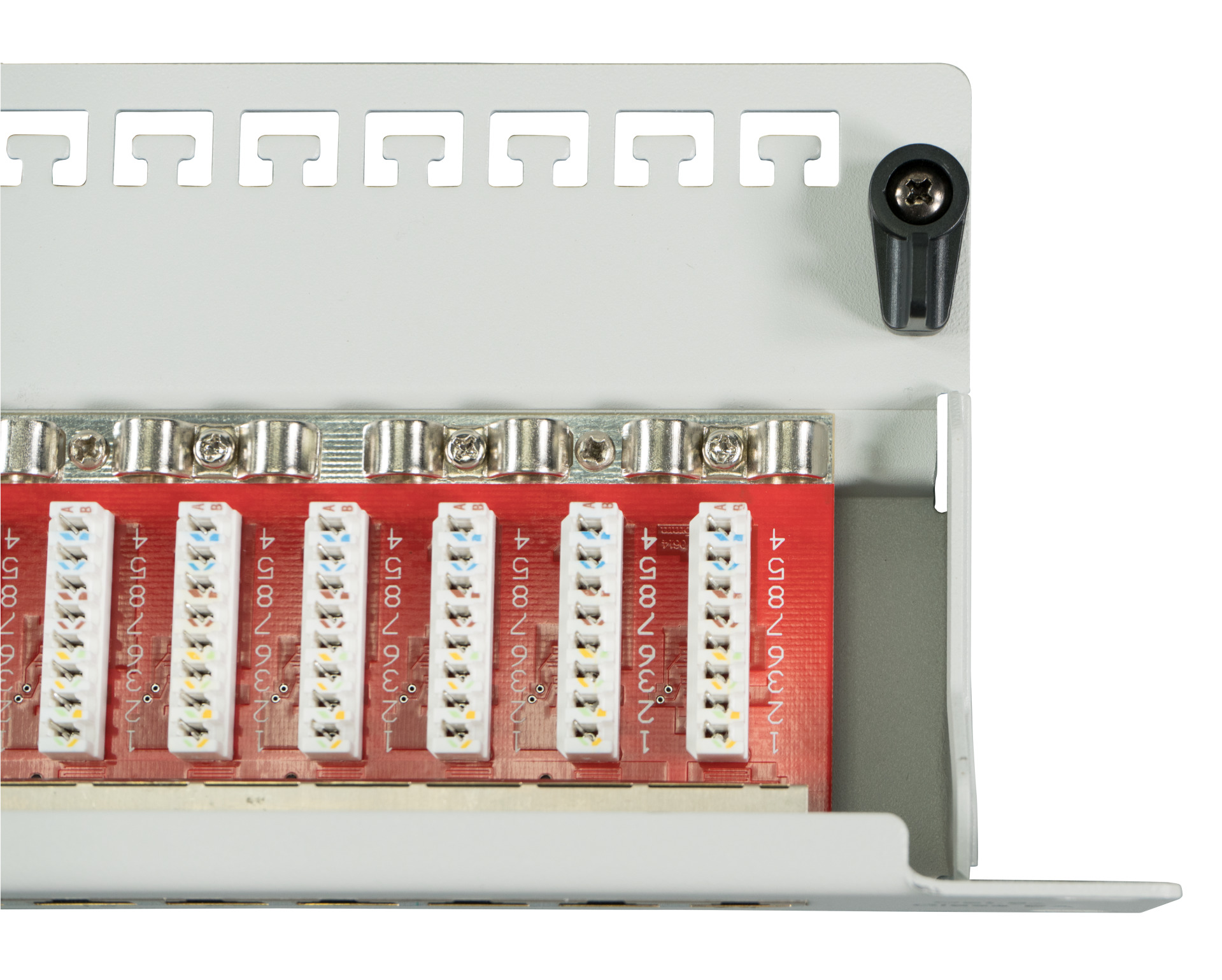

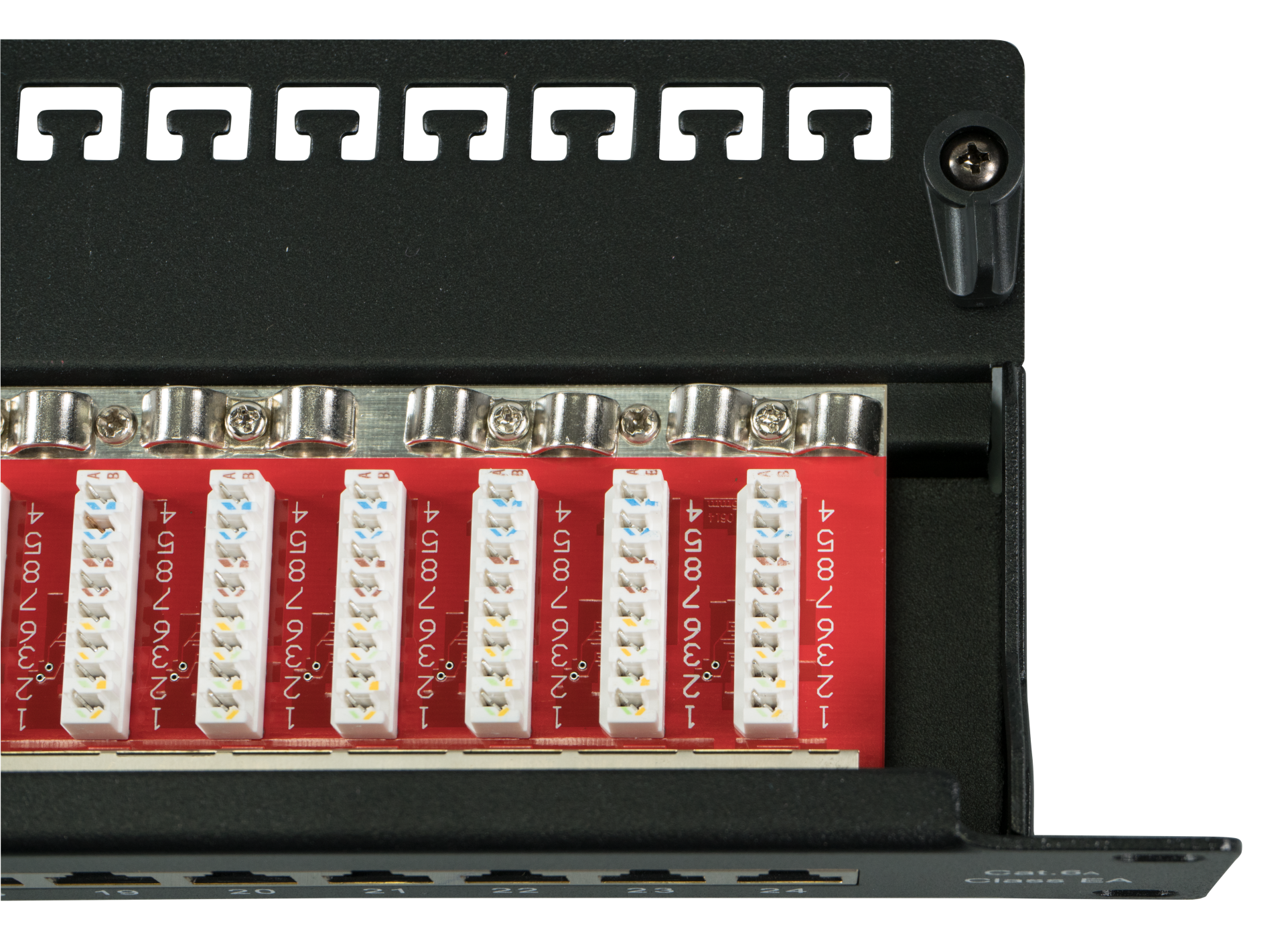

LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Conform to PoE according to IEEE 802.3af, PoE+ according to IEEE 802.3at, 4PPoE according to IEEE 802.3bt
Lid with quick release
With earthing terminal
Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Conform to PoE according to IEEE 802.3af, PoE+ according to IEEE 802.3at, 4PPoE according to IEEE 802.3bt
Lid with quick release
With earthing terminal
Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
Tekniske egenskaber
| Bandwidth: | 500 MHz |
|---|---|
| Category: | 6A (TIA) |
| Colour Code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact coating: | 3 µ" gold plated |
| Contact resistance: | 100 mΩ |
| Cross section: | AWG 24 - AWG 22 |
| Current capacity: | 1.5 A |
| Depth: | 108.2 mm |
| Dielectric Withstanding Voltage: | 750 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 44.5 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | Steel, 1.5mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 30 N |
| Insulation resistance: | 1000 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| POE Standard: |
4PPoE POE POE+ |
| Screened: | True |
| Suitable for number of connectors: | 24 |
| Temperature Range (Operation): | 0 – 70 °C |
| Temperature Range (Storage): | -40 – 85 °C |
| Transmission: | 10 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 482.6 mm |
